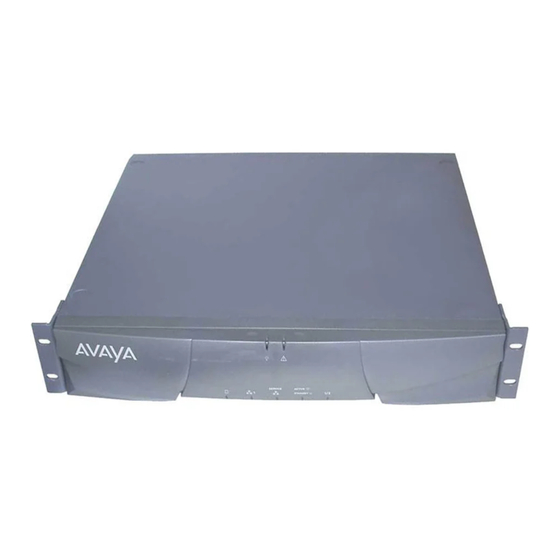

Avaya S8700 Manual

Installing forip connect configurations
Hide thumbs Also See for S8700:
Table of Contents

Advertisement

Quick Links

Download this manual See also: Maintenance Manual, Instruction and Installation Manual
Installing the Avaya™ S8700
Media Server for
IP Connect Configurations
Issue 1
May 2002

Advertisement

Table of Contents
loading

Related Manuals for Avaya S8700

Summary of Contents for Avaya S8700

  • Page 1 Installing the Avaya™ S8700 Media Server for IP Connect Configurations Issue 1 May 2002...
  • Page 2 How to Get Help These compromises may become more acute if you fail to follow For additional support telephone numbers, go to the Avaya Web site: Avaya's recommendations for configuration, operation and use of the http://www.avaya.com/ equipment.
  • Page 3 Technical Service Center at 1-800-242- sion signaling is in violation of Part 68 rules. This equipment returns 2121 or contact your local Avaya representative. If the equipment is answer-supervision signals to the public switched network when: causing harm to the telephone network, the telephone company may •...

  • Page 4: Nmb-003 Du Canada

    Haverhill, MA 01835 USA but many have been registered with the FCC before the SDoC process Attention: Avaya Account Management was available. A list of all Avaya registered products may be found at: E-mail: totalware@gwsmail.com http://www.part68.org/ by conducting a search using “Avaya” as manufacturer.

  • Page 5: Table Of Contents

    Installing the S8700 IP Connect Contents • Installing the Avaya™ S8700 Media Server for IP Connect Configurations • Pre-Installation Setup Downloading License and Avaya Authentication Files RFA Information Requirements for New Installations Go to the RFA Website • Mounting Hardware in the Rack •...
  • Page 6 Unpack and Inspect the Avaya G600 Media Gateway Check Circuit Packs Correct Shipping Errors Set the Carrier Address ID Mount the Avaya G600 Media Gateway in the Rack Mount Two to Four Media Gateways Check AC Power and Ground for Avaya G600 Check AC Power...
  • Page 7 Installing the S8700 IP Connect • Connecting to the Customer’s Network Avaya S8700 Media Server TN799DP Control LAN Installing a TN799DP C-LAN Installing the cables Administering the TN799DP The TN2302AP IP Media Processor IP Media Processor Preparing for the installation...
  • Page 8 Installing the S8700 IP Connect Analog Tie Trunk Example Digital Tie Trunk Example DS1 Tie Trunk Example Collocated DS1 Tie Trunks DS1 Tie Trunks Using T1 Channel Service Unit Auxiliary Connector Outputs (MCC1 and SCC1 media gateways only) Three-Pair and Four-Pair Modularity...
  • Page 9 Installing the S8700 IP Connect Install External Ringing Install the Queue Warning Indicator • Installing and Wiring Telephone Power Supplies 1145B22 Power Supply Important Warning for 1145B2 Power Supply Mounting the 1145B2/1146B2 Power Supply Install the Wall-Mounting Plates Mount the 1146B2 Power Distribution Unit...
  • Page 10 Media Server Web Interface Connected to the services port Connected to the customer network Avaya Site Administration Accessing the Avaya S8700 Media Server Remotely over the Network Accessing the Avaya S8700 Media Server Remotely over a Modem Installing Avaya Site Administration...
  • Page 11 Test Emergency Transfer (S8700 Multi-Connect only) Test Remote Access Interface Test Terminating Trunk Transmission Test the C-LAN Connectivity Test Stratum 3 Clock (if used—S8700 Multi-Connect only) Check for Red LEDs Verify Timing to the Media Server Resolve Alarms • Troubleshooting an Installation...
  • Page 12 Installing the S8700 IP Connect May 2002...

  • Page 13: Installing The Avaya™ S8700 Media Server For Ip Connect Configurations

    Installing the Avaya™ S8700 Media Server for IP Connect Configurations This procedure is for installing a new Avaya™ S8700 Media Server for IP Connect Configurations. As part of the procedures for configuring the various pieces of hardware, you use 3 administration interfaces: media server web interface, Avaya Site Administration interface, and a Linux command line interface.

  • Page 14: Pre-Installation Setup

    Downloading License and Avaya Authentication Files Use the License File Remote Feature Activation (RFA) to obtain the license and Avaya authentication files. RFA is a Web-based application, available to Avaya employees and authorized Business Partners, that enables the creation and deployment of license files for all switches.

  • Page 15: Rfa Information Requirements For New Installations

    Installing the S8700 IP Connect The Avaya authentication files enable Access Security Gateway (ASG) for the services logins on the S8700 Media Server. ASG uses a challenge/response protocol to confirm the validity of a user, reducing the opportunity for unauthorized access.

  • Page 16: Mounting Hardware In The Rack

    Complete the information necessary to create and deliver license and Avaya authentication files. Mounting Hardware in the Rack Refer to Getting Started with the Avaya™ S8700 Media Server for IP Connect Configurations. for information on mounting the hardware in the rack. May 2002...

  • Page 17: Configuring The Hardware In The Rack

    • Configure the Media Servers Once the hardware is installed you must configure the two servers, install the license and Avaya authentication files, and test the connectivity to the customer’s LAN. You configure the first server, verify its operation, then configure the second server and verify its operation.

  • Page 18: Configure Server 1

    Installing the S8700 IP Connect Configure Server 1 This section covers the following tasks: ‘‘Copy license and Avaya authentication files from laptop to server 1’’ on page 24 • • ‘‘Install the license and Avaya authentication files’’ on page 25 The following administration uses the services laptop computer and the media server web interface.
  • Page 19 Installing the S8700 IP Connect Type 192.11.13.6 in the Location (Netscape) or Address (Internet Explorer) field to bring up the media server web interface. NOTE: The first time you attempt to log in, you get a web page asking to install a security certificate.

  • Page 20: Using Netscape

    Installing the S8700 IP Connect Using Netscape Follow the instructions in the New Site Certificate wizard. Select "Accept the certificate for this session" May 2002...

  • Page 21: Using Internet Explorer

    Installing the S8700 IP Connect Using Internet Explorer Follow the instructions in the Security Alert wizard. Log in as craft. When asked "Do you want to suppress alarms?", select "yes." NOTE: The menu choices are in the left panel. Scroll down the menu to Server Configuration and Upgrades...
  • Page 22 Installing the S8700 IP Connect Select Avaya S8700 Media Server for IP Connect Configurations and click Continue. Click through the Review Notices to get to the Set Server Identities page. NOTE: Most of the fields are populated with default settings. Do not change the defaults unless the customer’s network administrator requests it (refer to the filled-out Job Aid entitled...

  • Page 23: Install License And Avaya Authentication Files

    Install License and Avaya Authentication Files Installing the license and Avaya authentication files is a 2-step process: ‘‘Copy license and Avaya authentication files from laptop to server 1’’ on page 24 ‘‘Install the license and Avaya authentication files’’ on page 25...

  • Page 24: Copy License And Avaya Authentication Files From Laptop To Server 1

    When all the files to be uploaded show in the fields, click Load File to upload all the files to the server. Once the license and Avaya authentication files are uploaded to the server, you must install them. May 2002...

  • Page 25: Install The License And Avaya Authentication Files

    Install the license and Avaya authentication files CAUTION: If you are upgrading the software, you are prompted to install the license and Avaya authentication files during that process. DO NOT install the license and Avaya authentication files using the following procedure.

  • Page 26: Verify Server 1 Connection To Customer's Lan

    Connect a customer-supplied CAT5 cable from server 1, port Eth0, to the customer’s LAN. Refer to Getting Started with the Avaya™ S8700 Media Server for IP Connect Configurations. Click Execute Ping.

  • Page 27: Test Server 1 Leds

    Set SNMP Traps The following administration uses the computer used to access the Avaya S8700 Media Server and uses the media server web interface. Refer to the filled-out Job Aid entitled Pre-Installation Network Worksheet—S8700 IP Connect for host names, IP addresses, and community strings assigned to the UPSs and Ethernet switch.

  • Page 28: Verify Date And Time

    Unplug the laptop from server 1. Connect Duplication Cables Connect the crossover CAT5 cable and fiber optic cable between the 2 servers. Refer to Getting Started with the Avaya™ S8700 Media Server for IP Connect Configurations. for a connectivity guide.
  • Page 29 Installing the S8700 IP Connect Click Configure Server to open the first page of the Configure Server wizard. Select Avaya S8700 Media Server for IP Connect Configurations and click Continue. Click through the Review Notices to get to the Set Server Identities page.

  • Page 30: Verify Server 2 Connection To Customer's Lan

    Connect a customer-supplied CAT5 cable from server 2, port 1(Eth0), to the customer’s network. Refer to Getting Started with the Avaya™ S8700 Media Server for IP Connect Configurations. Have the customer representative type in the name, if DNS is administered, or IP address of a computer on the network to verify that the server is connected to the customer’s...

  • Page 31: Configure The Upss

    These steps are specifically for the Powerware 9125 UPS equipped with a ConnectUPS MX SNMP module. These steps use the default addresses and subnet masks for the S8700 Media Server for Multi-Connect Configuration. If other addresses are to be used they must be substituted when performing these steps.
  • Page 32 Installing the S8700 IP Connect Administer the emulation program port settings: • 9600 baud rate No parity • • 8 bits 1 stop bit • Press The Main Configuration screen appears. If the Main Configuration screen Enter. does not appear, press again.

  • Page 33: Configure The Cajun Ethernet Switch (If Used)

    Installing the S8700 IP Connect Repeat steps 5 thru 18 for the UPS 2 SNMP module. Use the following address and netmask information: UPS IPaddress / Subnet mask = 198.152.255.239 / 255.255.255.0 • • Default Gateway IP address = 198.152.255.202 Host Table trap receiver IP address = 198.152.255.202...

  • Page 34: Customizing The Active Server

    Customizing the Active Server Use Avaya Site Administration to administer the media server using the MultiVantage software. If you do not have Avaya Site Administration 1.11 on your computer or laptop, you must download it from the media server and install it.

  • Page 35: Set Up Avaya Site Administration-Over The Network

    Click on File > New > Switch. Follow the Add Switch wizard to build a switch record for the current customer. Give the switch record a name that indicates it will work with all Avaya S8700 • media servers, such as S8700-Service-Port Select Network Connection as the connection method •...

  • Page 36: Add Media Gateways

    Installing the S8700 IP Connect Type reset system 4 and press to get the Avaya MultiVantage software to read Enter the copied translations. Add Media Gateways NOTE: Do this procedure only if the translations were not input earlier. The following administration uses the services laptop computer connected to the active media server and uses Avaya Site Administration.

  • Page 37: Administer The Ip Server Interface

    Installing the S8700 IP Connect Administer the IP Server Interface NOTE: Do this procedure only if the translations were not input earlier. The following administration uses the services laptop computer connected to the active media server and uses Avaya Site Administration.
  • Page 38 Installing the S8700 IP Connect Verify that all the other fields are populated. Repeat steps 6-8 for each IPSI. Type save translations and press Enter to save the IPSI translations to the hard drive. Close all programs on the services laptop.

  • Page 39: Installing The Avaya G600 Media Gateway

    Floor plans and equipment layouts for typical system installations are provided in the Overview of the Avaya™ S8700 Media Server for IP Connect Configurations. Avaya G600 Media Gateways are typically installed in the same equipment room as the Avaya S8700 Media Server rack hardware; however, they can be installed in another location, including another state or country.
  • Page 40 Installing the S8700 IP Connect Avaya G600 Media Gateways installed next to the media server rack 100bT LINK LINK LINK TRMT TRMT TRMT 100bT LINK LINK LINK TRMT TRMT TRMT CONSOLE 100bT LINK LINK LINK TRMT TRMT TRMT 100bT LINK...

  • Page 41: Check Customer's Order

    Gaskets, and two circuit pack slot labels. Install the label for the media gateway that works with the Avaya S8700 Media Server (700207111) above the circuit packs. (This label has an all-gray indicator for slot 1.) Discard the label for the media gateway that works with the Avaya S8100 Media Server (700207806).
  • Page 42 Installing the S8700 IP Connect Equipment packed with a single media gateway qrdlprts LJK 022302 Figure notes Media Gateway with 650A IP Media Processor adapter power supply (may be pre-installed) AC power cord (NEMA 5-15P IP Server Interface adapter or IEC 320) or international...

  • Page 43: Check Circuit Packs

    Ensure all circuit packs are fully inserted into the proper slots according to the Customer Service Document (CSD). Report any discrepancies in circuit pack type or quantity to your Avaya representative. ‘‘Comcodes for equipment used with Avaya G600’’ on page 43 lists the comcodes for equipment used with the Avaya G600 Media Gateway.
  • Page 44 Installing the S8700 IP Connect Comcodes for equipment used with Avaya G600 — Continued Comcode Description Optional 102631413 259A Adapter for C-LAN 700017916 Rack Mounting Template 700018021 EMI Gasket 700017924 TDM Cable and EMI Gasket Installation Instructions 848627188 Fan Assembly...

  • Page 45: Correct Shipping Errors

    Installing the S8700 IP Connect Comcodes for equipment used with Avaya G600 — Continued Comcode Description Optional 105514756 3C1S Analog Line Protector - Solid State 102904893 4B1C Carbon Block with Heat Coil 104401856 4B1E-W Wide Gap Gas Tube w/Heat Coil...
  • Page 46 Installing the S8700 IP Connect Fan assembly removal fndpremv LJK 102600 Verify and, if necessary, set the carrier address ID for each media gateway as shown in ‘‘Setting RMC carrier address ID’’ on page 46. "A" settings are for the media gateway in the A location, "B"...

  • Page 47: Mount The Avaya G600 Media Gateway In The Rack

    WARNING: When handling circuit packs or any components of the Avaya G600, always wear an authorized wrist ground strap connected to the ground connector provided on the system media gateway. Store circuit packs during media gateway installation such that they will not be damaged by electrostatic discharge.
  • Page 48 ‘‘Rack hole spacing and first mounting screws placement’’ on page DANGER: Use lifting precautions! An empty Avaya G600 Media Gateway weighs 16–18 kg (35–39 lbs). Lift the empty media gateway and slide the key-hole slots on the mounting brackets onto the two mounting screws.
  • Page 49 Installing the S8700 IP Connect Rack hole spacing and first mounting screws placement Figure notes Rack mounting hole spacing Mounting screw May 2002...
  • Page 50 Installing the S8700 IP Connect Mounting the media gateway w er indprac2 KLC 101901 Install and tighten the two top mounting screws. Install and tighten the remaining screws. See ‘‘Rack hole spacing and first mounting screws placement’’ on page NOTE: Follow the same steps to install the RMC with mounting bracket in the medial position.

  • Page 51: Mount Two To Four Media Gateways

    KLC 101901 Reinstall the circuit packs and power supply. Proceed to ‘‘Check AC Power and Ground for Avaya G600’’ on page Mount Two to Four Media Gateways When mounting more than one media gateway in a rack, mount Media gateway B directly above media gateway A •...

  • Page 52: Check Ac Power And Ground For Avaya G600

    After the media gateways are mounted and cabled in the rack, proceed to ‘‘Check AC Power and Ground for Avaya G600’’ on page Check AC Power and Ground for Avaya G600 WARNING: The equipment room AC power and ground wiring must be performed by a qualified electrician and must conform to Article 250 of the NEC, NFPA 70, or the applicable electric code in the country of installation.

  • Page 53: Check Ac Power

    Installing the S8700 IP Connect Check AC Power Each RMC uses an auto-ranging (85 to 264 VAC) power supply, 47 to 63 Hz, 330 Watts, 4.5 Amps (100 to120 VAC) or 2.3 Amps (200 to 240 VAC), at 500 VoltAmps (VA).

  • Page 54: Approved Floor Grounds

    Installing the S8700 IP Connect Acceptable Water Pipe — A metal underground water pipe, at least 1/2 inch (1.3 cm) in diameter, in direct contact with the earth for at least 10 feet (3 m). The pipe must be electrically continuous (or made electrically continuous by bonding around insulated joints, plastic pipe, or plastic water meters) to the point where the protector ground wire connects.

  • Page 55: Uninterruptible Power Supply

    CAUTION: The major alarm contacts are designed to be connected ONLY to a UPS that can indicate that it is on backup power. For most non-Avaya UPSs, you should not use the major external device leads. Connect the UPS to an electrical outlet capable of handling the power requirements of the media gateway: 100 VAC, 4.5 Amps...

  • Page 56: Connect Media Gateway Grounds And Other Grounds

    ‘‘Single-media gateway RMC grounding’’ on page 56 for an Avaya G600 single Media Gateway, or ‘‘Multi-media gateway RMC grounding’’ on page 57 two or more Avaya G600 Media Gateway. Single-media gateway RMC grounding cadpgnd1 LJK 102500 Figure notes 10 AWG (#25) (6 mm...
  • Page 57 Installing the S8700 IP Connect Multi-media gateway RMC grounding cadpgnd2 LJK 102600 Figure notes 10 AWG (#25) (6 mm ) wire 6 AWG (#40) (16 mm ) ground to coupled bonding wire from single-point ground conductor (CBC). block to the approved building...

  • Page 58: Install Coupled Bonding Conductor

    Installing the S8700 IP Connect Install Coupled Bonding Conductor The Coupled Bonding Conductor (CBC) provides mutual inductance coupling between the CBC and the telephone cables exposed to lightning. The conductor can be a 10 AWG (#25) (6 ) wire tie wrapped to the exposed cables, a metal cable shield around the exposed cables, or 6 spare pairs from the exposed cable.

  • Page 59: Cabling The Media Gateways

    You must also connect CAT5 cables to the appropriate slots on the back of the media gateways. NOTE: TDM/LAN bus terminators are factory installed on a single Avaya G600 Media Gateway. ‘‘Media gateway A TDM/LAN bus terminators’’ on page 59 Media gateway A TDM/LAN bus terminators...

  • Page 60: Cabling 2 Media Gateways

    Installing the S8700 IP Connect Cabling 2 Media Gateways Remove the bottom panel from media gateway B. If not already removed, remove the fan assemblies from media gateways A and B. Remove the right TDM/LAN bus terminator from media gateway A, and install it at the left end of the TDM/LAN bus on media gateway B.
  • Page 61 Installing the S8700 IP Connect TDM/LAN bus cable routing slot plate removal Figure notes Media gateway B routing Media gateway A routing slot plate slot plate Pull open the EMI Gasket, and pass the TDM/LAN bus cable through the routing slots in both media gateways.
  • Page 62 Installing the S8700 IP Connect TDM/LAN bus cable routed through the media gateway Figure notes Top media gateway routing slot plate TDM/LAN bus cable reversed Bottom media gateway routing slot plate reversed May 2002...

  • Page 63: Cabling 3 Media Gateways

    Installing the S8700 IP Connect Install the lower terminator of the TDM/LAN bus cable on right end of TDM/LAN bus in media gateway A. WARNING: Make sure the arrows on the back of the cable terminators point upward. Install the upper terminator of the TDM/LAN bus cable on the right end of the TDM/LAN bus media gateway B.

  • Page 64: Install Circuit Pack Adapters

    Installing the S8700 IP Connect Pull open the EMI Gasket, and pass the TDM/LAN bus cable through the routing slots in both media gateways. Push the free end of the EMI Gasket back in place. See ‘‘TDM/LAN bus cable routed through the media gateway’’ on page Install the lower terminator of the TDM/LAN bus cable on right end of TDM/LAN bus in media gateway C.

  • Page 65: Connecting Media Gateways To The Phone Network

    ‘‘Example MDF Connections (Avaya G600 Media Gateway)’’ on page 66 shows a detailed example of the Avaya G600 Media Gateway cables connecting media gateways and satellite closets to the Main Distribution Frame (MDF). The figure shows the cross-connections for one example station circuit.
  • Page 66 Installing the S8700 IP Connect Example MDF Connections (Avaya G600 Media Gateway) Trunk Circuit Pack Line Circuit Pack cadlmdf KLC 030602 Figure notes Rear of Media Gateway Auxiliary Cabinet (Yellow Field) Main Distribution Frame (MDF) White Field Port Distribution Field (Purple Field)

  • Page 67: Mdf Cross-Connect Fields

    250 feet (76 m) of the MDF. Main Distribution Frame The preferred location of the Main Distribution Frame (MDF) is directly behind the Avaya G600 Media Gateway rack(s). ‘‘Typical 110A-Type Terminal Blocks (Avaya G600)’’ on page shows a typical installation using 110A-type terminal blocks.
  • Page 68 Installing the S8700 IP Connect Typical 110A-Type Terminal Blocks (Avaya G600) cadlmdf2 KLC 030602 Figure notes Avaya G600 Media Gateways in rack Station Distribution Field Z113A Cable Slack Manager Port Distribution Field 25-Pair Cable to Media Gateway Trunk/Auxiliary Field Station Cables...

  • Page 69: Main Distribution Frame Labels

    Installing the S8700 IP Connect Main Distribution Frame Labels ‘‘Label Graphic Symbols and Nomenclature’’ on page 69 shows the graphic symbols used on labels for the system, cross-connections, information outlets, and cables. The labels are color-coded to identify system wiring: —...

  • Page 70: Install Patch Panels

    Installing the S8700 IP Connect Install Patch Panels Patch panels are arrays of RJ45 jacks and associated B25A cabling to accommodate 2-wire, 24-port DCP/analog port boards and 8-port analog trunk boards. They are mounted either below or above the media gateway stack. They cannot be mounted in between media gateways.

  • Page 71: Install Equipment Room Hardware For Avaya G600

    See DEFINITY Communications System Generic 1 and Generic 3 Main Distribution Field Design (555-230-630) for more information. Cross-connect the Media Gateway to the Patch Panels Cross-connect the port circuit packs to the Avaya G600 patch panels (or other standard 110A cross-connect equipment). See ‘‘Example cross-connect field patch panel connections’’ on page...

  • Page 72: Allowable Circuit Packs

    Avaya G600. (‘‘Non-Allowable Circuit packs and Circuit Modules’’ on page 74 lists the circuit packs that cannot be used with Avaya G600) Allowable Circuit Packs and Circuit Modules Apparatus code Name...
  • Page 73 Installing the S8700 IP Connect Allowable Circuit Packs and Circuit Modules — Continued Apparatus code Name Allowable TN753/B Direct Inward Dialing Trunk TN754/B/C Digital Line 4-Wire DCP TN760B/C/D/E Tie Trunk TN762/B Hybrid Line TN763B/C/D Auxiliary Trunk TN767B/C/D/E DS1 Interface - T1, 24 Channel...

  • Page 74: Non-Allowable Circuit Packs

    VAL Announcement TN2793 Analog Line Non-Allowable Circuit Packs ‘‘Non-Allowable Circuit packs and Circuit Modules’’ on page 74 lists the circuit packs that cannot be used with the Avaya G600. Non-Allowable Circuit packs and Circuit Modules Apparatus code Name Allowable 982LS...
  • Page 75 Installing the S8700 IP Connect Non-Allowable Circuit packs and Circuit Modules — Continued Apparatus code Name Allowable TN572 Switch Node Clock TN573B Switch Node Interface TN574 DS1 Converter - T1, 24 Channel TN577 Packet Gateway TN726/B Data Line TN735 MET Line...

  • Page 76: Circuit Pack Installation

    Circuit Pack Slot Loading Check the reinstalled circuit packs. All of the circuit pack slots in the Avaya G600 are “universal slots.” Any slot can contain any type of port circuit pack except that the TN2312AP IP Server Interface circuit pack must be installed in slot 2 of media gateway A.
  • Page 77 Installing the S8700 IP Connect Avaya G600 Media Gateway and slot numbering 1 2 3 4 5 7 8 9 10 Power scdlslot LJK 031102 Circuit pack installation order (loading) Function Apparatus code Load RMC from Notes IP Server Interface...
  • Page 78 Installing the S8700 IP Connect Circuit pack installation order (loading) — Continued Function Apparatus code Load RMC from Notes CO Trunk TN747B, Left TN465C, TN2199, TN2147C, TN2138, TN438B DID Trunk TN753, TN2139, Left TN2146, TN436B, TN459B Tie Trunk TN760E, Left...
  • Page 79 Installing the S8700 IP Connect Example cross-connect field patch panel connections May 2002...

  • Page 80: Off-Premises Circuit Protection

    Installing the S8700 IP Connect Off-premises Circuit Protection Protection from hazardous voltages and currents is required for all off-premises (out of building) trunks, lines, and terminal installations. Both over-voltage protection (lightning, power induction, and so forth) and sneak current protection are required. Sneak current protectors must be either UL listed/CSA certified, or must comply with local safety standards.
  • Page 81 Installing the S8700 IP Connect Model 507B sneak fuse panel Sneak Current Protector 507B Figure notes 507B sneak current protector (price 25-pair female connector (Out) element code: comcode (comcode 846300994) 107435091 220029 fuses (inside panel). Use a 25-pair male connector (In)
  • Page 82 Installing the S8700 IP Connect ‘‘Sneak fuse connector pinout’’ on page 82 is a pinout of the cable wiring and associated fuse numbers. Sneak fuse connector pinout Connector Pin Pair/Fuse Numbers Number 26/1 27/2 28/3 29/4 30/5 31/6 32/7 33/8...

  • Page 83: Set Ringing Option For Avaya G600

    Installing the S8700 IP Connect Set Ringing Option for Avaya G600 Ringing option selection evdlring LJK 031102 Figure notes Attachment lever Ringing option switch and setting label NOTE: Look at the label on the side of the power supply to see how to set the switch.
  • Page 84 Installing the S8700 IP Connect May 2002...

  • Page 85: Connecting To The Customer's Network

    Avaya S8700 Media Server In a typical configuration you connect to the network through a port on the back of the Avaya S8700 Media Server, using a standard CAT5 cable with RJ45 connectors on each end. Typically for an IP Connect configuration, you connect through port 1 (Eth0). (See ‘‘CAT5 cable...

  • Page 86: Tn799Dp Control Lan

    A source board for downloading firmware to circuit packs having the "P" designation. An IP interface for adjuncts such as Intuity Audix • • An IP interface for DCS connection with another Avaya configuration. See the Avaya MultiVantage Solutions Hardware Guide for more information. Installing a TN799DP C-LAN Installing the cables Install a cable from the cabinet to the network through a hub or 110 (purple) wall field as required.

  • Page 87: Administering The Tn799Dp

    259A Connector To network DW8 Cable TN799DP Pinout Peripheral Backplane Pin 25-Pair Wire Color Lead Name Connector Pin White/Orange Orange/White White/Green Green/White Administering the TN799DP For administration, refer to the Administration for Network Connectivity for Avaya MultiVantage Software. May 2002...

  • Page 88: The Tn2302Ap Ip Media Processor

    The TN2302AP IP Media Processor provides on interface between a customer’s IP network and Avaya media gateways. This interface is used to transport voice and FAX between the media gateways and IP devices such as H.323 V2 compliant endpoints and other Avaya telephone systems.

  • Page 89: Check Your Shipment

    NOTE: Get this information from the network administrator or refer to the job aid entitled Pre-Installation Network Worksheet—S8700 IP Connect or Pre-Installation Network Worksheet—S8700 Multi-Connect. Check your shipment When the order arrives at your site, check the contents (see ‘‘Required Hardware’’...

  • Page 90: Installing The Tn2302Ap Ip Media Processor

    Installing the S8700 IP Connect TN2302AP Amphenol Adapter addfipm2 KLC 083000 Figure notes Amphenol connector to backplane To network connector corresponding to 9-pin connector for TN2302AP slot maintenance Installing the TN2302AP IP Media Processor Connect the cables for TN799DP Determine into which port slots you are putting the TN799DP C-LAN circuit packs.

  • Page 91: Install The Circuit Packs

    To properly seat the circuit pack, push firmly on the front of the faceplate until the latch reaches the bottom rail of the carrier. Then close the latch until it is fully engaged. Use Avaya Site Administration for the administration. Insert the TN799DP circuit pack into the port slot identified earlier.

  • Page 92: Initial Administration Steps For C-Lan And Ip Media Processor

    TRMT Initial Administration Steps for C-LAN and IP Media Processor NOTE: Refer to the Administration for Network Connectivity for Avaya MultiVantage Software for specific information. Type change node-names and press Enter On page 2, type in the node names and IP addresses for the TN799DP and the TN2302AP.
  • Page 93 Installing the S8700 IP Connect change node-names ip Page 1 of IP NODE NAMES Name IP Address Name IP Address cognac 172.16 .19 .2 default medpro 192.168.1 prowler 192.168.1 prowler1 172.16 .19 .221 prowler2 172.16 .19 .222 prowler3 172.16 .19 .223 prowler4 172.16 .19 .224...
  • Page 94 Press to save the information and effect the new settings. Enter Refer to the Administration for Network Connectivity for Avaya MultiVantage Software for more information on these administration steps and for the steps to administer IP Softphones and H.323 trunks.

  • Page 95: Test The External Connection To The Lan

    Installing the S8700 IP Connect Test the External Connection to the LAN To test the external IP connections, ping the C-LAN or IP Media Processor server and ping a known computer connected to the network. If everything is configured correctly, the Result column on the Ping Results screen reads pass.

  • Page 96: Tn2501 Voice Over The Lan (Val)

    Installing the S8700 IP Connect TN2501 Voice over the LAN (VAL) The TN2501 Voice over the LAN (VAL) is an integrated announcement circuit pack that • offers up to 1 hour of announcement storage capacity. • requires shorter backup and restore times.

  • Page 97: Installing Val

    Installing the S8700 IP Connect Installing VAL NOTE: To install a TN2501AP, make sure that the system is enabled for TN2501AP (VAL) boards. If the Maximum VAL boards field on the Customer Options screen is set to 0, then you need to obtain and install a new license file before you can install the card.
  • Page 98 Installing the S8700 IP Connect Faceplate of VAL circuit pack LINK TRMT 100M May 2002...

  • Page 99: Installing The Tn2501Ap Circuit Pack

    Installing the S8700 IP Connect Backplane Adapter addfipm2 KLC 083000 Figure notes Amphenol connector attaches to the RJ45 LAN cable connection back of the media gateway, • 10 Mbps uses Category 3 corresponding to the TN2501AP cable. circuit pack slot.

  • Page 100: Configuring The Multivantage Software For The Tn2501Ap

    • ‘‘Test the IP connections’’ on page 103. Administer the IP connections Use Avaya Site Administration for this administration. Verify circuit pack location Type list configuration board board-location and press Ent er The System Configuration report appears. Use this report to ensure that the MultiVantage software recognizes the TN2501AP circuit pack after it is latched in the carrier slot.
  • Page 101 Enter the IP Address. Get this information from the network administrator or refer to the job aid entitled Pre-Installation Network Worksheet—S8700 IP Connect or Pre-Installation Network Worksheet—S8700 Multi-Connect. Press to save the changes.
  • Page 102 Installing the S8700 IP Connect Administer the IP interfaces Type change ip-interfaces and press E nte r The IP Interfaces screen appears. Use this screen to administer an IP interface, which associates the circuit pack with an IP address. change ip-interfaces...

  • Page 103: Test The Ip Connections

    Installing the S8700 IP Connect Administer the data module Type add data-module extension and press E nte r The Data Module screen appears. Use this screen to administer the data module that is associated with the TN2501AP ethernet port. add data-module 30006...

  • Page 104: Avaya™ R300 Remote Office Communicator

    Installing the S8700 IP Connect Avaya™ R300 Remote Office Communicator For information on the Avaya™ R300 Remote Office Communicator, refer to the documentation that comes with the R300 equipment. May 2002...

  • Page 105: Installing And Wiring Telephones

    Installing the S8700 IP Connect Installing and Wiring Telephones The wiring procedures are the same for most Avaya telephones and other equipment. This task list provides wiring examples of similar installation procedures. These are examples only; actual wiring procedures may vary at each site.

  • Page 106: Connect Telephones

    ‘‘Connectable Telephones and Consoles’’ on page 106 • ‘‘Connecting a Typical Telephone’’ on page 107 Connectable Telephones and Consoles The following telephones and consoles can connect to any Avaya media gateway. Connectable Telephone and Consoles Telephone and Console Models Type...

  • Page 107: Connecting A Typical Telephone

    Installing the S8700 IP Connect Connectable Telephone and Consoles — Continued Telephone and Console Models Type 607A1 CallMaster V ACD Console Digital XM24 Expansion Module Expansion Softphones: Internet Protocol (IP) Netmeeting H.323 IP Softphone CentreVu IP Agent Softconsole Connecting a Typical Telephone The 302C1/D Enhanced Attendant Console is used to describe a telephone connection typically used with the 84xx (4-wire) telephones.

  • Page 108: Connect Adjunct Power

    Installing the S8700 IP Connect 302D to 4-wire DCP Wiring TXT5 TXR5 PXT5 PXR5 302cwire RBP 040596 Figure notes 302D Attendant Console -48 VDC From Adjunct Power 4-wire Digital Line Circuit Pack Ground From Adjunct Power (Position 1C02) Connect Adjunct Power The 400B2 adapter is convenient for connecting local -48 VDC power to a modular plug.

  • Page 109: Connect An Analog Station Or 2-Wire Digital Station

    Choose a port circuit on the port circuit pack, for example port 3. Install cross-connect jumpers to connect the pins from the 2-wire digital station to the appropriate pins on the port circuit pack. Administer using Administrator’s Guide for Avaya MultiVantage Software. May 2002...
  • Page 110 Installing the S8700 IP Connect 2500-Type Analog Telephone Wiring 2500wire RBP 071996 Figure notes 2500-Type Analog Station TN2183 Analog Line Circuit Pack, Position 1C01 Port Circuit Pack and Telephone Pin Designations 8510T BRI (with Pin on 4-wire: 2-wire: 302D, adjunct...

  • Page 111: Analog Tie Trunk Example

    Installing the S8700 IP Connect Analog Tie Trunk Example This example shows how to connect analog tie trunk wiring from one Avaya™ S8700 Media Server for IP Connect Configurations to another one or any other Avaya configuration. Set the option switches on the port circuit pack (such as TN760).

  • Page 112: Ds1 Tie Trunk Example

    Installing the S8700 IP Connect Digital Tie Trunk Wiring Figure notes External Trunk LO (Balanced Output Pair) Digital Trunk Circuit Pack, Position 1C06 LI (Balanced Input Pair) DS1 Tie Trunk Example Digital Signal Level 1 (DS1) tie trunks provide a 1.544 Mbps (T1) or 2.048 Mbps (E1) digital data service between two collocated configurations or between the configuration and a data network.

  • Page 113: Ds1 Tie Trunks Using T1 Channel Service Unit

    113. NOTE: A 3150 CSU is shown, a 120A Integrated CSU (ICSU) may be used. Contact your Avaya representative for maximum cabling distances for the 31xx series CSU or the 120A ICSU. Typical Connections to Channel Service Unit POWER...
  • Page 114 Installing the S8700 IP Connect DS1 Cables Connector Cable Description and Usage C6C connector cable 50-foot (15.2 m) shielded cable equipped with a 50-pin male connector on one end and a 15-pin male connector on the other end. Use this cable to connect a DS1 tie trunk circuit pack to a Channel Service Unit (CSU).

  • Page 115: Auxiliary Connector Outputs (Mcc1 And Scc1 Media Gateways Only)

    Installing the S8700 IP Connect Auxiliary Connector Outputs (MCC1 and SCC1 media gateways only) Connect a 25-pair cable from the AUX connector on the back of the expansion control carrier to a connecting block on the trunk/auxiliary field. ‘‘Auxiliary Lead Appearances at AUX Connector’’ on page 116 shows the Control Carrier outputs cable pinouts.
  • Page 116 Installing the S8700 IP Connect Auxiliary Lead Appearances at AUX Connector Color Pinouts Output Power W-BL Major BL-W Minor* W-BR BR-W R-BL BL-R Not Connected R-BR Not Connected BR-R Not Connected BK-BL Emergency BL-BK Transfer Relay Power BK-O O-BK BK-G...
  • Page 117 Installing the S8700 IP Connect Auxiliary Lead Appearances at AUX Connector — Continued Color Pinouts Output Power Y-BR AUX Power BR-Y V-BL BL-V Not Connected Ext Alarm A** Ext Alarm Return V-BR Not Connected BR-V INADS Tip INADS Ring Color designation is the main wire color and the color of the stripe on the wire. The...

  • Page 118: Three-Pair And Four-Pair Modularity

    Installing the S8700 IP Connect Port Circuit Pack and Telephone Pin Designations — Continued 8510T BRI (with Pin on 4-wire: 2-wire: 302D, adjunct Analog Modular 8400-Series, 8400-Series, speaker Station, Plug 606A1 603E phone) Modem Connection 4-pin -48VDC (-48VDC) (-48VDC) -48VDC...

  • Page 119: Adjunct Power Connection Locations

    Installing the S8700 IP Connect 3-Pair and 4-Pair Modularity Figure notes Port Circuit Pack Adjunct Power Media Gateway Connector Pins Output From Information Outlet (3-Pair Modularity) (4-Pair Modularity) Main Distribution Frame (MDF) Pins Voice or Data Terminal Pins (3-Pair Modularity)

  • Page 120: Attendant Console Example

    Installing the S8700 IP Connect Example Adjunct Power Connections cydfadjn KLC 020599 Figure notes Typical Display Telephone 100P6A Patch Cord or Jumpers Individual Power Supply (Such as Media Gateway Side of Main 1151A1 or 1151A2) Distribution Frame (MDF) Information Outlet (Modular Jack)

  • Page 121: Auxiliary Power

    Installing the S8700 IP Connect Attendant Console Cabling Distances 24 AWG Wire 26 AWG Wire (0.5106 mm (0.4049 mm Enhanced Attendant Console (302D) Feet Meters Feet Meters With Selector Console Phantom powered Locally powered 5000 1524 3400 1037 Without Selector Console...

  • Page 122: Hard-Wire Bridging

    Dual Wiring of Two-Wire and Four-Wire Endpoints Do not simultaneously wire a two-wire and four-wire endpoint to the same equipment location in an MDF. The Avaya configurations use separate circuit packs to interface two- and four-wire endpoints. Install the Attendant Console Install the Attendant Console and connect the modular cord to the information outlet.

  • Page 123: Install The 26B1 Selector Console

    Connect an external alarm output through pins 48 and 23 of the AUX connector. See ‘‘Alarm Output at AUX Connector’’ on page 123. Note which device connects to which alarm and give this information to your Avaya representative for troubleshooting purposes. Connect emergency transfer power and auxiliary power as shown in ‘‘Emergency...

  • Page 124: Connect Power Distribution Unit External Alarm Wires

    BOD alarm leads be connected to the minor alarm device. Connect the major and minor alarm devices to the appropriate cross-connect pins on the MDF. Administer the alarms using the Administrator’s Guide for Avaya MultiVantage Software. May 2002...
  • Page 125 Installing the S8700 IP Connect External Alarm Connector Pinout Designation Definition Not Used Not Used Not Used Not Used Not Used Not Used Not Used Not Used Not Used Not Used Not Used Not Used Not Used Not Used RFA2 +...
  • Page 126 Installing the S8700 IP Connect External Alarm Connector Pinout — Continued Designation Definition Not Used Not Used Not Used Not Used Not Used Not Used Not Used Not Used Not Used Not Used Not Used Not Used Not Used Not Used...

  • Page 127: Remote Access

    2-wire digital (24 port) PBX transmitT Tip (A) Terminal transmitRRing(B) Remote Access For information on connecting a modem to the Avaya S8700 Media Server, refer to the Getting Started with the Avaya™ S8700 Media Server for IP Connect Configurations. May 2002...

  • Page 128: Install Off-Premises Station Wiring

    Install a green label on the terminal block to identify the remote location. Administer per the Administrator’s Guide for Avaya MultiVantage Software. Off-Premises or Out-of-Building Stations Out-of-building campus stations are telephones not physically located in the same building as the equipment room but located on the same property.

  • Page 129: Off-Premises Connections

    Installing the S8700 IP Connect Off-Premises Connections ‘‘Connections for 1 to 8 Out-of-Building Analog Telephones’’ on page 130 shows the connections for 1 to 8 off-premises analog telephones. ‘‘Connections to 24 Out-of-Building Telephones’’ on page 131 shows the connections for up to 24 off-premises analog telephones.
  • Page 130 Installing the S8700 IP Connect Connections for 1 to 8 Out-of-Building Analog Telephones crdfobt CJL 101396 Figure notes Locally Engineered Cables and Equipment Part of Main Distribution Frame (MDF) Out-of-Building Wiring Station Side 25-Pair Connector Media Gateway Side Multi-Pair Protector Units (Primary...

  • Page 131: Off-Premises Protection Requirements

    Installing the S8700 IP Connect Connections to 24 Out-of-Building Telephones crdf24o CJL 101396 Figure notes Locally Engineered Cables and Out-Of-Building Analog Telephones Equipment Part of Main Distribution Frame 25-Pair Connector (MDF) Multi-Pair Protector Units (Primary Station Side Protectors with Heat Coils or...

  • Page 132: Telephone Restrictions For Exposed Environments

    The TN2181 16 Port Two-Wire Digital Line circuit pack may not be approved for some out-of-building uses. Contact your Avaya representative for more information. The 4C3S-75 may be used only with Vintage 14 or newer TN754 circuit packs or TN754B circuit packs.

  • Page 133: Installing The Itw Linx Enhanced Protector

    Installing the S8700 IP Connect An example of this is where screw-type carbon block protectors — or other non plug-compatible types — are in place and it is too costly to re-terminate the outside plant cable on a 5-pin mounting block for only a few out-of-building terminals.

  • Page 134: Emergency Transfer Units And Associated Telephones

    Installing the S8700 IP Connect Connections at Trunk/Auxiliary Field r758482b RBP 062696 Figure notes To Network Interface Facility One Pair of Wires To Control Carrier Auxiliary Connector Twenty-fifth Pair of RJ21X Network Interface Jack Emergency Transfer Units and Associated Telephones An 808A Emergency Transfer Panel mounted next to the trunk/auxiliary field provides emergency transfer capability.

  • Page 135: Emergency Transfer Panel And Telephone Installation Examples

    Installing the S8700 IP Connect 808A Emergency Transfer Panel and Telephone Installation Examples ‘‘808A Emergency Transfer Panel’’ on page 136 shows a typical 808A Emergency Transfer Panel. The 808A connects to the Main Distribution Frame (MDF) with B25A or A25B cable.
  • Page 136 Installing the S8700 IP Connect 808A Emergency Transfer Panel EMERGENCY TRANSFER PANEL POWER TRUNK/TEST SWITCHES CIRCUIT TRUNK OPTION LOOP GROUND START START BOTH SWITCHES MUST BE THROWN TO ACTIVATE TRUNK OPTION TRANSFER TEST SWITCH NORMAL ACTIVATED OPERATION TRUNK IDENTIFICATION TRUNK...

  • Page 137: Install The 808A Emergency Transfer Panel

    Installing the S8700 IP Connect 808A Emergency Transfer Panel Mounting 808a_em LJK 042396 Figure notes 808A Emergency Transfer Panel 25-Pair Male Connector Ear for Screw Mount Circuit Start Switches Cut-Out for Snap Mount Install the 808A Emergency Transfer panel NOTE: The 808A must be installed in a location that can be accessed only by authorized personnel.
  • Page 138 Installing the S8700 IP Connect Make cross-connections for each emergency trunk/emergency station pair. The 808A is connected to the Main Distribution Frame (MDF) by means of a B25A cable. ‘‘Connections for Telephone Used for Emergency Transfer’’ on page 141 shows the connections at the trunk/auxiliary field for a telephone used only for emergency transfer.
  • Page 139 Installing the S8700 IP Connect Trunk/Test Switches — Continued Switch Number Circuit Number Not Used Test Switch Pin Assignments for 25-Pair Connector W-BL TTC1 Tip-PBX Trunk Circuit 1 BL-W RTC1 Ring-PBX Trunk Circuit 1 TTK1 Tip-CO Trunk Circuit 1 RTK1...
  • Page 140 Installing the S8700 IP Connect Pin Assignments for 25-Pair Connector — Continued G-BK RTC4 Ring-PBX Trunk Circuit 4 BK-BR TTK4 Tip-CO Trunk Circuit 4 BR-BK RTK4 Ring-CO Trunk Circuit 4 BK-S TLC4 Tip-PBX Line Port 4 S-BK RLC4 Ring-PBX Line Port 4...
  • Page 141 Installing the S8700 IP Connect Connections for Telephone Used for Emergency Transfer 2822 EMXR 2822 ALARM MONITORS EM TRANS RELAY PWR ACC PWR r758580b MMR 042996 Figure notes To Network Interface Circuitry To Power Transfer Unit To TN747 (or Equivalent) Central Office...

  • Page 142: Install Telephones Used Only For Emergency Transfer (Trunk/Auxiliary Field)

    Installing the S8700 IP Connect Connections for Telephone Used for Emergency Transfer and as Normal Extension 2820 EMXR ALARM MONITORS EM TRANS RELAY PWR ACC PWR r758582b MMR 042996 Figure notes To Network Interface Facility To TN747 (or Equivalent) Central...

  • Page 143: Install Telephones Used For Emergency Transfer And As Normal Extension (Trunk/Auxiliary Field)

    Installing the S8700 IP Connect Connect ST leads on the yellow emergency transfer row/connecting block for each emergency transfer telephone to the assigned terminal in the blue or white station distribution field. The ST terminal leads should be terminated on the following pairs: 1, 4, 7, 10, 13, 16, 19, or 22 (the first pair of any 3-pair group).

  • Page 144: Install External Ringing

    Wire the ringing device to the information outlet as shown in ‘‘3-Pair and 4-Pair Modularity’’ on page 144 ‘‘Example Adjunct Power Connections’’ on page 120. Administer per the Administrator’s Guide for Avaya MultiVantage Software. 3-Pair and 4-Pair Modularity Figure notes 1. Port Circuit Pack 4. Input to Information Outlet (4-Pair Modularity) 2.

  • Page 145: Install The Queue Warning Indicator

    Installing the S8700 IP Connect Install the Queue Warning Indicator The connections for the queue warning indicator are the same as external ringing. An AC indicator (lamp) such as a 21C49 can be used in a Uniform Call Distribution/Direct Departmental Calling (UCD/DDC) queue.

  • Page 146: Installing And Wiring Telephone Power Supplies

    1145B22 and 1151A1 / 1151A2 power supplies. These are examples only and actual wiring procedures may vary at each site. NOTE: Refer to the Installation and Adjuncts and Peripherals for Avaya MultiVantage™ DEFINITY Server to install the necessary peripheral equipment. Power supplies include ‘‘1145B22 Power Supply’’...

  • Page 147: Important Warning For 1145B2 Power Supply

    Installing the S8700 IP Connect Important Warning for 1145B2 Power Supply WARNING: Important Safety Instructions follow. When operating this equipment, basic safety precautions must be followed to reduce the risk of fire, electric shock and personal injury, including the following: Read and understand all instructions.

  • Page 148: Mounting The 1145B2/1146B2 Power Supply

    Installing the S8700 IP Connect • Do not attempt to recharge batteries on your own. The batteries may leak corrosive electrolyte or explode. The 1145B2 power unit recharges the batteries safely. • Remove the batteries if the power unit will not be used for a long period of time (several months or more) since during this time the battery may leak.
  • Page 149 Installing the S8700 IP Connect 1145B2/1146B2 Mounting Arrangement 1149 B atter y -48V -48V RT N RT N O n Battery R eserve 1145 Pow er U nit C harging B attery O utput Pow er O n Un it N o.
  • Page 150 Installing the S8700 IP Connect Expanded Power Distribution Unit -48V -48V 11 49 B a tte ry R T N R T N U nit N o. C on ne c te d To : -4 8V -48V R T N...

  • Page 151: Install The Wall-Mounting Plates

    Installing the S8700 IP Connect Install the Wall-Mounting Plates The top plate is used for mounting the back-up battery. The bottom plate is used to mount the power supply and distribution units. The plates can be rack-mounted using standard rack-mounting brackets. See ‘‘1145B2/1146B2 Mounting Arrangement’’...

  • Page 152: Install The Expanded Power Distribution Unit

    Installing the S8700 IP Connect Plug the battery cord into the power supply’s right rear receptacle. The rear receptacle is indicated on the right label. Back-Up Battery Rating Battery Rating 1148B 2.5 amp-hours 1149B 5 amp-hours 1147B 8 amp-hours Install the Expanded Power Distribution Unit A second power distribution unit can be installed to provide power to additional devices.

  • Page 153: Power Up And Test The Power Supply

    Installing the S8700 IP Connect Connect the P1 connector end of the “T” cable to the bottom power distribution unit. Connect the P2 connector to the top distribution unit. Connect the P3 connector to the 1145B2. Power-up the 1145B2 as described on the label on the side of the unit.

  • Page 154: Wire The 1146B2 Power Distribution Unit

    Installing the S8700 IP Connect Wire the 1146B2 Power Distribution Unit Wire endpoints to the 1146B2 while power from the 1145B2 is on. A red LED lights if its associated circuit is connected to shorted wiring or to a shorted telephone.

  • Page 155: Reset Leds On Power Distribution Unit

    Installing the S8700 IP Connect Reset LEDs on Power Distribution Unit A red LED next to any of the 32 power output connectors indicates a short circuit in the building wiring or the terminal equipment. To reset the LED: Disconnect the terminal equipment from the wall jack.

  • Page 156: 1151A1 And 1151A2 Power Supplies

    Installing the S8700 IP Connect 1151A1 and 1151A2 Power Supplies The 1151A1 and 1151A2 power supplies comply with the UL Standard UL 1950, second edition. Complies UL 1950 Certified CSA 22.2 Approved EN6950 Approved For safety instructions, see ‘‘Important Safety Instructions for 1151A1 and 1151A2 Power Supplies’’...

  • Page 157: Using 1151A1 And 1151A2 Power Supplies

    Installing the S8700 IP Connect • Disconnect the cords on this product and refer servicing to qualified service personnel under the following conditions: When the power supply cord or plug is damaged or frayed. • • If liquid has been spilled into the product.

  • Page 158: Connect The 1151A1 Or 1151A2 Power Supplies

    Installing the S8700 IP Connect Connect the 1151A1 or 1151A2 Power Supplies The 1151A1 is a standard (no battery backup) power supply unit. The 1151A2 is a battery backup version of the 1151A1. Either power supply can support one telephone with or without an adjunct.

  • Page 159: P333T-Pwr Important Safety Instructions

    G700 Media Gateway or members of the P330 stackable switching system. CAUTION: The Avaya P333T-PWR does not contain any user-serviceable components inside. Do not open the case. CAUTION: The P333T-PWR can be used only indoors, and in a controlled environment.

  • Page 160: Connect The P333T-Pwr

    Installing the S8700 IP Connect The P333T-PWR has 24 10/100Base-T ports, each of which can supply up to 16.5W using the internal power supply and operates on a 100-240 VAC, 5.3A, 50/60 Hz power source with the option of using the 44~57 VDC, 15A to boost the InLine power.

  • Page 161: Connect The Cables

    Connect the other end of the cable to the Ethernet port of the PC, server, router, workstation, IP phone, switch or hub. NOTE: Use a cross cable when connecting the Avaya P333T-PWR to a switch or hub. Check that the appropriate link (LNK) LEDs light up. May 2002...
  • Page 162 Installing the S8700 IP Connect May 2002...

  • Page 163: Connecting The Hardware

    Connect one end of the GREEN CAT5 cable to the Ethernet switch and the other to the IPSI adapter on the back of media gateway A. Refer to Getting Started with the Avaya™ S8700 Media Server for IP Connect Configurations for a connectivity guide.
  • Page 164 Installing the S8700 IP Connect CAUTION: If reusing TN2312AP circuit packs that have previously had a static address programmed, you must erase the existing IP address before programming another one. Failure to do this may result in serious network problems for the customer. Use the following procedure to...
  • Page 165 Installing the S8700 IP Connect LED display showing that the IPSI has a static IP address Type quit to logoff the IPSI. NOTE: Control network settings (IP address, subnet mask, and gateway) will be placed into effect when the user exits the IPADMIN session.

  • Page 166: Completing The Installation Administration

    ‘‘Register the System’’ on page 170 • Verify Translations The following administration is done on a computer used to access the Avaya S8700 Media Server using Avaya Site Administration. Type list configuration all and press to view all the administered circuit packs in Enter the system.

  • Page 167: Upgrade The Ipsi Firmware (If Necessary)

    Enable and Disable Ethernet Switch Ports The following administration is done on the services laptop computer connected to the active media server using the S8700 Media Server Web Interface. Click Enable/Disable Ethernet Switch Ports to enable the Ethernet ports being used...

  • Page 168: View Alarms

    View Alarms The following administration is done on a computer used to access the active media server using the S8700 Media Server Web Interface. Click View Current Alarms to clear any alarms. Resolve all alarms not involving the busyied out standby server. Refer to the maintenance documentation.

  • Page 169: Back Up The Media Server

    Back Up the Media Server The following administration is done on a computer used to access the active media server using the S8700 Media Server Web Interface. Place the PCMCIA flashcard into the bottom slot of the PCMCIA drive in the active...

  • Page 170: Release Busied Out Server

    The following administration is done on a computer used to access the active media server using the S8700 Media Server Web Interface. Click View Current Alarms to clear and set alarms. Register the System Follow existing process and procedures to register the Avaya™ S8700 Media Server for IP Connect Configurations. May 2002...

  • Page 171: Accessing The Avaya S8700 Media Server

    Multi-Connect configuration initialization, aftermarket additions, and continuing maintenance. You can access the Avaya S8700 Media Server in one of three ways: directly, remotely over the customer’s local area network (LAN), or over a modem. A direct connection and over the customer’s LAN are the preferred methods.

  • Page 172: Media Server Web Interface

    Installing the S8700 IP Connect Services laptop computer connected directly to the media server cadlsrvr KLC 030402 Figure notes Services laptop NIC adapter cable (if necessary) PCMCIA Network Interface Card (NIC) Black CAT5 Crossover cable Once connected, you can administer the media server using three tools: •...

  • Page 173: Connected To The Services Port

    Accessing the Avaya S8700 Media Server Remotely over the Network You can access the Avaya S8700 Media Server from any computer connected through the LAN. To access either media server, use the IP address assigned to the media server you want to access.

  • Page 174: Installing Avaya Site Administration

    A second serial port is required for simultaneous connection to AUDIX through a serial connection. You can install ASA on your computer two different ways: from the Avaya Site Administration CD or from the S8700 Media Server. May 2002...

  • Page 175: From The Asa Cd

    192.11.13.6 (direct connect) or the IP address or the domain name of the media server (over the network). Log in and get to the main menu. Click on Download ASA to download Avaya Site Administration to your computer. Follow the installation instructions in the install wizard. To start ASA, click on Start >...
  • Page 176 Installing the S8700 IP Connect May 2002...

  • Page 177: Testing The Complete Configuration

    ‘‘Test Media Server Interchange’’ on page 191 ‘‘Test the IPSI Circuit Pack’’ on page 192 ‘‘Test Expansion Interface Circuit Packs (S8700 Multi-Connect only)’’ on page 192 ‘‘Test Time Division Multiplexing Bus for Each Port Network’’ on page 193 ‘‘Test Expansion Interface Exchange for Each Port Network (S8700 Multi-Connect only)’’...

  • Page 178: Led Indicators

    LEDs located on the attendant console, on all circuit packs, and, optionally, on customer-designated telephones. More detailed information is available here for: • ‘‘S8700 Media Server LEDs’’ on page 179 ‘‘Cajun Ethernet Switch LEDs’’ on page 181 • •...

  • Page 179: S8700 Media Server Leds

    NOTE: The U2 LED is controlled by the S8700 Media Server but does not have an assigned function. The other LEDs are exclusively under hardware control so will not flash during the test. Refer to the OEM user documentation that comes with the media server for information on those LEDs.

  • Page 180: Interpreting The Test Results

    Installing the S8700 IP Connect During the 1-minute test, the Active/Standby and U2 LEDs alternate from being on (amber) for 1 second and off for 1 second off. The transmit LED cycles from red (on 1 second, off 1 second) to green (on 1 second, off 1 second).

  • Page 181: Cajun Ethernet Switch Leds

    Installing the S8700 IP Connect Cajun Ethernet Switch LEDs The Cajun Ethernet Switch has the LEDs shown in ‘‘LEDs on Cajun P333T Ethernet switch’’ on page 181: LEDs on Cajun P333T Ethernet switch Cajun P333T Switch EXPANSION SLOT COL Tx...

  • Page 182: Ups Leds

    Installing the S8700 IP Connect UPS LEDs The Powerware front panel has the LEDs shown in ‘‘LEDs on Powerware 9125 UPS’’ on page 182: LEDs on Powerware 9125 UPS ledlups KLC 030102 Figure notes Normal mode indicator Off button Battery mode indicator...

  • Page 183: Attendant Console Leds

    Installing the S8700 IP Connect Attendant Console LEDs The console has 2 red LEDs, labeled “ALM” and “ACK”. The ALM LED lights steadily when there is a major or minor alarm at the media server. The ACK LED lights steadily if the alarm has been successfully reported to INADS.

  • Page 184: Ip Server Interface Leds

    Installing the S8700 IP Connect IP Server Interface LEDs The TN2312AP IP Server Interface (IPSI) circuit pack LEDs are shown in ‘‘TN2312AP circuit pack faceplate’’ on page 184). It also has a programmable LED display to indicate whether its IP address is dynamic (shows media gateway location) or static (shows I P). See ‘‘LED display...
  • Page 185 Installing the S8700 IP Connect LED display on the IPSI circuit pack—static address Figure notes IPSI has a static IP address IPSI has connectivity and an IP address The display also indicates connectivity (see ‘‘LED display indicating connectivity status’’ on page 186).

  • Page 186: Circuit Pack Leds

    Installing the S8700 IP Connect LED display indicating connectivity status Figure Notes Connectivity Status IPSI is connected to media server IPSI has an IP address Laptop computer is connected to IPSI services port Circuit Pack LEDs Typically, each circuit pack has 3 LEDs on the front panel. The ‘‘Circuit Pack LEDs’’...

  • Page 187: Ds1 Converter Circuit Pack Leds

    Installing the S8700 IP Connect Circuit Pack LEDs on Faceplate Figure notes Alarm LED (Red) Latch Pin Test LED (Green) Locking Lever Busy LED (Yellow) DS1 Converter Circuit Pack LEDs Eleven LEDs provide an indication of the state of the ‘‘TN1654 DS1 Converter Circuit Pack...
  • Page 188 Installing the S8700 IP Connect TN1654 DS1 Converter Circuit Pack LEDs Figure notes Alarm LED (Red) STATUS LEDs Test LED (Green) SPAN LEDs Busy LED (Yellow) The yellow LED is used to indicate the state of the fiber interface, the fiber channel, the control channel, and the communications link to the SPE in the following manner and order of priority.

  • Page 189: Span Leds

    Type status port-network number <1-64> and press Enter Verify the screen displays a Port Network Status screen similar to the one in ‘‘Sample Port Network Status Screen for Cabinet 1—S8700 Multi-Connect’’ on page 190. Verify these service states: Field Service State...

  • Page 190: Check Circuit Pack Configuration

    Installing the S8700 IP Connect Sample Port Network Status Screen for Cabinet 1—S8700 Multi-Connect status port-network 1 PORT NETWORK STATUS Major Minor Warning Carrier PN Control FIBER- PN Alarms Alarms Alarms Locs Active Standby LINK Endpoints Mode B-PNC 01B02-03E04 standby...

  • Page 191: Test Media Server Interchange

    Installing the S8700 IP Connect — Sample System Configuration Screen Page 4, S8700 Multi-Connect list configuration all Page SYSTEM CONFIGURATION Board Assigned Ports Number Board Type Code Vintage u=unassigned t=tti p=psa 01B01 IP SERVER INTFC TN2312AP HW33 FW045 01 02 03 04 05 06 07 08...

  • Page 192: Test The Ipsi Circuit Pack

    Enter components within the IPSI circuit pack. Verify the screen displays Test Results screen similar to ‘‘Sample IPSI 01A Test Results Screen — Page 1, S8700 Multi-Connect’’ on page 192. — Sample IPSI 01A Test Results Screen Page 1, S8700 Multi-Connect...

  • Page 193: Test Time Division Multiplexing Bus For Each Port Network

    Installing the S8700 IP Connect Sample Test Results for Expansion Interface Board 2A01—S8700 Multi-Connect TEST RESULTS Port Maintenance Name Alt. Name Test No. Result Error Code 02A01 EXP-INTF PASS 02A01 EXP-INTF PASS 02A01 EXP-INTF PASS 02A01 EXP-INTF PASS 02A01 EXP-INTF...

  • Page 194: Test Expansion Interface Exchange For Each Port Network (S8700 Multi-Connect Only)

    Verify that the MODEs of the expansion links have changed. If any problems are indicated, check the TDM cables and the inter-cabinet cables (ICC) in the associated port network. Sample of Port Network Status before Expansion Link is Set—S8700 Multi-Connect status port-network PORT NETWORK STATUS...

  • Page 195: Save Translations, If Required

    Installing the S8700 IP Connect Sample of Port Network Status after Expansion Link is Set—S8700 Multi-Connect status port-network PORT NETWORK STATUS Major Minor Warning Carrier PN Control FIBER- PN Alarms Alarms Alarms Locs Active Standby LINK Endpoints Mode B-PNC 01B02-03E04 standby...

  • Page 196: Testing Telephones And Other Equipment

    The tests are acceptance tests and provide some assurance that the Avaya S8700 Media Server for IP Connect Configuration will perform properly after installation and administration.

  • Page 197: Test 302C Attendant Console

    Installing the S8700 IP Connect Test 302C Attendant Console Check all lamps are operational and call another telephone in the configuration. Simultaneously press and hold the Ringer Volume up button and the POS BUSY button. This puts the console in the self-test mode.

  • Page 198: Test Queue Warning Indicator

    Installing the S8700 IP Connect Test Queue Warning Indicator Make a test call to an extension associated with a Uniform Call Distribution (UCD) or Direct Department Calling (DDC) group, and verify the queue warning indicator lamp lights. If the queue warning indicator has not been installed by customer, connect a spare telephone to the information outlet reserved for queue warning indicator and make a test call.

  • Page 199: Test Remote Access Interface

    Test the communication link between the media server and the remote access interface and verify the alarm notification process. Make a remote test from the remote interface to the Avaya S8700 Media Server and a local test from the Avaya S8700 Media Server to the remote interface.

  • Page 200: Test The C-Lan Connectivity

    The variable nnn.nnn.nnn.nnn is the IP address of another computer beyond the gateway and UUCSS is the cabinet, carrier, and slot of the TN799DP C-LAN circuit pack. Test Stratum 3 Clock (if used—S8700 Multi-Connect only) These procedures test the ability of the Stratum 3 clock to correctly provide timing and alarms to the media server.

  • Page 201: Verify Timing To The Media Server

    Installing the S8700 IP Connect Stratum 3 Clock LED Indicators — Continued Card LED Label Procedure ST B Replace the ST3 card FAIL Check wiring for its associated DS1 reference and replace the circuit pack if necessary FAIL Replace the circuit pack...
  • Page 202 Installing the S8700 IP Connect May 2002...

  • Page 203: Troubleshooting An Installation

    Installing an S8700 IP Connect Troubleshooting an Installation This section provides some simple strategies for troubleshooting an installation of an S8700 Media Server. It focuses on possible problems when • ‘‘Installing the Media Server Hardware’’ on page 203 ‘‘Configuring the Media Server Hardware’’ on page 204 •...

  • Page 204: Configuring The Media Server Hardware

    Installing an S8700 IP Connect Configuring the Media Server Hardware Problem Solution Can’t log into UPS subagent - Make sure the SNMP Subagent is installed in the UPS. - Make sure you are connected to the correct Ethernet port. - Make sure you have the correct login ID and password. Refer to the user’s guide that comes with the SNMP Subagent.

  • Page 205: Installing The License And Avaya Authentication Files

    Installing an S8700 IP Connect Problem Solution Can’t access IPSI for static addressing - Make sure you are plugged into the Services (top) port - Make sure the ARP cache is cleared. In an MS-DOS window, type arp -d 192.11.13.6 and press Enter No "V"...
