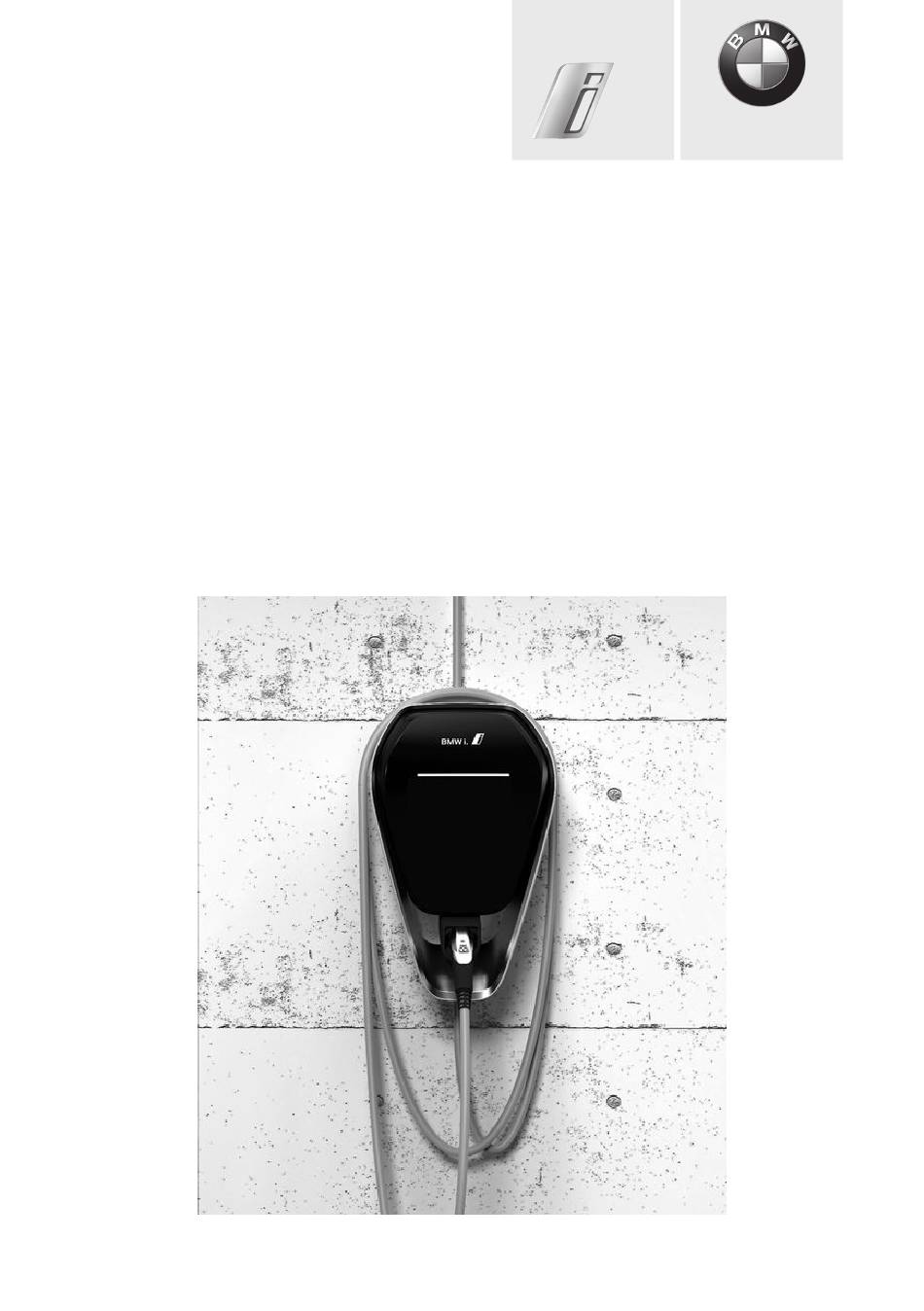

- Page 1 BMW i Freude am Fahren BMW i Wallbox USB update instrunctions...
- Page 3 BMW i Wallbox USB update instrunctions...
-
Page 5: Table Of Contents
BMW i Wallbox USB update instrunctions Contents General information Prepare the charging station Removing the housing cover Remove the terminal panel cover Firmware update Prepare USB stick Complete firmware update Concluding work Install the terminal panel cover Install the housing cover... - Page 6 Munich, Germany www.bmw.com Original update instructions Copyright ©2016 BMW AG Munich This documentation contains information protected by copyright. All rights reserved, especially the rights of reproduction and distribution. No part of this documentation may be reproduced (photocopying, scanning or any other procedures) or processed, copied or distributed in any form using electronic systems without the written consent of Bayerische Motorenwerke Aktiengesellschaft.
- Page 7 About this manual Keep these instructions for the full service life of the product. Read these instructions carefully and look at the device to familiarise yourself with it before you install the update. The following special information may be displayed in this documentation or on the device to warn you of possible dangers or point to information which explains or simplifies a process.
-
Page 8: General Information
These instructions apply to devices of the following types: BMW i Wallbox BMW i Wallbox Plus Note Refer to the instructions and safety information in the installation manual for the Wallbox. A firmware update does not require the RFID cards to undergo a teach-in process again, if the... -
Page 9: Prepare The Charging Station
Prepare the charging station Removing the housing cover 1. Press the two interlocks 1 for the housing cover on the underside of the Wallbox upwards. The housing cover should then jump out slightly at the bottom. 2. Swing the housing cover forwards a little on the underside 2. -
Page 10: Remove The Terminal Panel Cover
Remove the terminal panel cover 1. Undo the four screws used to secure the terminal panel cover 1. Danger of damage. Electronic components may be destroyed if touched. Before handling modules, perform an electrical discharge process by touching a metallic earthed object. ... -
Page 11: Firmware Update
Firmware update Prepare USB stick 1. Format a USB stick with the FAT32 file system. 2. Copy the following files into the root directory of the empty USB stick. Do not use any folders. firmware.bin firmware.chk Complete firmware update 1. Insert the USB stick into USB port X5 on the charging station. 2. - Page 12 Binary version display The latest main version 3 is assigned the colour orange here. In the binary display this colour stands for 0. The sub-version is displayed by the binary display of the LED segments. Example: Version 3.07 LED1 LED2 LED3 LED4 Colour code:...
-
Page 13: Concluding Work
Concluding work Install the terminal panel cover Note The Wallbox must not be permanently commissioned if this cover is missing or damaged. Alternative covers must not be used. Fastening screws 1. Insert the terminal panel cover 1 again. 2. Install the terminal panel cover again using the four screws. -
Page 14: Install The Housing Cover
Install the housing cover Note This cover is not relevant for the safe operation of the Wallbox. Attach the housing cover 1. Attach the housing cover at the top, and ensure that the hooks on the housing cover are correctly attached 1. 2. - Page 15 Mehr über BMW www.bmw.de www.bmw.com Freude am Fahren...
