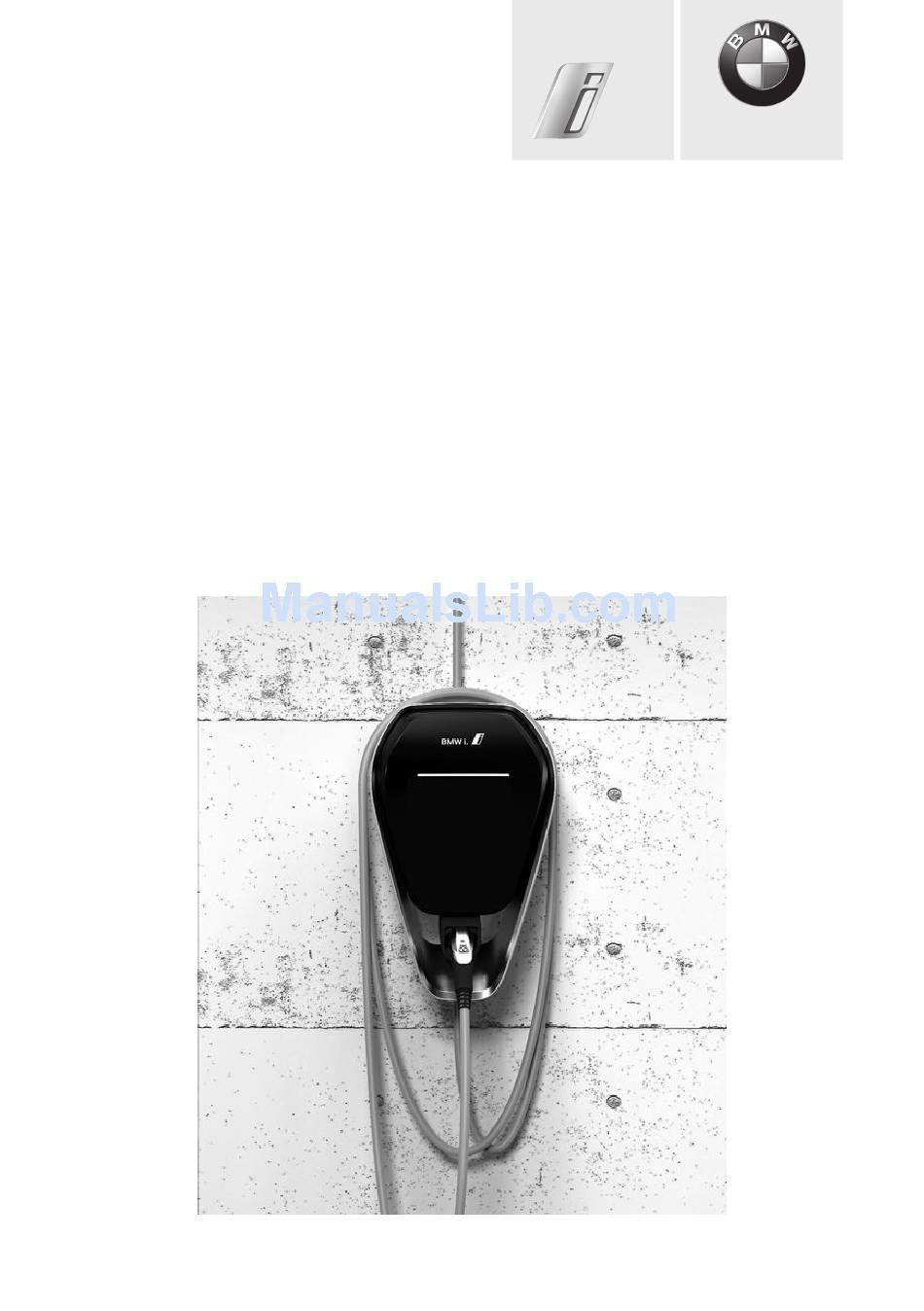

- Page 1 BMW i Freude am Fahren BMW i Wallbox Instructions for use...
- Page 3 BMW i Wallbox Instructions for use...
-
Page 5: Table Of Contents
BMW i Wallbox Instructions for use Contents INFORMATION Safety information Intended use About this manual OPERATING Displays and controls Start the charging cycle End the charging cycle Storing the charging cable Status LED information FAUL TS Troubleshooting Possible causes of faults... - Page 6 Munich, Germany www.bmw.com Translation of the original operating manual Copyright ©2016 BMW AG Munich This documentation contains information protected by copyright. All rights reserved, especially the rights of reproduction and distribution. No part of this documentation may be reproduced (photocopying, scanning or any other procedures) or processed, copied or distributed in any form using electronic systems without the written consent of Bayerische Motorenwerke Aktiengesellschaft.
- Page 7 About this manual We are delighted that you have decided to buy a BMW Wallbox. Read the manual for this device carefully before you charge your vehicle. Keep this document to hand at all times near the Wallbox since it contains important information for charging the high voltage batteries found in electric or plug-in hybrid vehicles.
-
Page 8: Information
INFORMATION Safety information WARNING Electrical danger. The Wallbox must be installed, commissioned and serviced by appropriately trained, qualified and authorised electricians who bear full responsibility for compliance with current standards and installation regulations. See installation manual for details. Electrical danger/Danger of fire. Never use defective, worn or dirty charging cable plugs. -
Page 9: Intended Use
CAUTION Ensure that the Wallbox is not damaged by incorrect handling (housing cover, internal parts, etc.). Pull the charging cable out of the connector using only the charging cable plug, not the cable. Ensure that the charging cable is not mechanically damaged (kinked, jammed, or run over) and that the contact area does not come into contact with heat sources, dirt, or water. ... -
Page 10: About This Manual
About this manual This manual and the functions described in it are valid for devices of the following type: BMW i Wallbox The illustrations and explanations contained in this manual refer to a typical version of the device. Your device version may differ from this. -
Page 11: Operating
OPERATING Displays and controls BMW i Wallbox Functions: Charging electric or plug-in hybrid vehicles 1 Status LED 2 Charging cable plug holder 3 Charging cable plug Start the charging cycle The status LED is permanently lit in blue when the device is not in use. Connect the vehicle to the Wallbox if it is not already connected. -
Page 12: End The Charging Cycle
End the charging cycle The charging cycle is ended by releasing the vehicle and disconnecting the charging cable. Details of this are described in the manual provided by the vehicle manufacturer. 1. Disconnect the charging cable from the vehicle and coil the charging cable around the Wallbox. Storing the charging cable 1. -
Page 13: Status Led Information
Status LED information Status LED segments The status LED provides information on the current state of the Wallbox. It consists of 4 segments, S1 to S4, which may be lit or flash in various colours together or individually. The status LED is only visible when the power supply is active. -
Page 14: Faults
Note Additional or updated information such as operating and installation instructions are available on the portal page at https://charging.bmwgroup.com/web/wbdoc/. Note If the displayed error code is not listed here, please contact BMW Service. Troubleshooting PROBLEM Possible cause Status LED not lit 1. - Page 15 Status LED flashes in red (all 1. Fault – first check the possible causes of the fault, see section entitled Possible causes of faults. parts of the status LED flash in Switch off the supply voltage to the Wallbox using the red combined with white or blue) appropriate mains isolation device.
-
Page 16: Possible Causes Of Faults
Possible causes of faults General errors (displayed in red and white) Error 1 [0001] "white/white/white/red" The charging cable plug was disconnected during the charging cycle: The charging cable plug was not correctly locked – disconnect the charging cable plug and reconnect correctly, ensuring that it locks properly. - Page 17 Errors on the power unit (displayed in red and blue) Error 8001 [0001] "blue/blue/blue/red" The charging voltage cannot be switched on; internal error or hardware defective: Reconnect the vehicle or restart the Wallbox. If the error occurs again, contact your service outlet.
-
Page 18: Maintenance
Note We recommend using cleaning and care products which have been tested by BMW: Special matt paint cleaner for the housing, number 83 12 2 285 244. Glass cleaner for high gloss surfaces, number 83 12 2 288 901. ... -
Page 19: Disposal
DISPOSAL After correctly decommissioning the device, please have it disposed of by the service department in compliance with current waste disposal regulations. Disposal information The symbol of the waste bin with a line through it indicates that electrical and electronic devices including accessories must be disposed of separately from general household waste. -
Page 20: Software Update
SOFTWARE UPDATE The software for the Wallbox can also be updated using the USB connector inside the device. The housing cover and the terminal panel cover must be removed to gain access to the USB connector. Follow the instructions in the manual for updating the software, supplied with the update package. The latest software can be downloaded from the internet at https://charging.bmwgroup.com/web/wbdoc/.. -
Page 21: Product Information Page
PRODUCT INFORMATION PAGE The complete CE declaration of conformity for this product can be downloaded from the internet at https://charging.bmwgroup.com/web/wbdoc/. -
Page 22: Index
INDEX About this manual................................. 10 BMW i Wallbox overview............................11 CE declaration of conformity............................. 21 Cleaning................................... 18 Commissioning mode..............................13 Disposal.................................... 19 End the charging cycle............................... 12 Faults....................................14 Intended use..................................9 Maintenance................................... 18 Model plate..................................18 Repair....................................18 Safety information................................8 Software update................................ - Page 24 Mehr über BMW www.bmw.de www.bmw.com Freude am Fahren BA BMW i Wallbox EUR...
