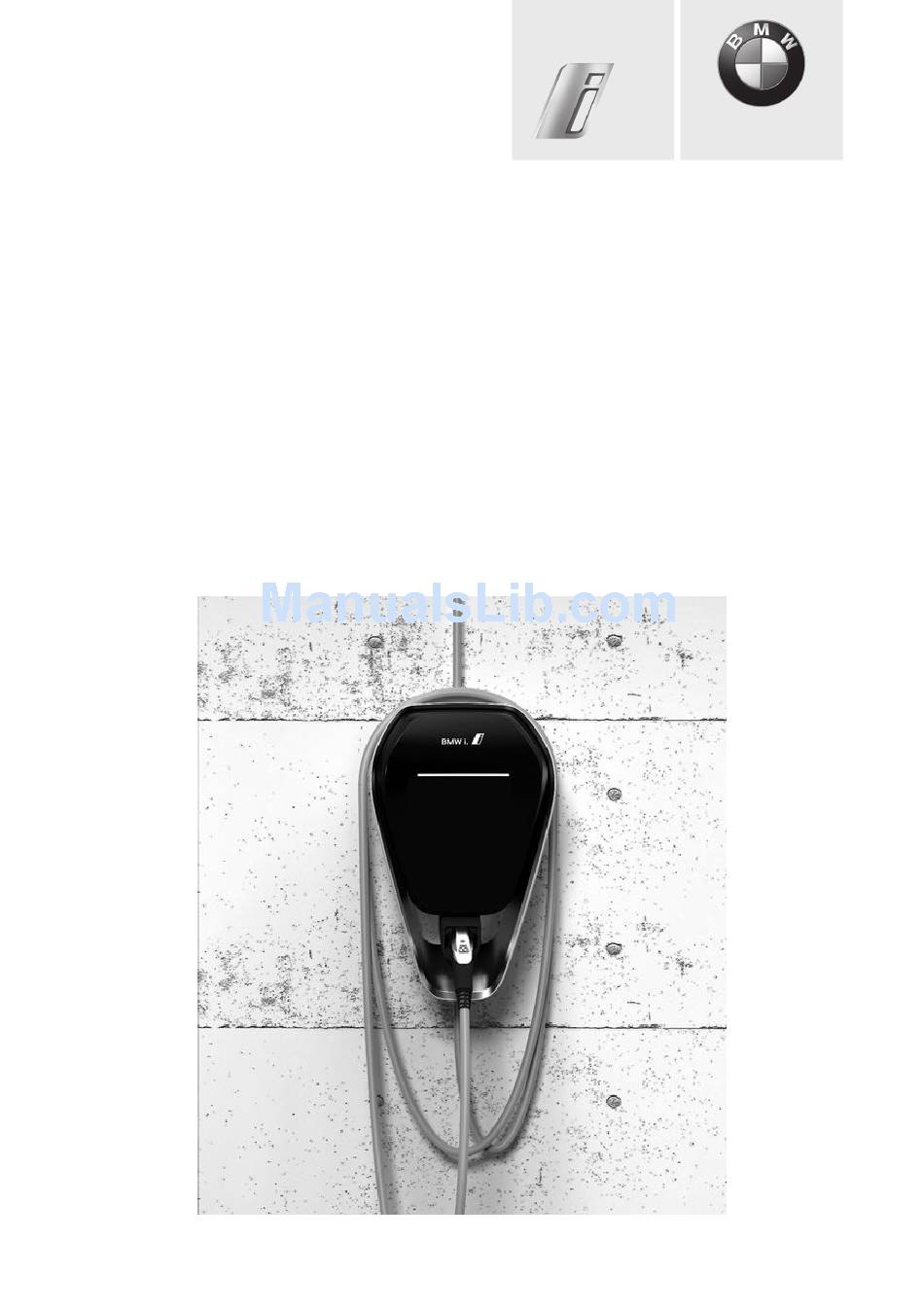

- Page 1 BMW i The Ultimate Driving Machine BMW i Wallbox Instructions for use...
- Page 3 BMW i Wallbox Instructions for use...
-
Page 5: Table Of Contents
BMW i Wallbox Instructions for use Content NOTES Safety instructions Intended use About this manual OPERATION Displays and controls Starting the charging process Ending the charging process Storage of the charger cable Status LED information FAUL TS Troubleshooting Possible causes of error in the event of a fault... - Page 6 Munich, Germany www.bmw.com Original operating instructions Copyright ©2016 BMW AG Munich This documentation contains information protected by copyright. All rights are reserved, especially the right to copying and distribution. No part of the documentation may be reproduced or processed using electronic systems, copied, or distributed in any form whatsoever (by photocopying, scanning, or any other process) without the written agreement of Bayerische Motorenwerke Aktiengesellschaft.
-
Page 7: Symbols Used
Information about this manual We are delighted that you have decided to purchase a BMW Wallbox. Please read the instructions for this device carefully before you charge your vehicle. Please always keep this document ready to hand, close to the Wallbox, because it contains important information about charging the high-voltage battery of electric or plug-in hybrid vehicles. -
Page 8: Notes
NOTES Safety instructions WARNING Electrical danger Installation, commissioning, maintenance and retrofitting of the Wallbox must be carried out by appropriately trained, qualified, and authorized electricians , who are fully responsible for complying with the applicable standards and installation regulations. For details, see installation manual. -
Page 9: Intended Use
CAUTION Ensure that the Wallbox is not damaged by inappropriate handling (casing cover, internal parts, etc.). Use only the charger cable connector (and not the cable itself) to pull the charger cable out of the plug connector. Ensure that the charger cable does not become mechanically damaged (kinked, trapped, or driven over) and that the contact area does not come into contact with sources of heat, dirt or water. ... -
Page 10: About This Manual
About this manual This manual and the functions described are valid for devices of the type: BMW i Wallbox The images and explanations in this manual are based on a typical model of the device. The execution of your device may be different from this. -
Page 11: Operation
OPERATION Displays and controls BMW i Wallbox Functions: Charging of electric or plug-in hybrid vehicles 1 Status LED 2 Holder for charger cable connector 3 Charger cable connector Starting the charging process In the rest state, the status LED displays continuous blue. Now connect the vehicle, if unconnected, to the Wallbox. -
Page 12: Ending The Charging Process
Ending the charging process The charging process is ended by unlocking the vehicle and disconnecting the charger cable. For details of this, please refer to the instructions of the vehicle manufacturer. 1. Disconnect the charger cable from the vehicle, and wind the charger cable around the Wallbox. Storage of the charger cable 1. -
Page 13: Status Led Information
Status LED information Status LED sections The status LED provides information about the current operating state of the Wallbox. It consists of 4 sections, S1 to S4, which can illuminate in different colors, or flash individually or in combinations. The status LED is visible only when the power supply has been activated. -
Page 14: Faults
Note Additional and updated information such as operating and installation instructions are available on the service page at https://charging.bmwgroup.com/web/wbdoc/. Note If the error code displayed here is not listed, then please contact BMW Service. Troubleshooting PROBLEM Possible cause Status LED does not illuminate 1. - Page 15 PROBLEM Possible cause Charger cable connector cannot 1. The charging process was not ended by the vehicle – end the charging process as per vehicle manufacturer's be unplugged instructions. 2. The charger cable connector may not be able to unlock under tensile load –...
-
Page 16: Possible Causes Of Error In The Event Of A Fault
Possible causes of error in the event of a fault General fault (indicated by colors red/white) Fault 1 [0001] "white/white/white/red" The charger cable connector was unplugged during the charging process: The charger cable connector was not locked correctly – unplug the charger cable connector and plug it in correctly, ensuring that the locking is correct. - Page 17 Power unit fault (indicated by colors red/blue) Fault 8001 [0001] "blue/blue/blue/red" Not possible to switch the charging voltage on; internal process fault or defective hardware: Reconnect vehicle or restart Wallbox. If this occurs repeatedly, contact Service. Fault 8005 [0101] "blue/red/blue/red" Fault current monitoring: A fault was recorded during the self-test, or else the monitoring has been triggered because of an...
-
Page 18: Maintenance
Note We recommend using tested cleaning and care agents from BMW: Matt Paint Special Cleanser for casings; item number 83 12 2 285 244. Glass cleaner, for high gloss surfaces; item number 83 12 2 288 901. ... -
Page 19: Disposal
DISPOSAL After correctly decommissioning the device, please have the device disposed of by Service or else in compliance with all currently applicable disposal regulations. Disposal information The symbol of the "crossed-out" waste bin means that electrical and electronic devices, including accessories, must be disposed of separately from general household garbage. -
Page 20: Software Update
SOFTWARE UPDATE The software for the Wallbox can be updated via the USB connection inside the device. For access to the USB connection, the casing cover and the connector panel cover must be removed. Follow the details in the instructions for updating the software; these are attached to the update package. -
Page 21: Product Information Page
PRODUCT INFORMATION PAGE This product is UL-certified. It complies with the applicable UL, CSA, and ANCE standards for North America, Canada, and Mexico. Further information at https://charging.bmwgroup.com/web/wbdoc/. FCC INFORMATION This device complies with part 15 of the FCC regulations. Its operation is subject to the following two conditions: (1) This device must cause no hazardous interference, and (2) This device must withstand all interference received, including interference that causes... - Page 22 This product is NOM-certified. MEXICO Its operation is subject to the following two conditions: (1) This device must cause no hazardous interference, and (2) This device must withstand all external interference received, regardless of the source of the interference. MEXIKO The operation of this equipment is subject to the following two conditions: (1) it shall not generate any critical interference, and (2) its operation shall not be affected by external interferences, independently of the source of the interference.
-
Page 23: Index
INDEX About this manual................................. 10 BMW i Wallbox overview............................11 Cleaning................................... 18 Commissioning mode..............................13 Disposal.................................... 19 Ending the charging process............................ 12 Faults..................................14, 15 Intended use..................................9 Maintenance................................... 18 Repair....................................18 Safety instructions................................8 Software update................................20 Starting the charging process........................... 11 Status LED.................................. - Page 24 Mehr über BMW www.bmw.de www.bmw.com Freude am Fahren 102480 BA BMW i Wallbox UL...
