Napa 791-2246 Operating Manual & Parts List

BEFORE USING THIS DEVICE, READ THIS
MANUAL COMPLETELY AND THOROUGHLY,
UNDERSTAND ITS OPERATING
PROCEDURES, SAFETY WARNINGS AND
MAINTENANCE REQUIREMENTS.
It is the responsibility of the device owner to make sure all personnel
read this manual prior to using the device . It is also the responsibility
of the device owner to keep this manual intact and in a convenient
location for all to see and read . If the manual or product labels are lost
or not legible, contact NAPA for replacements . If the operator is not
fluent in English, the product and safety instructions shall be read to
and discussed with the operator in the operator's native language by
the purchaser/owner or his designee, making sure that the operator
comprehends its contents .
SPECIFICATIONS
Capacity . . . . . . . . . . . . . . . . . . 12 Ton . . . . . . . . . . . . . . . . 20 Ton
Closed Height . . . . . . . . . . . . . 9-1/2" . . . . . . . . . . . . . . . 10-7/8"
Extension Screw Travel . . . . . . 3-1/2" . . . . . . . . . . . . . . . . 2-3/4"
Power Lift . . . . . . . . . . . . . . . . . 5-7/8" . . . . . . . . . . . . . . . . 6-5/8"
Maximum Height . . . . . . . . . . 18-7/8" . . . . . . . . . . . . . . . 20-1/4"
Ram Diameter . . . . . . . . . . . . . 1-3/4" . . . . . . . . . . . . . . . . 2-1/8"
Base Size . . . . . . . . . . . . . 7-1/8" by 4-5/8" . . . . . . . . 7-3/4" by 4-7/8"
Gross Weight . . . . . . . . . . . . . 21 .4 lbs . . . . . . . . . . . . . . . 29 .3 lbs .
791-2246, 791-2247
791-2246 791-2247
MODEL # 791-2246, 791-2247

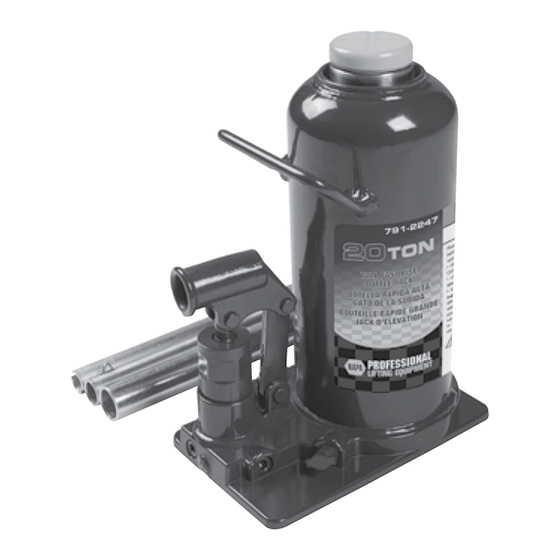

TALL FAST RISE BOTTLE JACK
• Read, study, understand & follow all instructions before us-
ing. • Inspect the jack before each use. Do not use if damaged,
altered, modified, in poor condition, leaking hydraulic fluid or un-
stable due to loose or missing components. Make corrections
before using. • Lift only at points of the vehicle as specified by
the vehicle manufacturer. • User and bystanders must wear eye
protection that meets ANSI Z87.1 and OSHA standards. • Do
not exceed rated capacity. • No persons should be under vehicle
when jack is in use. • This is a lifting device only. Immediately
after lifting, support the vehicle with appropriate means.
• No alterations shall be made to this product. • Use only on a
hard level surface. • Always lower the jack slowly and carefully.
• Do not use saddle adaptors or saddle extenders between the
stock lifting saddle and the load. • Center load on saddle. Be
sure setup is stable before working on vehicle. • Failure to heed
these warnings may result in serious or fatal personal injury and/
or property damage.
WARNING: This product can expose you to chemicals
including nickel, which is known to the State of
California to cause cancer and birth defects or other
reproductive harm. For more information go to www.
P65Warnings.ca.gov.
1
12, 20 TON CAPACITY
ASME PASE-2014
WARNING
03/11/18
