The VOLVO-CAM17 kit interfaces 2 video inputs (including a backup camera) to the factory media screen in
2017+ Volvo V90, S90, XC60 & XC90 vehicles with the new, portrait-style monitor. This interface generates
steering-based guidelines while in reverse for added convenience.
HD-LINK Optional KIT800
IR Eye Harness
Remote (menu control)
:
Agreement
End user agrees to use this product in compliance with all State and Federal laws. NAV-TV Corp. would not be held liable for misuse of its product.
If you do not agree, please discontinue use immediately and return product to place of purchase. This product is intended for off-road use and passenger
entertainment only.
th
3950 NW 120
Ave, Coral Springs, FL 33065 TEL 561-955-9770 FAX 561-955-9760
www.nav-tv.com

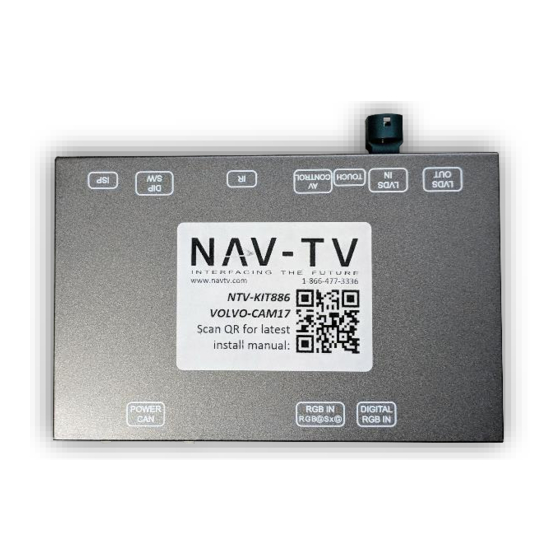

VOLVO-CAM17
NTV-KIT886
Overview
Kit Content
VOLVO-CAM17
LIN connection
wire
info@nav-tv.com
Interface
Power/CAN
Harness
BHM
10/18/18
NTV-DOC327
A-Type LVDS
Video cable
LVDS Video
cable extension
1 |
P a g e
