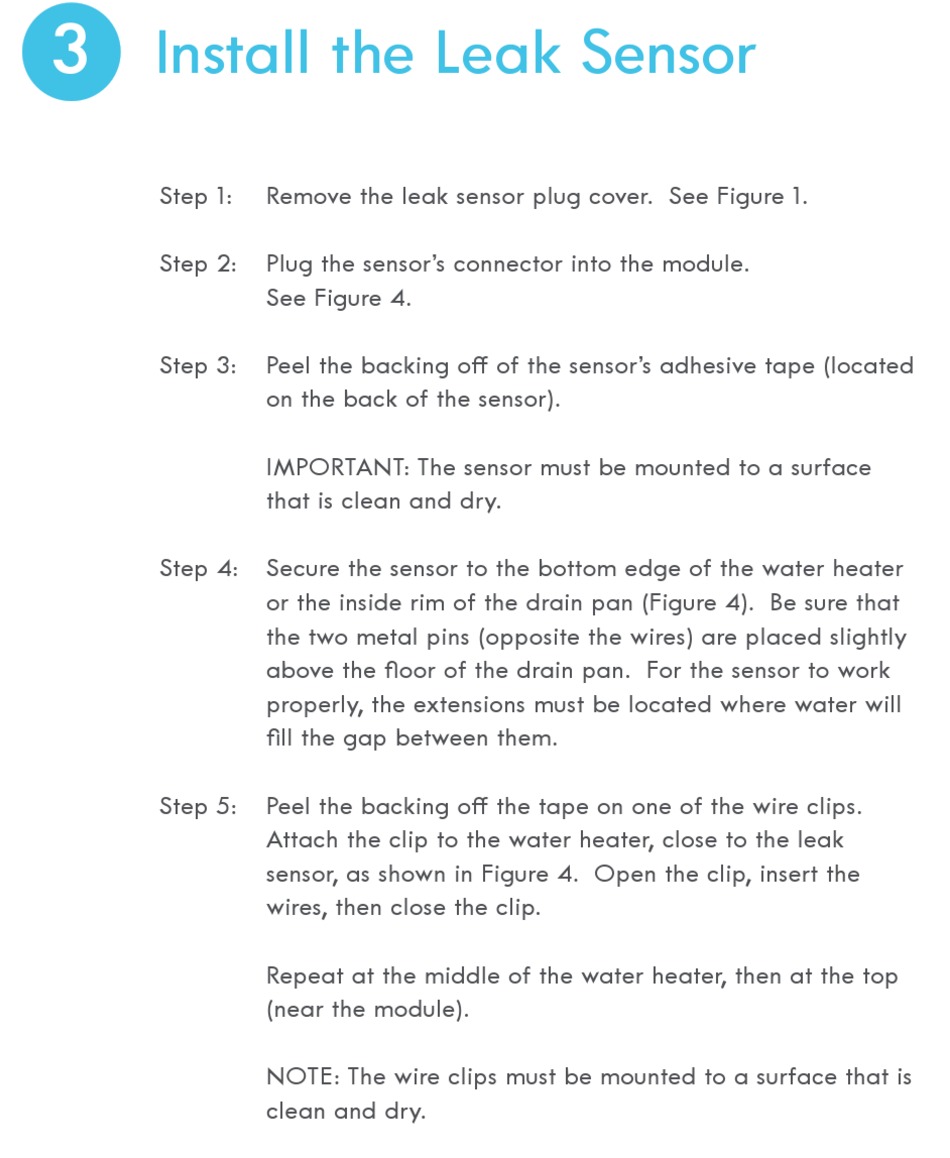

Kenmore Smart Water Heater Module Quick Start Install Manual page 8

3
Install the Leak Sensor
Step 1:
Step 2: Plug the sensor's connector into the module.
Step 3:
Step 4: Secure the sensor to the bottom edge of the water heater
Step 5: Peel the backing off the tape on one of the wire clips.
Remove the leak sensor plug cover. See Figure 1.
See Figure 4.
Peel the backing off of the sensor's adhesive tape (located
on the back of the sensor).
IMPORTANT: The sensor must be mounted to a surface
that is clean and dry.
or the inside rim of the drain pan (Figure 4). Be sure that
the two metal pins (opposite the wires) are placed slightly
above the fl oor of the drain pan. For the sensor to work
properly, the extensions must be located where water will
fi ll the gap between them.
Attach the clip to the water heater, close to the leak
sensor, as shown in Figure 4. Open the clip, insert the
wires, then close the clip.
Repeat at the middle of the water heater, then at the top
(near the module).
NOTE: The wire clips must be mounted to a surface that is
clean and dry.
