How To Align Valve - DeLonghi ECAM23.420 Service Manual

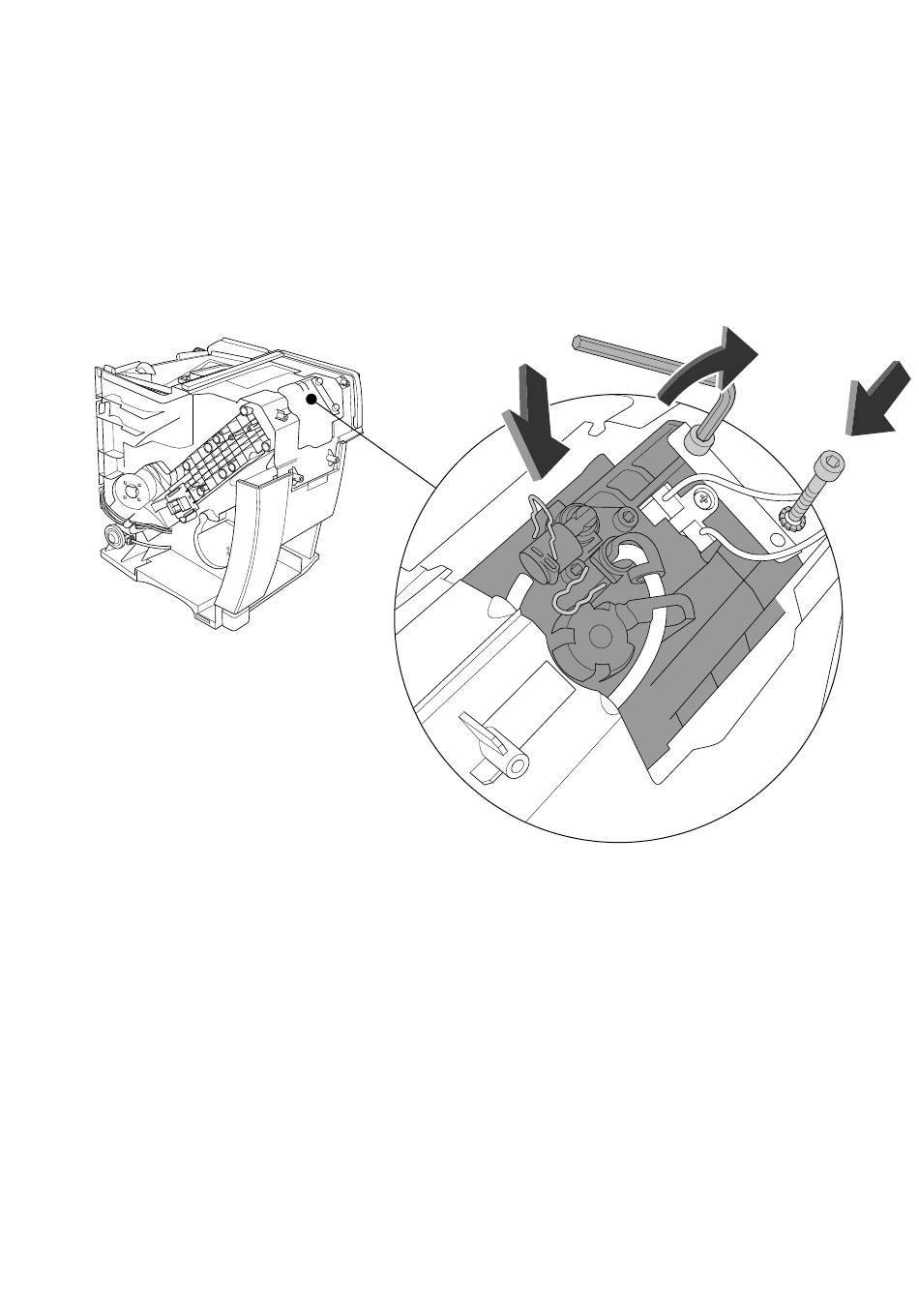

Picture 18 - HOW TO ALIGN VALVE
Lift the infuser up to to touch the valve, without pushing with strength: it has only to be
aligned to the valve.
Once you aligned it, fix the 2 screws (pic. 18.2) using an Allen key.
18.2
Fit in the tube
and then
the spring
18.1
Screw the 2 indicated screws
using an Allen key (4)
Page 13
