Honeywell IntelliPath Series Installation And Setup Manual page 18

LTE-I Installation and Setup Guide
ULC Commercial
Fire and Burglary
Compliant
Installation
ULC: For ULC Commercial
Burglary Zone Trigger
installation see above
referenced "Zone Trigger Setup"
Shared
Transformer
Installation
NOTE: Shared Transformer Installation has not been evaluated by UL/ULC.
NOTE:

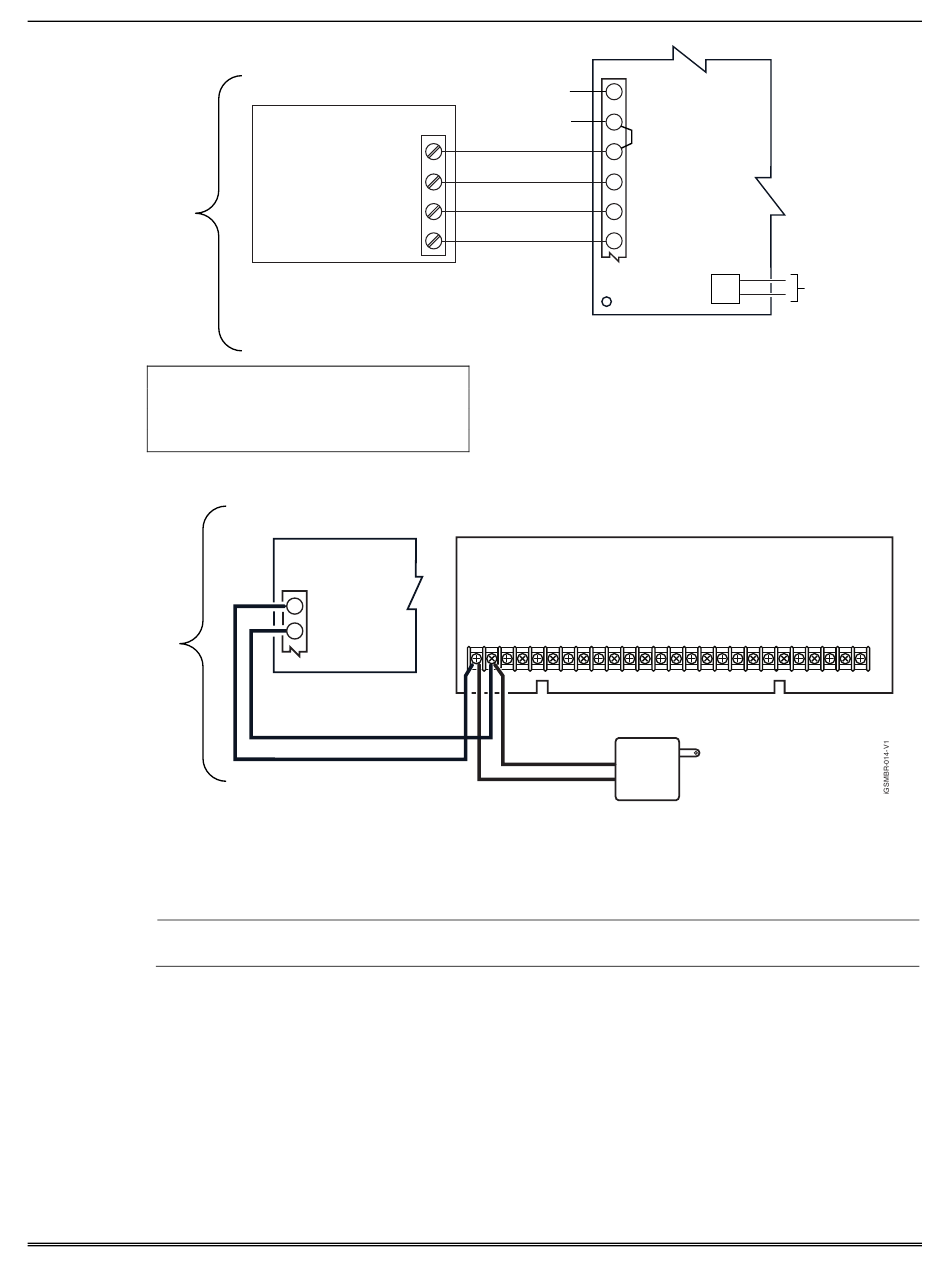

+12 V AUX
GND
DATA OUT
DATA IN
CONTROL PANEL
NOTE: DO NOT CONNECT THE COMMUNICATION
MODULE BACKUP BATTERY OR TRANSFORMER
FOR COMMERCIAL FIRE & BURGLARY INSTALLATIONS.
COMMUNICATIONS
MODULE
1
2
30 FT. MAX TO MODULE
18 AWG. WIRE (MIN)
When calculating the total load on the auxiliary power output of the control panel, budget 10mA
for the communicator when using ECP mode.
TB1
AC INPUT 1
1
NO CONNECTION
AC INPUT 2
NO CONNECTION 2
RED
3 ECP (+) VOLTAGE INPUT
BLK
GND
4
YEL
5 ECP DATA IN
GRN
6
ECP DATA OUT
COMMUNICATION MODULE
CONTROL PANEL
1 2
HONEYWELL 1361 OR 1361-GT
TRANSFORMER
14
J1
NO CONNECTION
comm_mod-001-V1
TO 110 VAC
UNSWITCHED
OUTLET
