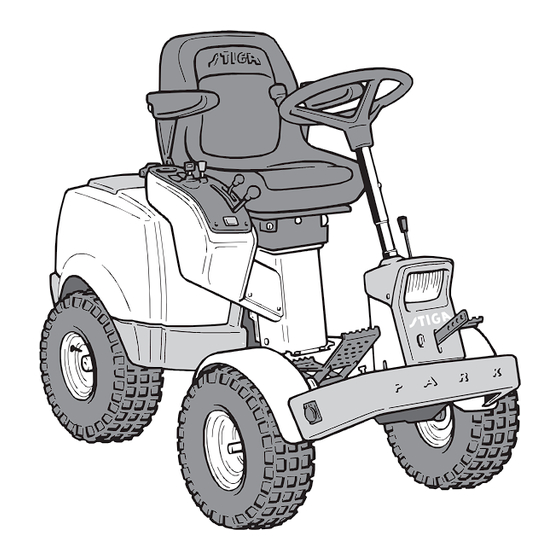

- Page 1 S T I G A P A R K P R O 2 0 P R O 1 6 R OY A L P R ES I D E NT C O M F O R T E X C E L L E N T 8211-0276-08...
- Page 2 PARK...
- Page 3 PARK 4. President - Comfort 5. Royal 6. Pro 16 7. Pro 20...
- Page 4 14. Pro 16 - Pro 20 16. Royal PARK 11. Briggs & Stratton Honda 13.Royal 15. President - Comfort 17. Pro 16 - Pro 20...
- Page 5 18. Pro 20 Cat 23b. Pro 16 - Pro 20 PARK 0.75 mm 23a. President - Comfort - Royal 24. President - Comfort - Royal...
-
Page 6: Controls And Instruments
GENERAL This symbol indicates WARNING. Personal injury and/or damage to property may result if the instructions are not followed carefully. You must read these instructions for use and the accompanying pamphlet “SAFETY INSTRUCTIONS” carefully, before starting up the machine. SYMBOLS The following symbols appear on the machine. - Page 7 5. DRIVE PEDAL A pedal that activates the variable transmission. 1. Depress the pedal with the ball of your foot – the machine moves forwards. 2. No load on the pedal – the machine is stationary. 3. Depress the pedal with your heel –...
-
Page 8: Areas Of Use
The fuel tank holds approx. 11.5 litres. AREAS OF USE The machine may only be used for the following tasks using the genuine STIGA accessories stated. 1. Mowing Using cutting deck 92M, 107M, 107 M HD, 121M, 125 Combi Pro or flail mower. -
Page 9: Starting And Operation
7. Weeding on gravel paths Using front mounted hoe and rear-mounted rake. 8. Lawn edge trimming Using edge trimmer. 9. Moss scarification Using moss scarifier. The maximum vertical load on the towing hitch must not exceed 100 N. The maximum over-run load on the towing hitch from towed accessories must not exceed 500 N. -
Page 10: Safety System
SAFETY SYSTEM This machine is equipped with a safety system that consists of: - a switch at the brake pedal. - a switch in the seat (Comfort, President) or the seat bracket (other models). - a switch at the power take-off engagement lever. -
Page 11: Service And Maintenance
SERVICE PROGRAM In order to keep the machine in good condition, as regards reliability and operational safety as well as from an environmental perspective, STIGA’s service program should be followed. The contents of this program can be found in the attached service log. -
Page 12: Air Filter - Engine
Change the oil more often (after 25 hours of operation or at least once a season) if the engine has to operate under demanding conditions or if the ambient temperature is high. The engine oil may be very hot if it is drained off directly after the engine is shut off. -
Page 13: Spark Plug
The battery can be damaged if a standard type battery charger (for acid batteries) is used. Stiga recommends battery charger with item no. 1136-0602-01 which may be ordered by an authorised dealer. 2. You can also allow the engine to charge the battery. - Page 14 Apply a few drops of engine oil to both ends of the throttle control cables a couple of times a season. The hydrostatic transmission is filled with oil (10W-40) on delivery from the factory. Unless it is opened (only to be performed by a specialist), and provided no leakage occurs, no topping up with oil should normally be carried out.
- Page 15 w w w. s t i g a . c o m GGP Sweden AB · Box 1006 · SE-573 28 T RANÅ S...
