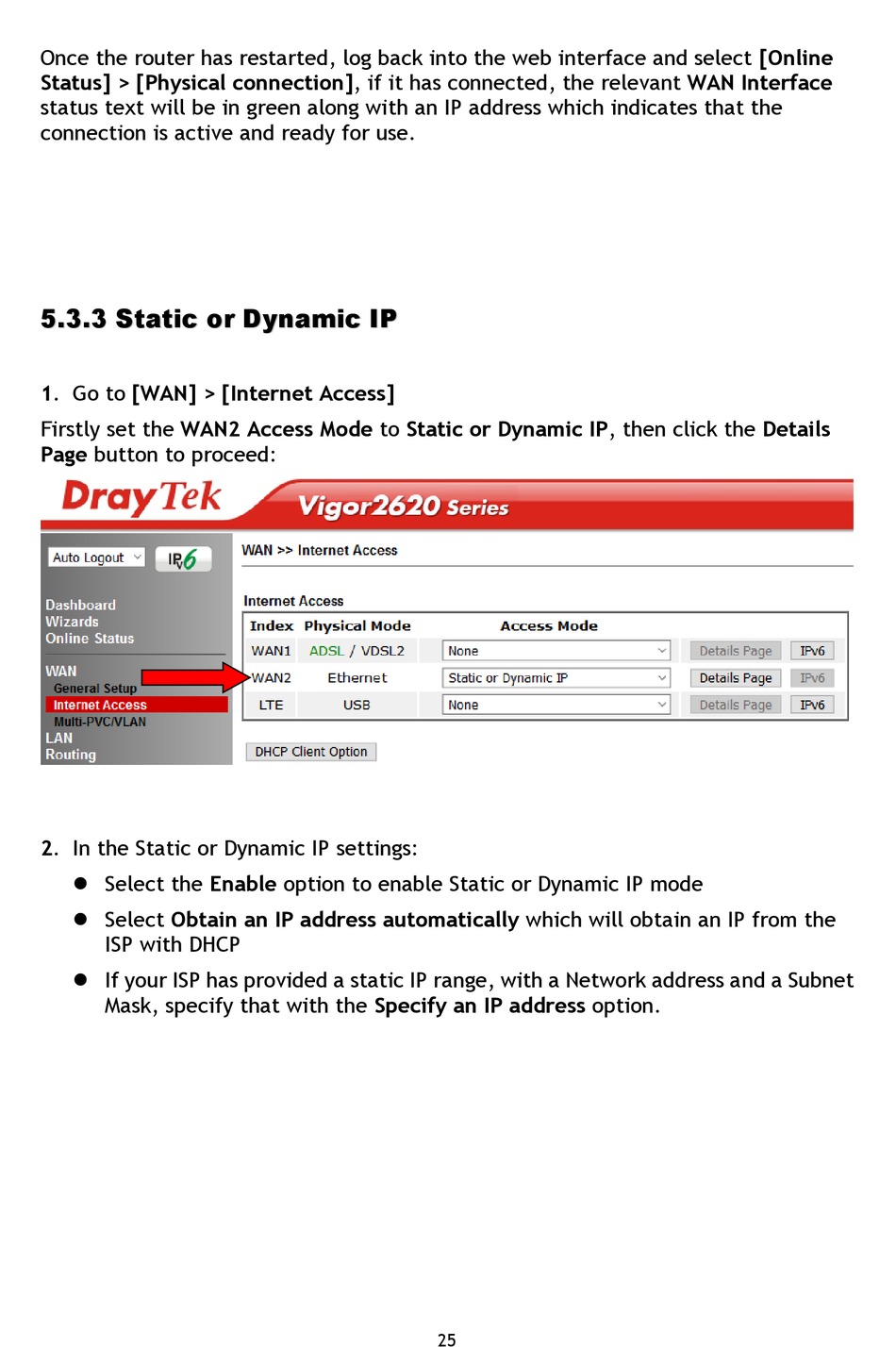

Static Or Dynamic Ip - Draytek Vigor2620 Series Quick Start Manual

Once the router has restarted, log back into the web interface and select [Online
Status] > [Physical connection], if it has connected, the relevant WAN Interface
status text will be in green along with an IP address which indicates that the
connection is active and ready for use.
5 . 3 . 3 S t a t i c o
5 . 3 . 3 S t a t i c o
1. Go to [WAN] > [Internet Access]
Firstly set the WAN2 Access Mode to Static or Dynamic IP, then click the Details
Page button to proceed:
2. In the Static or Dynamic IP settings:
 Select the Enable option to enable Static or Dynamic IP mode
 Select Obtain an IP address automatically which will obtain an IP from the
ISP with DHCP
 If your ISP has provided a static IP range, with a Network address and a Subnet
Mask, specify that with the Specify an IP address option.
r D y n a m i c I P
r D y n a m i c I P
25
