IFS ANT-OMN-15DB-2G Quick Start Guide
Content

Package Contents 1

Installation Steps 1

Specifications 1

Contact Information 2
This is the IFS ANT-OMN-15DB-2G Quick Start Guide. This
document provides basic instructions for installing and using
the IFS ANT- OMN-15DB-2G.
Package Contents
Thank you for purchasing the IFS ANT- OMN-15DB-2G.
Open the box of the IFS ANT- OMN-15DB-2G and carefully
unpack it. The box should contain the following items:
• ANT- OMN-15DB-2G x 1
• Screw Package x 1
If any item is found missing or damaged, please contact your
local reseller for replacement.

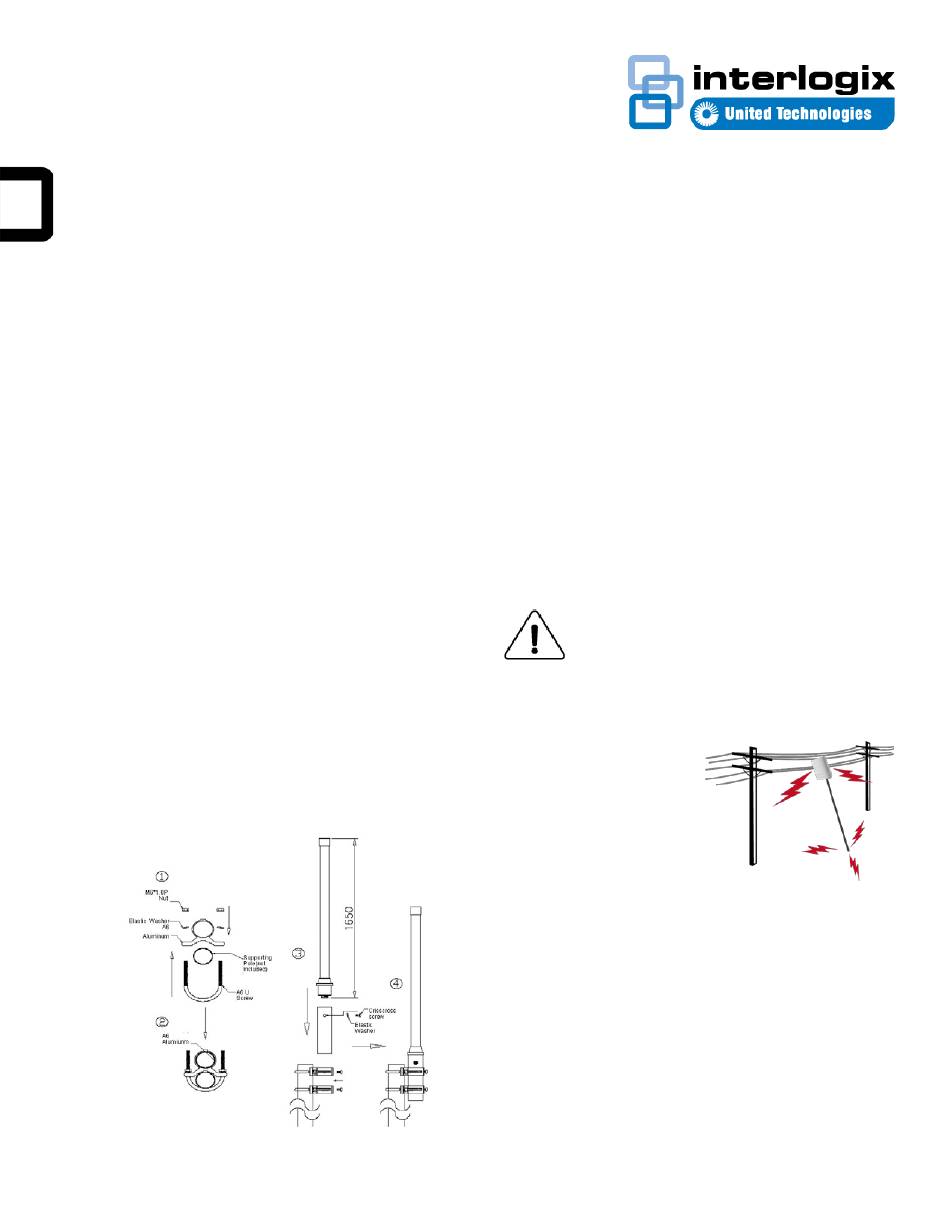

Installation Steps
P/N 1073058 • REV A • 16OCT15
Specifications
• Frequency: 2400 ~ 2500MHz
• Max Gain: 15dBi
• VSWR: <= 1.3
• Connector: N-type female
• Wave impedance: 50 ohm
• Weight: 1050g
• Vertical beam width degree: 10
• Mounting Type: Mast mount
OUTDOOR INSTALLATION WARNING
IMPORTANT SAFETY PRECAUTIONS:
LIVES MAY BE AT RISK!
these instructions and any special instructions that
are included with the equipment you are installing.
CONTACTING POWER LINES CAN BE LETHAL
Make sure no power lines are
anywhere where possible
contact can be made. Avoid
contact with antennas, masts,
towers, guy wires or cables
that may lean or fall. You may
be injured or killed if you are
touching or holding any part of
equipment that comes in
contacts with electrical lines.
Make sure that equipment or personnel must not come in
contact directly or indirectly with power lines.
Assuming all overhead lines are power lines:
The horizontal distance from a tower, mast or antenna to the
nearest power line should be at least twice the total length of
the mast/antenna combination. This will ensure that the mast
will not contact power if it falls either during installation or later.
TO AVOID FALLING, USE SAFE PROCEDURES
WHEN WORKING AT HEIGHTS ABOVE GROUND
Select equipment locations that will allow safe, simple
equipment installation.
Carefully observe
