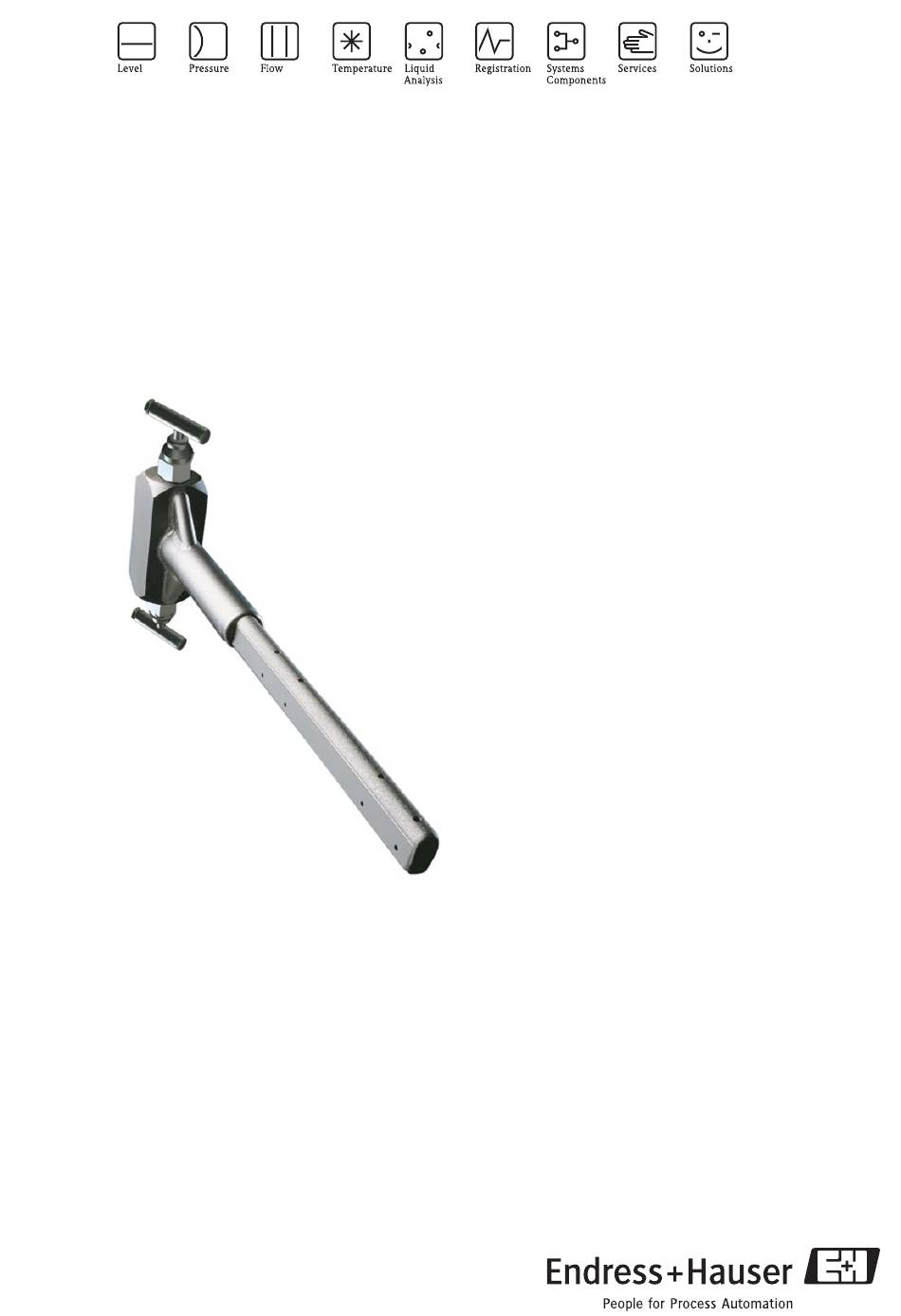

Technical Information
Deltatop
DP71B, DP72B, DP73B
Differential pressure flow measurement with
Pitot tubes and Deltabar differential pressure transmitter
The universal measuring system for steam, gases and liquids
TI441P/00/EN/09.09
71102952
Application
• Flow measurement of gases, steam and liquids
• Nominal diameters from 2" to 21ft
• Nominal diameters from DN 50 to DN 6000
• Pressure up to 6300 psi (420 bar)
• NACE-compliant materials
Deltabar differential pressure transmitter
• Approvals for hazardous area:
FM, CSA, ATEX
• Relevant safety aspects: SIL
• Connection to all common process control systems:
HART, Foundation Fieldbus, Profibus
Your benefits
• Selectable according to the application:
– operational compact version: minimizes installation
costs
– modular remote version: for demanding process
conditions (high temperature, high pressure) and
difficult installation conditions
• Deltabar differential pressure transmitter ready
adjusted
• Display configured for flow rate, differential pressure
or 0 to 100%
• Robust design; no moving parts
