KA01112D/06/EN/03.14
71245353
Products
Brief Operating Instructions

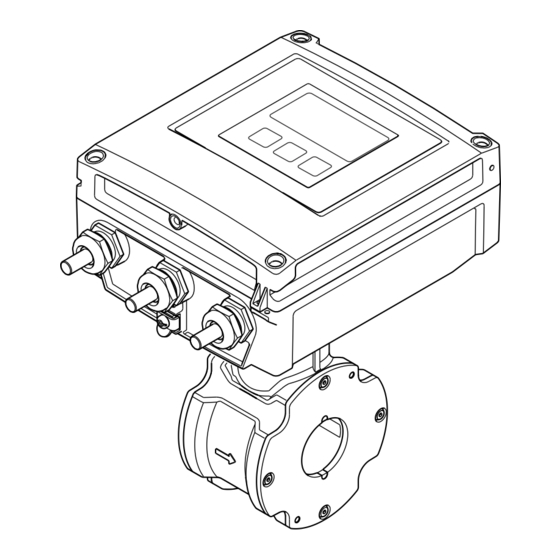

Proline Promag D 400
Electromagnetic flowmeter
These Instructions are Brief Operating Instructions; they are
not a substitute for the Operating Instructions pertaining to
the device.
Detailed information about the device can be found in the
Operating Instructions and the other documentation:
• On the CD-ROM supplied (is not included in the delivery for
all device versions).
• Available for all device versions via:
– Internet:
www.endress.com/deviceviewer
– Smart phone/tablet: Endress+Hauser Operations App
Description of the procedure (→ 10)
Solutions
Services
Advertisement
Table of Contents
Related Manuals for Endress+Hauser Proline Promag D 400
Summary of Contents for Endress+Hauser Proline Promag D 400
- Page 1 Operating Instructions and the other documentation: • On the CD-ROM supplied (is not included in the delivery for all device versions). • Available for all device versions via: – Internet: www.endress.com/deviceviewer – Smart phone/tablet: Endress+Hauser Operations App Description of the procedure (→ 10)
-
Page 2: Table Of Contents
Table of contents Proline Promag D 400 Table of contents Document information ............3 Symbols used . -
Page 3: Document Information
Proline Promag D 400 Document information Document information Symbols used 1.1.1 Safety symbols Symbol Meaning DANGER! DANGER This symbol alerts you to a dangerous situation. Failure to avoid this situation will result in serious or fatal injury. WARNING! This symbol alerts you to a dangerous situation. Failure to avoid this situation can result in WARNING serious or fatal injury. - Page 4 Document information Proline Promag D 400 1.1.3 Tool symbols Symbol Meaning Torx screwdriver Phillips head screwdriver Open-ended wrench 1.1.4 Symbols for certain types of information Symbol Meaning Permitted Indicates procedures, processes or actions that are permitted. Preferred Indicates procedures, processes or actions that are preferred.
-
Page 5: Basic Safety Instructions
Proline Promag D 400 Basic safety instructions Symbol Meaning Flow direction Hazardous area Indicates a hazardous area. Safe area (non-hazardous area) Indicates the non-hazardous area. Basic safety instructions Requirements for the personnel The personnel must fulfill the following requirements for its tasks: ‣... -
Page 6: Workplace Safety
Verification for borderline cases: ‣ For special fluids and fluids for cleaning, Endress+Hauser is glad to provide assistance in verifying the corrosion resistance of fluid-wetted materials, but does not accept any warranty or liability as minute changes in the temperature, concentration or level of contamination in the process can alter the corrosion resistance properties. -
Page 7: Product Safety
It meets general safety standards and legal requirements. It also complies with the EC directives listed in the device-specific EC Declaration of Conformity. Endress+Hauser confirms this by affixing the CE mark to the device. IT security We only provide a warranty if the device is installed and used as described in the Operating Instructions. -
Page 8: Product Description
Product description Proline Promag D 400 Product description Product design A0021563 1 Important components of the compact version Endress+Hauser... -
Page 9: Incoming Acceptance And Product Identification
Proline Promag D 400 Incoming acceptance and product identification Display module Smart sensor electronics module HistoROM DAT (plug-in memory) Main electronics module Terminals (screw terminals, some available as plug-in terminals) Transmitter housing, compact version Cable glands Sensor, compact version Incoming acceptance and product identification... -
Page 10: Product Identification
Incoming acceptance and product identification Proline Promag D 400 • If one of the conditions is not satisfied, contact your Endress+Hauser Sales Center. • Depending on the device version, the CD-ROM might not be part of the delivery! In such cases, the technical documentation is available via the Internet or via the Endress +Hauser Operations App, see the "Device documentation"... -
Page 11: Storage And Transport
Enter the serial number (Ser. no.) of the device: see nameplate (→ 2, 10). All the associated documentation is displayed. Endress+Hauser Operations App The Endress+Hauser Operations App is available for Android (Google play) and iOS (App Store). Via the serial number: Launch the Endress+Hauser Operations App. -
Page 12: Transporting The Product
Storage and transport Proline Promag D 400 Transporting the product WARNING Center of gravity of the measuring device is higher than the suspension points of the webbing slings. Risk of injury if the measuring device slips. ‣ Secure the measuring device from rotating or slipping. -
Page 13: Mounting
Proline Promag D 400 Mounting Mounting Installation conditions 6.1.1 Mounting position Mounting location A0023343 h ≥ 2 × DN Installation in down pipes Install a siphon with a vent valve downstream of the sensor in down pipes whose length h ≥... - Page 14 Mounting Proline Promag D 400 Installation in partially filled pipes A partially filled pipe with a gradient necessitates a drain-type configuration. The empty pipe detection (EPD) function offers additional protection by detecting empty or partially filled pipes. A0017063 Orientation The direction of the arrow on the sensor nameplate helps you to install the sensor according to the flow direction.
- Page 15 Proline Promag D 400 Mounting Horizontal A0017195 Measuring electrodes for signal detection The measuring electrode plane must be horizontal. This prevents brief insulation of the two measuring electrodes by entrained air bubbles. Inlet and outlet runs 5 × DN 2 × DN ≥...
- Page 16 • Avoid direct exposure to weather conditions. • Protect the display against impact. • Protect the display from abrasion by sand in desert areas. A display protector can be ordered from Endress+Hauser: "Accessories" section System pressure A0015594 Furthermore, install pulse dampers if reciprocating, diaphragm or peristaltic pumps are used.
- Page 17 Proline Promag D 400 Mounting Adapters [mbar] 8 m/s 7 m/s 6 m/s 5 m/s 4 m/s max. 8° 3 m/s 2 m/s 1 m/s d / D A0016359 6.1.3 Special mounting instructions Display protection ‣ To ensure that the optional display protection can be easily opened, maintain the following minimum head clearance: 350 mm (13.8 in)
-
Page 18: Mounting The Measuring Device
Mounting Proline Promag D 400 Mounting the measuring device 6.2.1 Required tools For transmitter • Torque wrench • For wall mounting: Open-ended wrench for hexagonal screw max. M5 • For pipe mounting: – Open-ended wrench AF 8 – Phillips head screwdriver PH 2 •... - Page 19 Proline Promag D 400 Mounting A0018060 5 Mounting the sensor Washer Mounting bolts Centering sleeve Seal Arranging the mounting bolts and centering sleeves The device is centered using recesses on the sensor. The arrangement of the mounting bolts and the use of the centering sleeves supplied depend on the nominal diameter, the flange standard and the diameter of the pitch circle.
- Page 20 Mounting Proline Promag D 400 Nominal diameter Process connection [mm] [in]5 EN 1092-1 (DIN 2501) ASME B16.5 JIS B2220 2 ½ – A0012171 A0012170 A0010898 A0010827 A0010826 A0012169 A0012168 A0012168 1 = Mounting bolts with centering sleeves 2 = EN (DIN) flange: 4-hole → with centering sleeves 3 = EN (DIN) flange: 8-hole →...
- Page 21 Proline Promag D 400 Mounting Mounting the ground cable/ground disks Comply with the information on potential equalization and detailed mounting instructions for the use of ground cables/ground disks (→ 37). Screw tightening torques For detailed information on the screw tightening torques, see the "Mounting the sensor"...
- Page 22 Mounting Proline Promag D 400 Post mounting WARNING Excessive tightening torque applied to the fixing screws on plastic housing! Risk of damaging the plastic transmitter. ‣ Tighten the fixing screws as per the tightening torque: 2 Nm (1.5 lbf ft) ø...
- Page 23 Proline Promag D 400 Mounting 6.2.5 Turning the transmitter housing TX 20 A0021602 3 mm A0021603 TX 20 A0021830 Endress+Hauser...
- Page 24 Mounting Proline Promag D 400 4 mm A0021831 A0021832 Reassembling the transmitter housing WARNING Excessive tightening torque applied to the fixing screws! Damage to the transmitter. ‣ When reassembling, tighten the fixing screws as per the tightening torque: Step Fixing screw...
- Page 25 Proline Promag D 400 Mounting Step Fixing screw Tightening torques for housing made of: (see graphics) Aluminum Plastic Main electronics module 1.5 Nm (1.1 lbf ft) Transmitter housing 5.5 Nm (4.1 lbf ft) NOTICE Plug of the smart sensor electronics module connected incorrectly! No measuring signal is output.
-
Page 26: Post-Installation Check
Electrical connection Proline Promag D 400 Reassembling the transmitter housing WARNING Excessive tightening torque applied to the fixing screws! Damage to the transmitter. ‣ When reassembling, tighten the fixing screws as per the tightening torque: Step Fixing screw Tightening torque for housing made of:... -
Page 27: Connection Conditions
Proline Promag D 400 Electrical connection Connection conditions 7.1.1 Required tools • Torque wrench • For cable entries: Use corresponding tools • For housing cover: Torx screwdriver or flat-blade screwdriver • Wire stripper • When using stranded cables: crimping tool for ferrule 7.1.2... - Page 28 Electrical connection Proline Promag D 400 Signal damping Max. 9 dB over the entire length of the cable cross-section Shielding Copper braided shielding or braided shielding with foil shield. When grounding the cable shield, observe the grounding concept of the plant.
- Page 29 Proline Promag D 400 Electrical connection 7.1.3 Terminal assignment Transmitter Supply voltage Order code for "Power supply" Terminal numbers 1 (L+/L) 2 (L-/N) Option L AC100 to 240 V (wide range power unit) AC/DC24 V Signal transmission 0-20 mA/4-20 mA HART with additional outputs and inputs...
- Page 30 Electrical connection Proline Promag D 400 Remote version 6 5 7 8 4 37 36 42 41 n.c. n.c. 5 7 4 37 42 41 A0020539 8 Remote version terminal assignment Transmitter wall-mount housing Sensor connection housing Electrode cable Coil current cable n.c.
- Page 31 Proline Promag D 400 Electrical connection EtherNet/IP Device plug for signal transmission (device side) Assignment Coding Plug/socket Socket A0016812 7.1.5 Preparing the measuring device Remove dummy plug if present. If measuring device is delivered with cable glands: Observe cable specification (→ 27).
- Page 32 Electrical connection Proline Promag D 400 7.1.6 Preparing the connecting cable for the remote version When terminating the connecting cable, pay attention to the following points: • In the case of electrode cables, make sure that the ferrules do not touch the core shields on the sensor side.
-
Page 33: Connecting The Measuring Device
Proline Promag D 400 Electrical connection Sensor Electrode cable Coil current cable 20 (0.79)* 20 (0.79)* 160 (6.30)* 170 (6.69)* 80 (3.15) 70 (2.76) 50 (1.97) 50 (1.97) 18.5 (0.73) 10 (0.39) 6 (0.24) 8 (0.31) ³1 (0.04) A0016489 A0016488... - Page 34 Electrical connection Proline Promag D 400 WARNING Housing degree of protection may be voided due to insufficient sealing of the housing. ‣ Screw in the screw without using any lubricant. The threads on the cover are coated with a dry lubricant.
- Page 35 Proline Promag D 400 Electrical connection Connecting the supply voltage and PROFIBUS DP PH 2 2627 10 (0.4) A0023164 ‣ Connect the cable in accordance with the terminal assignment (→ 29). For supply voltage: open the shock protection cover.
- Page 36 Electrical connection Proline Promag D 400 Connecting the supply voltage and EtherNet/IP PH 2 10 (0.4) A0021356 ‣ Connect the cable in accordance with the terminal assignment (→ 29). For supply voltage: open the shock protection cover. 7.2.2 Connecting the remote version...
- Page 37 Proline Promag D 400 Electrical connection TX 20 6 5 7 8 4 37 36 42 41 A0017445 11 Transmitter: main electronics module with terminals 5 7 4 37 42 41 A0017446 12 Sensor: connection module 7.2.3 Ensuring potential equalization...
- Page 38 Electrical connection Proline Promag D 400 Connection examples for standard situations Metal, grounded pipe This connection method also applies: • For plastic pipes • For pipes with insulating liner A0017516 Connection example in special situations Unlined and ungrounded metal pipe This connection method also applies in situations where: •...
-
Page 39: Hardware Settings
Proline Promag D 400 Electrical connection Ground cable Copper wire, at least6 mm (0.0093 in – A0017518 Prerequisite: The sensor is installed in the pipe in a way that provides electrical insulation. Connect the two flanges of the pipe to one another via a ground cable. - Page 40 Electrical connection Proline Promag D 400 IP address range 1 to 254 (4th octet) IP address broadcast Addressing mode ex works Software addressing; all DIP switches for hardware addressing are set to OFF. IP address ex works DHCP server active For device addressing via software (→...
- Page 41 Proline Promag D 400 Electrical connection Setting the address ON OFF Not used Write protection A0023061 13 Addressing using DIP switches on the I/O electronics module Disable software addressing (OFF) via the top DIP switch 4 (SW). Set the desired device address via the corresponding DIP switches.
-
Page 42: Ensuring The Degree Of Protection
Electrical connection Proline Promag D 400 DIP 1 DIP 3 390 Ω 220 Ω 390 Ω DIP 2 A0023063 14 Termination using DIP switches on the I/O electronics module (for baud rates < 1.5 MBaud) Ensuring the degree of protection 7.4.1... -
Page 43: Operation Options
Proline Promag D 400 Operation options Do the cables have adequate strain relief? Are all the cable glands installed, firmly tightened and leak-tight? Cable run with "water trap" (→ 42) ? Only for remote version: is the sensor connected to the right transmitter? ... - Page 44 Operation options Proline Promag D 400 8.1.2 Operating philosophy The individual parts of the operating menu are assigned to certain user roles. Each user role corresponds to typical tasks within the device lifecycle. For detailed information about the operating philosophy of the device, see the Operating Instructions for the device (→...
-
Page 45: Access To The Operating Menu Via The Local Display
Proline Promag D 400 Operation options Access to the operating menu via the local display X X X X X X 19.184 mA 12.5 X X X X X X Language à 20.50 English Deutsch Español Français User ABC_ DEFG... - Page 46 Operation options Proline Promag D 400 8.2.1 Operational display Status area Status signals Failure Function check Out of specification Maintenance required Diagnostic behavior Locking Communication Alarm Warning Device locked Remote operation enabled Display area Measured variables Symbol Meaning Volume flow...
- Page 47 Proline Promag D 400 Operation options Display area Icons for menus Operation Setup Diagnostics Expert Icons for submenus, wizards, parameters Lock symbols Submenu Wizard Parameters within a wizard Parameter locked 8.2.3 Editing view Input mask Operating symbols in the numeric editor Confirms selection.
- Page 48 Operation options Proline Promag D 400 8.2.4 Operating elements Meaning Minus key In a menu, submenu Moves the selection bar upwards in a choose list. With a Wizard Confirms the parameter value and goes to the previous parameter. With a text and numeric editor In the input mask, moves the selection bar to the left (backwards).
- Page 49 Proline Promag D 400 Operation options Meaning Plus/Enter key combination (press and hold down the keys simultaneously) Increases the contrast (darker setting). Minus/Plus/Enter key combination (press the keys simultaneously) For operational display Enables or disables the keypad lock (only SD02 display module).
- Page 50 Operation options Proline Promag D 400 8.2.7 Disabling write protection via access code If the -symbol appears on the local display in front of a parameter, the parameter is write- protected by a user-specific access code and its value cannot be changed at the moment using the local display (→...
-
Page 51: Access To The Operating Menu Via The Web Browser
Proline Promag D 400 Operation options Access to the operating menu via the Web browser 8.3.1 Function range Thanks to the integrated Web server the device can be operated and configured via a Web browser. The operating menu structure is the same as in the local display. - Page 52 Operation options Proline Promag D 400 User rights for TCP/IP settings User rights required for TCP/IP settings (e.g. for changes to IP address, subnet mask) Computer configuration • JavaScript is enabled • If JavaScript cannot be enabled, enter http://192.168.1.212/basic.html in the address line of the Web browser.
- Page 53 Proline Promag D 400 Operation options Device tag Webserv.language English Ent. access code Access stat.tool Maintenance A0017362 Device tag (→ 57) Picture of device 8.3.4 Logging on Access code 0000 (factory setting); can be changed by customer (→ 57) 8.3.5...
-
Page 54: Access To The Operating Menu Via The Operating Tool
System integration Proline Promag D 400 Header The following information appears in the header: • Device tag (→ 57) • Device status with status signal • Current measured values Function row Functions Meaning Measured values The measured values of the device are displayed... -
Page 55: Switching On The Measuring Device
Proline Promag D 400 Commissioning • "Post-installation check" checklist (→ 26) • "Post-connection check" checklist (→ 42) 10.2 Switching on the measuring device After a successful function check, switch on the measuring device. After a successful startup, the local display switches automatically from the startup display to the operational display. -
Page 56: Configuring The Measuring Device
Commissioning Proline Promag D 400 X X X X X X X 20.50 Main menu 0104-1 Language English Operation Setup Language 0104-1 English à Deutsch Español Français Language 0104-1 à English Deutsch Español Français Hauptmenü 0104-1 Sprache Deutsch Betrieb Setup A0013996 ... -
Page 57: Defining The Tag Name
Proline Promag D 400 Commissioning 10.6 Defining the tag name To enable fast identification of the measuring point within the system, you can enter a unique designation using the Device tag parameter and thus change the factory setting. Navigation "Setup" menu → Device tag... - Page 58 Commissioning Proline Promag D 400 The device automatically locks the write-protected parameters again if a key is not pressed for 10 minutes in the navigation and editing view. The device locks the write-protected parameters automatically after 60 s if the user skips back to the operational display mode from the navigation and editing view.
- Page 59 Proline Promag D 400 Commissioning For device version with PROFIBUS DP communication type ON OFF Not used Write protection A0023060 For device version with EtherNet/IP communication type ON OFF Default Ethernet network settings IP 192.168.1.212 Write protection A0023059 Loosen the 4 fixing screws on the housing cover and open the housing cover.
-
Page 60: Diagnostic Information
Diagnostic information Proline Promag D 400 Diagnostic information Faults detected by the self-monitoring system of the measuring device are displayed as a diagnostic message in alternation with the operational display. The message on remedial measures can be called up from the diagnostic messages, and contains important information on the fault. - Page 64 www.addresses.endress.com...
