NOTE: The condensation pump drain hose is located underneath the HPE Adaptive Rack
Cooling System.

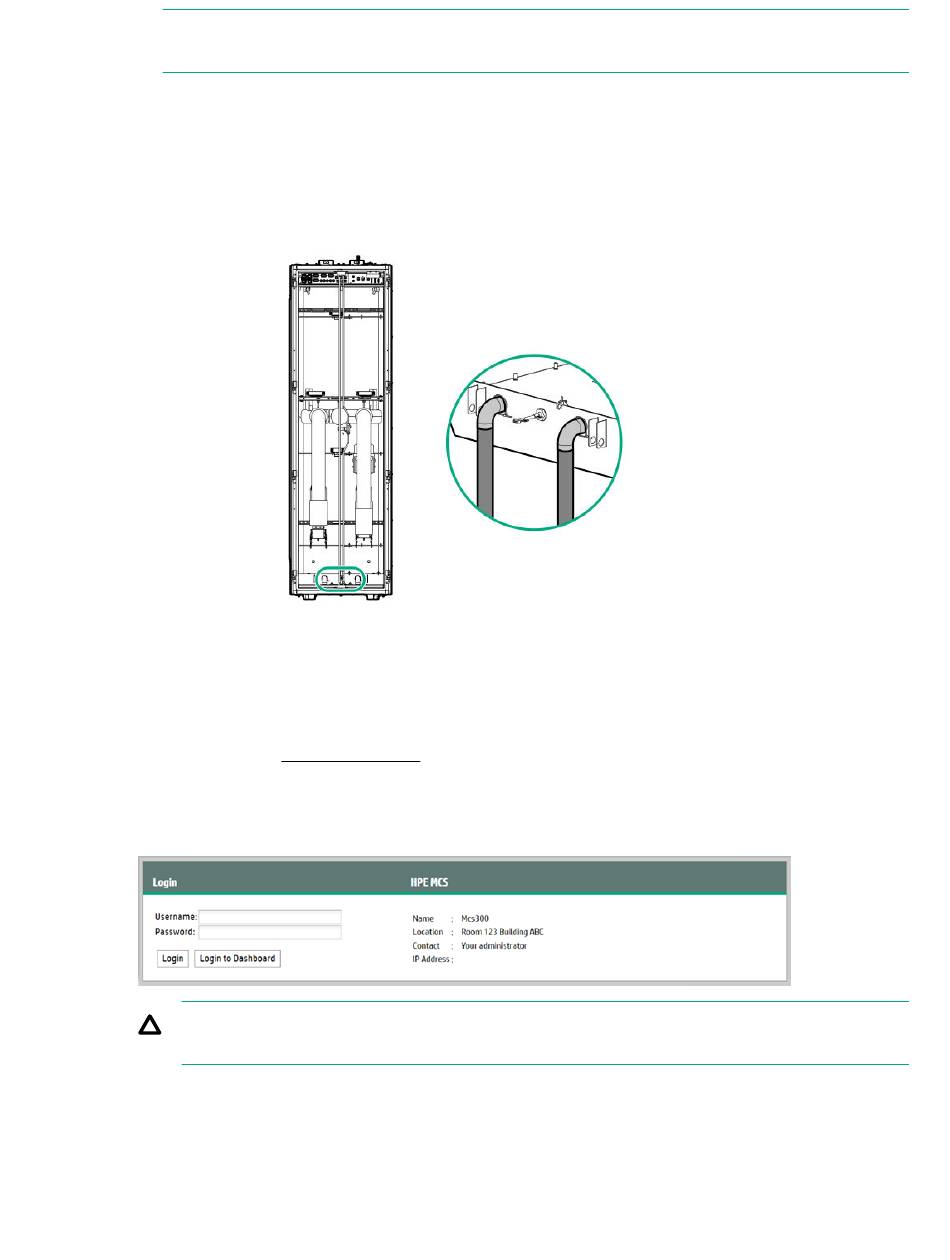

c. The following figure shows the location of the two overflow drains in the rear of the cooling unit.
Each drain is a 15-mm ID tube. There is also a 15-mm ID gravity drain tube and a 0.275-in ID/
0.375-in OD condensate pump drain tube. Both tubes are 1.83 m (6 feet) long. The preferred
method of routing for all hoses is downward at an angle of at least 3º (pitch of 0.6 inch per 12
inches), without loops, and away from the HPE Adaptive Rack Cooling System cabinet. All hoses
must be routed to a floor drain or reclamation system. The two overflow hoses are located in the
HPE ARCS Accessory Kit.
3. To minimize strain on connections and to minimize operational hose dynamics, secure and support
the facility water supply and return hoses as necessary.
4. Log in to the web interface:
a. Enter the URL: https://ipaddress.
b. Enter the user name in the User Name field. The default user name is admin.
c. Enter the password in the Password field. The default password is admin.
CAUTION: Once installation is complete, be sure to return the settings to Automatic to avoid
damage to the unit. See step 11 for details.
5. To open the HPE Adaptive Rack Cooling System settings tree, select the Visualization icon.
