TV With A/V Connectors
If your TV has only one AUDIO IN jack,
connect the lower (mono) AUDIO L jack
on the DSS receiver to the TV's AUDIO
IN jack.
Satellite Receiver
LOW SPEED DATA
1
RG-6 Cable
from LNB
Some TVs label this jack RF IN,
instead of VHF/UHF IN.

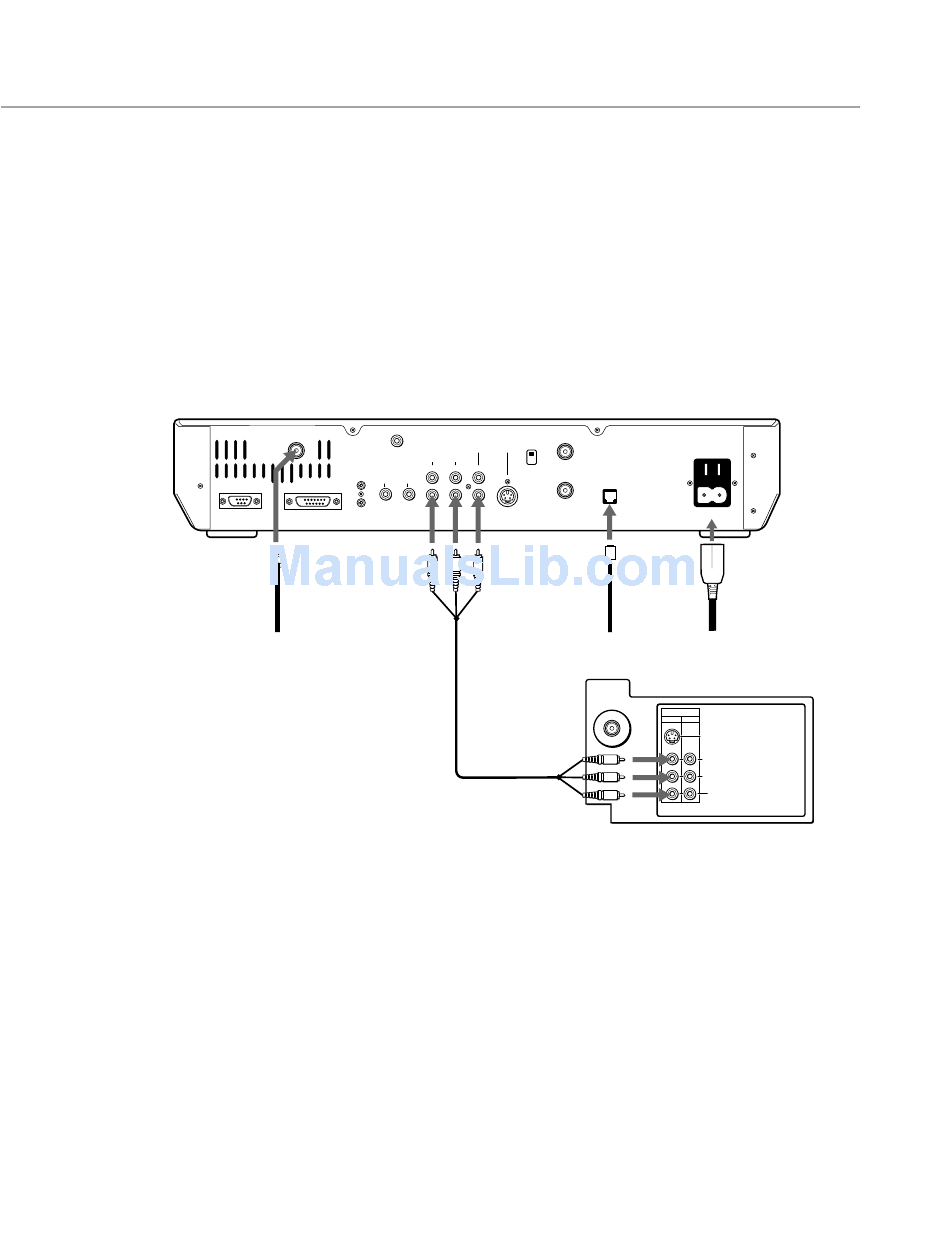

Refer to the illustration below.
1
Connect the RG-6 cable from the satellite antenna's LNB to the DSS
receiver's SATELLITE IN jack.
2
Connect the DSS receiver's A/V jacks to the TV's A/V IN jacks.
3
Connect one end of the telephone line cord to the DSS receiver's
TEL LINE jack. Connect the other end to your home's modular
telephone outlet.
4
Connect one end of the AC power cord to the DSS receiver's AC IN
jack. Connect the plug end to an AC outlet.
RF REMOTE
SATELLITE IN
AUDIO
R L
AUDIO 3
CONTROL S
OUT
IN
R L
WIDE BAND DATA
(MONO)
OUT
2
A/V Cable
Optional Connections
Y
If you have a cable input, cable box, or a terrestrial TV antenna,
connect it to the TV's VHF/UHF IN jack.
Y
Best Connection: If your TV has an S-VIDEO jack, use an S-VIDEO
cable to connect the DSS receiver's S-VIDEO jack to the TV's S-
VIDEO IN jack. This provides the best picture quality. Then use
audio cables to connect one set of the DSS receiver's audio jacks to
the TV's AUDIO IN jacks.
Y
To connect the DSS receiver to your audio system, use audio cables
to connect the DSS receiver to your audio receiver's AUDIO IN
jacks.
VHF/UHF
VIDEO S VIDEO
IN
CH 3
CH 4
VHF(SAT)/UHF
TEL LINE
OUT
3
Telephone
Line
VHF / UHF
Chapter 3: Connecting Your System
AC OUT
AC IN
4
AC Cord
TV
IN
VIDEO 1 VIDEO 2
S VIDEO
VIDEO
L
(MONO)
AUDIO
R
