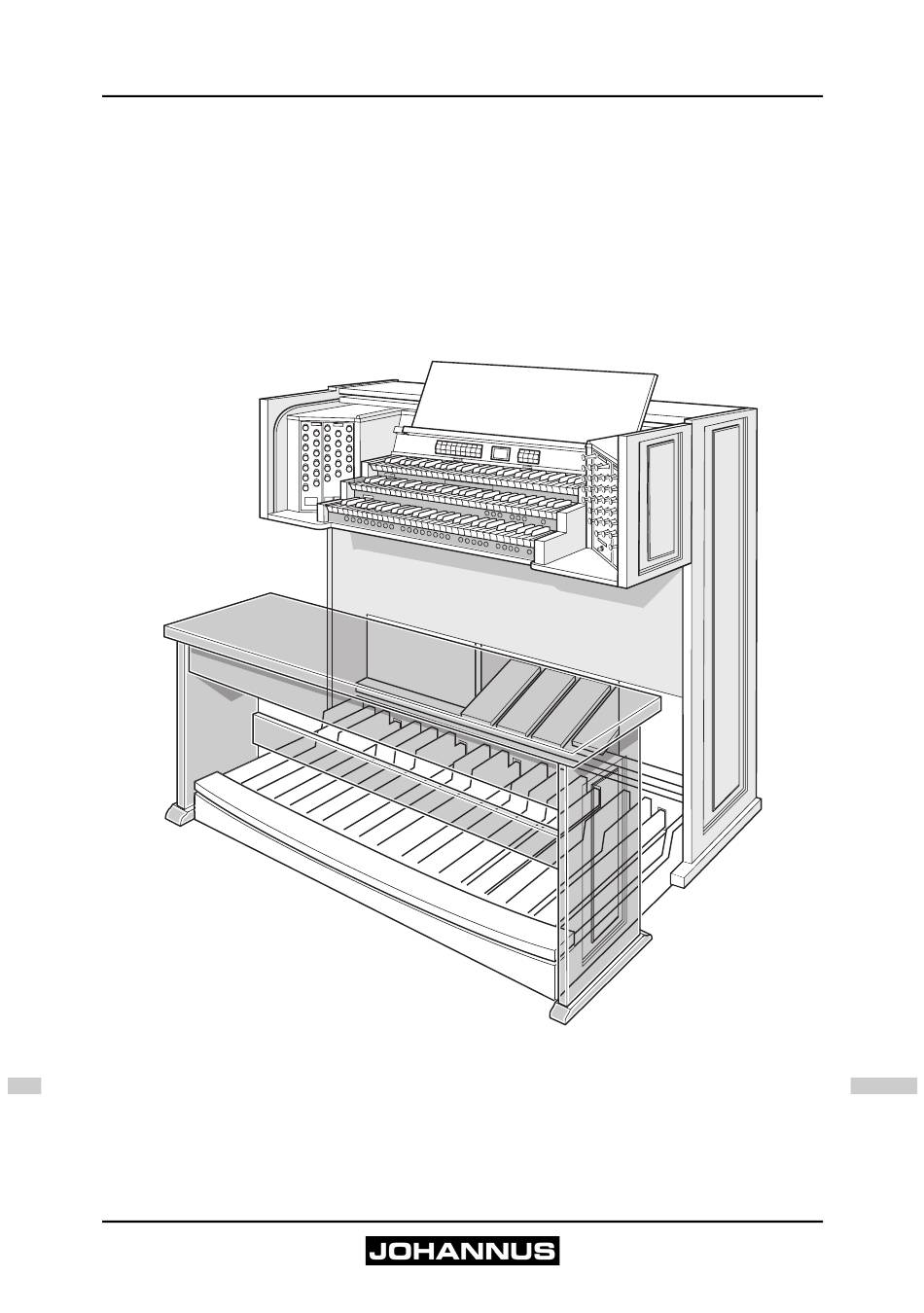

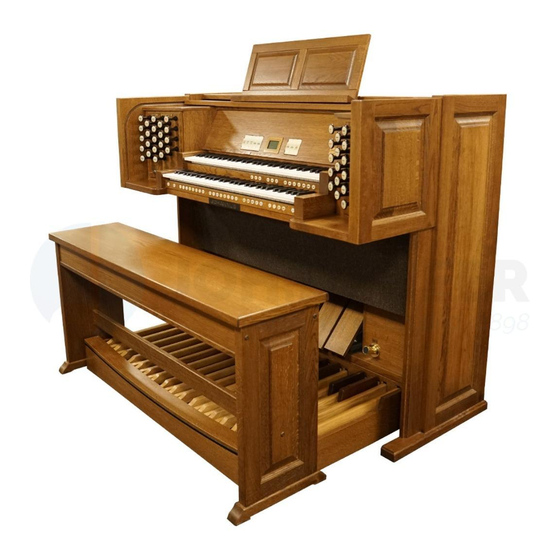

  • Page 1 SER MANUAL OHANNUS EMBRANDT 275, 375, 395...
  • Page 2 All rights reserved. Nothing in this publication may be reproduced, stored in a data file or made public in any form or in any way either electronically, mechanically by way of photocopying, recording or in any other way without the prior written permission of Johannus Orgelbouw b.v.

  • Page 3: Table Of Contents

    Overview of the main components ....... . . 9 Overview of Rembrandt 275 controls ......10 Overview of Rembrandt 375 controls .
  • Page 4 MAINTENANCE, PROBLEMS AND WARRANTY ....28 Maintenance ..........28 5.1.1 Cabinet maintenance .

  • Page 5: Safety

    Keep this user manual with the organ. The organ may only be opened by a technician authorised by Johannus Orgelbouw b.v. The organ contains static-sensitive components. The warranty becomes null and void if the organ is opened by a non-authorised person.

  • Page 6: Installation

    NSTALLATION Placement and connection 1. Place the organ on a stable, horizontal surface. 2. Lean the organ slightly backward. 3. Slide the pedalboard (A) against the organ (B). 4. Set the organ upright. 5. Place the music desk (E), see§ 2.2. 6.

  • Page 7: Placing The Music Desk

    There are two ways to place the music desk on the organ, depending on the model organ that you have. Placing the music desk with a Rembrandt 275 or 375 1. Unfold the fastening rods at the rear of the music desk.

  • Page 8: Opening And Closing The Rolltop Cover

    Opening and closing the rolltop cover The organ can be closed with a wooden rolltop cover that has a lock. The rolltop cover lock is behind the music desk. Opening 1. Put the appropriate key in the rolltop cover lock. 2.

  • Page 9: Description Of The Organ

    ESCRIPTION OF THE ORGAN Overview of the main components Rolltop cover General Crescendo pedal Rolltop cover lock Expression pedals Music desk Pedalboard Loudspeakers Organ bench...

  • Page 10: Overview Of Rembrandt 275 Controls

    Overview of Rembrandt 275 controls ROM. SYM. BAR. SOLO HYM.N TRIO SPEELHULPEN SPEELHULPEN SPEELHULPEN ROM. SYM. BAR. SOLO HYM.N TRIO LENGTE VOL. TRANS. MENU VOL. TRANS. MENU Pedalboard stops Chorus accessory Great stops Fix Accessories Accessories Manual Bass and Cantus Firmus couplers...

  • Page 11: Overview Of Rembrandt 375 Controls

    Overview of Rembrandt 375 controls ROM. SYM. BAR. SOLO HYM.N TRIO SPEELHULPEN SPEELHULPEN SPEELHULPEN SPEELHULPEN ROM. SYM. BAR. SOLO HYM.N TRIO LENGTE VOL. TRANS. MENU VOL. TRANS. MENU AB AA Pedalboard stops - and + pistons Great stops Chorus accessories Accessories Fix Accessories Main group intonations...

  • Page 12: Overview Of Rembrandt 395 Controls

    Overview of Rembrandt 395 controls ROM. SYM. BAR. SOLO HYM.N TRIO SPEELHULPEN SPEELHULPEN SPEELHULPEN SPEELHULPEN ROM. SYM. BAR. SOLO HYM.N TRIO LENGTE VOL. TRANS. MENU VOL. TRANS. MENU Pedalboard stops General Crescendo Great stops - and + pistons Accessories Chorus accessories Main group intonations Fix Accessories Subgroup intonations...

  • Page 13: Overview Of Rembrandt 495 Controls

    Overview of Rembrandt 495 controls ROM. SYM. BAR. SOLO HYM.N TRIO SPEELHULPEN SPEELHULPEN SPEEL SPEEL SPEELHULPEN SPEELHULPEN ROM. SYM. BAR. SOLO HYM.N TRIO LENGTE VOL. TRANS. MENU VOL. TRANS. MENU AE AD Pedalboard stops 0-piston and reset piston Great stops MENU Solo stops General Crescendo...

  • Page 14: Connecting And Switching On The Accessories

    MIDI SEQ.: This is a non-programmable MIDI output for connecting a sequencer or PC (with the optional Johannus Intonat program), for example. AUX IN: This is a (stereo) input for playing the sound of an external device through the amplifiers of the organ.
  • Page 15 AUX OUT: This is an output for connecting an external (stereo) amplifier. EXT. REV.: This is an output for connecting Johannus external acoustics. This is a system that imitates the spatial effect of a concert hall or cathedral. Do not use this output for other purposes.

  • Page 16: Operation

    PERATION Expression pedals Expression pedals adjust the volumes of the different Solo stops (Solo is only possible with an organ that has four keyboards), Choir (Choir is only possible with an organ that has three keyboards), Great stops/Pedal and Swell. Acoustics The acoustics rotary controls produce a digital acoustic effect.

  • Page 17: Factory Intonation

    Factory intonation Save the intonation settings In order to save the intonation settings, you need the Johannus intonation programme. 1. Connect a PC to the organ. Use the MIDI SEQ. output, see § 3.7. 2. Save the intonation settings on the PC using the intonation programme of Johannus.

  • Page 18: Couplers

    Couplers Manual coupler: Fully couples all keys of the Swell to the Great. Activate the manual coupler through the following stops: Swell - Great; Choir - Great (only with an organ that has three keyboards); Swell - Choir (only with an organ that has three keyboards); Choir - Solo (only with an organ that has four keyboards);...

  • Page 19: Memory Lock

    Memory lock The memory lock protects your settings. 1. Turn the key switch to the right to set the memory to ‘open’. The SET piston lights. 2. Turn the key switch to the left to set the memory to ‘closed’. The SET piston goes out.

  • Page 20: Easy Menu

    4.11 Easy Menu The Easy Menu is an operating system whose settings can be read on the display. The Easy Menu is operated with the - and + buttons, the SET and the MENU buttons. The functions in the Easy Menu can only be selected when the memory lock is open.

  • Page 21: General Volume

    Calling up a capture memory location 1. Use the - and + buttons to select the desired level (1-32) on the display. 2. Push the desired memory location (1-8) in. The active stops light up. 4.11.2 General Volume The set volume can be read on the display (Vol:..). The volume can only be programmed when the VOL.

  • Page 22: Tuning Mode

    4.11.4 Tuning Mode The Tuning Mode function shifts the pitch in fourteen steps of 1 Hz (from 426 Hz to 454 Hz). The set pitch can be read on the display. Programming the Tuning Mode 1. Push the MENU piston in. 2.

  • Page 23: Keyboard Mode

    4.11.6 Keyboard Mode The Keyboard Mode function sets the operation of the keys. This function is not available with organs that have wooden keyboards. 1. Press the MENU piston. 2. Use the - and + pistons to select the Keyboard Mode function on the display.

  • Page 24: Reset Procedures

    4.11.7 Reset Procedures The Reset Procedures function is used to delete the capture memory, or to reset a number of settings to the factory settings. 1. Press the MENU button. 2. Use the - and + buttons to select the Reset Procedures function on the display.

  • Page 25: Demo Songs

    4.11.9 Demo Songs The Demo Songs function plays twelve different demo songs. 1. Press the MENU piston. 2. Use the - and + pistons to select the Demo Songs 3. Press the SET piston. The title and composer of the first demo song appear on the display.

  • Page 26: 4.11.11 General Crescendo Pedal

    Use the - and + pistons to select ON or OFF to switch the Surround system on or off. Select OFF to exit the Std. Intonation function. Select ON to go to the volume settings of the Surround system. b. Use the - and + pistons to select the volume for the left channel. Press the SET piston.

  • Page 27: 4.11.12 Programming Midi Stops

    4.11.12 Programming MIDI stops MIDI is a protocol for communication between the organ and other devices, such as: Sequencer Other musical instruments With the programmable MIDI stops, you can control any module voice (1-128) through any MIDI channel (1-16). 1. Press the MENU piston. MIDI Program appears on the display. 2.

  • Page 28: Maintenance, Problems And Warranty

    AINTENANCE PROBLEMS AND WARRANTY Maintenance Overview Component Maintenance Frequency Cabinet Cleaning. See § 5.1.1. As required Manuals Cleaning and removing scratches. As required See § 5.1.2. 5.1.1 Cabinet maintenance The cabinet is made of solid wood and wood veneer. Do not use furniture polish or teak oil to clean the organ cabinet.

  • Page 29: Repositioning The Pedal

    6. Contact your dealer if the pedalboard does not work properly. Warranty The conditions are specified in the warranty certificate. The warranty becomes null and void if changes or repairs are made to the organ by persons or organisations that are not authorised by Johannus Orgelbouw b.v.

  • Page 30: Midi Implementations

    IDI IMPLEMENTATIONS MIDI Implementation Chart JOHANNUS Organs Date: April 2005 MIDI Implementation Chart Version 1.00 MIDI Implementation Chart Functions Transmitted Recognized Remarks Basic Default See MIDI Specs See MIDI Specs See MIDI Specs Channel Changes See MIDI Specs Mode Default...

  • Page 31: Midi Specifications

    MIDI specifications This paragraph contains more details about the specifications in the MIDI Implementation Chart. 6.2.1 Default basic channels (transmitted/recognized) 2-manual instrument (with standard keyboard layout): 1: Great stops 2: Swell stops 3: Pedal stops 12: Stops 3-manual instrument (with standard keyboard layout): 1: Choir 2: Great stops 3: Swell stops...

  • Page 32: Control Changes (Transmitted)

    Each ‘sys ex’ (system exclusive) message largely looks the same. The first 7 bytes and the last byte are always the same. Only the value of the 8th byte varies. This is the ‘sys ex message’ that Johannus generally uses: F0 00 4A 4F 48 41 53 XX F7 (hexadecimal).
  • Page 33 (for example PP = 00 P = 01) through the MIDI MOD. output. These sys ex codes are only important when the Johannus sound module CSM 128 is connected to your instrument. Other MIDI codes (transmitted) Press the 0 button to transmit the sys ex code, ‘all stops off’...

  • Page 35: Index

    ....19 calling up ..10 overview for Rembrandt 275 ....19 programming .

This manual is also suitable for:

Rembrandt 375Rembrandt 495Rembrandt 395
