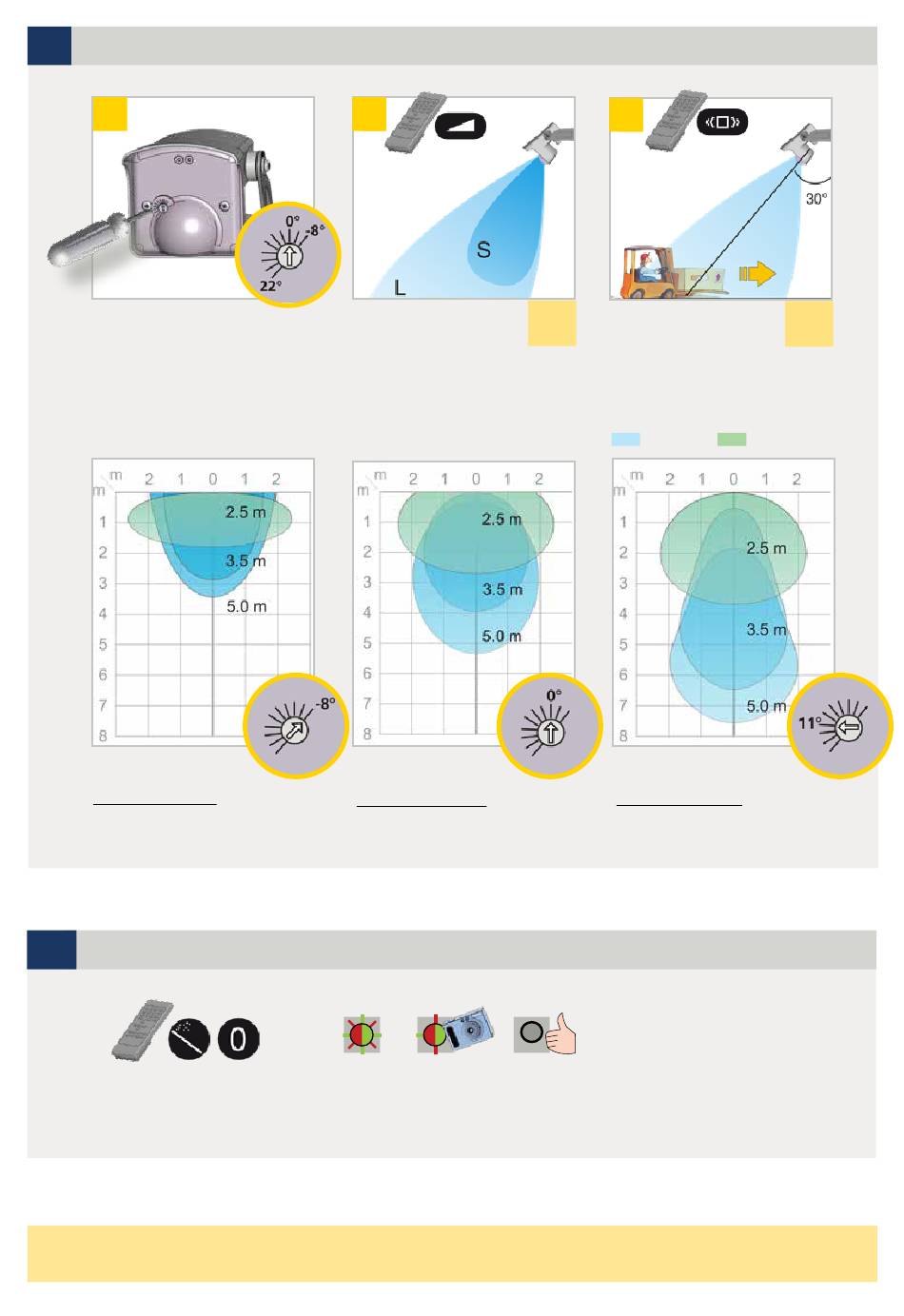

BEA CONDOR User Manual page 5

4
RADAR FIELD
1
By turning this screw, the
radar field angle is reduced or
increased (from -8° to +22°).
The total angle is the sum of the sensor angle and the radar field angle.
Sensor angle: 30°
Radar field angle: -8°
Total angle: 22°
All detection field dimensions are measured in specific conditions and with a field size value 9.
5
SETUP
Launch a setup to make a reference picture.
Step out of the detection field and do not leave any tools inside the detection field.
After first power on, the sensor launches a setup and after each power cut a short setup is launched.
IMPORTANT: Test the good functioning of the installation before leaving the premises.
2
0-9
Adjust the field size.
Sensor angle: 30°
Radar field angle: 0°
Total angle: 30 °
Total angle = sensor angle
15-20 s 3 s
CONDOR / CONDOR XL
3
Choose the right
p. 6
detection filter for your
application.
CONDOR
Sensor angle: 30°
Radar field angle: +11°
Total angle: 41°
1-6
p. 6
CONDOR XL
5
