Electrical Box

3. Electrical Box
Warning
Step

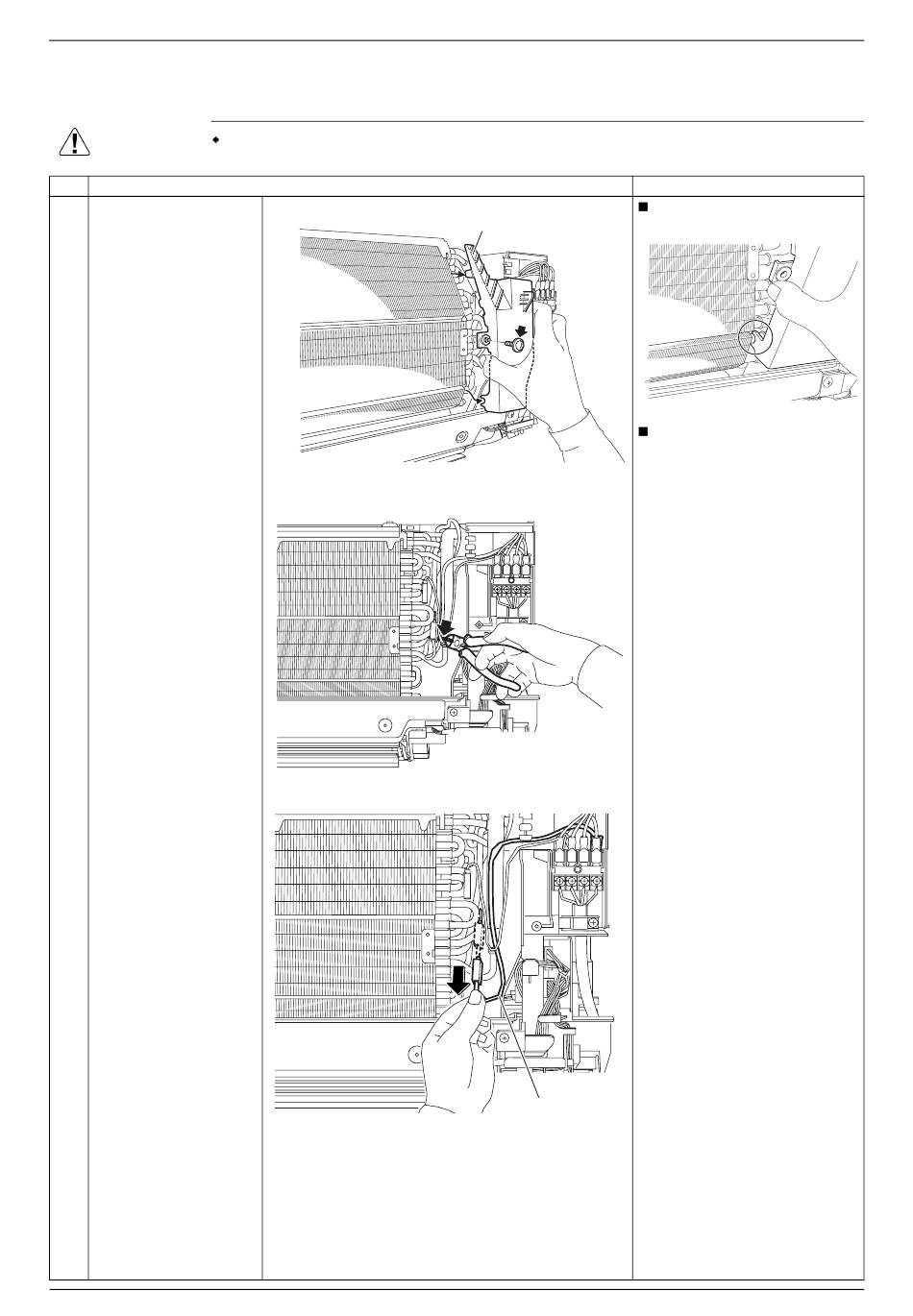

1 Remove the screw.
2 Remove the drip proof
plate from the indoor
heat exchanger.
3 Cut the clamp.
4 Pull out and release the
earth / ground wire.
6
Be sure to wait for 10 minutes or more after turning off all power supplies before
disassembling work.
Procedure
Drip proof plate
(R18724)
(R16274)
Earth / ground wire
(R19306)
Si041351ED
Points
The shape of the drip proof
plate varies by the model.
(R16273)
When reassembling, fit the
hook to the indoor heat
exchanger.
Removal Procedure
