Si041351ED

4. PCBs

Warning

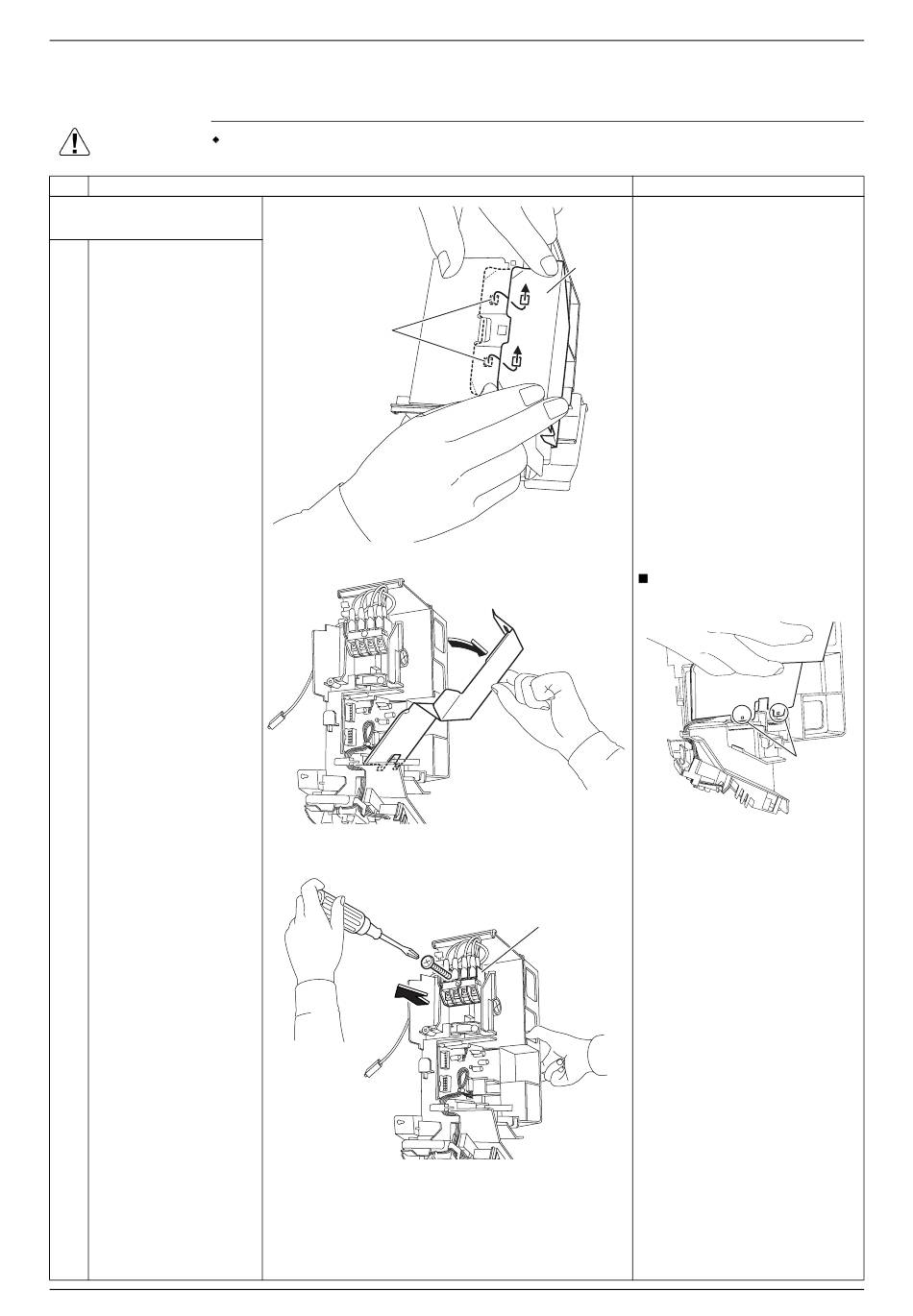

Step
1. Remove the signal
receiver PCB.
1 Unfasten the 2 hooks of
the shield plate.
2 Open the shield plate
and remove it.
3 Remove the screw and
remove the terminal
board.
(1 hook at the back)
Removal Procedure
Be sure to wait for 10 minutes or more after turning off all power supplies before
disassembling work.
Procedure
Hook
Shield
plate
(R22131)
The shield plate has 2 hooks
at the lower part.
(R16283)
Terminal board
(R18725)
PCBs
Points
Hook
(R16498)
9
