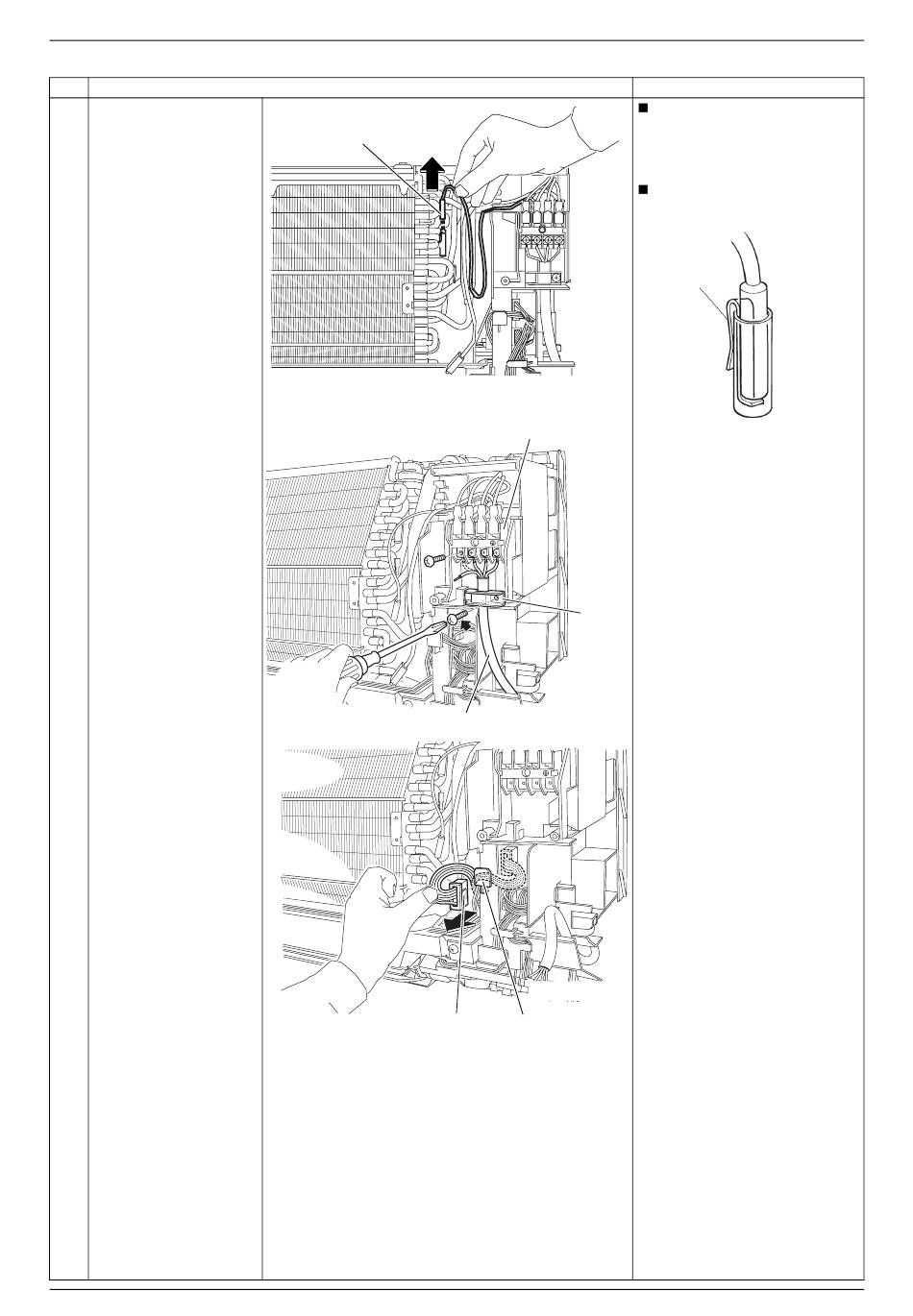

Daikin CTKM28PV2S Service Manual page 9

Si041351ED
Step
5 Pull out the indoor heat
exchanger thermistor.
6 Remove the 4 screws
on the terminal board
and disconnect the
connecting wire.
7 Remove the screw and
remove the wire fixture.
8 Disconnect the
connector [S1] and
release the harness
from the hook.
Removal Procedure
Procedure
Indoor heat exchanger
thermistor
Terminal board
3
1 2
Connecting wire
[S1]
The position of the indoor
heat exchanger thermistor
varies by the model.
Be careful not to lose the clip
of the thermistor.
(R18885)
Wire
fixture
(R18886)
[S1]: fan motor
1 2 3
Hook
(R18887)
Electrical Box
Points
Clip
(R11268)
