Front Grille - Daikin CTKM28PV2S Service Manual

Front Grille

2. Front Grille
Warning
Step

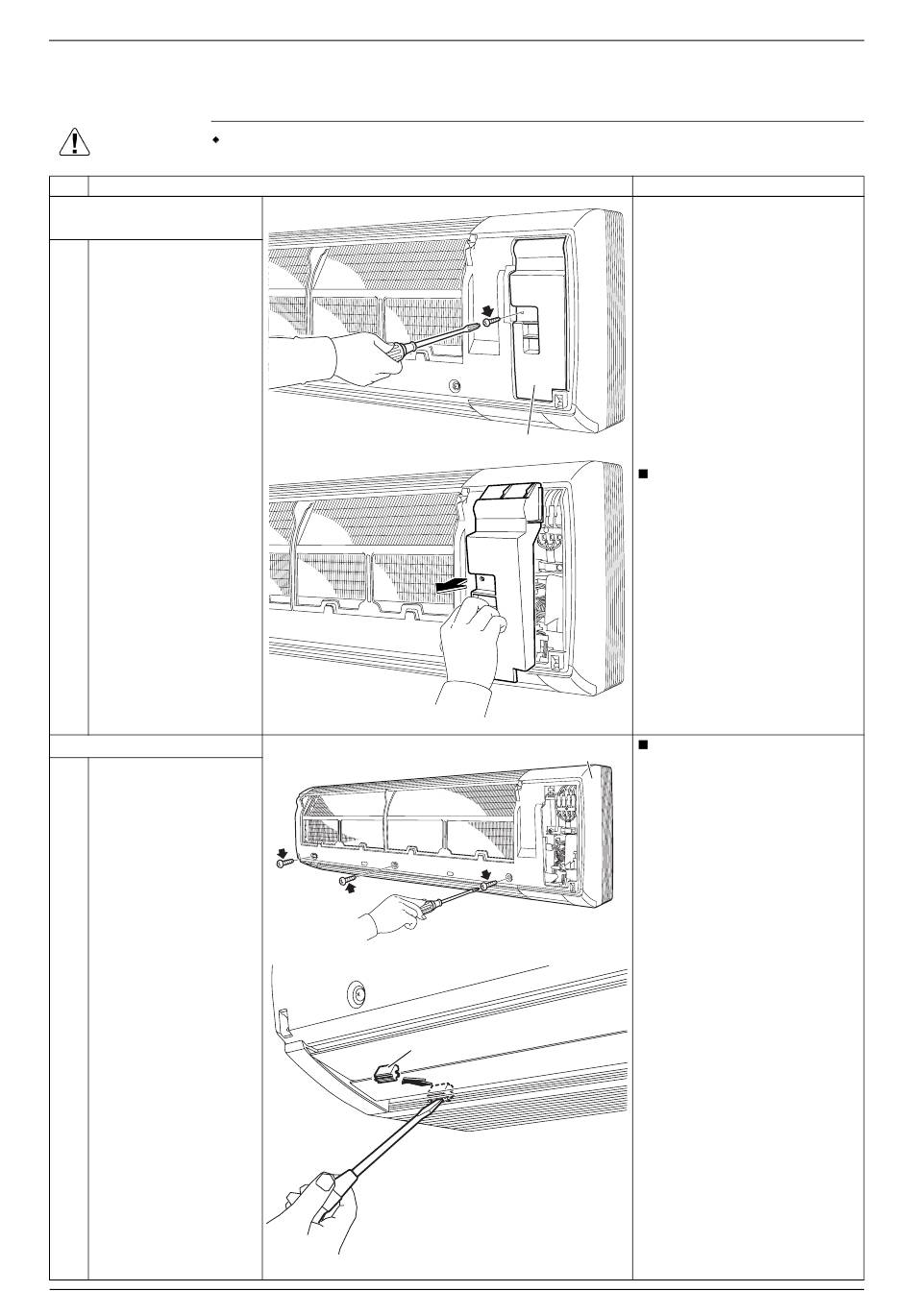

1. Remove the service
cover.
1 Remove the screw and
remove the service
cover.
2. Remove the front grille.
1 Remove the 3 screws
of the front grille.
2 Remove the 3 screw
covers with a flat
screwdriver.
4
Be sure to wait for 10 minutes or more after turning off all power supplies before
disassembling work.
Procedure
Service cover
(R16452)
(R16453)
Front grille
(R16454)
Screw cover
Points
You can remove the front
grille without removing the
service cover.
Refer to the removal
procedure in a reverse way
when reassembling.
(R20476)
Removal Procedure
