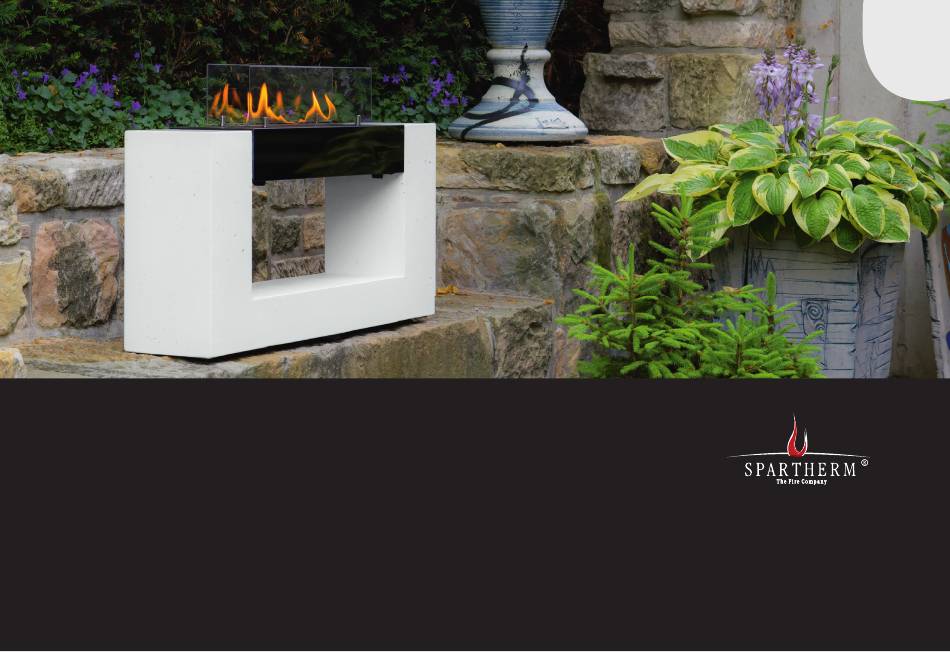

Page 1: Installation And Operating Instructions
Installation and operating instructions ebios-fire - architecture SL... - Page 2 FOREWORD / QUALITY PHILOSOPHY You have decided in favour of a SPARTHERM ebios-fire - thank you for your confidence in our company. In a world of excess and mass production, our company stands for the values expressed by our owner Gerhard Manfred Rokossa: „High technical quality combined with contemporary design and a customer...
-
Page 3: Table Of Contents
CONTENTS 1. General Information 5. Maintenance/troubleshooting 1.1 Scope of Supply 5.1 Furniture and glass (depending on the model) becomes sooted heavily, rapidly and unevenly 2. Installation Instructions 5.2 Fire is difficult to ignite 2.1 Technical data 5.3 Unpleasant odours 2.2 Dimensions of the architecture SL 5.4 Appearance of flames changes 2.3 2.3 CERAMAT FN burner mat 5.5 Spilt ethanol ignites... -
Page 4: General Information
IMPORTANT INFORMATION 1. GENERAL INFORMATION As per the German Equipment and Product Safety Act (GPSG) and our Small children, elderly or infirm persons: As is the case with all open flames, statutory duty to notify, we would like to inform you about heating with this it is expedient that you attach a protective fixture for these groups of per- product. -
Page 5: Scope Of Supply
Slight imperfections and unevenness in the concrete surface are typical of this material and are not a reason for complaint! Bioethanol is a dangerous substance and must only be stored in the pre- scribed quantities as per the regulations: Storage in a cellar: max. -
Page 6: Installation Instructions
2. INSTALLATION INSTRUCTIONS 2.2 DIMENSIONS OF THE ARCHITECTURE SL The device must not be able to tilt and must be positioned horizontally. 2.1 TECHNICAL DATA ebios-fire Bioethanol Fuel type (ethanol content 96%) Fill quantity max. 2,6 l Fuel consumption 0,5 l/h Burning time ca. -
Page 7: Installation Location
German Ordinance on Flammable Liquids Fire Regulations of the respective Federal German State The ebios-fire architecture SL is designed for use both indoors and out- German Federal State Construction Ordinances doors. The following information must be noted if the fireplace is set up... -
Page 8: Installation / Assembly
2.6 INSTALLATION / ASSEMBLY Burner The architecture SL must be aligned horizontally and protected against tilting. Take the safety dis- tances into account (see 2.7). Rear ventilations must not be closed. Place the burner with safety container and cover plate in the holders in the holders in the furniture. -
Page 9: Fire Precautions
2.7 FIRE PRECAUTIONS 3. OPERATING INSTRUCTIONS In order to guarantee sufficient thermal insulation, there must be a mini- mum distance of 300 mm (see Fig. 4) to flammable components, furniture, Read these installation and operating instructions carefully before installing decorations and curtains! There must be no objects between the ebios-fire and starting up your ebios-fire. -
Page 10: Fire Protection
• Ensure that the housing cover is closed and the protective panes are • The handling of fuel in the vicinity of the hot or burning device is associ- inserted. ated with significant risks and is not permitted! • It is recommended to open a window during operation. •... -
Page 11: Start-Up
Under no circumstances should other fuels such as petrol, spirit or similar flammable liquids be used. Do not mix the fuels together or with other substances. The burners may only be operated using the prescribed fuel otherwise the warranty will be rendered void and the device may be unsafe to operate. - Page 12 Proceed as follows: 1. Ensure that the air supply is sufficient. 2. Make sure that the burner has gone out and has cooled down fully (minimum waiting time after being extinguished = 1 hour). 3. The burner remains in the housing when being refilled. For this remove the protective panes and then open the housing cover.
-
Page 13: Refilling The Burner
11. Close the housing cover of the fireplace furniture, ensure that the cover Should you ever pour in too much fuel and cause the burner to overflow, does not project into the flames but remains a uniform distance from the the ethanol collects in the safety container. -
Page 14: Taking Out Of Operation Safely
3. The burner remains in the housing when being refilled. For this remove Should you ever pour in too much fuel and cause the burner to overflow, the protective panes and then open the housing cover. the ethanol collects in the safety container. Empty this immediately and before lighting the burner. -
Page 15: Cleaning And Care
4. CLEANING AND CARE 5.1 FURNITURE AND GLASS (DEPENDING ON THE MODEL) BECOMES SOOTED HEAVILY, RAPIDLY The architecture SL may only be cleaned when cold. AND UNEVENLY 4.1 CLEANING CLADDING PARTS If this did not occur from the very start, please check the following points: •... -
Page 16: Spilt Ethanol Ignites
6.2 GENERAL INFORMATION claim. Spartherm Feuerungstechnik GmbH is not obliged to satisfy any claim if such documentation is not presented. This product has been manufactured in compliance with current standards 6.5 EXCLUSION OF WARRANT Y... -
Page 17: Elimination Of Defects / Repair
Damages and claims for compensation which are not the result of delivery • incorrect set-up/installation of device of a defective appliance from Spartherm Feuerungstechnik GmbH are exclu- • failure to comply with Installation and Operating Manual ded and are not part of this warranty promise. -
Page 18: Declaration From The Builder Of A Custom-Made Piece Of Furniture/Fireplace With The Architecture Sl
7. DECLARATION FROM THE BUILDER OF A CUSTOM-MADE PIECE OF FURNITURE/FIREPLACE WITH THE ARCHITECTURE SL The furniture/stove builder must confirm to the buyer of the custom-made piece of furniture with the architecture SL that it has been properly con- structed (piece of furniture/stove) and installed (burner). The builder con- firms that all the points listed in these instructions have been taken into account and included in his design. - Page 19 NOTE GB 19...
- Page 20 IT Il vostro rivenditore specializzato | E Sus comercios especializados NL Uw vakhandelaar | PL Państwa sprzedawca | РУС Ваш дилер SPARTHERM Feuerungstechnik GmbH · Maschweg 38 · D-49324 Melle Phone +49 (0) 5422 94 41-0 · Fax +49 (0) 5422 9441-14 · www.spartherm.com GB 20...
