INTELLICENTER
PERSONALITY AND EXPANSION CARD INSTALLATION GUIDE

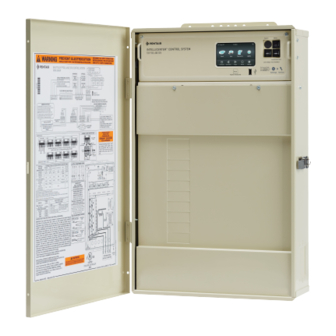

IntelliCenter Control System Personality Expansion Cards
The IntelliCenter Control System can be configured for single, shared or dual body equipment. The
base configuration is the i5P (a filter pump circuit plus four auxiliary circuits for a single body of water).
By adding a Personality Expansion card, the system can be expanded to support additional capacities
and configurations. An example of a fully loaded IntelliCenter Control System would be:
i5P Main Motherboard
Slot 1: i10PS Personality Expansion Card.
Note: Personality Expansion cards MUST always be installed in SLOT 1.
Slot 2: Valve Expansion Card
Slot 3: Pool Cover Expansion Card
Slot 4: Available for future use
IntelliCenter Control System Personality Expansion Cards
Part Numbers:
P/N 523050 i5P Motherboard, Single Body
P/N 523051 i5X Expansion Motherboard
P/N 522997Z i10X Expansion (requires i5X)
P/N 521936Z i5PS, Shared Equipment
P/N 521977Z i8P, Single Body
P/N 521968Z i8PS, Shared Equipment
P/N 521993Z i10P, Single Body
P/N 521873Z i10PS, Shared Equipment
P/N 523029Z i10D, Dual Equipment
P/N 522038Z Valve Expansion Card
P/N 522039Z Pool Cover Card (supports two covers)
INSTALLATION SUMMARY STEPS
1. Access the Main Motherboard in the Load Center or Power Center (see page 2).
2. Install the Personality Card in SLOT 1 next to the Main Motherboard (see page 3).
3. Use the Setup Wizard to configure the system (see IntelliCenter User's Guide (P/N 522990).
Personality and Expansion Card Slot Assignment Order
Slot 1 is only used for a Personality Card such as: i5PS, i8P, i8PS, i10P, i10PS, or i10D. If no Personality
card is being used, Slot 1 can be used for a Pool Cover card or Valve Expansion card. Note: Only one
Personality Expansion card can be installed.
Slot 2, Slot 3 and Slot 4: These Expansion card slots are available for any remaining Expansion cards in
any order, including the Pool Cover Expansion card or Valve Expansion card.
Note: Slot assignment order is the same for IntelliCenter Expansion enclosures.
®
CONTROL SYSTEM
IntelliCenter Control System Expansion card Installation Guide
Slot 1:
Slot 4: Slot 3: Slot 2:
Personality
Expansion Expansion Expansion
Expansion
Card (available) Card (available) Card
Card
Expansion Expansion
Card Card
4 3
IntelliCenter Control System (i5P Main Motherboard)
1
i5P (Base System)
Main Motherboard
