Rack-Mounting the SmartController EX Motion Controller
To rack-mount the controller in a standard 19-inch equipment rack, install the optional mount-
ing brackets on the side of the controller, as shown in the following figure. These brackets must
be ordered separately. They do not come with the controller.
190.0
88.1
44.4
21.8
3.6
TYP.

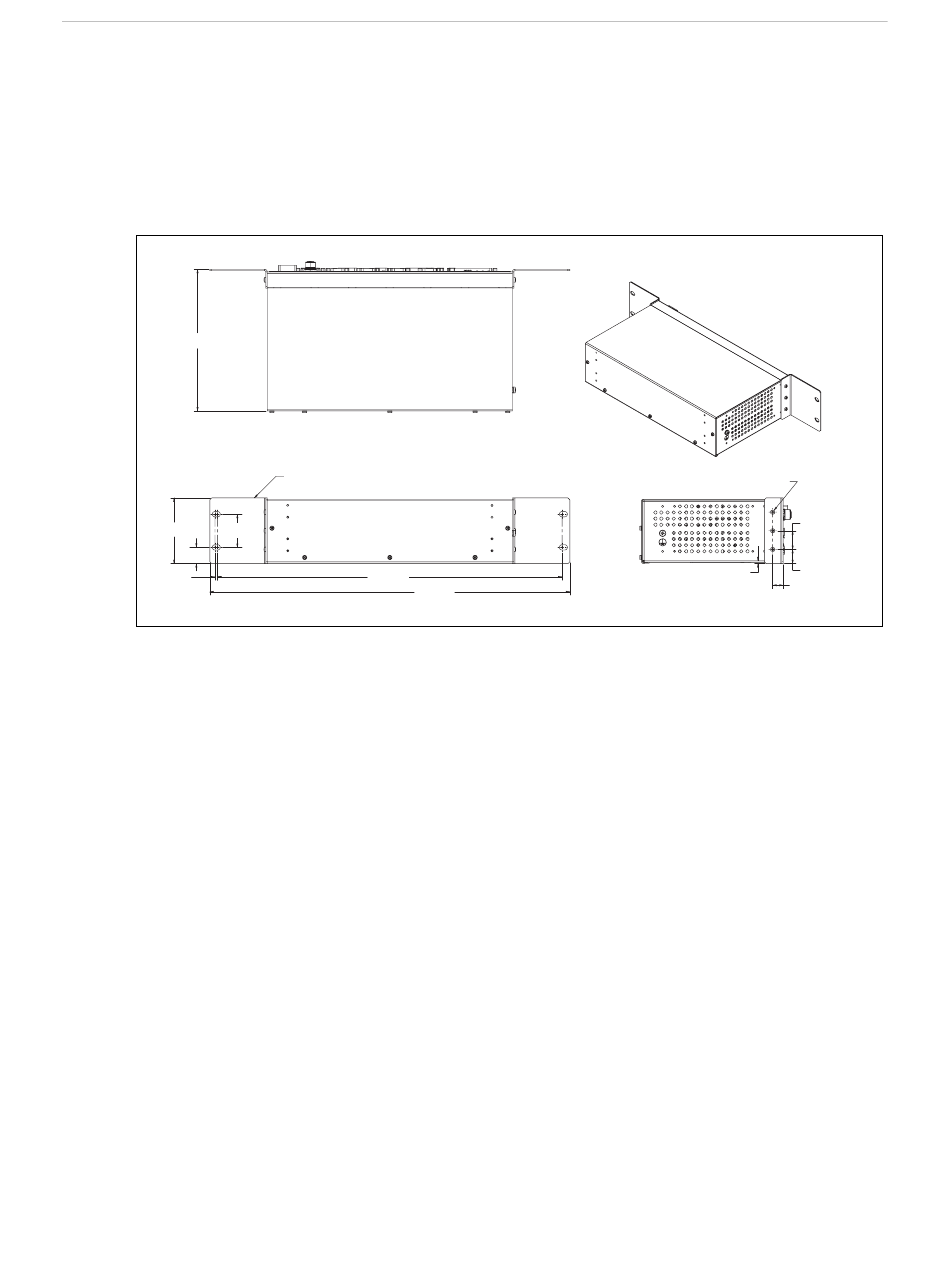

Figure 3-1. Rack-Mounting the SmartController EX Motion Controller (Units in mm)
Panel-Mounting the SmartController EX Motion Controller
To panel-mount the controller, install two brackets on each side at the rear of the unit, as
shown in the following figure. Use the screws from the accessories kit.
11069-000 Rev. H
2X 40356-00004
462.0
482.8
SmartController EX User's Guide
Chapter 3: Installation
3X M3 x 6MM
2X 25.0
19.1
3.8
14.2
17
