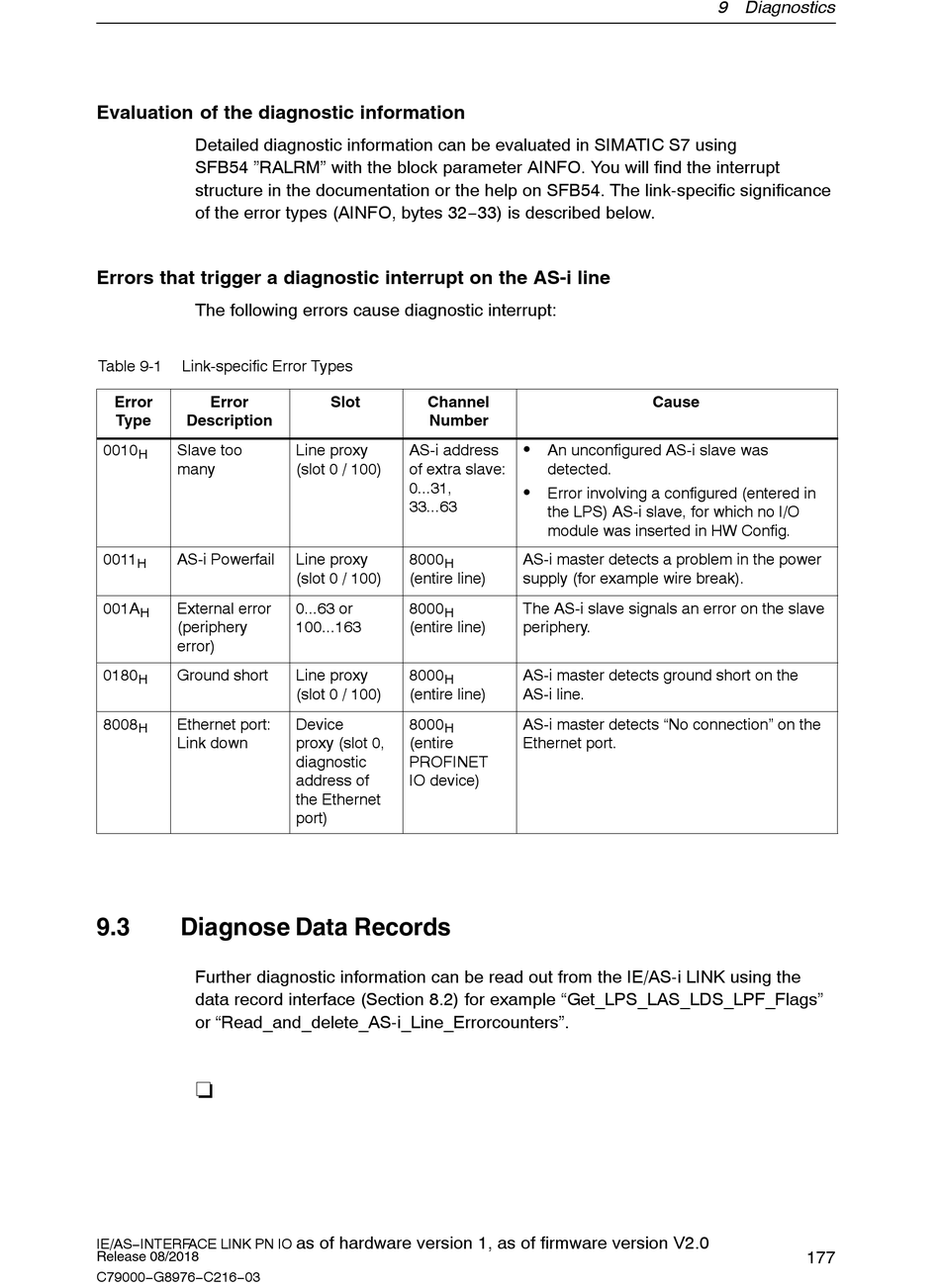

Evaluation of the diagnostic information
Detailed diagnostic information can be evaluated in SIMATIC S7 using
SFB54 "RALRM" with the block parameter AINFO. You will find the interrupt
structure in the documentation or the help on SFB54. The link-specific significance
of the error types (AINFO, bytes 32−33) is described below.
Errors that trigger a diagnostic interrupt on the AS-i line
The following errors cause diagnostic interrupt:
Table 9-1
Link-specific Error Types
Error
Error
Type
Description
0010
Slave too
H
many
0011
AS-i Powerfail
H
001A
External error
H
(periphery
error)
0180
Ground short
H
8008
Ethernet port:
H
Link down
9.3
Diagnose Data Records
Further diagnostic information can be read out from the IE/AS-i LINK using the
data record interface (Section 8.2) for example "Get_LPS_LAS_LDS_LPF_Flags"
or "Read_and_delete_AS-i_Line_Errorcounters".
-
IE/AS−INTERFACE LINK PN IO
Release 08/2018
C79000−G8976−C216−03
Slot
Channel
Number
Line proxy
AS-i address
(slot 0 / 100)
of extra slave:
0...31,
33...63
Line proxy
8000
H
(slot 0 / 100)
(entire line)
0...63 or
8000
H
100...163
(entire line)
Line proxy
8000
H
(slot 0 / 100)
(entire line)
Device
8000
H
proxy (slot 0,
(entire
diagnostic
PROFINET
address of
IO device)
the Ethernet
port)
as of hardware version 1, as of firmware version V2.0
Cause
S
An unconfigured AS-i slave was
detected.
S
Error involving a configured (entered in
the LPS) AS-i slave, for which no I/O
module was inserted in HW Config.
AS-i master detects a problem in the power
supply (for example wire break).
The AS-i slave signals an error on the slave
periphery.
AS-i master detects ground short on the
AS-i line.
AS-i master detects "No connection" on the
Ethernet port.
9 Diagnostics
177
