1. MOUNTING
1.1.2 Mounting
The antenna cable is available in lengths of 30 m, 50 m and 100 m (see table below).
Cable length
30 m (no armor)
30 m (w/armor)
50 m (w/armor)
100 m (w/armor)
Note: When using the optional installation kit to install the antenna, refer to the outline
drawings at the back of this manual.

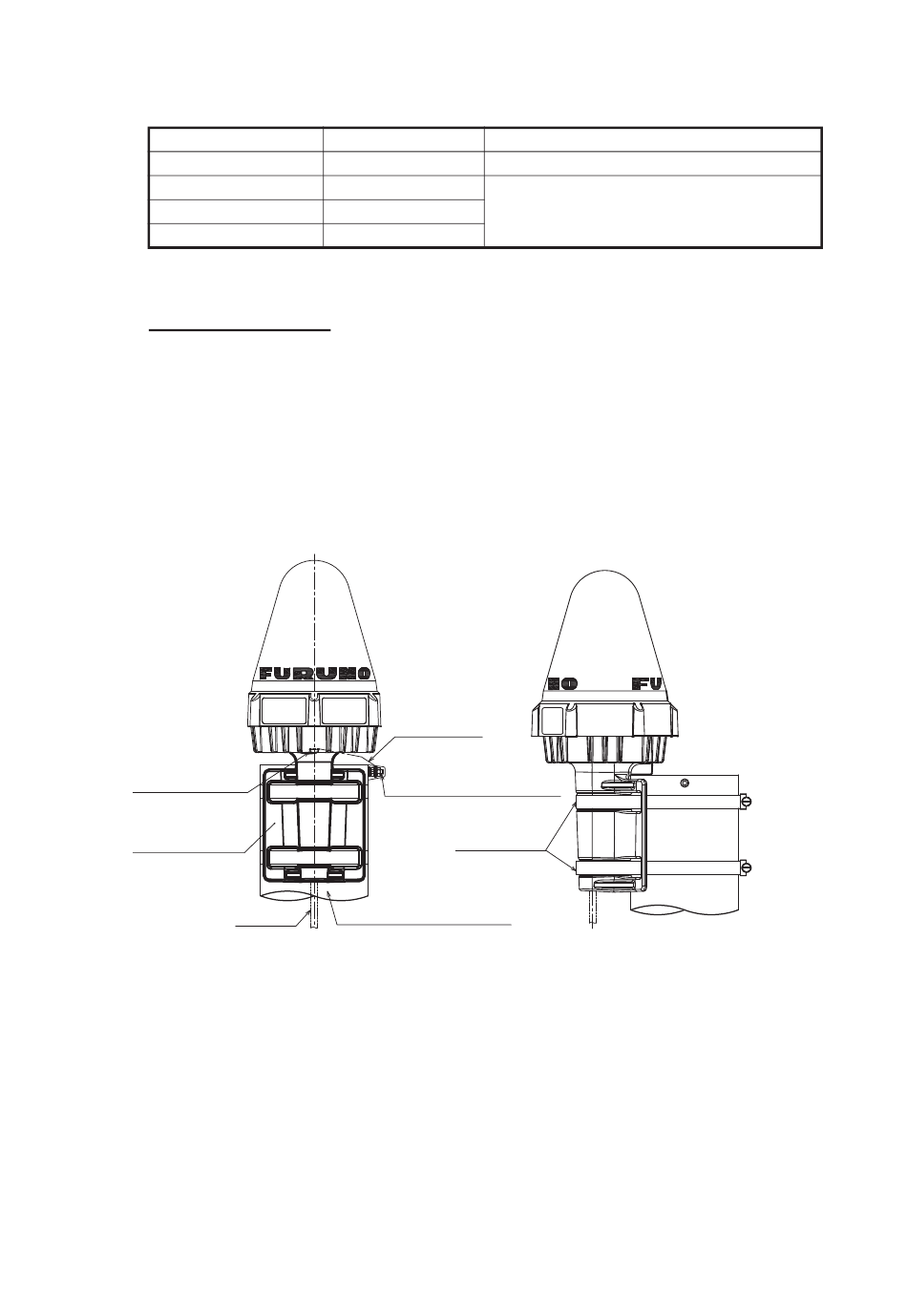

Antenna installation
Select a location to weld the grounding stud bolt (M6), keeping in mind the length of
the grounding cable RW-4747 (Included as installation materials) is 340 mm. The lo-
cation for welding the grounding stud bolt should allow the antenna ground and mast
ground to be connected with the grounding cable (to ground lightning strikes). For de-
tailed measurements, refer to the outline drawings at the back of this manual.
For information on wiring the antenna cable, refer to the manual included with the an-
tenna unit.
Ground terminal
Antenna base
1-2
Type
TP5FBAW-5DFB
5D-FB-CV-NP
8D-FB-CV
12D-SFA-LITE-CV
Ground wire
M6 grounding stud bolt
(Shipyard supply)
Mast (Shipyard supply)
Cable
Remarks
TNC connector at both ends
N connector on one end (antenna side)
Hose clamp
