Furuno Inmarsat Mini-C MES FELCOM19 Installation Manual page 16

2. WIRING

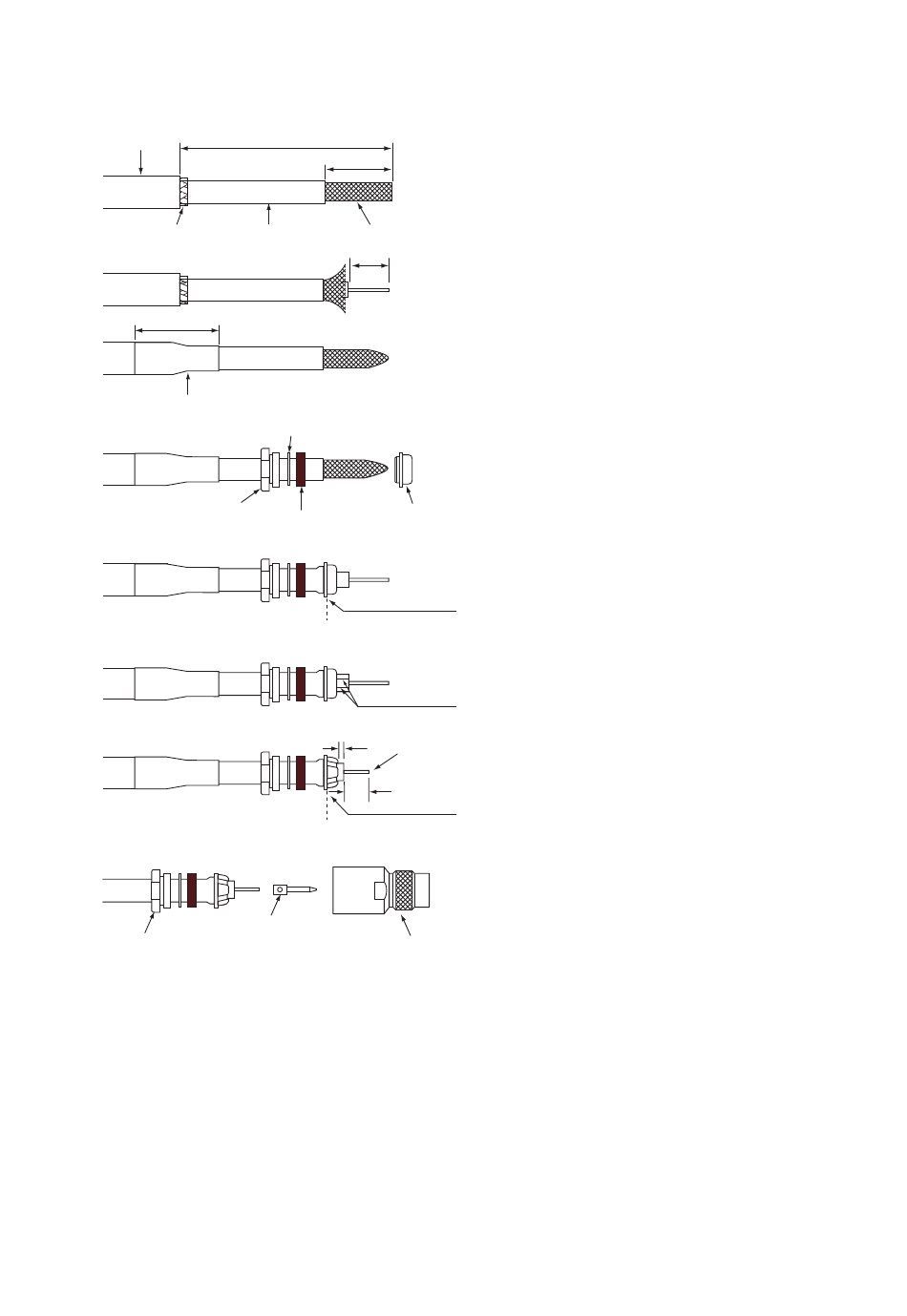

2.1.3 12D-SFA-LITE-CV (100 m)
Outer sheath
Armor
30
Heat shrinkable tube or vinyl tape
Clamp nut
Expose the insulator by 2 mm
Clamp nut
2-6
Dimensions in millimeters
95
15
Inner sheath
Shield
10
Washer
Clamp
Gasket
Trim shield here.
2
5
Trim aluminum
tape here.
Pin
Solder through
the hole.
Remove outer sheath and armor by the
dimensions shown left.
Remove inner sheath and expose shield
by the dimensions shown left.
Remove the insulator beneath shield by
10 mm and expose the core.
Twist shield end.
Slip on clamp nut, washer, gasket and
clamp as shown left.
Fold back shield over clamp and trim.
Cut aluminum tape at four places, 90°
from one another.
Expose the conductor (core) by 5 mm.
Fold back aluminum tape over clamp and
trim.
Slip the pin onto the conductor. Solder
them together through the hole on the pin.
Insert the pin into the shell. Screw the
clamp nut into the shell.
Shell
Tighten them by turning the clamp nut.
(Do not tighten by turning the shell.)
