2. WIRING

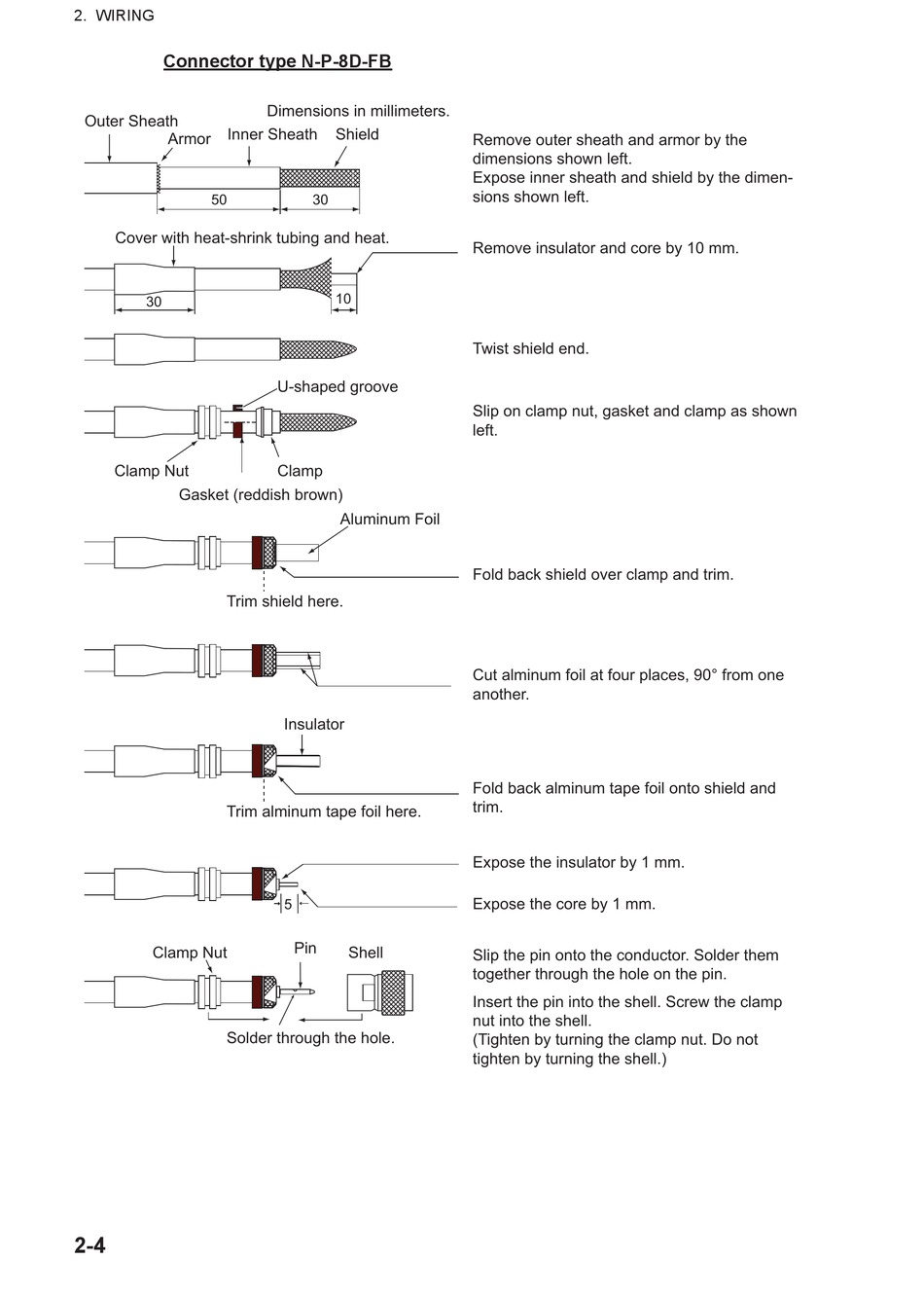

Connector type N-P-8D-FB
Outer Sheath
Inner Sheath
Armor
50
Cover with heat-shrink tubing and heat.
30
Clamp Nut
Gasket (reddish brown)
Trim shield here.
Trim alminum tape foil here.
Clamp Nut
Solder through the hole.
2-4
Dimensions in millimeters.
Shield
30
10
U-shaped groove
Clamp
Aluminum Foil
Insulator
5
Pin
Shell
Remove outer sheath and armor by the
dimensions shown left.
Expose inner sheath and shield by the dimen-
sions shown left.
Remove insulator and core by 10 mm.
Twist shield end.
Slip on clamp nut, gasket and clamp as shown
left.
Fold back shield over clamp and trim.
Cut alminum foil at four places, 90° from one
another.
Fold back alminum tape foil onto shield and
trim.
Expose the insulator by 1 mm.
Expose the core by 1 mm.
Slip the pin onto the conductor. Solder them
together through the hole on the pin.
Insert the pin into the shell. Screw the clamp
nut into the shell.
(Tighten by turning the clamp nut. Do not
tighten by turning the shell.)
