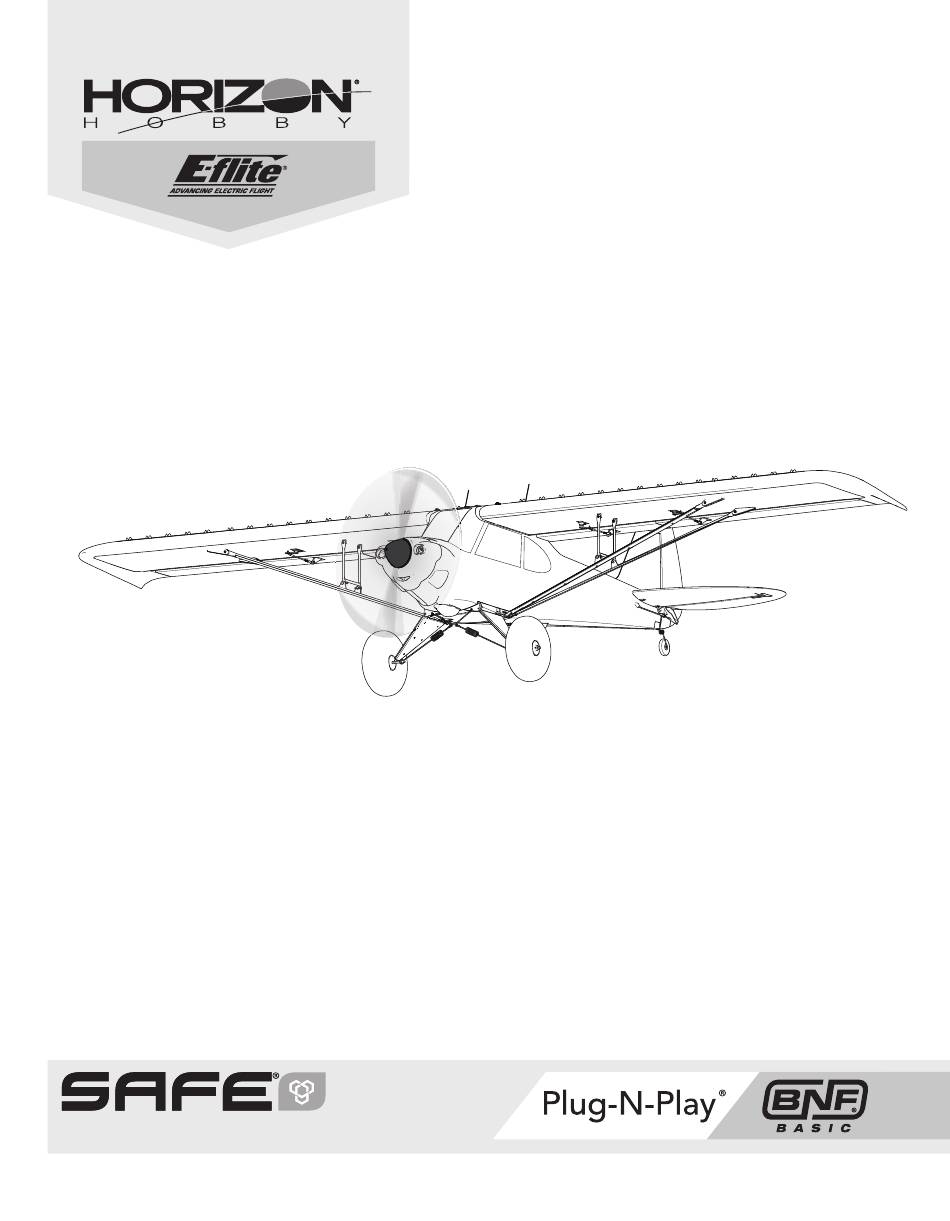

- Page 1 Carbon-Z ® Cub SS Instruction Manual Bedienungsanleitung Manuel d’utilisation Manuale di Istruzioni ® SAFE Select Technology, Optional Flight Envelope Protection...
- Page 2 Horizon Hobby, LLC or a Horizon Hobby authorized dealer to ensure authentic high-quality Spektrum product. Horizon Hobby, LLC disclaims all support and warranty with regards, but not limited to, compatibility and performance of counterfeit products or products claiming compatibility with DSM or Spektrum technology. Carbon-Z Cub SS...
-
Page 3: Table Of Contents
Box Contents Quick Start Information 1. Blank (Acro) Model 2. Wing Type: 1 Aileron, 1 Flap Transmitter Setup 3. Servo Reversing: Gear Reversed, All Others Normal 4. Travel Adjust (All Surfaces): 100% High Rate Low Rate = 45mm = 40mm Aileron ... -
Page 4: Prefl Ight
fl ap travel to your preference on subsequent fl ights. 5. Set FLAP SYSTEM: (Gen2) SELECT SWITCH D: POS 0: 0% FLAP* DX10t POS 1: 40% FLAP* 6% Elevator DX18 POS 2: 100% FLAP* 15% Elevator DX20 SPEED 2.0 † iX12 Carbon-Z Cub SS... -
Page 5: Model Assembly
Model Assembly Required Adhesives: Bag K (D) 2 x 3mm Set Screw Thread Lock Landing Gear Installation Bag K 1. Install a tundra tire (A) on the strut (B) using 2 wheel collars (C) as shown. Ensure the set screws (D) are aligned with the fl at spots on the strut. Apply threadlock and tighten. - Page 6 (F) and nut (G). Ensure the rudder servo arm is in the correct position, then adjust the ball link on the linkage to center the rudder. Bag D (C) 2.5 x10mm Button head hex self tapping Bag C (G) 2mm Lock Nut Bag E (F) 1.5x10mm Hex head machine Carbon-Z Cub SS...
- Page 7 Model Assembly (Continued) Horizontal Tail Installation 1. Slide the horizontal stabilizer rod (A) into the hole in the rear of the fuselage. 2. Install the 2 piece (left and right) horizontal stabilizer as shown. Ensure the control horn faces down. 3.
- Page 8 For more information, view the propeller balancing video at www.horizonhobby.com. TIP: We recommend removal of the propeller before any radio system setup or transport of your aircraft. Bag H (N) 2.5x8mm Pan head hex machine Carbon-Z Cub SS...
- Page 9 Model Assembly (Continued) Wing Installation Before each fl ight, ensure all wing connectors and fasteners are secure. Assemble both wings using the following steps. (Only the right wing shown) 1. Install 6 vortex generators (A) in the wing channels (B) by using the installed double-sided tape.
- Page 10 Wing struts do not need to be disassembled to be removed. NOTICE: Always secure loose parts after removal. DO NOT FLY if parts are missing or damage may result. Bag K Bag K (E) 3 x 25mm Thumb Screw (F) Antenna Cap Bag L Bag L Carbon-Z Cub SS...
-
Page 11: Pnp Receiver Selection And Installation
PNP Receiver Selection and Installation The recommended receiver for this aircraft is the Spektrum AR636. 1 = Throttle If you choose to install a different receiver, ensure that it is at least a 6-channel 2 = Aileron full range (sport) receiver. Refer to the manual of your chosen receiver for correct installation and operation instructions. -
Page 12: Battery Installation And Esc Arming
9. Reinstall the canopy hatch. Battery Location Lock Tray Into Place CAUTION: Always keep hands away from the propeller. When armed, the motor will turn the propeller in response to any throttle movement. Front 7000 mAh Battery Location Front Optional Carbon-Z Cub SS... - Page 13 Transmitter and Receiver Binding / Enabling and Disabling SAFE Select This product requires an approved Spektrum ™ DSM2 ® /DSMX ® compatible Switching ON SAFE Select Binding Sequence transmitter. Visit www.bindnfl y.com for a complete list of approved transmitters. The aircraft has an optional SAFE Select feature, which can be switched ON or OFF easily by binding in a specifi...
-
Page 14: Select Switch Designation
1. Move the rudder stick to the left. The rudder should move to the left, which will cause the aircraft to yaw left. 2. Move the rudder stick to the right. The rudder should move to the right, which will cause the aircraft to yaw right. Rudder stick Flap switch Carbon-Z Cub SS... -
Page 15: Center Of Gravity (Cg)
Center of Gravity (CG) The CG location is measured from the leading edge of the wing at the root. This CG location has been determined with the recommended Li-Po battery (SPMX40006S50) installed in the middle of the battery compartment. 105-120mm back from leading edge at the root. -
Page 16: Flying Tips And Repairs
When deploying the fl aps, slow the aircraft down to 1/4 throttle. If the fl aps are deployed when the aircraft is at a higher speed, the aircraft will pitch up. Set your down elevator to fl ap compensation according to the Transmitter Setup Chart to reduce the pitch up tendency. Carbon-Z Cub SS... -
Page 17: Post Flight
Post Flight Disconnect the fl ight battery from the ESC (Required for Safety and battery life). Repair or replace all damaged parts. Power OFF the transmitter. Store the fl ight battery apart from the aircraft and monitor the battery charge. Remove the fl... - Page 18 TRAVEL, SUBTRIM and ABSOLUTE TRAVEL varies slightly per aircraft and will need to be fi ned tuned for your specifi c aircraft. • ABSOLUTE TRAVEL in SERVO SETUP is set to limit your fl ap servos from over travel. Carbon-Z Cub SS...
-
Page 19: Troubleshooting Guide As3X
Troubleshooting Guide AS3X Problem Possible Cause Solution Damaged propeller or spinner Replace propeller or spinner Balance the propeller. For more information, view John Redman’s propeller balancing video at www. Imbalanced propeller horizonhobby.com Motor vibration Replace parts or correctly align all parts and tighten fasteners as needed Oscillation Loose receiver Align and secure receiver in fuselage... -
Page 20: Replacement Parts
Strut Pins and Clips: Carbon-Z Cub SPMXC1000 Smart S1200DC Charger, 1X200W EFL12401 NYA Fuselage: Carbon-Z Cub SS EFL12402 NYA Wing Left: Carbon-Z Cub SS Optional Parts EFL12403 NYA Wing Right: Carbon-Z Cub SS EFL12405 NYA Rudder/Gear: Carbon-Z Cub SS Part #... -
Page 21: Ama National Model Aircraft Safety Code
AMA National Model Aircraft Safety Code Effective January 1, 2014 A. GENERAL B. RADIO CONTROL A model aircraft is a non-human-carrying aircraft capable of sustained fl ight in the 1. All pilots shall avoid fl ying directly over unprotected people, vessels, vehicles or atmosphere. -
Page 22: Limited Warranty
2904 Research Rd United States of America (Product Technical Assistance) 877-504-0233 Champaign, IL 61822 websales@horizonhobby.com Sales 800-338-4639 Horizon Technischer Service service@horizonhobby.eu Hanskampring 9 European Union D 22885 Barsbüttel, Germany Sales: Horizon Hobby GmbH +49 (0) 4121 2655 100 Carbon-Z Cub SS... -
Page 23: Fcc Information
