Appliance Setup
A. Remove Glass Assembly
See Section 12.G.
B. Remove the Shipping Materials
Remove shipping materials from inside or underneath the
fi rebox.
C. Clean the Appliance
Clean/vacuum any sawdust that may have accumulated
inside the fi rebox or underneath in the control cavity.
D. Accessories
Install approved accessories per instructions included
with accessories. Refer to Section 5.
WARNING! Risk of Fire and Electric Shock! Use ONLY
Hearth & Home Technologies-approved optional acces-
sories with this appliance. Using non-listed accessories
could result in a safety hazard and will void the warranty.
Quadra-Fire • QVI-35FB-S • 2178-900 Rev. B • 12/08
E. Ember Placement
WARNING! Risk of Explosion! Follow ember placement
instructions in manual. DO NOT place embers directly over
burner ports. Replace ember material annually. Improperly
placed embers interfere with proper burner operation.
Ember material is shipped with this gas appliance. To place
the ember material:
• Embers CANNOT be placed directly over ports. Care
should be taken not to cover the lighting trail of ports
(from back to front).
• Place dime-size pieces of Glowing Embers
of the port trail, but not on or in between the ports (see
Figure 12.1). Care should be taken so that the ports are
not covered.Failure to follow this procedure will likely
cause lighting and sooting problems.
• Place Mystic Embers on areas of base refractory away
from port holes. Use this material to give the appliance
a realistic ash bed.
• Save the remaining ember materials for use during
appliance servicing. The embers provided should be
enough for 3 to 5 applications.
EMBER MATERIAL
(TOP SURFACE,
AND FRONT)

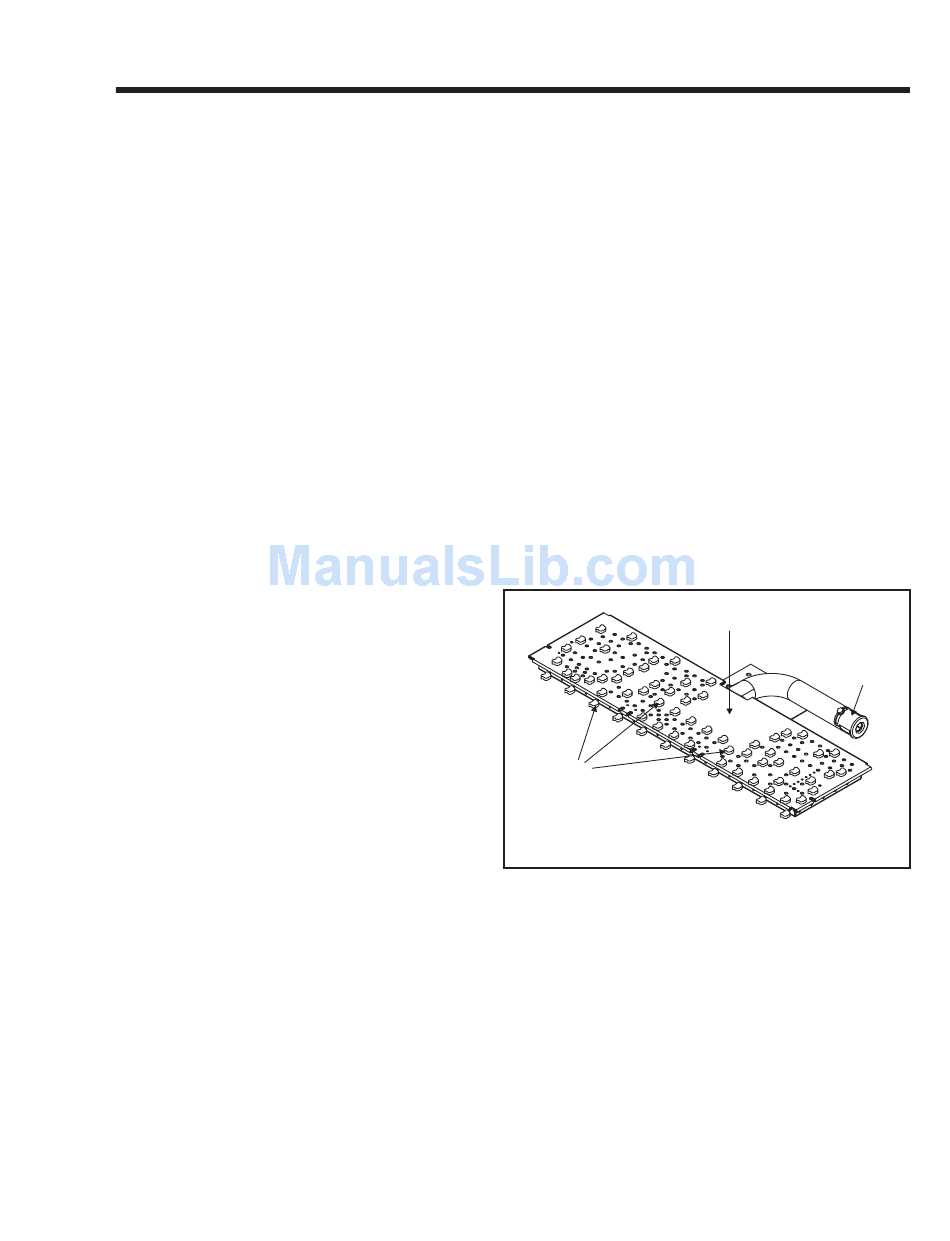

Figure 12.1 Placement of Embers
®
just in front
BURNER PAN
AIR
SHUTTER
