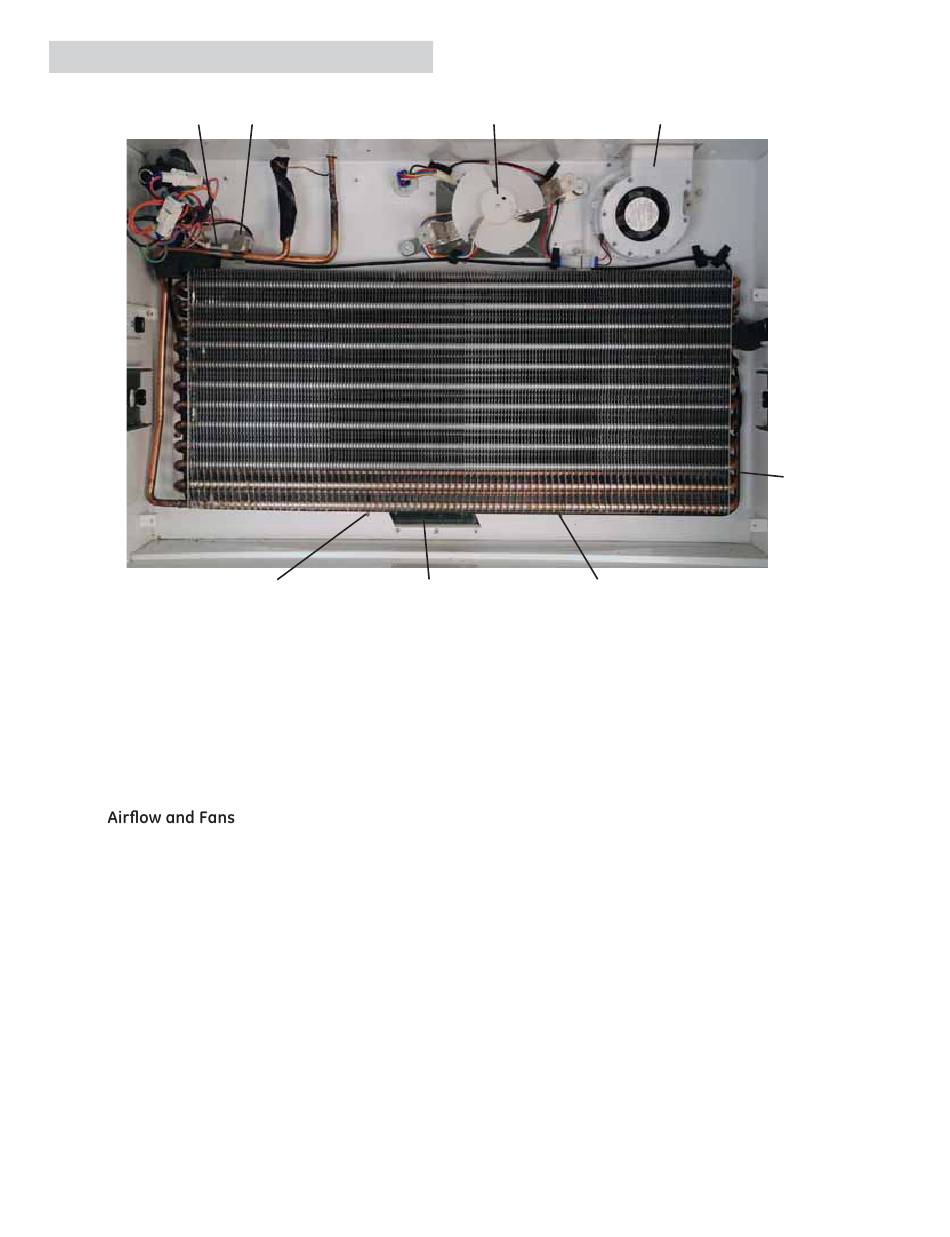

Evaporator Component Locator

4

1. Fresh food air return

2. Defrost heater retainer clips

3. Defrost heater

4. Evaporator thermistor

See the

5

2

section for more information on the freezer and fresh food fans.

6

1

2

5. 140°F safety TCO

6. Freezer fan assembly

7. Fresh food fan assembly

– 30 –

7

3
