Shelves and Bins

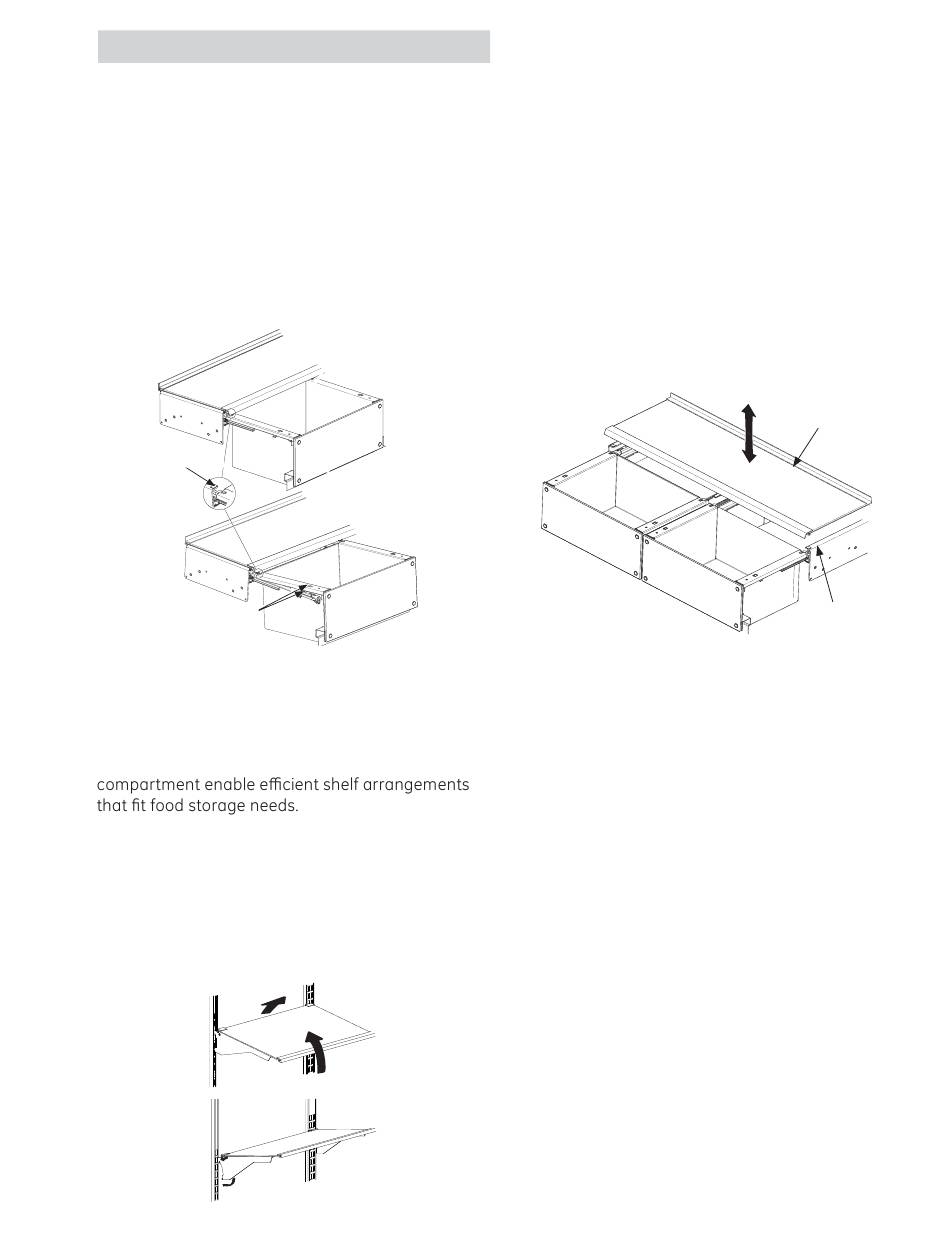

Pan Removal
1. To remove the pan, pull out and then pull up on
pan.
2. To replace the pan, extend both the left and right
slides, place the pan back onto the slides; there
are hooks on the rear of the slides that the pan
edges will slide under. There is a bump on each
slide that will come through holes when pushed
back on the pan. The front clip will engage on
the front of the slides to hold the pan in place.
Hook
Bump and
Hole
Adjustable Shelves in the Fresh Food
Compartment
Tempered glass shelves in the fresh food
To remove shelves: Tilt shelf up at front, then lift it
up and out of the tracks on rear wall of refrigerator.
To replace shelves: Select desired shelf height. With
the shelf front raised slightly, engage the top lugs
in the tracks at rear of the cabinet. Then lower the
front of the shelf until it locks into position.
Vegetable and Deli Glass Pan Cover Removal
The glass shelves over the vegetable and deli pans
may be removed for cleaning.
Pan Cover Removal
1. Extend the pans.
2. Gently pull the pan cover up and out of the
refrigerator.
Pan Cover Replacement
1. Line up the pan cover with the side supports.
2. Gently place the cover back onto the supports.
Slide the cover back until it is engaged.
– 21 –
Pan Cover
Slide
Support
