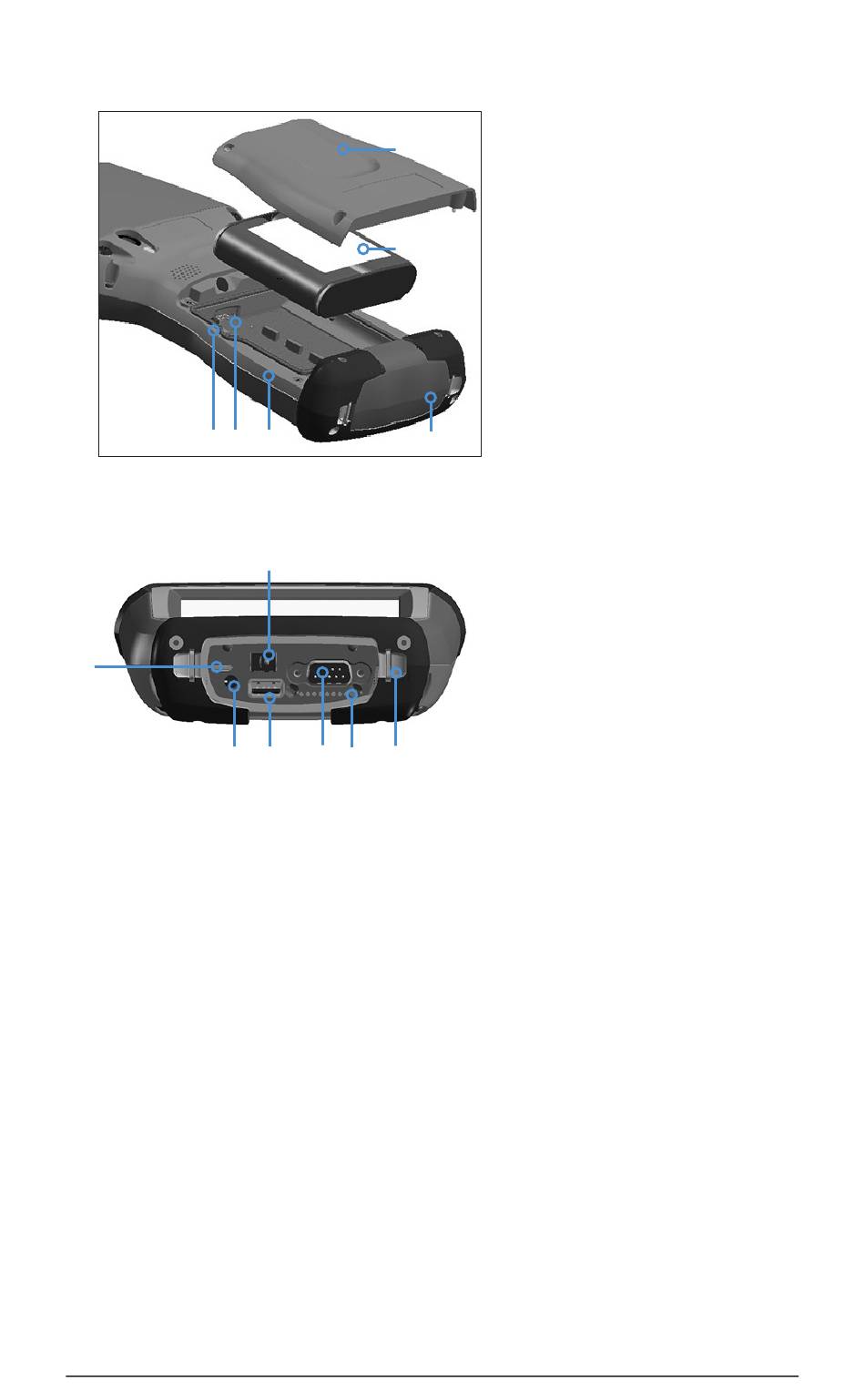

Battery Compartment and Card Slots
3 4 5
Connector I/O Module
1
2 3
Note: The connectors are sealed. A connector module
protector is not required to prevent water ingress. It protects
the connectors from exposure to excessive dust and dirt.

Perform Initial Tasks

When you receive your Allegro 3, perform the tasks outlined
in this section before first use.
Install the Battery Pack, SD Card, and Mini SIM Card
The Allegro 3 uses a rechargeable Li-Ion battery pack.
Install and charge the battery pack using the instructions
that follow.
1. The battery compartment is accessed from the back of
the handheld. Loosen the four captive screws holding
the battery compartment door in place using a #1
Phillips screwdriver. Remove the door.
1
2
6
7
4 5 6
1 Battery Door, Screws
2 Battery Pack
3 Mini SIM Card Slot
4 Micro SD/SDXC Card Slot
5 Battery Compartment
6 Connector Module
Protector
1 USB Client, Micro B
2 Audio Jack, for Microphone,
Speaker, or Stereo Output, 3.5mm
3 USB Host, Full Size A
4 9-pin Serial Port, 5VDC @ 500 mA
5 Docking Pin Contacts
6 Hand strap Attachment Point
7 Power Input Jack, 12-24VDC, for
Power and Battery Charging
Chapter 1 Getting Started
3
