Carrier 110 Series Installation, Start-Up, And Operating Instructions Manual
Multipoise oil furnace, for input capacities of 70,000-154,000
Hide thumbs
Also See for 110 Series:
Table of Contents
Advertisement
Visit www.carrier.com
Installation, Start-Up, and Operating Instructions
For Input Capacities of 70,000-154,000; Series 110
NOTE: Read the entire instruction manual before starting the
installation.
TABLE OF CONTENTS
SAFETY CONDSIDERATIONS ..................................................1
INTRODUCTION ..........................................................................2
LOCATION....................................................................................3
General ......................................................................................3
Location Relative to Cooling Equipment ................................3
INSTALLATION ...........................................................................4
Air for Combustion and Ventilation ........................................4
General ......................................................................................4
Unconfined Space .....................................................................4
Confined Space .........................................................................5
All Air from Inside the Structure .......................................5
All Air from Outside of Structure ......................................5
Duct Work Recommendations ............................................5
Venting.................................................................................6
Oil Burner ............................................................................6
Oil Connections ...................................................................6
Barometric Draft Control ....................................................7
Electrical Connections.........................................................7
Filters ...................................................................................7
Horizontal or Downflow Installation ..................................7
Operational Checkout .............................................................10
Combustion Check..................................................................10
Fan Adjustment Check ...........................................................12
Limit Control Check...............................................................12
For Year-Round Air Conditioning .........................................12
Heating ....................................................................................12
Cooling ....................................................................................12
MAINTENANCE.........................................................................12
General ....................................................................................13
Oil Burner ...............................................................................14
Heat Exchanger and Flue Pipe...............................................15
Blower Removal .....................................................................15
SAFETY CONDSIDERATIONS
FOR YOUR SAFETY
DO NOT STORE OR USE GASOLINE OR OTHER
FLAMMABLE VAPORS AND LIQUIDS IN THE VI-
CINITY OF THIS OR ANY OTHER APPLIANCE.
DO NOT ATTEMPT TO START THE BURNER
WHEN EXCESS OIL HAS ACCUMULATED, WHEN
THE FURNACE IS FULL OF VAPOR, OR WHEN
THE COMBUSTION CHAMBER IS VERY HOT.
Manufacturer reserves the right to discontinue, or change at any time, specifications or designs without notice and without incurring obligations.
Book 1 4
PC 101
Catalog No. 535-80152
Tab 6a 8a

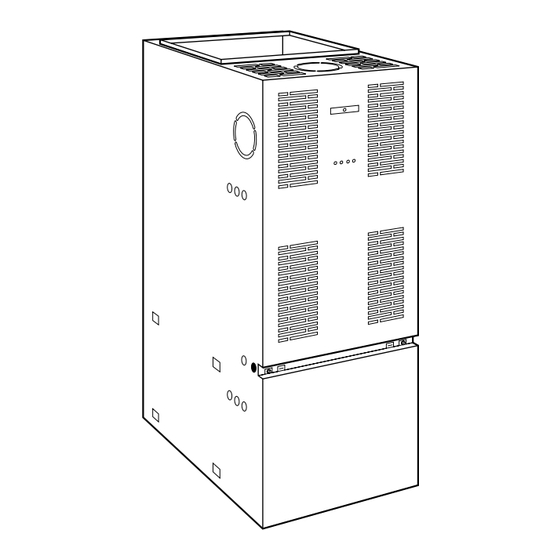

Fig. 1-58VMR Multipoise Oil Furnace
CARBON MONOXIDE POISONING, FIRE,
EXPLOSION HAZARD
Failure to follow this warning could lead to sooting, fire,
explosion, and/or severe bodily harm.
For use with grade 1 or 2 fuel oil. Do not use gasoline,
crankcase oil, or any oil containing gasoline!
FIRE HAZARD
Failure to follow this caution may result in fire and property
damage.
Never burn garbage or paper in the heating system and never
leave rags, paper, or any flammable items around the unit.
UNIT RELIABILITY HAZARD
These instructions are intended to be used by qualified
personnel who have been trained in installing this type of
furnace. Installation of this furnace by an unqualified person
may lead to equipment damage and/or a hazardous condition
which may lead to bodily harm.
Printed in U.S.A.
Form 58VMR-1SI
58VMR
Multipoise
Oil Furnace
A97247
Pg 1
10-04
Replaces: NEW
Advertisement
Table of Contents
Related Manuals for Carrier 110 Series
Summary of Contents for Carrier 110 Series
-
Page 1: Table Of Contents
58VMR Multipoise Oil Furnace Visit www.carrier.com Installation, Start-Up, and Operating Instructions For Input Capacities of 70,000—154,000; Series 110 NOTE: Read the entire instruction manual before starting the installation. TABLE OF CONTENTS SAFETY CONDSIDERATIONS ..........1 INTRODUCTION ................2 LOCATION..................3 General ..................3 Location Relative to Cooling Equipment ........3 INSTALLATION ................4... -
Page 2: Introduction
TOP KNOCK-OUT FOR J DIAM VENT 20″ 19″ 3″ KNOCK-OUT BOTH SIDES 19″ FOR J DIAM VENT PULL VENT CONN OIL INLET (BOTH SIDES) 2″ ELECTRICAL CONNECTIONS (BOTH SIDES) .88 DIAM TYP 20″ A98037 DIMENSIONS (IN.) UNIT SIZE 105–12 48-3/4 30-1/4 16-5/8 1-1/2... -
Page 3: Location
The air handling capacity of this furnace is designed for cooling This furnace is approved for reduced clearances to combustible airflow. Refer to Table 13 or 14 for expected airflows at various construction, therefore, it may be installed in a closet or similar external duct static pressures. -
Page 4: Installation
Table 1—Minimum Clearances to Combustible Materials (In.) UNIT APPLICATION UPFLOW DOWNFLOW HORIZONTAL Furnace Sides Supply Plenum and Warm-Air Duct Within 6 ft of Furnace Back Service Clearance Furnace Casing or Plenum Horizontal Warm-Air Duct Within 6 ft of Furnace Bottom Horizontally or Below Pipe Flue Pipe... -
Page 5: Confined Space
2. Weatherstripping has been added on operable windows and 1. If combustion air is taken through a permanent opening doors, and/orCaulking or sealants are applied to areas such as directly communicating with the outdoors, the opening shall joints around window and door frames; between sole plates have a minimum free area of 1 sq in. -
Page 6: Venting
with the latest editions of NFPA-90A (Installation of Air Condi- chimney MUST be checked for deterioration and repaired if tioning and Ventilating Systems) and NFPA-90B (Warm Air necessary. The chimney must be properly lined and sized per local Heating and Air Conditioning Systems) or Canadian equivalent. or national codes. -
Page 7: Barometric Draft Control
Table 7—Electrical Data OPERATING VOLTS— UNIT MAX WIRE MAX FUSE OR VOLTAGE RANGE HERTZ— UNIT WIRE SIZE LENGTH (FT)† CKT BKR AMPS‡ PHASE— AMPS GAGE Max* Min* 105-12 115—60—1 12.2 120-20 115—60—1 15.7 * Permissible limits of voltage range at which unit will operate satisfactorily. †... - Page 9 A04183 A04185 Fig. 4—24 VAC Oil Furnace Wiring with 1-Speed Fig. 6—24 VAC Oil Furnace Wiring with 1-Speed Air Conditioner Heat Pump A04184 A04186 Fig. 5—24 VAC Oil Furnace Wiring with 2-Speed Fig. 7—24 VAC Oil Furnace Wiring with 2-Speed Heat Pump Air Conditioner...
-
Page 10: Start-Up, Adjustment, And Safety Checkout
START-UP, ADJUSTMENT, AND SAFETY CHECKOUT A reading outside the range shown in Table 9 (for example +0.1 in. wc) would indicate that furnace is in an extremely high-pressure Step 1—Operational Checkout condition in primary section. This condition may be caused by any Installation of furnace is now complete. - Page 11 120 VAC NEUTRALS 120 VAC COOL HEAT OFF OFF OFF OFF ON ON ON ON DELAY OFF OFF OFF OFF ON ON ON ON LED7 LED4 LED3 LED5 LED7 LED8 LED1 Y/Y2 NOTES 1. The Red LED to the right of P-1 will illuminate whenever the limit switch is open. 2.
-
Page 12: Fan Adjustment Check
Step 3—Fan Adjustment Check 58VMR105 size (See Table 11A, 11B, and 11C) and 0.85 GAL/HR (US) INPUT for the 58VMR120 size. (See Table 12A, This furnace is equipped with a variable speed motor to deliver a 12B, and 12C.) The blower motor may be field adjusted to deliver constant airflow. -
Page 13: General
Table 13—58VMR105 Size Airflow Data (CFM) OIL HEATING MODE 24 VAC INPUT (R) ON W ONLY SW1-HEAT HEAT INPUT CFM with SW3-ADJ CFM with SW3-ADJ CFM with SW3-ADJ Dip Switch Position (USGPH) Dip Switch A Position Dip Switch B Position Dip Switch C Position A (1=OFF, 2=OFF) 0.75... -
Page 14: Oil Burner
Table 14—58VMR120 Size Airflow Data (CFM) OIL HEATING MODE 24 VAC INPUT (R) ON W ONLY SW1-HEAT HEAT INPUT CFM with SW3-ADJ CFM with SW3-ADJ CFM with SW3-ADJ Dip Switch Position (USGPH) Dip Switch A Position Dip Switch B Position Dip Switch C Position A (1=OFF, 2=OFF) 0.85... -
Page 15: Heat Exchanger And Flue Pipe
Step 3—Heat Exchanger and Flue Pipe 7. Clean secondary tubes, and primary cylinder with stiff brush and vacuum cleaner. Ordinarily, it is not necessary to clean heat exchanger or flue pipe every year, but it is necessary to have your service technician 8. - Page 16 [ ] Packaged Service Training [ ] Classroom Service Training A94328 Copyright 2004 CARRIER Corp. • 7310 W. Morris St. • Indianapolis, IN 46231 58vmr1si Manufacturer reserves the right to discontinue, or change at any time, specifications or designs without notice and without incurring obligations.
