Programmable Logic JTAG Programming Options

[Figure 2-1, callouts 7 and 39]
ZCU102 JTAG chain:
• J2 USB micro AB connector connected to U21 Digilent USB JTAG
• J8 2x7 2 mm shrouded, keyed JTAG pod flat cable connector
• J6 2x10 ARM JTAG male pin header
The ZCU102 board JTAG chain is shown in
X-Ref Target - Figure 3-6
ZCU102 Evaluation Board User Guide
UG1182 (v1.2) March 20, 2017
Figure

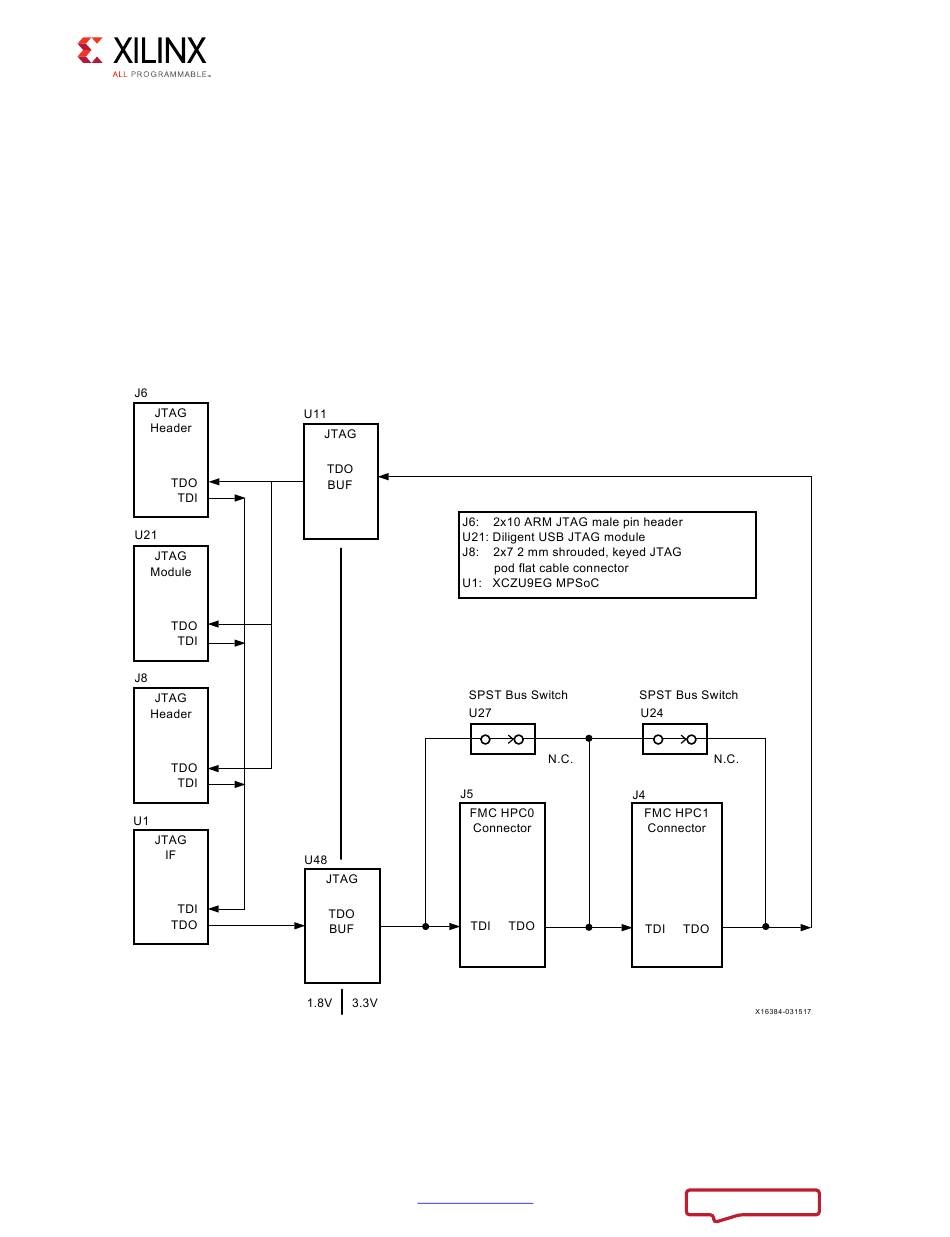

Figure 3-6: JTAG Chain Block Diagram
www.xilinx.com
Chapter 3: Board Component Descriptions
3-6.
