Web Server Software Application
4.
26

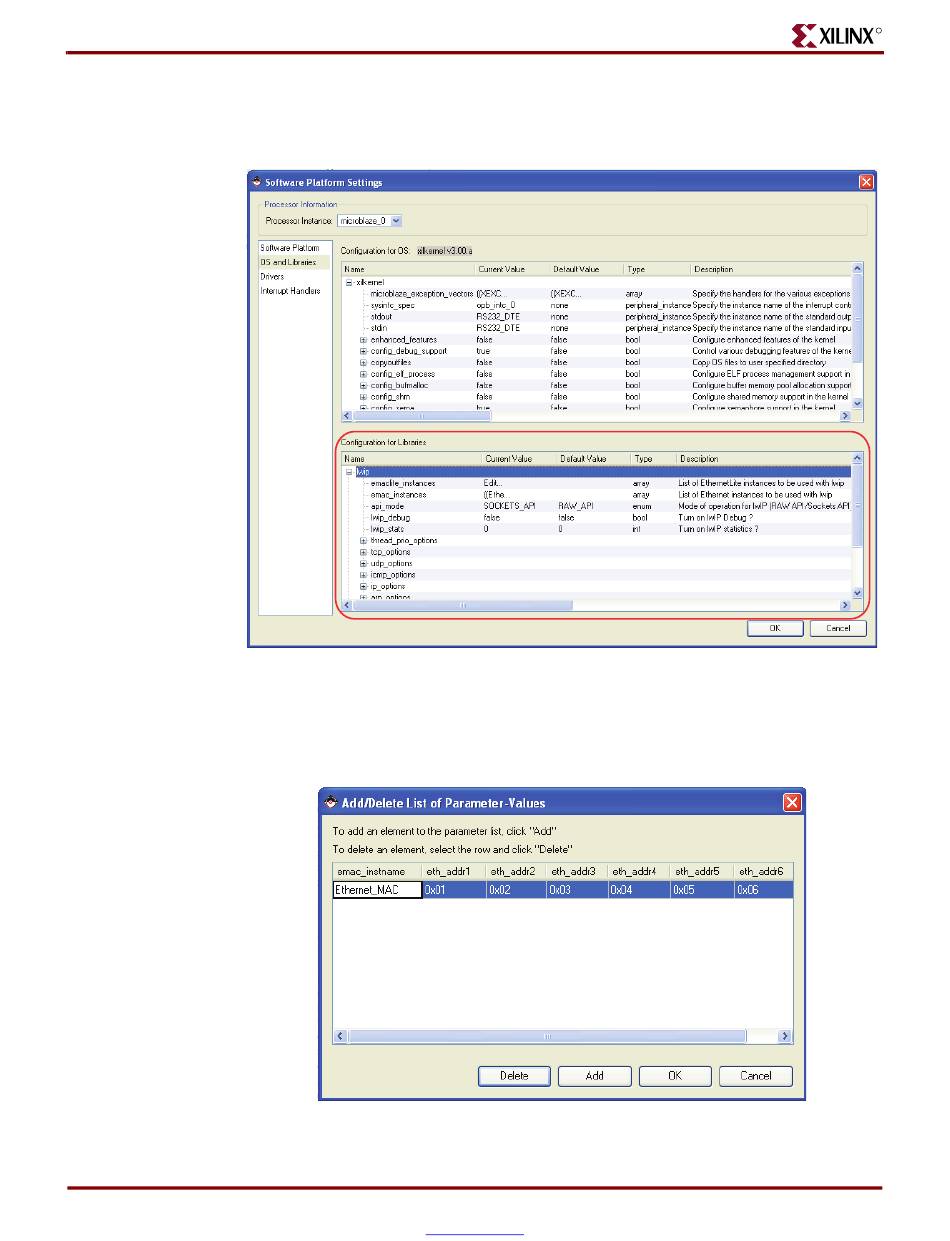

The bottom half of the OS & Libraries section is the configuration for the included
libraries, lwIP and XilMFS. Expand the lwip menu to view the settings for the lwIP
library. The lwIP library settings are shown in
Click the Current Value field for the emac_instances attribute to bring up the
Add/Delete List of Parameter-Values box, shown in
the Ethernet_MAC instance with a default MAC address of 01-02-03-04-05-06.
Figure 3-7: Ethernet Instance
Getting Started with the MicroBlaze Development Kit - Spartan3E 1600E Edition
www.xilinx.com
Figure
Figure 3-6: LwIP Settings
3-6.
UG258_03_06_062306
Figure 3-7. Note that the table has
UG258_03_07_062306
