Xilinx MicroBlaze Spartan-3E 1600E Edition Getting Started page 19

R
2.
3.
Downloading the µClinux Kernel through XMD
To download and boot-up the µClinux kernel image via XMD, the following commands
listed below are invoked in an XMD window. The image file can be found under the project
root directory as /uClinux_images/image.bin.
1.
2.
3.
Getting Started with the MicroBlaze Development Kit - Spartan3E 1600E Edition
UG258 (v1.0) June 29, 2006

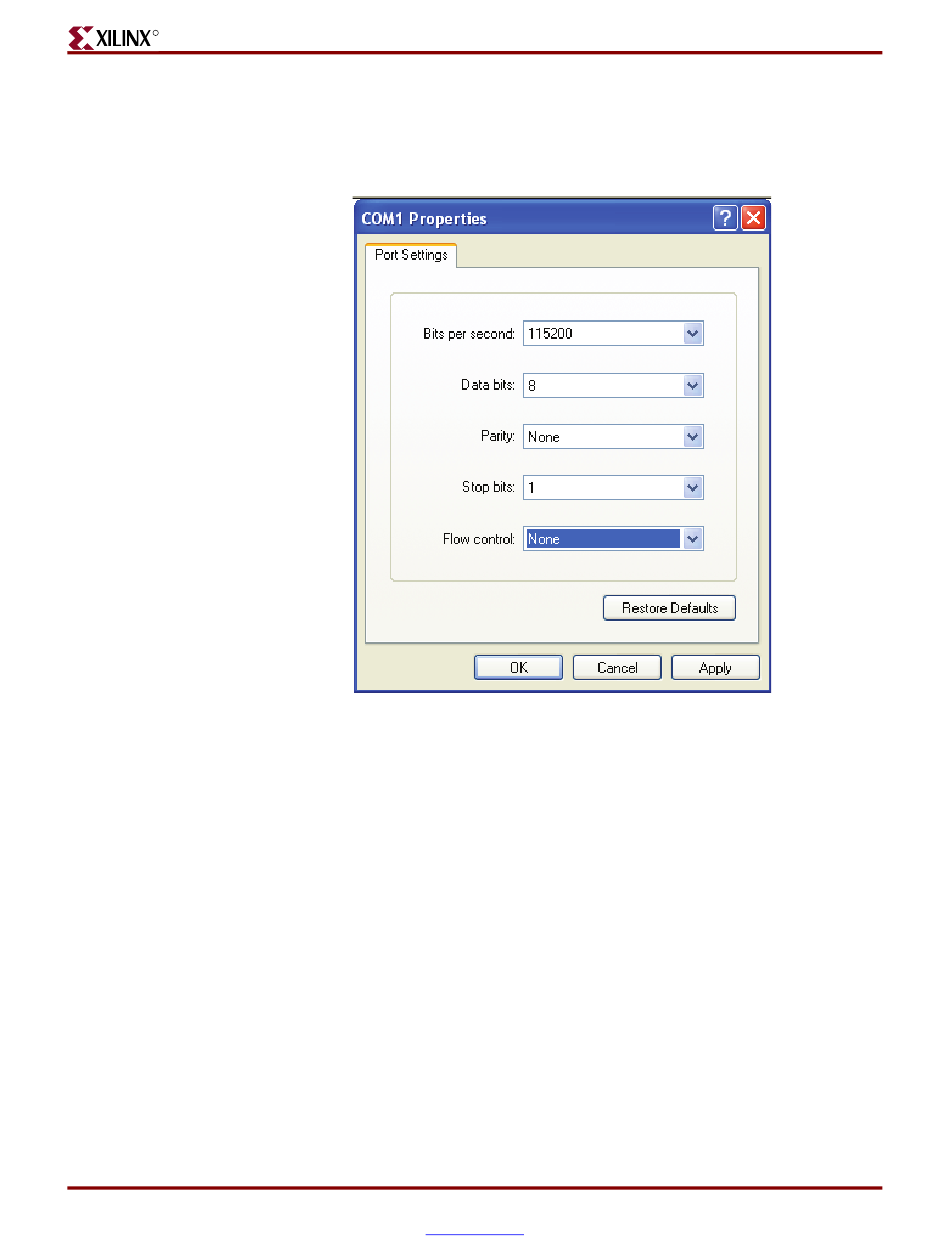

A HyperTerminal or similar program is set to a Baud Rate of 115200, Data Bits to 8,
Parity to None and Flow Control to None, as shown in
A crossover Ethernet cable to the host PC and the board's Ethernet port is connected.
The USB cable must remain connected from the PC to the board.
Figure 2-2: HyperTerminal Settings
In XPS, Debug → Launch XMD is selected.
In the XMD command window, the directory to the project's /uClinux_images
directory is changed as follows:
cd uClinux_images
The µClinux image into DDR memory at the starting location 0x22000000 is
downloaded using the command:
dow -data image.bin 0x22000000
www.xilinx.com
Executing the Reference System
Figure 2-2.
UG258_02_02_062306
15
