1. Installation Instructions
(1)
Mount the mirror/monitor onto the existing rearview mirror.
a) Stick two adhesive foam backings on to the back of mirror in the two
small rectangle indents.
b) Take the two seven inch belts and slide them into the slots on the top
rear of the mirror with grooved side of the belt facing down.
c)
Take the buckles and slide them into the lower slots on the rear of the
mirror with the buckle facing down toward the seven-inch strap.
NOTE:
from the seven-inch strap.
d)
Mount the new rearview mirror/monitor onto the existing one. Add
the rearview mirror onto the existing mirror from one side with one
fixed belt. Then fasten the other belt on the other side of the mirror.
To prevent the RVMPG2 from falling off, tighten the belts until
secure to the factory rearview mirror on both sides.
The large opened rectangle on the buckle will face away

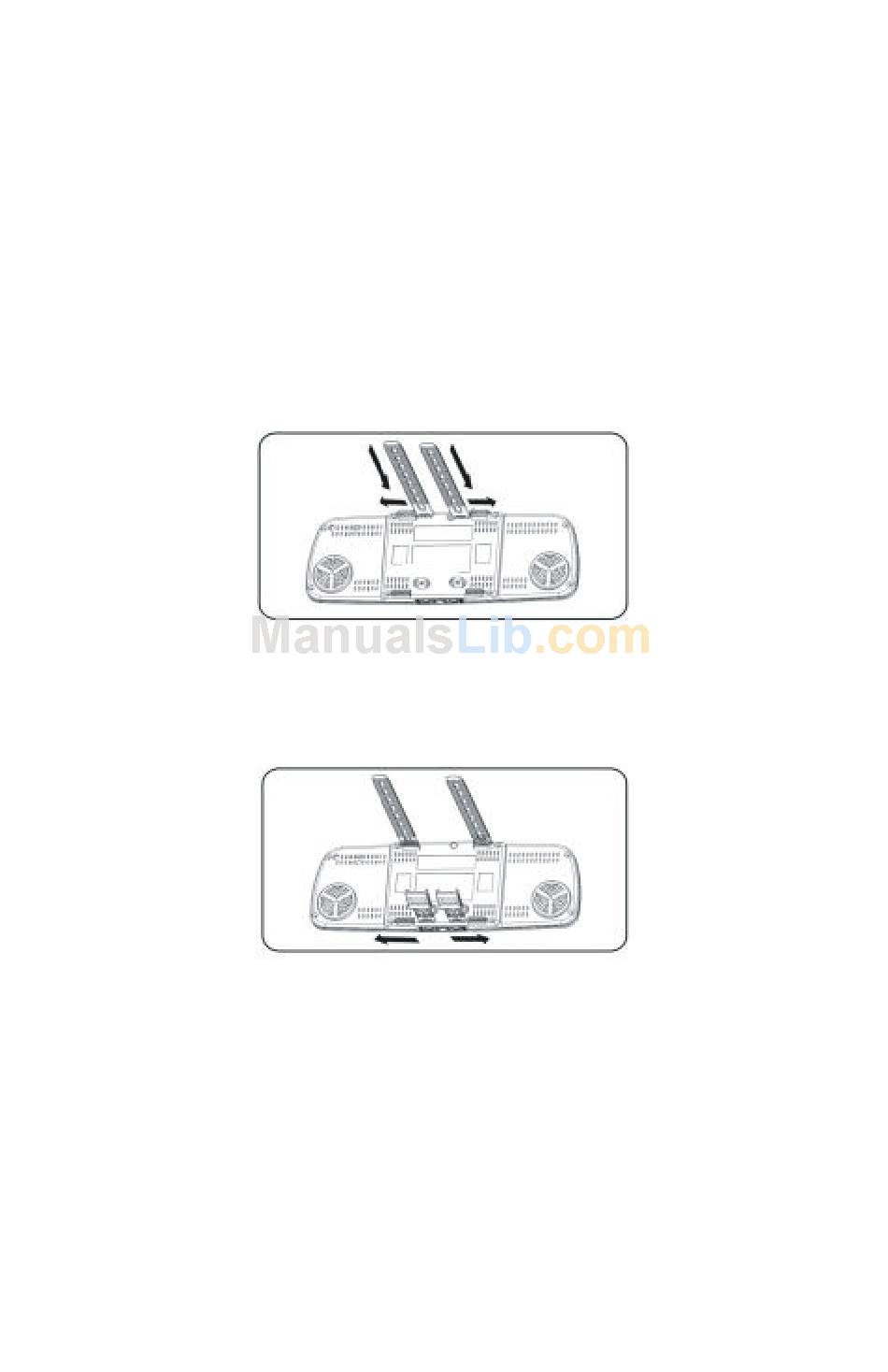

Figure 1
igure 2
F
5
