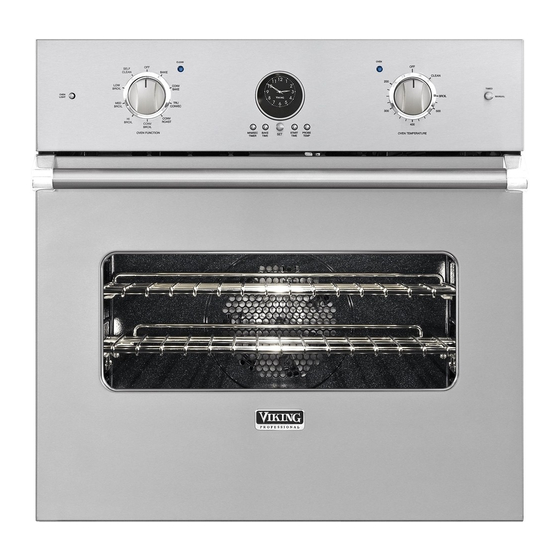

Viking Professional Series Installation Manual
Built-in electric single and double ovens
Hide thumbs
Also See for Professional Series:
- Use & care manual (22 pages) ,
- Quick reference manual (2 pages) ,
- Installation manual (2 pages)
Advertisement
Quick Links
All manuals and user guides at all-guides.com
Viking Installation Guide
Viking Range Corporation
111 Front Street
Greenwood, Mississippi 38930 USA
(662) 455-1200
For product information,
call 1-888-VIKING1 (845-4641)
or visit the Viking Web site at
vikingrange.com
Professional & Designer Series
Built-In Electric Single and Double Ovens
F20363A
(062007J)
Advertisement
Related Manuals for Viking Professional Series
Summary of Contents for Viking Professional Series
- Page 1 Viking Installation Guide Viking Range Corporation 111 Front Street Greenwood, Mississippi 38930 USA (662) 455-1200 For product information, call 1-888-VIKING1 (845-4641) or visit the Viking Web site at vikingrange.com Professional & Designer Series Built-In Electric Single and Double Ovens F20363A (062007J)
-
Page 2: Table Of Contents
All manuals and user guides at all-guides.com Table of Contents IMPORTANT–Please Read and Follow! • Before beginning, read these instructions W A R N I N G thoroughly and carefully. Important Information _________________________________________________ 3 • Do not remove permanently affixed labels, ELECTRIC L GROUNDING warnings or plates from the Warnings ____________________________________________________________ 3... - Page 3 All manuals and user guides at all-guides.com Dimensions–Single Oven Specifications & Electrical Requirements (Professional Series) 27” Wide Professional Single Oven Description VESO127/527–27” Wide VESO130/530–30” Wide Overall Width 26 1/2” (67.3 cm) 29 1/2” (74.9 cm) Overall Height 28 3/4” (73.0 cm) Overall Depth to edge of door—25 9/16”...
- Page 4 All manuals and user guides at all-guides.com Dimensions–Single Oven Specifications & Electrical Requirements (Designer Series–Mechanical and Touch Control Models) Designer Single Oven 27” Wide Description DESO127(T)/527(T)–27” Wide DESO130(T)/530(T)–30” Wide Overall Width 26 1/2” (67.3 cm) 29 1/2” (74.9 cm) Overall Height 29 1/4”...
- Page 5 All manuals and user guides at all-guides.com Cutout Dimensions–Single Oven Cutout Dimensions–Single Oven (Professional Series) (Designer Series–Mechanical and Touch Control Models) 27” Wide Built-In 30” Wide Built-In 27” Wide Built-In 30” Wide Built-In 27” Wide Undercounter 27” Wide Undercounter 30” Wide Undercounter...
- Page 6 All manuals and user guides at all-guides.com Dimensions–Double Oven Specifications & Electrical Requirements (Professional Series) Professional Double Oven 27” Wide Description VEDO127/527–27” Wide VEDO130/530–30” Wide Overall Width 26 1/2” (67.3 cm) 29 1/2” (74.9 cm) Overall Height 51 1/4” (130.2 cm) Overall Depth to edge of door—25 9/16”...
- Page 7 All manuals and user guides at all-guides.com Dimensions–Double Oven Specifications & Electrical Requirements (Designer Series–Mechanical and Touch Control Models) Designer Double Oven Description DEDO127(T)/527(T)–27” Wide DEDO130(T)/530(T)–30” Wide 27” Wide Overall Width 26 1/2” (67.3 cm) 29 1/2” (74.9 cm) Overall Height 51 3/4”...
- Page 8 All manuals and user guides at all-guides.com Cutout Dimensions–Double Oven Cutout Dimensions–Double Oven (Professional Series) (Designer Series–Mechanical and Touch Control Models) 27” Wide Built-In 27” Wide Built-In 30” Wide Built-In 30” Wide Built-In...
-
Page 9: General Information
All manuals and user guides at all-guides.com General Information Installation Site Preparation • All openings in the wall behind the • To remove the packaging, first remove the • BE SURE that support for this appliance is appliance or in the floor under the staples located at the bottom perimeter of perpendicular to the front facing of the Note: It is recommended that a thorough... -
Page 10: Installation Procedure
All manuals and user guides at all-guides.com Installation Procedure Installation Procedure (continued) (continued) Green White White Neutral Neutral Green Black Black Wiring option 2* Wiring option 3* Remove hinge trim screws. Take off hinge trim. Close until pins stop door. (connect the white to the incoming neutral, (connect the white to the incoming neutral, attach green to grounded junction box) -
Page 11: Performance Checklist
All manuals and user guides at all-guides.com Installation Procedure (continued) Performance Checklist A qualified installer should carry out the 6. Check self-clean function–Door will lock in following checks: approximately 30 seconds, the center and outside broil elements will turn on and the 1. -
Page 12: Final Preparation
_________________________________________ Interior Oven Function Selector materials, soak with hot, wet cloths to Oven Light Control Professional Series loosen the material, then use a wood or Serial Number Digital Clock nylon scraper. Do not use a metal knife, _________________________________________...
