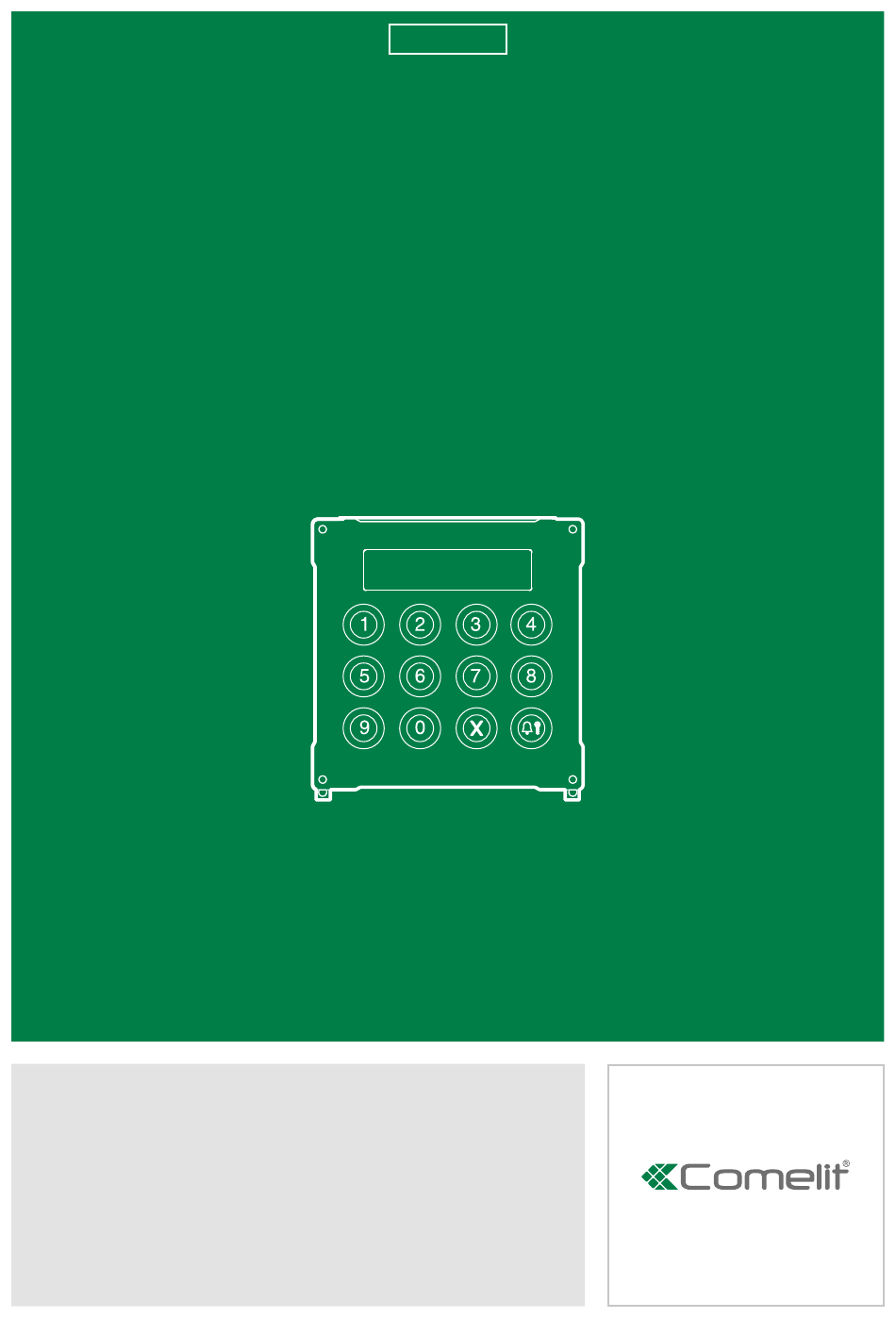

- Page 1 TECHNICAL MANUAL Digital call module Art. 3070S Passion.Technology. Design.
-
Page 2: Table Of Contents
Warning Intended use This Comelit product was designed for use in the creation of audio and video communication systems in residential, commercial or industrial settings and in public buildings or buildings used by the public. Installation All activities connected to the installation of Comelit products must be carried out by qualified technical personnel, with careful observation of the indications provided in the Manuals / Instruction sheets supplied with those products. -
Page 3: Description

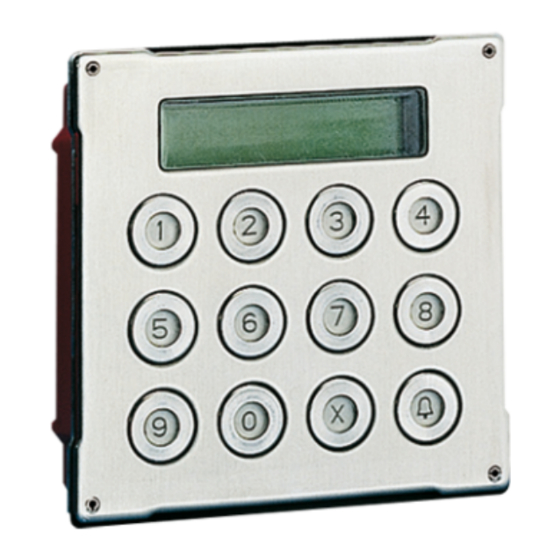

Description Vandalcom series digital call module made using double 2.5 mm 316 stainless steel plate, complete with 12-button backlit keypad plus 16-character alphanumerical display for showing call codes and interactive user messages (engaged, etc.). Also functions as an electronic key code device with a possible 1000 different 6-digit codes. For use in Building kit, SBTOP, SB1 audio, SB2 audio and ViP systems. -
Page 4: Technical Features
Technical features MAIN FEATURES Backlighting color Green led Vandal Resistant rating (IK code) Product height (mm) Product width (mm) Product depth (mm) Operating temperature (°C) -25 ÷ +55 Maximum current absorption (mA) SOFTWARE/FIRMWARE SPECIFICATIONS No. user codes 1000 FUNCTIONS Key button function HARDWARE SPECIFICATIONS Total buttons COMPATIBILITY... -
Page 5: Connections
Connections Connection to earth of 3070S To prevent any interference caused by electrostatic discharges, it is advisable to screen the casing as shown in the diagram Connection to computer COMPUTER ALIM. MOXA TCC-80 20022618 Braided, shielded telephone cable 3070S 3072S 120E 1/4W 1195... -
Page 6: Connection In Building Kit And Sb2 Systems
Connection in Building Kit and SB2 systems 1210 1595 120-230 V 4681 1621VC 1621 3070S 3072S "V-" BLUE "S" YELLOW "V+" BROWN 2E7T000696 Use the cable 2E7T000696 supplied with Art. 3070S and Art. 3072S Local lock-release button. Connection in SBTOP and SB1 systems VIDEO ENTRY SYSTEM RISER 1595 120-230 V... -
Page 7: Program And Operation
Program and Operation The Comelit digital call module Art. 3070S can be used in Building kit, SBTOP, SB1 audio, SB2 audio and ViP systems, and is fitted with a numeric keypad to call door-entry phone users by entering the code which identifies them. -
Page 8: Self-Testing
A new parameter is entered by scrolling through the possible values using the number keys. 1. Press the number corresponding to the desired value (in the example 0 = Italian). » after 2 sec. the parameter corresponding to the entered number appears on screen. 2. -
Page 9: Setting The Language
Setting the language If the LANGUAGE parameter is set to DEFAULT. During startup (after call mode testing), you will be asked to select the operating language. INITIAL CONDITION LANGUAGE The current value of the parameter appears DEFAULT on screen. PROCEDURE DISPLAY INFO DESCRIPTION Select the operating language by entering... -
Page 10: Ending A Call/Conversation
Ending a call/conversation INITIAL CONDITION CALL Call effected. EFFECTED COMMUNICATING... Conversation in progress. PROCEDURE DISPLAY INFO DESCRIPTION END OF Press the . key COMMUNICATION Opening the door by entering the password code INITIAL CONDITION ENTER Standby USER CODE PROCEDURE DISPLAY INFO DESCRIPTION PASSWORD: _ _ _ _ _ _ Press the... -
Page 11: Accessing/Exiting The Configuration Stage
Accessing/exiting the configuration stage PROCEDURE DISPLAY INFO DESCRIPTION The module is in programming mode. MAIN Connect terminal PR to terminal – The menus are scrolled through SETTINGS and power up the module. automatically every 2 seconds. Configure the parameters you wish to change...(see “1.1. -
Page 12: Settings
1. Settings 1.1. System parameters 1.1.1. Speaker parameters This procedure can be used to: A. Change the audio time audio times (t AUDIO) B. Change the door lock time the door lock relay closure time (t DOOR LOCK) C. Change the reset time [NOT VIP] the speaker module reset time once door-entry phone communication has ended (t RESET) -
Page 13: Download Type [No Vip]
AUDIO TIMING 0020 DOOR LOCK TIME The parameter values are displayed 0002 automatically every 2 seconds. RESET TIME 0010 Press o exit speaker parameter viewing. CALL MODE SIMPLEBUS Exit configuration (see “Accessing/exiting the configuration stage”) 1.1.2. Download type [NO VIP] The parameter sets the type of connection (RS232 or RS485) used for data management. -
Page 14: Call Mode
1.1.3. Call mode There are 5 call management modes to choose from: • Standard Simplebus (default), • Simplebus Indirect code, • Simplebus Top, • Simplebus Top Indirect code, • A. SIMPLEBUS - STANDARD call mode (default) In this operating mode, the door-entry phone user is identified by a Code field no longer than 3 digits (between 1 and 240). The call is made as follows: 1. - Page 15 PROCEDURE DISPLAY INFO DESCRIPTION MAIN SETTINGS The menus are scrolled through SETTINGS Access configuration (see “Accessing/ automatically every 2 seconds. SYSTEM PARAM. exiting the configuration stage”) SYSTEM PARAM. Select the menu SETTINGS / SYSTEM The current value of the parameter appears CALL MODE PARAM.
-
Page 16: Rs485 Address [No Vip]
1.1.4. RS485 address [NO VIP] The value of this parameter is used only in special applications. PROCEDURE DISPLAY INFO DESCRIPTION MAIN SETTINGS The menus are scrolled through SETTINGS Access configuration (see “Accessing/exiting automatically every 2 seconds. SYSTEM PARAM. the configuration stage”) SYSTEM PARAM. -
Page 17: Default Settings
1.3. Default settings This procedure restores the factory-set default parameters: Language = DEFAULT; System type = SIMPLEBUS; Call type = STANDARD; Screensaver =disabled (the Screen Saver function can only be programmed for VIP systems using VIP Manager); RS485 address = 0000; Download type = RS232;... -
Page 18: Access Control
2. Access control 2.1. Supercode The supercode can be used to access the configuration menu. 2.1.1. Change PROCEDURE DISPLAY INFO DESCRIPTION MAIN ACCESS CONTROL Access configuration (see “Accessing/ The menus are scrolled through exiting the configuration stage”) ACCESS CONTROL automatically every 2 seconds. Select the menu ACCESS CONTROL / SUPERCODE SUPERCODE / CHANGE using the key... -
Page 19: Password
2.2. Password The door lock relay on the speaker module can be activated by entering a password code stored previously (see “Opening the door by entering the password code”) 2.2.1. Enter PROCEDURE DISPLAY INFO DESCRIPTION Access configuration (see “Accessing/ The menus are scrolled through MAIN exiting the configuration stage”) -
Page 20: Delete All
2.2.3. Delete all PROCEDURE DISPLAY INFO DESCRIPTION ACCESS CONTROL Access configuration (see “Accessing/ PASSWORD exiting the configuration stage”) The menus are scrolled through Select the menu ACCESS CONTROL / automatically every 2 seconds. PASSWORD PASSWORD / DELETE ALL using the DELETE ALL DELETE Press the... -
Page 21: Data Management Using 1249B [No Vip]
Data management using 1249B [NO VIP] Entering a list (download) Software Art.1249B can be used to enter the list with Indirect Code and Code fields for INDIRECT CODE operating mode on module 3070S. 3070S must be set to indirect code call mode (vedi “1.1.3. -
Page 22: Navigation Tree
Navigation tree MAIN SETTINGS SYSTEM PARAM. SPEAKER PARAM. ENTER t AUDIO RANGE SB&SBTOP 10-180 _ _ 30 RANGE VIP 30-600 ENT. t DOOR LOCK RANGE SB&SBTOP 1-8 _ _ _ 3 RANGE VIP 1-60 [NO VIP] ENTER t RESET RANGE SB&SBTOP 1-10 _ _ _ 2 [NO VIP] [NO VIP]... -
Page 23: System Performance And Layouts
System performance and layouts For further information of system performance and to view installation layouts, click on the system type that best meets your requirements: • Building Kit audio/video system for the creation of audio-video systems for small apartment blocks. •... - Page 24 C E R T I F I E D M A N A G E M E N T S Y S T E M S w w w . c o m e l i t g r o u p . c o m Via Don Arrigoni, 5 - 24020 Rovetta (BG) - Italy...
