- Page 1 Color Label Printer User Manual...
- Page 2 Brady’s satisfaction to have been defective at the time Brady sold it. This warranty does not extend to any persons obtaining the product from the buyer. THIS WARRANTY IS IN LIEU OF ANY OTHER WARRANTY, EXPRESS OR IMPLIED, INCLUDING, BUT NOT LIMITED TO, ANY IMPLIED WARRANTY OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE, AND OF ANY OTHER OBLIGATIONS OR LIABILITY ON BRADY’S PART.
- Page 3 Safety and Environment Please read and understand this manual before using the BradyJet J2000 Color Label Printer for the first time. This manual describes all of the main functions of the printer. Precautions Before using the BradyJet J2000 Color Label Printer printer, please note the following precautions: •...
- Page 4 China: Repair and Return If for any reason you need to return the BradyJet J2000 Color Label Printer printer for repair, please contact Brady Technical Support for repair and replacement information. Document Conventions When using this document, it is important that you understand the conventions used throughout the manual.
-
Page 5: Table Of Contents
Page Size ......................21 Creating a Full Bleed Print ................21 Orientation ......................22 Print Resolution ....................23 Color Matching ....................23 Ink Saturation ......................23 Enable Bidi (Bidirectional) Printing ..............23 Launch Status Monitor ..................23 Details/Print Counter ...................23 Printing from Other Programs................24 BradyJet J2000 Color Label Printer... - Page 6 Mexico .........................32 Europe ........................32 RoHS Directive 2011/65/EU, 2015/863/EU ..........32 Turkey .........................32 Wireless Regulatory Information ................33 United States ......................33 Información reglamentaria sobre conexiones inalámbricas ....... 34 Canada .......................35 Mexico .........................35 European Union ....................35 International ......................35 BradyJet J2000 Color Label Printer...
-
Page 7: Introduction

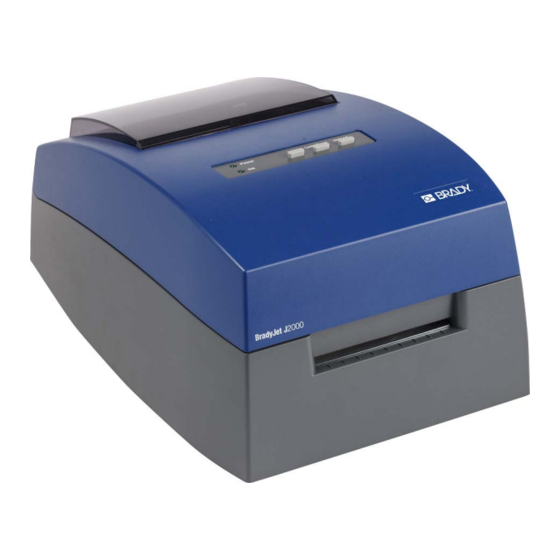

1 Introduction Thank you for purchasing the BradyJet J2000 Color Label Printer, which you can use to create and print professional-looking, razor-sharp text and barcodes in vibrant colors directly onto rolls of labels. All you have to do is: •... -
Page 8: Compatible Applications
The BradyJet J2000 Color Label Printer is compatible with Brady Workstation desktop software. When used with Brady Workstation software, the printer will automatically recognize all enabled and compatible materials up to 4.25 in. (108 mm) wide. For operation of the printer with other software, refer to the documentation for your application. -
Page 9: Setup
Carefully unpack and inspect the printer surfaces (interior and exterior) and the labeling system for possible damage during shipping. Note: Be sure to remove any transportation protection from around the print head and inside the top cover. What’s in the Box • BradyJet J2000 Color Label Printer • Power Adapter • Power Cord •... -
Page 10: Printer Components
Unload Button will unload the installed label supply by reversing it through the printer. • Label Tear Bar is a serrated edge for removing finished labels from the printer. Tear off the printed labels before pressing the unload button. IMPORTANT! BradyJet J2000 Color Label Printer... -
Page 11: Power
Install or Change Supplies The BradyJet J2000 Color Label Printer utilizes a variety of Brady label supply. As long as the label supply can receive ink jet printing and is within the allotted size, it will work in the printer. - Page 12 The supply guide rollers allow the label roll to move freely. 5. Place the leading edge of the label between the throat guide and the side of the printer. Throat Guide BradyJet J2000 Color Label Printer...
- Page 13 For wider labels use both hands to feed to maintain even forward pressure while you are pushing the labels into the printer. BradyJet J2000 Color Label Printer...
-
Page 14: Adjusting The Supply Gap Sensor
Gap Sensor Position If you are using label supply other than standard square / rectangular die-cut labels such as through- hole supply, use the instructions below to adjust the supply gap sensor. Gap Sensor Slide Bar BradyJet J2000 Color Label Printer... -
Page 15: Through-Hole Labels
After installing a new cartridge, you may choose to run an alignment print to achieve maximum quality. However, this will require canceling the print job. If you would like to enable smooth transitions BradyJet J2000 Color Label Printer... - Page 16 1. Open the top cover of the printer. 2. Press the Ink button on the printer. 3. The cartridge carrier will align itself to the center of the print area. 4. Press the cartridge cover release to open the cartridge holder. BradyJet J2000 Color Label Printer...
- Page 17 7. Push cartridge cover downward until it snaps in place. Note: Ink cartridge levels are estimates. 8. Press the Ink button on the printer to indicate the new cartridge is now installed. You will be prompted to align the cartridge. BradyJet J2000 Color Label Printer...
-
Page 18: Aligning The Ink Cartridge
It is not necessary if bidirectional printing is disabled via the printer driver. You can disable alignment via the Status Monitor. 1. Open the Status Monitor. 2. Select the settings tab (fourth tab). 3. Uncheck "Require cartridge alignment for best quality." BradyJet J2000 Color Label Printer... -
Page 19: Using System Tools
2. Go to Start >Programs >Brady > Brady Status J2000. The Status Monitor consists of four tabs that are arranged on the left side of the window. Each tab opens a screen that has various similar functions. -
Page 20: Monitoring Ink Levels
The output / cut mode setting is stored on the printer main board so you will not be able to access it unless the printer is turned on and properly communicating with the computer. 2. Go to Start >Programs >Brady>J2000 Status Monitor. 3. Click on the Alignment Tab (third tab from top). - Page 21 Cut after specified number of labels This option will cut after the number of labels specified in the "Cut After Labels" setting above. Change the value and then click "Set" to send it to the printer. BradyJet J2000 Color Label Printer...
-
Page 22: Adjusting Label Offsets
The BradyJet J2000 Color Label Printer comes factory calibrated to print exactly to the edge of Brady label supply. The printer decides where to start printing by detecting the start of a die-cut label or detecting a through-hole that corresponds to the start of the label. - Page 23 You may have to make several adjustments to one or more of these values. After each adjustment you can click the test button to print a Left Offset small test pattern on the label. This will help you find the proper alignment value. 10 units 1.0 mm BradyJet J2000 Color Label Printer...
-
Page 24: Settings
Software Updates. The Status Monitor is set by default to automatically check for updates once per day. This interval can be changed. If it finds an update it will prompt you to apply the update. The update may be for the driver, Status Monitor or printer firmware. BradyJet J2000 Color Label Printer... -
Page 25: Installing Firmware Upgrades
6. Connect the USB flash drive to any available USB port on the printer. The printer recognizes the upgrade file and displays a message on the touch screen. Follow the instructions on the touch screen. When the upgrade is complete, the printer restarts. BradyJet J2000 Color Label Printer... -
Page 26: Printing Labels
Printer Driver Settings Settings changed via the method below will apply to all new designs created in Brady Workstation or other programs after the preferences are changed. Existing labels saved in Brady Workstation will not be affected since the preferences are saved with the label. -
Page 27: Page Size
Page Size If you are using Brady Workstation, this setting is adjusted during the label setup wizard. If you are using a different program you will need to set this to the dimensions of your label. Keep in mind that the dimensions are always relative to the width and height of the actual label in the printer. -
Page 28: Orientation
Remember, this does not change the width and height in the paper size setting. It is only a tool for viewing a label upright on screen that will be printed sideways on the printer. Landscape Portrait BradyJet J2000 Color Label Printer... -
Page 29: Print Resolution
Set to "Yes" for fastest print speed. Requires an alignment print after every cartridge change. Set to "No" for better quality print. Launch Status Monitor On your computer go to Start >Programs >Brady >J2000 Status Monitor. Details/Print Counter Clicking on the details button will allow you to view information about printer settings stored on the printer. -
Page 30: Printing From Other Programs
There are just a few things to remember that will make it much easier. 1. Set the Page/Label Size in the Driver. Brady Workstation fills in the size of the label that you are using. When printing from any other program you must do this manually. Before you print, simply set the Paper Size just as you would set print quality in the printing preferences. -
Page 31: Maintenance
2. Moisten a lint-free cloth with water. 3. Hold the cloth against the nozzles for three seconds. This will “wick” some additional ink onto the damp cloth. 4. Wipe in one direction. 5. Repeat the process. BradyJet J2000 Color Label Printer... -
Page 32: Clearing A Label Jam
If the jam can not be located, it is possible to remove a cover over the feed input area. Pull on the center of the cover as shown below to release the tabs on the sides. To prevent future jams, use rubbing alcohol to remove any adhesive left in the printer feed area. BradyJet J2000 Color Label Printer... -
Page 33: Troubleshooting
Stop printing. Advance and remove two or three blank labels and print again. Labels will not exit the printer. Labels could be jammed inside. Clear the label jam. Refer to “Clearing a Label Jam” on page BradyJet J2000 Color Label Printer... -
Page 34: Label Specifications
Label Specifications 7 Label Specifications Test all custom made label supply with the intended printer before ordering large IMPORTANT! quantities! Brady will only assume responsibility for custom label supply ordered from Brady. Label Width Liner Width Gap between labels Distance from edge of media... - Page 35 For these reasons the weight or thickness of the liner is a variable that can not easily be defined. Brady recommends and uses 40# liner with all label supply. BradyJet J2000 Color Label Printer...
-
Page 36: Roll Specifications
Label Specifications Roll Specifications Label side out Roll OD Label Supply 1.82" 5" Core ID Core OD BradyJet J2000 Color Label Printer... -
Page 37: Agency Compliance And Approvals
Este dispositivo cumple con la Parte 15 de las Regulaciones de la FCC. El uso está sujeto a las siguientes dos condiciones: (1) es posible que este dispositivo no provoque interferencias perjudiciales y (2) este dispositivo debe aceptar cualquier interferencia recibida, incluso aquella que pueda generar un uso no deseado. BradyJet J2000 Color Label Printer... -
Page 38: Canada
Parliament and of the Council as regards the list of restricted substances. Turkey Turkish Ministry of Environment and Forestry (Directive on the Restriction of the use of certain hazardous substances in electrical and electronic equipment). Türkiye Cumhuriyeti: EEE Yönetmeliğine Uygundur BradyJet J2000 Color Label Printer... -
Page 39: Wireless Regulatory Information
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference and, (2) this device must accept any interference received, including interference that may cause undesired operation. BradyJet J2000 Color Label Printer... -
Page 40: Información Reglamentaria Sobre Conexiones Inalámbricas
Condiciones ambientales de uso -40 °C a 85 °C (-40 °F a 185 °F) Nota: Recuerde consultar la guía del usuario de la impresora host de Brady para conocer las temperaturas máximas de uso Condiciones ambientales de -55 °C a 125 °C (-67 °F a 257 °F) almacenamiento Nota: Recuerde consultar la guía del usuario de la... -
Page 41: Canada
< +23dBm EIRP (200mW) International The RFID module used in Brady host printers comply with internationally recognized standards covering human exposure to electromagnetic fields, i.e. EN 62311 "Assessment of electronic and electrical equipment related to human exposure restrictions for electromagnetic fields (0 Hz - 300 GHz)".
