Note: This document is designed to meet the requirements for documentation to be
shipped with a product for products shipped to the European Union and other
countries.
It does not replace the " 9601 SBD Transceiver Developers Guide." Developers
should only rely on the Developers Guide for detailed technical information.

Advertisement

Table of Contents
loading

Related Manuals for Iridium 9601

Summary of Contents for Iridium 9601

  • Page 1 Note: This document is designed to meet the requirements for documentation to be shipped with a product for products shipped to the European Union and other countries. It does not replace the “ 9601 SBD Transceiver Developers Guide.” Developers should only rely on the Developers Guide for detailed technical information.
  • Page 2 9 6 0 1 S h o r t B u r s t D a t a O n l y Tr a ns cei ver Us e r ’ s G ui d e Toll Free: +1.866.947.4348 [US Only] Iridium Satellite LLC International +1.480.752.5155 6701 Democracy Blvd., Suite 500 Fax +1.480.752.1105...

  • Page 3: Table Of Contents

    Antenna Connector Type ..................16 R F Interface Specifications .................. 16 Radio Characteristics ....................17 Instructions for the safe Installation and use of the 9601 ..........17 Instructions for t h e Integrator ................. 17 Instructions from the integrator to the user..............18 Modem Commands and Configuration................

  • Page 4: Product Overview

    Compatibility, and AC Safety in the United States, European Union and Canada. FCC Compliance The 9601 is certified under 47 CFR Part 25 as FCC ID:Q639601. It also complies with Part 15 of the FCC Regulations. Operation is subject to the condition that this device does not cause harmful interference. Any changes or modifications, including the use of a non-standard antenna, not expressly approved by the party responsible for compliance could void the user' s authority to operate the equipment.

  • Page 5: Ce Compliance

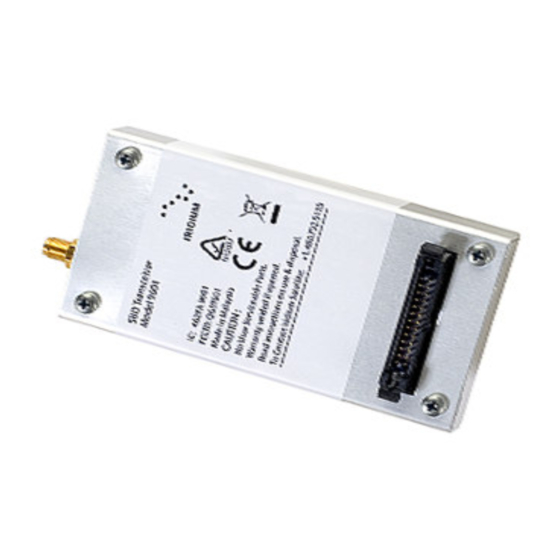

    3.0 Physical Specifications For illustrative purposes a rendering of the 9601 ISU is shown in Figure 1 with a ribbon cable connector inserted. (Note that 9601 this ribbon cable connector is to be provided by the developer and is not supplied as part of the product.)

  • Page 6: Mechanical Dimensions - Mounting

    The Samtec user connector rises 6 mm above the enclosure Mechanical Dimensions – Mounting The 9601 SBD Transceiver is provided with four mounting holes, one at each corner. During manufacture four screws are inserted for shipping purposes. These screws need to be removed for mounting.
  • Page 7 Figure 3: 9601 SBD Transceiver mounted to a unpopulated PCB. The figures below provides mechanical information design information for a suitable ‘stackable’ 9601 to developer PCB configuration Figure 4: Assembly Item Number Identification. Item Numbers in Figure 4 are described in Table 3.
  • Page 8 Figure 5: Mechanical mounting foot print for use when stacking the 9601 ISU with a developer provided PCB. (Dimensions in milli-meters, not to scale) Notes for Figure 5: 1. Item 1 is a generic, developer provided PCB design and shown for illustrative purposes. This item is the same as Item 6 in Figure 4.

  • Page 9: Mounting To A Panel/Surface - For Use With Cable Connections

    An example of mounting to a panel or other surface design is shown in Figure 6. Figure 6: 9601 SBD Transceiver mounted to a plate or surface. The figures and tables below provide mechanical information design information for a mounting a 9601 to a plate or surface configuration Figure 7: Assembly Item Number Identification.

  • Page 10: Environmental

    9601 SBD Transceiver Part Mounting Plate or Surface (developer provided) Figure 8: Mechanical mounting foot print for use when panel mounting 9601. (Dimensions in milli-meters, not to scale) 4.0 Environmental The environmental specifications of the 9601 are summarized in Table 5 below.

  • Page 11: Interface Connectors

    Network available output 5.1.1 Connector Type The connector on the 9601 is a Samtec EHT series. This connector provides the ability for both a cable connector as well as a stackable board to board connection. For cable connected applications use the Samtec TCSD series.

  • Page 12: Connector Pin Allocation

    ON/OFF Input On/Off control input Off: 0V to 0.5V I = 120 A max Reserved Reserved SIG_GND Signal ground Data port, serial data into 9601 SBD DF_S_TX Input RS-232 Transceiver Data port, serial data from 9601 SBD DF_S_RX Output RS-232...

  • Page 13: Dc Power Interface

    The DC power interface is comprised of the DC power inputs and a control signal as summarized in Table 7. The three +5V Inputs and three 0V supply returns are used to supply DC power to the 9601 and ensure that enough current can be drawn across the connector without the 9601 malfunctioning during transmit due to lack of current supply.

  • Page 14: Power On/Off Control

    Serial Data Interface The Serial data interface is used to both command the 9601 and transfer user data to and from the Transceiver. The 9601 presents a 9-wire data port to the FA (Field Application), where the interface is at RS232 levels.
  • Page 15 DCD is driven ON at all times. Note that the Ring Indicator (RI) pin is used by the 9601 SBD Transceiver to indicate that a Mobile Terminated SBD (MT-SBD) message is queued at the Gateway. The Field Application will need to monitor this pin and use appropriate AT Commands to command the Transceiver to retrieve the MT-SBD message.

  • Page 16: Configuration Settings

    The serial interface is always in one of three modes: command mode, SBD data mode or SBD session mode. When the data port is in command mode, AT commands can be entered to control the 9601 SBD Transceiver. In command mode, flow control has no effect, with the RTS input ignored and the CTS output driven ON (low).

  • Page 17: Network Available Output

    DC Power Output A limited power output can be provided by the 9601 which could be used for driving an LED to provide a visible indication that the transceiver is on, or the output could be used in application logic to determine if the transceiver is on.

  • Page 18: Radio Characteristics

    7.0 Instructions for the safe Installation and use of the 9601 The 9601 is intended for integration into a finished product. The integrator of the 9601 is required to connect a power supply, antenna, and user interface to the 9601. To ensure that the 9601 is correctly installed the following general instructions (sub-section 5.1) are provided for the installer.

  • Page 19: Instructions From The Integrator To The User

    As part of these instructions the installer should inform the user that they should not service the 9601. 8.0 Modem Commands and Configuration The 9601 is configured through the use of AT commands. A full listing of the supported AT commands can be found in the 9601 AT Command Reference document.
