Next Waypoint
2
Depth
3
XTE (Cross Track Error): Distance of Boat from Route
4
Speed: the measurement of the boat's progress across a given
distance, and is the speed measurement provided by GPS
5
Course: the current direction the boat is traveling measured
in degrees from North
6
Bearing: Direction to Destination Waypoint
measured in degrees from North
NOTE: When two or more waypoints overlap, or are displayed close together on a chart view, the
screen will automatically declutter—waypoint names will shorten and the waypoint icons will
change into small blue icons.
To view a Decluttered Waypoint at full size, use the 4-WAY Cursor Control key to move the cursor
onto a decluttered waypoint icon. When the cursor snaps onto the icon, the full-size waypoint name
and icon will be displayed. You can also press the ZOOM+ key until you can see the individual
waypoints on the screen. See Navigation Menu Tab: Waypoint Decluttering to turn off this
feature.

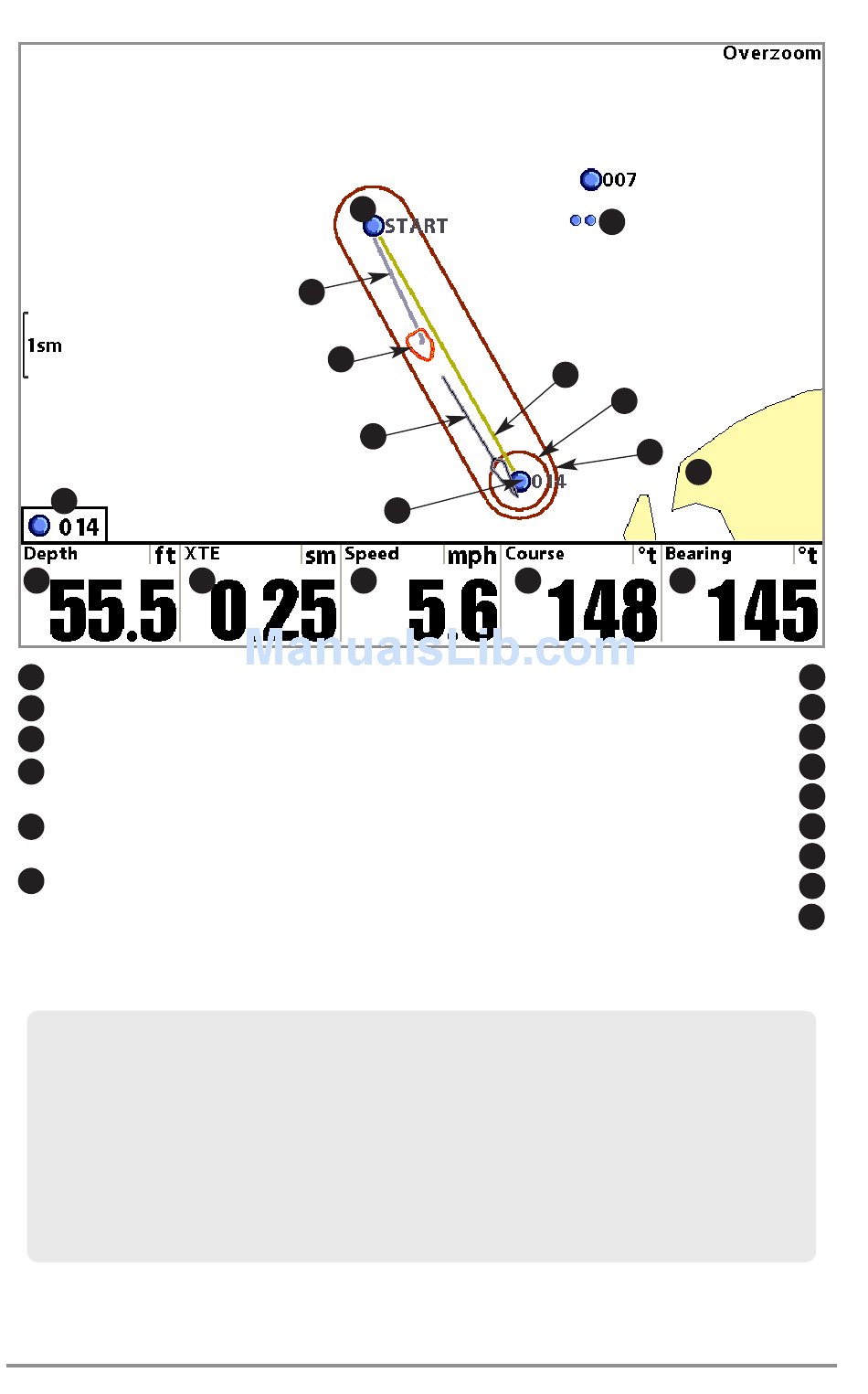

Introduction to Navigation
Waypoints, Routes and Tracks
14
13
12
3 4
11
1
5
114
15
10
9
8
7
6
Off Course Limits
Arrival Alarm Limits
Course Projection Line
Decluttered Waypoints
Cartography 7
8
9
Route 10
11
Boat Icon 12
Track
13
Waypoint 14
15
