Humminbird 1158c Combo Installation And Operation Manual page 107

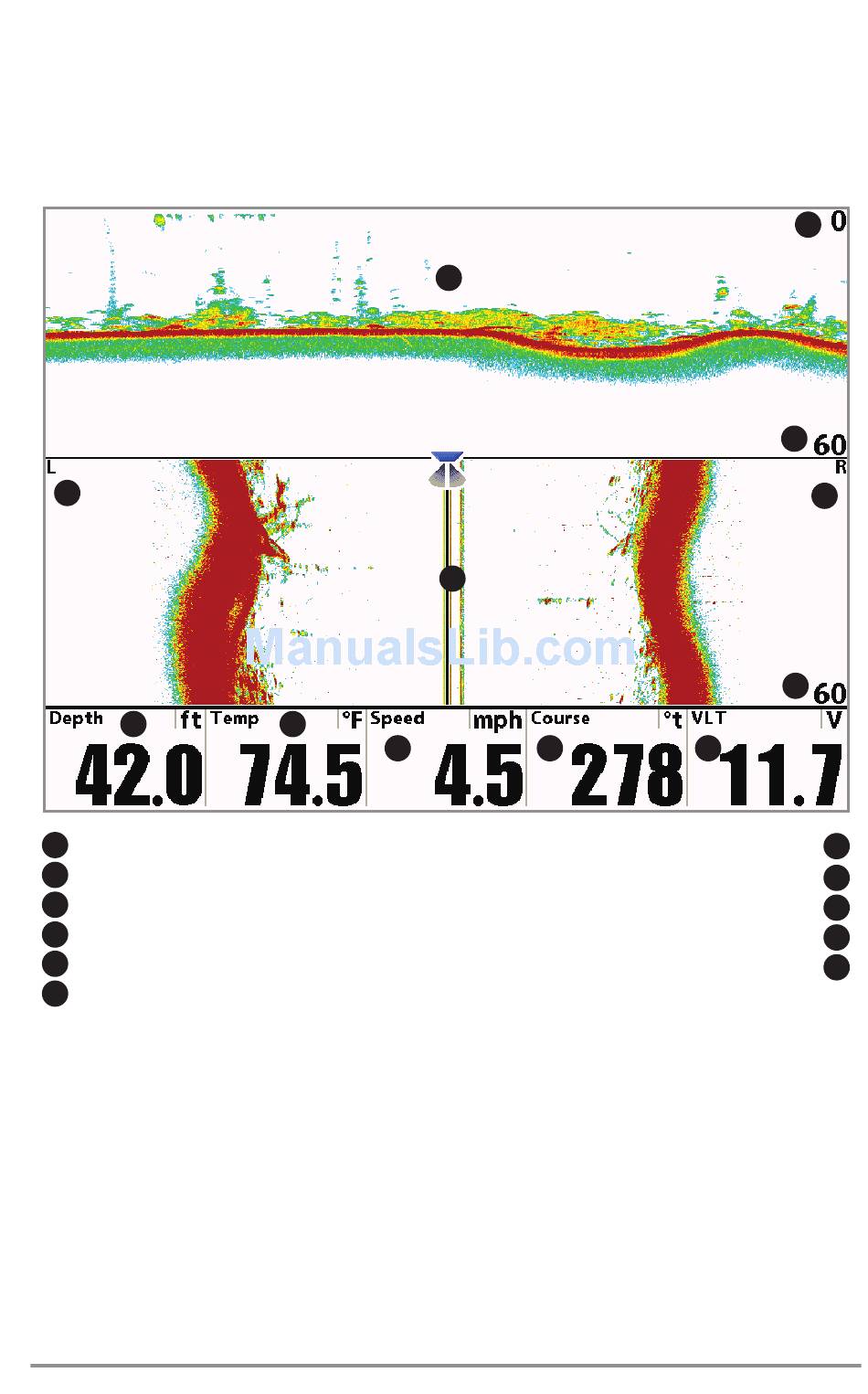

Classic layout: The top portion of the display presents a historical log of sonar returns from the
200 kHz down-looking sonar beam. New information in the down beam panel scrolls from right
to left. The bottom portion of the display presents a historical log of sonar returns from the 455
kHz right- and left-looking sonar beams. New information appears at the top and scrolls down
the display.
6
1
1 Depth
2
Temp: water surface temperature
3
Speed: speed of boat
4
Course: the current direction the boat is traveling measured in degrees from North
5
VLT: Voltage
6
Left Side 455 kHz Sonar History Window
Side Beam View, Classic Layout
9
8
2
3
95
4
Right Side 455 kHz Sonar History Window
Water Surface Line for 455 kHz Sonar History Windows
200 kHz Sonar History Window
10
11
7
11
5
7
8
9
Upper Depth Range
10
Lower Depth Range 11
Views
