Setup Menu

Before You Begin...

The setup menu allows you to configure various aspects
of the SA10/SA20 integrated amplifier.
Entering Setup Mode
To enter the setup menu, press and hold the MUTE key
on the front panel for approximately 3 seconds.
Navigating The Setup Menu

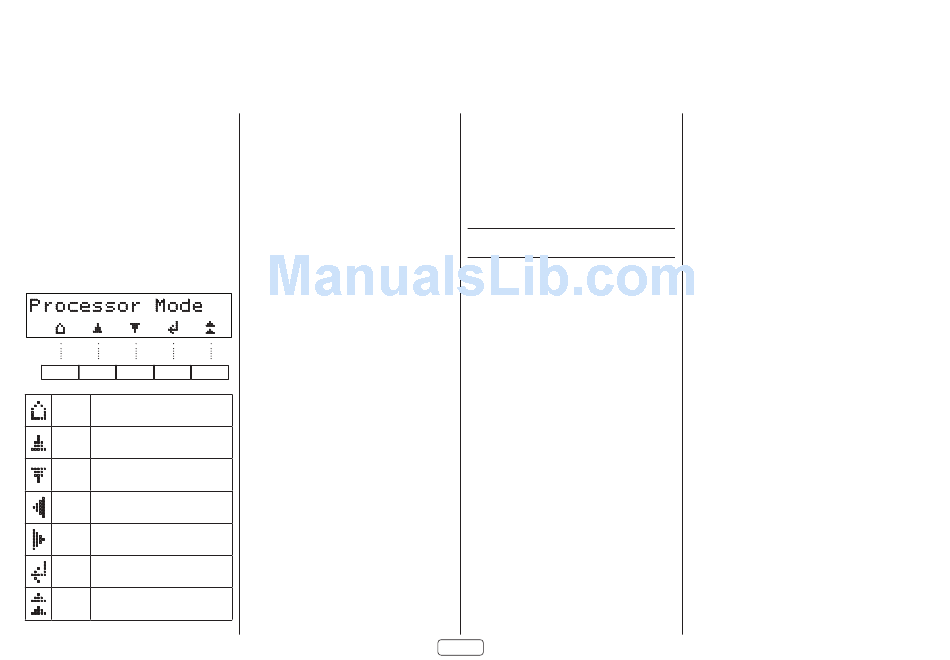

The setup menu can be navigated by pressing the front
panel keys that correspond to the function shown on
the display, as shown below.
To change a setting, simply turn the control knob left
or right.
STB PVR CD BD
HOME Exit the menu and return to the
home display
UP
Navigate to the previous menu
option
DOWN
Navigate to the next menu option
LEFT
Navigate left or move to the
previous field
RIGHT Navigate right or move to the next
field
OK
Save the current setting and move
to next option
BACK
Save the current setting and exit
menu option

System Settings

Display
Allows the brightness of the front panel display to be
changed. The available settings are Full, Dim and Off.
The default setting is Dim.
Balance
Turn the SA10/SA20 volume control knob left and
right to change the left and right channel balance,
respectively. The default setting is 0.
Phones Override
Control whether or not the speaker outputs are muted
when a pair of headphones are connected to the
PHONES socket on the front panel. The default is Off.
Timeout
This option allows you to choose the length of idle time
before the unit goes into standby. The available options
are Off, 30 minutes, 1, 2 and 4 hours. The default setting
AV
is 30 minutes.
Processor Mode (PM) Input
Specify which input is to be used in processor mode.
This mode can be assigned to any input. In this case, the
SA10/SA20 output level is set to a fixed level. The default
setting is None.
Processor Mode (PM) Volume
Specify the required volume level for the processor
mode input. The default is volume is 30.
IR System Code
Change the IR system code that the SA10/SA20
responds to (either 16 or 19). The default code is 16.
Note: The supplied remote control supports IR system
code 16 only and cannot be changed.
Version
Displays the software version of the unit.
System Update
This option allows you to perform a software update of
the system.
System Reset
Restores the SA10/SA20 to its factory default settings.
EN-14

Network Settings

Net Standby
Enables or disables the network control of the
SA10/SA20 while the unit is in standby. The default
setting is Off.
Note: The unit can still be controlled via RS232
commands, even when network standby is disabled.
RS232 Standby
Enables or disables the RS232 control of the SA10/SA20
while the unit is in standby. The default setting is Off.
Network Setup
You can set your SA10/SA20 to obtain an IP address
automatically when it connects to your network. To do
so, select DHCP On and press OK.
Some providers require that you enter a fixed IP address.
To do this, select DHCP Off and press OK. Use the left
and right navigation keys to move between fields and
turn the SA10/SA20 volume control knob to set the
values. Press OK to save the settings.
The default network setup mode is DHCP On.
Network Name
This option allows you to rename the amplifier. Use
the left and right navigation keys to move between
segments and turn the SA10/SA20 volume control knob
to change each value. The default value is SA10-XXXX or
SA20-XXXX, where XXXX are the last four characters of
the product's MAC address.
Network Info
Displays all the information related to the network setup,
as follows: DHCP setting, IP address, MAC address and
Network Name of the unit.
