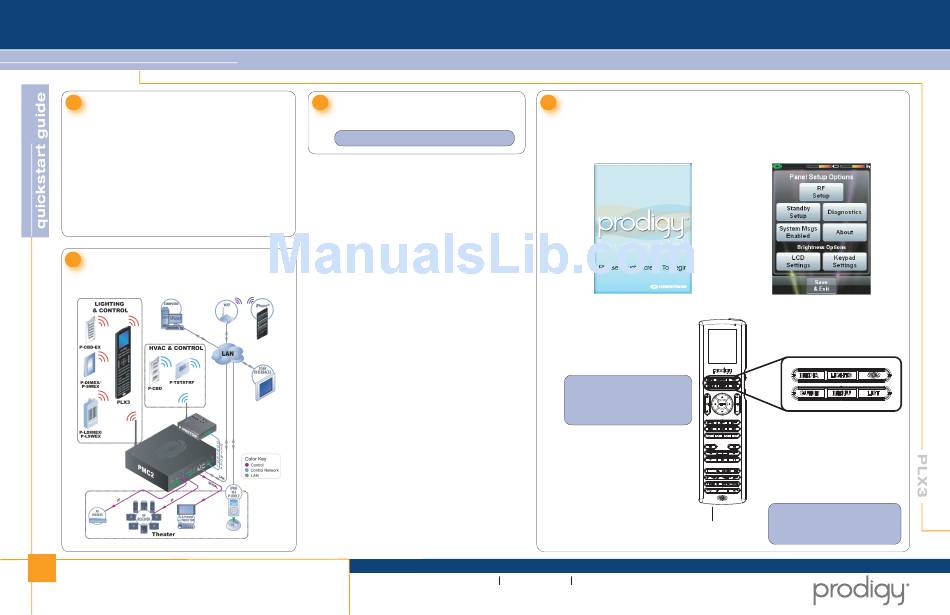

Crestron Prodigy PLX3 Quick Start Manual

PLX3
1 Introduction

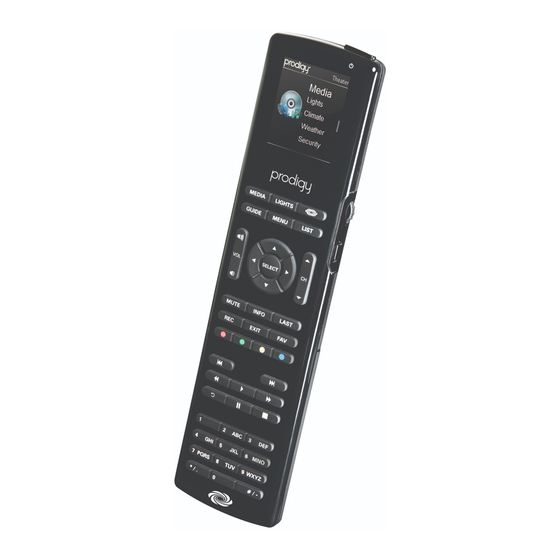

The Prodigy PLX3 is a versatile yet cost effective home
®
theater remote control. This state of the art handheld
two-way controller includes a 2" active matrix
display capable of displaying stunning graphics and
dynamic text with true feedback.
The ergonomic layout of pushbuttons provides intuitive,
tactile control for hands and fingers of all sizes. Its
compact size and design offer easy one handed
operation, while its 802.15.4 wireless technology affords
reliable communications over everything from home
theater to whole house automation as part of a complete
Prodigy system.
2
Application
The following diagram illustrates a PLX3 in a system with
other Prodigy devices.
1
For Regulatory Compliance information, refer to the latest
version of Doc. 7133.
QUICKSTART DOC. 7132 (2027729)
Prodigy Handheld Remote
®
3 Install the Batteries
Install the four (4) AA alkaline batteries as shown in
the diagram located inside the battery compartment.
NOTE: Do not use rechargeable batteries.
www.crestron.com/prodigy
10.10
©2010 Specifications subject to
change without notice.
4 Configure the Touchpanel
The setup screen is the starting point for
configuring the PLX3. When power is applied
for the first time, the screen shown below
appears.
NOTE: During regular operation
of the remote, to activate the setup
functions, press MEDIA, LIGHTS,
GUIDE, and MENU in sequence
twice within a five second period.
888.273.7876 201.767.3400
All brand names, product names, and trademarks
are the property of their respective owners.
Touch the screen to display the PLX3 setup
screen, as shown in the illustration below.
The setup screen enables basic configuration
procedures prior to regular operation of the
remote.
NOTE: The USB port for loading
projects and upgrading firmware, is
USB Port Location
located behind the battery compart-
ment cover on the rear of the unit.
