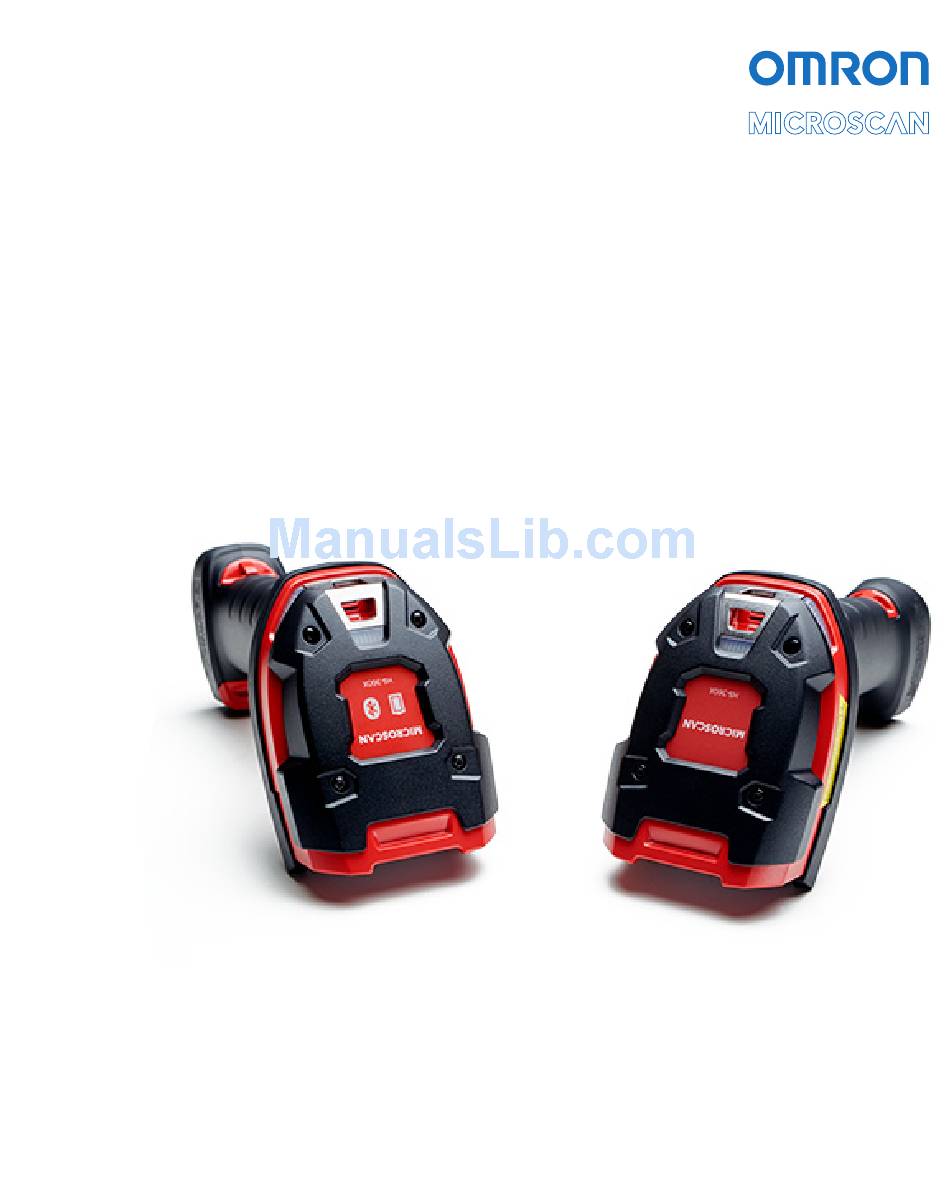

HS-360X Handheld DPM Scanner
User Manual
P/N 84-9000360-02 Rev A

Advertisement

Table of Contents
loading

Related Manuals for Omron HS-360X

Summary of Contents for Omron HS-360X

  • Page 1 HS-360X Handheld DPM Scanner User Manual P/N 84-9000360-02 Rev A...

  • Page 2: Technical Support

    Omron Microscan-manufactured equipment and is not to be released, reproduced, or used for any other purpose without written permission of Omron Microscan. Throughout this manual, trademarked names might be used. We state herein that we are using the names to the benefit of the trademark owner, with no intention of infringement.
  • Page 3 Omron Microscan reserves the right to make changes to any product to improve reliability, function, or design. Omron Microscan does not assume any product liability arising out of, or in connection with, the application or use of any product, circuit, or application described herein. No license is granted, either expressly or by implication, estoppel, or otherwise under any patent right or patent, covering or relating to any combination, system, apparatus, machine, material, method, or process in which Omron Microscan products might be used.

  • Page 4: Table Of Contents

    HS-360X Wireless Handheld DPM Scanner ........... 1-4 HS-360X Wired Handheld DPM Scanner..........1-14 Chapter 2 Data Capture HS-360X Wireless Scanner Beeper and LED ......... 2-2 HS-360X Beeper and LED Definitions ............ 2-7 HS-360X Scanning .................. 2-8 Chapter 3 Maintenance and Technical Specifications Maintenance ....................

  • Page 5: Introduction

    Codabar (NW - 7) .................. 9-80 MSI ......................9-86 Chinese 2 of 5 ..................9-92 Matrix 2 of 5 ................... 9-93 Korean 3 of 5 ..................9-98 Inverse 1D ..................... 9-99 GS1 DataBar ..................9-100 HS-360X Handheld DPM Scanner User Manual...
  • Page 6 Mailmark ....................9-138 Symbology-Specific Security Levels ........... 9-139 Report Version ..................9-145 Macro PDF Features ................9-146 Chapter 10 WebLink Set Up HS-360X Host Interface ............10-2 Install WebLink .................. 10-3 Connect to WebLink ................10-4 Explore the Start View ................10-5 Create a New Setup or Load an Existing Setup ........
  • Page 7 Appendix E — Programming Reference............A-53 Appendix F — Sample Symbols ..............A-59 Appendix G — Alphanumeric Keyboard ............A-62 Appendix H — Numberic Keyboard ..............A-77 Appendix I — ASCII Character Sets .............A-79 Appendix J — Non-Parameter Attributes............A-90 HS-360X Handheld DPM Scanner User Manual...

  • Page 8: Table Of Contents

    Related Documents • HS-360X Wired Scanner Quick Start Guide, P/N 83-9310013-02, provides general information about how to get started with the wired version of the HS-360X Handheld DPM Scanner, and includes basic instructions for setup and operation. • HS-360X Wireless Scanner Quick Start Guide, P/N 83-9310014-02, provides general information about how to get started with the wireless version of the HS-360X Handheld DPM Scanner, and includes basic instructions for setup and operation.

  • Page 9: Hs-360X Configurations

    Kit, Battery Charger, 4-Slot, HS-360X USB Cables 12-9000942-01 Cable, USB, Shielded, 2 M, EXT 12V, HS-360X 12-9000943-01 Cable, USB, Shielded, 4.6 M, EXT 12V, HS-360X (Requires 12V Power Supply) 12-9000946-01 Cable, USB, Shielded, 2 M, HS-360X 12-9000947-01 Cable, USB, Shielded, 4.6 M, HS-360X...

  • Page 10: Service Information

    • Model number or product name • Software type and version number Omron Microscan responds to calls by e-mail, telephone or fax within the time limits set forth in service agreements. If your problem cannot be solved by support, you may need to return your equipment for servicing and will be given specific directions.

  • Page 11: Chapter 1 Quick Start

    1 Quick Start This section provides a product overview, unpacking instructions, and configuration information. HS-360X Handheld DPM Scanner User Manual...

  • Page 12: Hs-360X Handheld Dpm Scanner

    HS-360X. HS-360X Wireless Handheld DPM Scanner The wired HS-360X combines superior 1D and 2D omnidirectional barcode scanning performance and advanced ergonomics in a lightweight, hands-free / handheld design. The HS-360X Stand seamlessly accommodates both countertop and handheld use.
  • Page 13 Remove the scanner from its packaging and inspect it for damage. If the scanner was damaged during shipping, contact Omron Microscan support. KEEP THE PACKING MATERIALS. They comprise the approved shipping container, which you can use to return the scanner for servicing.

  • Page 14: Hs-360X Wireless Handheld Dpm Scanner

    HS-360X Wireless Handheld DPM Scanner HS-360X Wireless Handheld DPM Scanner Parts Battery LED Radio LED Scan Window Charging/Communication LEDs Contacts Trigger Battery Latch Beeper HS-360X Handheld DPM Scanner User Manual...
  • Page 15 Bluetooth radio, and sending that data to the host through an attached cable. An external power supply or a powered host cable provides power to the cradle. For more mounting options, refer to the HS-360X Cradle Quick Start Guide, P/N 83-9310018-02, included with the cradle.

  • Page 16: Connecting The Cradle

    Note: Different cables are required for different hosts. The connectors illustrated in each host chapter are examples only. The connectors may be different from those illustrated, but the steps to connect the scanner remain the same. HS-360X Handheld DPM Scanner User Manual...

  • Page 17: Supplying Power To The Cradle

    Wireless HS-360X Battery Battery Statistics Capabilities The HS-360X Wireless Scanner is equipped with PowerPrecision+ batteries. These intelligent batteries have the integrated technology required to collect the detailed real-time battery metrics needed to maximize useful battery life and ensure every battery is healthy and able to hold a full charge.
  • Page 18 A PowerPrecision+ 3100 mAh Li-Ion rechargeable battery ships with each wireless HS-360X. Batteries are shipped in an Off mode and do not power the scanner. After inserting a new battery into the HS-360X scanner, you must insert the scanner into a cradle for the battery to turn On.
  • Page 19 Quick Start Charging the HS-360X Battery When using a new battery in the HS-360X, the battery requires a charge to be enabled. Insert the battery in the HS-360X and place the HS-360X in the cradle. The battery begins charging when the cradle’s LED indicator starts blinking amber. The HS-360X’s battery has completed a charge when the cradle’s LED indicator is solid green.

  • Page 20: Sending Data To The Host Computer

    Use the configuration symbols in this manual or the WebLink configuration program to configure the scanner. Radio Communications The scanner can communicate with remote devices via Bluetooth, or by pairing with a cradle. 1-10 HS-360X Handheld DPM Scanner User Manual...
  • Page 21 104° F (0° C to 40° C) nominal, 41° to 95° F (5° to 35° C) ideal. Battery Charging LED (four) Battery Well (four) Wall Mount Power Cable Key-Hole (two) Groove Rubber Feet (four) Power Port USB Port Four-Slot Spare Battery Charger Power Cable Well Cable Groove(s) 1-11 HS-360X Handheld DPM Scanner User Manual...

  • Page 22: Inserting Batteries

    Do not attach the tool balancer to the lanyard slot at the bottom of the device. To install the optional lanyard: 1. Insert the loop on the lanyard into the slot at the bottom of the device handle. Insert Lanyard Loop 1-12 HS-360X Handheld DPM Scanner User Manual...
  • Page 23 3. Pull the clip through the loop over the tether point and tighten into place. Insert Loop into Tether Point HS-360X Accessories The scanner ships with a battery and the HS-360X Wireless Scanner Quick Start Guide. The following required accessories must be ordered: • Interface cable for the appropriate interface.

  • Page 24: Hs-360X Wired Handheld Dpm Scanner

    HS-360X Wired Handheld DPM Scanner HS-360X Wired Handheld DPM Scanner Parts LEDs Scan Window Beeper Trigger 1-14 HS-360X Handheld DPM Scanner User Manual...
  • Page 25 Inserting Cable into HS-360X 2. Loosen metal lock plate screw using a PH1 driver. Loosening HS-360X Lock Plate Screw 3. Slide lock plate to fully locked position. Sliding Lock Plate into Locked Position 1-15 HS-360X Handheld DPM Scanner User Manual...
  • Page 26 Tightening Lock Plate Removing the HS-360X Interface Cable 1. Loosen lock plate screw using a PH1 driver. Loosening Lock Plate 2. Slide lock plate to fully unlocked position. Sliding Lock Plate into Unlocked Position 1-16 HS-360X Handheld DPM Scanner User Manual...
  • Page 27 Quick Start 3. Tighten lock plate to fully unlocked position. Tightening Lock Plate into Unlocked Position 4. Remove cable. Removing Cable from HS-360X 1-17 HS-360X Handheld DPM Scanner User Manual...
  • Page 28 HS-360X Accessories The scanner ships with the HS-360X Wired Scanner Quick Start Guide. The following required accessories must be ordered: • Interface cable for the appropriate interface. • Universal power supply, if the interface requires this.

  • Page 29: Chapter 2 Data Capture

    2 Data Capture This section provides beeper and LED definitions, techniques involved in scanning barcodes, general instructions and tips about scanning, and decode ranges. HS-360X Handheld DPM Scanner User Manual...

  • Page 30: Hs-360X Wireless Scanner Beeper And Led

    The scanner issues different beep sequences/patterns and an LED display to indicate status. Radio and Beeper LED Definitions In addition to the System/Decode LEDs, the HS-360X Wireless Scanner has a Radio and Battery LED gauge. The Radio and Battery LED gauge is always active when inserted in the cradle. After the scanner is removed from the cradle, it is active for four seconds.
  • Page 31 Data Capture HS-360X Wireless Scanner Beeper and LED Definitions Event Beeper Sequence Standard Use Power up. Low/medium/high beeps Green Scanning Presentation Mode on. None Green solid Presentation Mode off. None No LED; green LED is turned off A barcode was successfully...
  • Page 32 HS-360X Wireless Scanner Beeper and LED Event Beeper Sequence Battery Indications Low battery indication (on trigger Four short high beeps Red (stays on) release) 99-51% Green Battery LED status 21-50% Amber 0-20% Red 99-51% Green/red alternating 21-50% Amber/red alternating Battery end of life...

  • Page 33: Cradle Led Definitions

    Charging Error Amber fast blinking Battery End of Life Indications Charging Red blinking Fully charged Red (stays on) Charging error Red fast blinking Maintenance Indications Enter boot loader Red (stays on) Firmware installation Red blinking HS-360X Handheld DPM Scanner User Manual...
  • Page 34 HS-360X Wireless Scanner Beeper and LED Four-Slot Battery Charger Definitions Event Standard Use Power Up Red, amber, green, off (all four LEDs) Idle Battery Indications Pre-charging Amber (stays on) Charging Amber blinking Fully charged Green (stays on) Charging error Amber fast blinking...

  • Page 35: Hs-360X Beeper And Led Definitions

    High, Low beeps Green using numeric barcodes. Successful program exit with High, Low, High, Low beeps Green change in parameter setting. Maintenance Indications Enter Bootloader High, High beeps Red (stays on) Firmware Installation None Red Blinking HS-360X Handheld DPM Scanner User Manual...

  • Page 36: Hs-360X Scanning

    2. Pull the trigger until the scanner beeps, indicating the barcode is successfully decoded. HS-360X Scanning a Data Matrix Symbol in Handheld Mode HS-360X Handheld DPM Scanner User Manual...
  • Page 37 Height Adjustment HS-360X Wired Scanner in Hands-Free Mode 2. Insert the scanner in the HS-360X Stand by placing the front of the scanner into the scanner cup. 3. Use the HS-360X Stand’s adjustment knobs to adjust the height and angle of the scanner.
  • Page 38 HS-360X Scanning Aiming with the HS-360X When scanning, the HS-360X projects a red laser aiming dot which allows you to position the symbol within the scanner’s field of view. HS-360X Scanner Aiming Pattern The scanner beeps to indicate that it successfully decoded the symbol.

  • Page 39: Maintenance And Technical Specifications Maintenance

    3 Maintenance and Technical Specifications This section describes recommended scanner maintenance, troubleshooting, technical specifications, and pin assignments. HS-360X Handheld DPM Scanner User Manual...

  • Page 40: Known Harmful Ingredients

    Maintenance Maintenance Known Harmful Ingredients The following chemicals are known to damage the plastics on Omron Microscan products and should not come in contact with the device: • Acetone • Ammonia solutions • Aqueous or alcoholic alkaline solutions • Aromatic and chlorinated hydrocarbons •...

  • Page 41: Cleaning The Scanner

    • Industrial De-Greaser (Engine Brite Heavy Duty) • Brake Fluid (DOT4) If the scanner comes in contact with the above fluids and chemicals frequently, Omron Microscan recommended that you clean the outside of the scanner daily using the approved cleaning agents listed on the previous page.

  • Page 42: Troubleshooting

    If the scanner emits 5 low beeps, a Configure the scanner's conversion or format error conversion parameters properly. occurred. If the scanner emits low/high/low beeps, it detected an invalid Program the correct scanner rules. scanner rule. HS-360X Handheld DPM Scanner User Manual...
  • Page 43 A barcode was scanned with host that can support the barcode. characters that can't be sent for that host. Note: If the scanner still experiences problems after performing these checks, contact customer support at www.microscan.com. HS-360X Handheld DPM Scanner User Manual...
  • Page 44 Troubleshooting Report Software Version Barcode When contacting support, a support representative may ask you to scan the programming symbol below to determine the version of software installed in the scanner. Report Software Version HS-360X Handheld DPM Scanner User Manual...

  • Page 45: Technical Specifications

    USPS 4 State Postal (Post US3) HS-360X Decode Ranges. Typical Working Distance USB, RS-232 The scanner supports the following protocols over Interfaces Supported USB: HID Keyboard (default mode), SNAPI, COM Port Emulation, USB CDC HS-360X Handheld DPM Scanner User Manual...
  • Page 46 PDF417: 4 mil Data Matrix: 4 mil User Environment HS-360X Wireless Scanner Operating Temperature - 4° F to 122° F (-20° C to 50° C) HS-360X Wired Scanner Operating Temperature - 22° F to 122° F (-30° C to 50° C) Storage Temperature - 40º...
  • Page 47 Certified Pending to UL1950, CSA C22.2 No.950. Electrical Safety EN60950/IC950 Input Transient Protection IEC 1000-4-(2,3,4,5,6,11) FCC Part 15 Class B, ICES-003 Class B European Union EMC Directive, Australian SMA, Taiwan EMC, Japan VCCI/MITI/ Dentori HS-360X Handheld DPM Scanner User Manual...

  • Page 48: Hs-360X Wired Scanner Signal Descriptions

    Cable Interface Port Pin 1 Pin 10 Interface Cable Modular Connector HS-360X Wired Scanner Cable Pinouts The signal descriptions below apply to the connectors on the HS-360X Wired Scanner and are for reference only. RS-232 Cable ID Cable ID Power (+5V)

  • Page 49: Chapter 4 Radio Communications

    4 Radio Communications This section provides information about the modes of operation and features available for wireless communication between HS-360X Wireless Scanners, cradles, and hosts. This section also includes scanner configuration parameters. HS-360X Handheld DPM Scanner User Manual...

  • Page 50: Hs-360X Wireless Scanner Radio Communications

    Scanning Sequence Examples In most cases, scan one programming symbol to set a specific parameter value. Errors While Scanning Unless otherwise specified, to correct an error during a scanning sequence, just re-scan the correct parameter. HS-360X Handheld DPM Scanner User Manual...

  • Page 51: Radio Communications Parameter Defaults

    Convert Case No Case Conversion Reconnect Attempt Beep Disable Feedback Reconnect Attempt Interval 30 Seconds Auto-reconnect Auto-reconnect Immediately Beep on Insertion Enable 1. Parameter number decimal values are used for programming via RSM commands. HS-360X Handheld DPM Scanner User Manual...
  • Page 52 Classic and Low Energy Bluetooth PIN Code (Set and Store) 12345 Static Variable Pin Code (Default PIN code is 12345) Bluetooth Security Levels 1393 1. Parameter number decimal values are used for programming via RSM commands. HS-360X Handheld DPM Scanner User Manual...

  • Page 53: Wireless Beeper Definitions

    To establish a connection (for initial setup only): 1. Scan the Cradle-Classic Bluetooth or Cradle-Low Energy programming symbol. 2. Scan the pairing symbol on the cradle or place the scanner in the cradle. Cradle-Classic Cradle-Low Energy HS-360X Handheld DPM Scanner User Manual...
  • Page 54 To establish a connection (initial setup only): Scan the HID BT LE (Discoverable) programming symbol. From the host, discover Bluetooth devices. iii. Select your scanner from your discovered device list. HID Bluetooth Classic HID BT LE (Discoverable) HS-360X Handheld DPM Scanner User Manual...
  • Page 55 To establish a connection (initial setup only): Scan the SPP BT Classic (Discoverable) programming symbol. From the host, discover Bluetooth devices. iii. Select your scanner from the discovered device list. SPP BT Classic (Non-Discoverable) SPP BT Classic (Discoverable) HS-360X Handheld DPM Scanner User Manual...

  • Page 56: Bluetooth Technology Profile Support

    Initiating the connection is done by scanning a pairing symbol for the remote device. Secondary When the scanner is set up as a Secondary device (SPP), the scanner accepts an incoming connection request from a remote device. The number of scanners is dependent on the host’s capability. HS-360X Handheld DPM Scanner User Manual...

  • Page 57: Bluetooth-Friendly Name

    You can set a meaningful name for the scanner that appears in the application during device discovery. The default name is the scanner name followed by its serial number, e.g., HS-360X 123456789ABCDEF. Scanning Set Defaults reverts the scanner to this name; use custom defaults to maintain the user-programmed name through a Set Defaults operation.

  • Page 58: Discoverable Mode

    The device remains in Limited Discoverable Mode for 30 seconds, and green LEDs flash while in this mode. It is then non-discoverable. To re-active Limited Discoverable Mode, press the trigger. General Discoverable Mode Limited Discoverable Mode 4-10 HS-360X Handheld DPM Scanner User Manual...

  • Page 59: Wi-Fi Friendly Mode

    • Updating Wi-Fi friendly settings before Bluetooth connection is recommended. Scan a programming symbol below to enable or disable Wi-Fi Friendly Mode. Disable Wi-Fi Friendly Mode Enable Wi-Fi Friendly Mode 4-11 HS-360X Handheld DPM Scanner User Manual...
  • Page 60 • Exclude Wi-Fi channel 6 and 11: Bluetooth channels 25-46 (2427 - 2448 MHz) and 50-71 (2452 - 2473 MHz) are excluded from hopping sequence. Use All Channels (Standard) Exclude Wi-Fi Channel 1 Exclude Wi-Fi Channel 6 4-12 HS-360X Handheld DPM Scanner User Manual...
  • Page 61 Radio Communications Exclude Wi-Fi Channel 11 Exclude Wi-Fi Channels 1, 6, and 11 Exclude Wi-Fi Channels 1 and 6 Exclude Wi-Fi Channels 1 and 11 Exclude Wi-Fi Channels 6 and 11 4-13 HS-360X Handheld DPM Scanner User Manual...

  • Page 62: Radio Output Power

    Radio Output Power Radio Output Power Parameter # 1324 The HS-360X Wireless Scanner uses a Class 1 Bluetooth radio. Optionally, reduce the radio’s output power to restrict the transmission range and reduce the effect of the radio on neighboring wireless systems.
  • Page 63 If you are experiencing occasional disconnects and the scanner is able to reconnect, increase the link supervision timeout value. .5 Seconds 2 Seconds 5 Seconds 10 Seconds 20 Seconds 4-15 HS-360X Handheld DPM Scanner User Manual...

  • Page 64: Bluetooth Radio State

    Bluetooth Radio State Parameter # 1354 The only option to turn the radio on after it is turned off on the cradle, is through the host. Bluetooth Radio Off * Bluetooth Radio On 4-16 HS-360X Handheld DPM Scanner User Manual...

  • Page 65: Hid Host Parameters

    When enabled, the scanner waits for a connection request from a remote device, after scanning a pairing symbol and initiating pairing. This is the recommended setting for Windows devices and VC80. * Disable Enable 4-17 HS-360X Handheld DPM Scanner User Manual...
  • Page 66 This option works with Apple iOS devices to enable the opening and closing of the iOS virtual keyboard by double-pressing the trigger. When this feature is enabled, the scanner may be incompatible with non-Apple iOS devices. Disable Enable 4-18 HS-360X Handheld DPM Scanner User Manual...

  • Page 67: Hid Keyboard Keystroke Delay

    This parameter sets the delay, in milliseconds (msec), between emulated keystrokes. Scan a programming symbol below to increase the delay when the HID host requires a slower transmission of data. No Delay (0 msec) Medium Delay (20 msec) Long Delay (40 msec) 4-19 HS-360X Handheld DPM Scanner User Manual...

  • Page 68: Hid Caps Lock Override

    When enabled, the case of the data is preserved regardless of the state of the caps lock key. This setting is always enabled for the Japanese, Windows (ASCII) keyboard type and can not be disabled. Do Not Override Caps Lock Key (Disable) Override Caps Lock Key (Enable) 4-20 HS-360X Handheld DPM Scanner User Manual...

  • Page 69: Hid Ignore Unknown Characters

    When Do Not Send Barcodes With Unknown Characters is selected, barcode data is sent up to the first unknown character, then the scanner issues an error beep. Send Barcodes With Unknown Characters (Enable) Do Not Send Barcodes With Unknown Characters (Disable) 4-21 HS-360X Handheld DPM Scanner User Manual...
  • Page 70 When enabled, all characters are sent as ASCII sequences over the numeric keypad. For example, ASCII A is sent as "ALT make" 0 6 5 "ALT Break". Disable Keypad Emulation Enable Keypad Emulation 4-22 HS-360X Handheld DPM Scanner User Manual...

  • Page 71: Fast Hid Keyboard

    Radio Communications Fast HID Keyboard Parameter # 1361 This option transmits Bluetooth HID keyboard data at a faster rate. Fast HID Disable * Fast HID Enable 4-23 HS-360X Handheld DPM Scanner User Manual...
  • Page 72 This parameter enables a quicker method of keypad emulation where ASCII sequences are only sent for ASCII characters not found on the keyboard. Quick Keypad Emulation Disable * Quick Keypad Emulation Enable 4-24 HS-360X Handheld DPM Scanner User Manual...

  • Page 73: Hid Keyboard Fn1 Substitution

    HID Keyboard FN1 Substitution When enabled, this parameter allows replacement of any FN1 character in an EAN128 barcode with a Key Category and value chosen by the user. Disable Keyboard FN1 Substitution Enable Keyboard FN1 Substitution 4-25 HS-360X Handheld DPM Scanner User Manual...

  • Page 74: Hid Function Key Mapping

    Table entries that do not have a bold entry remain the same whether or not this parameter is enabled. Disable Function Key Mapping Enable Function Key Mapping 4-26 HS-360X Handheld DPM Scanner User Manual...
  • Page 75 When enabled, the scanner inverts upper and lower case characters on the barcode as if the Caps Lock state is enabled on the keyboard. This inversion is done regardless of the current state of the keyboard Caps Lock state. Disable Simulated Caps Lock Enable Simulated Caps Lock 4-27 HS-360X Handheld DPM Scanner User Manual...
  • Page 76 HID Host Parameters Convert Case When enabled, the scanner converts all barcode data to the selected case. No Case Conversion Convert All to Upper Case Convert All to LowerCase 4-28 HS-360X Handheld DPM Scanner User Manual...

  • Page 77: Reconnect Attempt Beep Feedback

    Switching between Bluetooth host types by scanning a host type programming symbol causes the radio to be reset. Scanning is disabled during this time. It takes several seconds for the scanner to re-initialize the radio at which time scanning is enabled. 4-29 HS-360X Handheld DPM Scanner User Manual...
  • Page 78 5 short high beeps every 5 seconds while the re-connection attempt is in progress. Scan a programming symbol below to enable or disable Beep on Reconnect Attempt. Disable Beep on Reconnect Attempt Enable Beep on Reconnect Attempt 4-30 HS-360X Handheld DPM Scanner User Manual...

  • Page 79: Reconnect Attempt Interval

    To set the Reconnect Attempt Interval, scan one of the programming symbols below. Attempt to Reconnect for 30 Seconds Attempt to Reconnect for 1 Minute (12) Attempt to Reconnect for 5 Minutes (60) Attempt to Reconnect for 30 Minutes (360) 4-31 HS-360X Handheld DPM Scanner User Manual...
  • Page 80 Reconnect Attempt Beep Feedback Attempt to Reconnect for 1 Hour (720) Attempt to Reconnect Indefinitely 4-32 HS-360X Handheld DPM Scanner User Manual...
  • Page 81 Note that auto-reconnect does not occur on rejection and cable unplug commands. • Disable Auto-reconnect: When the scanner loses connection, you must re-establish it manually. Auto-Reconnect on Barcode Data * Auto-Reconnect Immediately Disable Auto-Reconnect 4-33 HS-360X Handheld DPM Scanner User Manual...

  • Page 82: Out-Of-Range Indicator

    If the Reconnect Attempt Interval is adjusted to a longer period of time, such as 30 minutes, the scanner emits 5 high beeps every 5 seconds for 30 minutes providing an out-of-range indicator. 4-34 HS-360X Handheld DPM Scanner User Manual...

  • Page 83: Beep On Insertion

    When a scanner is inserted into a cradle and detects power, it emits a short low beep. This feature is enabled by default. To enable or disable beeping on insertion, scan the appropriate programming symbol below. Enable Beep on Insertion Disable Beep on Insertion 4-35 HS-360X Handheld DPM Scanner User Manual...

  • Page 84: Beep On

    This parameter only applies to SPP (Serial Port Profile). The RS-232 interface on the cradle has this feature when Beep on <BEL> is enabled. In Multipoint-to-Point mode only, the scanner that beeped last sounds Beep on <BEL>. * Beep on <BEL> Enable Beep on <BEL> Disable 4-36 HS-360X Handheld DPM Scanner User Manual...

  • Page 85: Scanner(S)-To-Cradle Support

    In this mode, programming one scanner applies the settings to all connected scanners. To select Point-to-Point or Multipoint-to-Point mode, scan the appropriate programming symbol. Multipoint-to-Point Mode Point-to-Point Mode 4-37 HS-360X Handheld DPM Scanner User Manual...
  • Page 86 If disabled, parameter programming symbols are processed by the individual scanner only, and the scanner ignores parameters broadcast from other scanners or from the cradle. Enable Parameter Broadcast Disable Parameter Broadcast 4-38 HS-360X Handheld DPM Scanner User Manual...
  • Page 87 This unpairs the previous scanner from the cradle. To set the cradle pairing mode, scan the appropriate programming symbol below. Unlocked Pairing Mode Locked Pairing Mode 4-39 HS-360X Handheld DPM Scanner User Manual...

  • Page 88: Lock Override

    To enable or disable pairing on contacts, scan the appropriate programming symbol below. Enable Pair On Contacts Disable Pair on Contacts 4-40 HS-360X Handheld DPM Scanner User Manual...
  • Page 89 Unpair the scanner from the cradle or PC/host to make the cradle available for pairing with another scanner. Scan the programming symbol below to disconnect the scanner from its cradle/PC host. An unpairing symbol is also included in the HS-360X Wireless Scanner Quick Start Guide. Unpairing Toggle Pairing...
  • Page 90 • xxxxxxxxxxxx represents the 12-character Bluetooth address. Pairing Barcode Example If the remote device to which the scanner can connect has a Bluetooth address of 11:22:33:44:55:66, then the pairing symbol is: B112233445566 Paring Barcode Content: ‘B’ + Bluetooth Address 4-42 HS-360X Handheld DPM Scanner User Manual...

  • Page 91: Connection Maintenance Interval

    To avoid this conflict, users who are going off-shift can scan the Unpairing symbol to ignore the Connection Maintenance Interval and make the connection immediately available. 4-43 HS-360X Handheld DPM Scanner User Manual...
  • Page 92 To set the Connection Maintenance Interval, scan one of the programming symbols below Set Interval to 15 Minutes Set Interval to 30 Minutes Set Interval to 60 Minutes Set Interval to 2 Hours 4-44 HS-360X Handheld DPM Scanner User Manual...
  • Page 93 Radio Communications Connection Maintenance Interval (continued) Set Interval to 4 Hours Set Interval to 8 Hours Set Interval to 24 Hours Set Interval to Forever 4-45 HS-360X Handheld DPM Scanner User Manual...

  • Page 94: Batch Mode

    Exit Parameter Batch Mode. Parameter Batch Mode may be used when the cradle and/or scanner is configured with its radio turned off or connected to a non-cradle device. 4-46 HS-360X Handheld DPM Scanner User Manual...
  • Page 95 Radio Communications Normal Out of Range Batch Mode Standard Batch Mode Cradle Contact Batch Mode 4-47 HS-360X Handheld DPM Scanner User Manual...
  • Page 96 Batch Mode Enter Batch Mode Send Batch Data Batch Only Mode Enter Parameter Batch Mode 4-48 HS-360X Handheld DPM Scanner User Manual...
  • Page 97 Radio Communications Exit Parameter Batch Mode 4-49 HS-360X Handheld DPM Scanner User Manual...

  • Page 98: Persistent Batch Storage

    This parameter is Disabled by default. Frequently storing batch data with this setting Enabled will shorten the life of the non-volatile memory. Persistent Batch Disable Persistent Batch Enable 4-50 HS-360X Handheld DPM Scanner User Manual...

  • Page 99: Page Button

    4. Repeat as necessary. Scanners out of radio range will not beep when paged. Scan one of the following programming symbols to enable or disable this feature. Disable Page Button * Enable Page Button 4-51 HS-360X Handheld DPM Scanner User Manual...

  • Page 100: Page Options

    • Page Simple - In this mode, the cradle sends a page indication request to each scanner, and returns to idle state. Each scanner issues a single Page State indication. Page State * Page Simple 4-52 HS-360X Handheld DPM Scanner User Manual...
  • Page 101 2. Scan two numeric programming symbols that correspond to the desired timeout duration. Enter a leading zero for single digit numbers (for example, for a 5 second page timeout, scan the 0 programming symbol and then the 5 programming symbol). Page Timeout 4-53 HS-360X Handheld DPM Scanner User Manual...

  • Page 102: Classic Bluetooth And/Or Low Energy (Cradle Host Only)

    Set up cradle to accept both Bluetooth Classic and Low Energy connections or Low Energy Only connections. All Classic Bluetooth connections must be terminated before the setting can change to Low Energy Only. * Classic Bluetooth and Low Energy Low Energy Only 4-54 HS-360X Handheld DPM Scanner User Manual...

  • Page 103: Bluetooth Security

    If is required between the scanner and host, and the PIN codes do not match, pairing fails. An extended 16 character PIN code is available for additional with Open Bluetooth (SPP and HID). Set and Store PIN Code 4-55 HS-360X Handheld DPM Scanner User Manual...

  • Page 104: Variable Pin Code

    PIN using the Alphanumeric Programming Barcodes, then scan End of Message. if the code is less than 16 characters. The scanner discards the variable PIN code after connection. Static PIN Code Variable PIN Code 4-56 HS-360X Handheld DPM Scanner User Manual...
  • Page 105 Bluetooth 2.1 and above. Not all devices are able to support this mode. • Legacy Bluetooth Security (Bluetooth 2.0 and below) - The legacy security setting enables authentication and encryption for legacy pairing. * Low Bluetooth Security Medium Bluetooth Security 4-57 HS-360X Handheld DPM Scanner User Manual...
  • Page 106 Bluetooth Security High Bluetooth Security Legacy Bluetooth Security 4-58 HS-360X Handheld DPM Scanner User Manual...

  • Page 107: Bluetooth Radio, Linking, And Batch Operation

    Bluetooth Radio, Linking, and Batch Operation The HS-360X Wireless Scanner has a Bluetooth Class 1 radio which achieves a range of at least 135m / 440ft (open air, line of sight). The actual range you achieve is influenced by the presence of other radios, shelving and wall materials as well as which cradle is tested.
  • Page 108 Bluetooth Radio, Linking, and Batch Operation 4-60 HS-360X Handheld DPM Scanner User Manual...

  • Page 109: User Preferences And Miscellaneous Options

    5 User Preferences and Miscellaneous Options This section describes user preferences and provides configuration symbols for those preferences. HS-360X Handheld DPM Scanner User Manual...

  • Page 110: Introduction

    Other parameters require scanning several programming symbols. See these parameter descriptions for this procedure. Errors While Scanning Unless otherwise specified, to correct an error during a scanning sequence, just re-scan the correct parameter. HS-360X Handheld DPM Scanner User Manual...
  • Page 111 Low Power Mode Disable (HS-360X Wired Scanner) 100 ms (HS-360X Wireless Scanner) Time Delay to Low Power Mode 1 Hour (HS-360X Wired Scanner) Timeout to Low Power Mode from Auto Aim (HS-360X 15 Seconds Wired Only) Handheld Trigger Mode Level...

  • Page 112: Parameter Defaults

    Unsolicited Heartbeat Interval 1118 Disable Disable UID Error Mode Options UID Error Beep Decoder Effort Level 1438 Level 3 DPM Illumination Control Cycle Illumination 1. Parameter number decimal values are used for programming via RSM commands. HS-360X Handheld DPM Scanner User Manual...

  • Page 113: User Preferences

    After changing all parameters to the desired default values, scan the Write to Custom Defaults programming symbol below to configure custom defaults. Restore Defaults Set Factory Defaults Write to Custom Defaults HS-360X Handheld DPM Scanner User Manual...
  • Page 114 To disable the decoding of parameter programming symbols, including the Set Defaults parameter programming symbols, scan the Disable Parameter Scanning programming symbol below. To enable decoding of parameter programming symbols, scan Enable Parameter Scanning. Enable Parameter Barcode Scanning Disable Parameter Barcode Scanning HS-360X Handheld DPM Scanner User Manual...

  • Page 115: Beep After Good Decode

    If selecting Do Not Beep After Good Decode, the beeper still operates during parameter menu scanning and to indicate error conditions. Beep After Good Decode (Enable) Do Not Beep After Good Decode (Disable) HS-360X Handheld DPM Scanner User Manual...
  • Page 116 • Disable Direct Decode Indicator - illumination does not blink on a successful decode. • 1 Blink - illumination blinks once upon a successful decode. • 2 Blinks - illumination blinks twice upon a successful decode. Disable Direct Decode Indicator 1 Blink 2 Blinks HS-360X Handheld DPM Scanner User Manual...

  • Page 117: Beeper Volume

    User Preferences and Miscellaneous Options Beeper Volume Parameter # 140 To select a beeper volume, scan the Low Volume, Medium Volume, or High Volume programming symbol. Low Volume Medium Volume High Volume HS-360X Handheld DPM Scanner User Manual...

  • Page 118: Beeper Tone

    User Preferences Beeper Tone Parameter # 145 To select a beeper tone, scan one of the following programming symbols. Low Tone Medium Tone High Tone 5-10 HS-360X Handheld DPM Scanner User Manual...
  • Page 119 User Preferences and Miscellaneous Options Medium to High Tone (2-tone) 5-11 HS-360X Handheld DPM Scanner User Manual...

  • Page 120: Beeper Duration

    User Preferences Beeper Duration Parameter # 628 To select the duration for the beeper, scan one of the following programming symbols. Short Medium Long 5-12 HS-360X Handheld DPM Scanner User Manual...

  • Page 121: Suppress Power Up Beeps

    Suppress Power Up Beeps Parameter # 721 Scan a programming symbol below to select whether or not to suppress the scanner’s power-up beeps. Do Not Suppress Power Up Beeps Suppress Power Up Beeps 5-13 HS-360X Handheld DPM Scanner User Manual...

  • Page 122: Decode Pager Motor

    The scanner includes a pager motor which, when enabled, vibrates the scanner for a period of time when a successful decode occurs. When the pager motor is enabled and the HS-360X Wired Scanner is in the HS-360X Stand, the pager motor disables until the scanner is removed from the HS-360X Stand.

  • Page 123: Decode Pager Motor Duration

    User Preferences and Miscellaneous Options Decode Pager Motor Duration Parameter # 626 * 150 msec (15) 200 msec (20) 250 msec (25) 300 msec (30) 5-15 HS-360X Handheld DPM Scanner User Manual...
  • Page 124 User Preferences 400 msec (40) 500 msec (50) 600 msec (60) 750 msec (75) 5-16 HS-360X Handheld DPM Scanner User Manual...

  • Page 125: Low Power Mode

    This parameter determines whether or not the scanner enters low power mode after a decode attempt. If disabled, power remains on after each decode attempt. The HS-360X Wired Scanner default is Disable. The HS-360X Wireless Scanner default is Enable. Disable Low Power Mode...

  • Page 126: Time Delay To Low Power Mode

    This parameter sets the time it takes the scanner to enter Low Power Mode after any scanning activity. Scan the appropriate programming symbol below to set the time. The HS-360X Wired Scanner default is 1 Hour. The HS-360X Wireless Scanner default is 100 msec. 100 msec...
  • Page 127 User Preferences and Miscellaneous Options 3 sec (19) 4 Seconds (20) 5 Seconds (21) 10 Seconds (26) 1 Minute (33) 5-19 HS-360X Handheld DPM Scanner User Manual...
  • Page 128 User Preferences 5 Minutes (37) 15 Minutes (43) 30 Minutes (45) 45 Minutes (46) 1 Hour (49) 5-20 HS-360X Handheld DPM Scanner User Manual...
  • Page 129 User Preferences and Miscellaneous Options 3 Hours (51) 6 Hours (54) 9 Hours (57) 5-21 HS-360X Handheld DPM Scanner User Manual...

  • Page 130: Timeout To Low Power Mode From Auto Aim

    Timeout to Low Power Mode from Auto Aim Parameter # 729 Timeout to Low Power Mode from Auto Aim applies to the HS-360X Wired Scanner only. This parameter sets the time the scanner remains in auto aim before entering Low Power Mode.
  • Page 131 User Preferences and Miscellaneous Options 30 Seconds (13) 1 Minute (17) 5-23 HS-360X Handheld DPM Scanner User Manual...

  • Page 132: Handheld Trigger Mode

    LEDs turn off until the scanner senses motion. The scanner uses an internal dim illumination state when it enters low power mode until motion is detected. * Level (Standard) Presentation (Blink) 5-24 HS-360X Handheld DPM Scanner User Manual...
  • Page 133 User Preferences and Miscellaneous Options Hands-Free Mode Parameter # 630 If you select Disable Hands-free Mode, the scanner behaves according to the setting of the Handheld Trigger Mode. Enable Hands-free Mode Disable Hands-free Mode 5-25 HS-360X Handheld DPM Scanner User Manual...

  • Page 134: Handheld Decode Aiming Pattern

    With Picklist Mode enabled, the decode aiming dot flashes even when the Handheld Decode Aiming Pattern is disabled. Enable Handheld Decode Aiming Pattern Disable Handheld Decode Aiming Pattern Enable Handheld Decode Aiming Pattern on PDF 5-26 HS-360X Handheld DPM Scanner User Manual...
  • Page 135 With Picklist Mode enabled, the decode aiming dot flashes even when the Decode Aiming Pattern is disabled. Enable Hands-Free Decode Aiming Pattern Disable Hands-Free Decode Aiming Pattern * Enable Hands-Free Decode Aiming Pattern on PDF 5-27 HS-360X Handheld DPM Scanner User Manual...

  • Page 136: Fips Mode

    FIPS Mode applies to the HS-360X Wired Scanner only. The Federal Information Processing Standard (FIPS) 140-2 is a U.S. government computer security standard used to accredit cryptographic modules. FIPS enabled HS-360X Wired Scanners and cradles offer this secure mode of operation.

  • Page 137: Decode Session Timeout

    Enter a leading zero for single digit numbers. For example, to set a Decode Session Timeout of 0.5 seconds, scan the programming symbol below, then scan the 0 and 5 programming symbols. Decode Session Timeout 5-29 HS-360X Handheld DPM Scanner User Manual...
  • Page 138 Adjust this setting based on your requirements. For example, when doing prioritization, this parameter should be set to a value where the maximum time is above the PDF prioritization timeout. Hands-free Decode Session Timeout 5-30 HS-360X Handheld DPM Scanner User Manual...

  • Page 139: Timeout Between Decodes

    Appendix H — Numeric Keyboard that correspond to the desired interval, in 0.1 second increments. Timeout Between Decodes cannot be greater than or equal to the Decode Session Timeout. Timeout Between Decodes 5-31 HS-360X Handheld DPM Scanner User Manual...
  • Page 140 Select Enhanced in Handheld, Hands-free, or both modes, or select Normal Mobile Phone/Display Mode. The scanner restricts Mobile Phone/Display Mode. Normal Mobile Phone/Display Mode Enhanced in Handheld Mode Enhanced in Hands-free Mode Enhanced in Both Modes 5-32 HS-360X Handheld DPM Scanner User Manual...

  • Page 141: Pdf Prioritization

    In addition, a Code 39 barcode with the following lengths are considered to potentially be part of a US driver’s license: • 8 characters • 12 characters Disable PDF Prioritization Enable PDF Prioritization 5-33 HS-360X Handheld DPM Scanner User Manual...

  • Page 142: Pdf Prioritization Timeout

    For example, to enter 400 msec, scan the following programming symbol, then scan 0400. The range is 0 to 5000 msec, and the default is 200 msec. PDF Prioritization Timeout 5-34 HS-360X Handheld DPM Scanner User Manual...

  • Page 143: Decoding Illumination

    Select Disable Decoding Illumination to prevent the scanner from using decoding illumination. Enabling illumination usually results in superior images. The effectiveness of the illumination decreases as the distance to the target increases. Enable Decoding Illumination Disable Decoding Illumination 5-35 HS-360X Handheld DPM Scanner User Manual...
  • Page 144 Less Motion Tolerance provides optimal decoding performance on 1D barcodes. To increase motion tolerance and speed decoding when scanning a series of 1D barcodes in rapid progression, scan More Motion Tolerance. * Less Motion Tolerance More Motion Tolerance 5-36 HS-360X Handheld DPM Scanner User Manual...
  • Page 145 Scan this programming symbol followed by 2 digits from Appendix H — Numeric Keyboard that correspond to the desired percentage from 00 to 99. The default is 60%. Battery Status High Threshold Battery Status Medium Threshold 5-37 HS-360X Handheld DPM Scanner User Manual...
  • Page 146 User Preferences Battery Status Low Warning Threshold Battery Health Low Warning Threshold 5-38 HS-360X Handheld DPM Scanner User Manual...
  • Page 147 User Preferences and Miscellaneous Options Add an Enter Key To add an Enter key (carriage return/line feed) after scanned data, scan the following programming symbol. Add Enter Key (Carriage Return/Line Feed) 5-39 HS-360X Handheld DPM Scanner User Manual...

  • Page 148: Transmit Code Id Character

    If you enable Symbol Code ID Character or AIM Code ID Character, and enable Transmit “No Read” Message, the scanner appends the code ID for Code 39 to the NR message. Symbol Code ID Character AIM Code ID Character None 5-40 HS-360X Handheld DPM Scanner User Manual...
  • Page 149 3-digit decimal value. See Appendix I — ASCII Character Sets for the four-digit codes. The default prefix and suffix value is 7013 <CR><LF> (the Enter key). Scan Prefix Scan Suffix 1 Scan Suffix 2 5-41 HS-360X Handheld DPM Scanner User Manual...
  • Page 150 User Preferences Data Format Cancel 5-42 HS-360X Handheld DPM Scanner User Manual...

  • Page 151: Scan Data Transmission Format

    If using this parameter do not use ADF rules to set the prefix/suffix. To set values for the prefix and/or suffix, see Prefix/Suffix Values. Data As Is <DATA> <SUFFIX 1> <DATA> <SUFFIX 2> <DATA> <SUFFIX 1> <SUFFIX 2> 5-43 HS-360X Handheld DPM Scanner User Manual...
  • Page 152 User Preferences <PREFIX> <DATA > <PREFIX> <DATA> <SUFFIX 1> <PREFIX> <DATA> <SUFFIX 2> <PREFIX> <DATA> <SUFFIX 1> <SUFFIX 2> 5-44 HS-360X Handheld DPM Scanner User Manual...

  • Page 153: Fn1 Substitution Values

    Enter the 4-digit ASCII Value by scanning each digit in Appendix H — Numeric Keyboard. To correct an error or change the selection, scan Cancel. To enable FN1 substitution for USB HID keyboard, scan the Enable FN1 Substitution programming symbol. 5-45 HS-360X Handheld DPM Scanner User Manual...
  • Page 154 Code 39 to the NR message. Important: When connected to Setup in WebLink , do not use these programming symbols. See the WebLink ReadMe for further details. Enable No Read Disable No Read 5-46 HS-360X Handheld DPM Scanner User Manual...
  • Page 155 The heartbeat event is sent as decode data (with no decode beep) in the form of: MOTEVTHB:nnn where nnn is a three-digit sequence number starting at 001 and wrapping after 100. 10 Seconds (10) 1 Minute (60) Set Another Interval 5-47 HS-360X Handheld DPM Scanner User Manual...
  • Page 156 User Preferences Disable Unsolicited Heartbeat Interval 5-48 HS-360X Handheld DPM Scanner User Manual...

  • Page 157: Uid Parsing

    To enable/disable UID parsing, scan the appropriate programming symbol below. UID parsing is disabled by default. Scan Enable Embedded UID Parsing to start the parsing process. Disable UID Parsing Enable Embedded UID Parsing 5-49 HS-360X Handheld DPM Scanner User Manual...

  • Page 158: Uid Parsing Output

    S041 rs eot Field Description D12345WS51-004041 UID2 12345 WS51-004 (no data supplied, comma filled field) (no data supplied, comma filled field) [)> rs 06 gs 17V12345 gs 1PWS51-004 gs S041 rs eot 5-50 HS-360X Handheld DPM Scanner User Manual...

  • Page 159: Uid Error Mode Options

    UID, assumes the host can process the data and transmits the unformatted contents of the barcode. An error tone sounds. Scan the appropriate programming symbol below to program potential error conditions. * UID Error Beep UID Error Pass Data 5-51 HS-360X Handheld DPM Scanner User Manual...
  • Page 160 User Preferences UID Error Beep and Pass Data 5-52 HS-360X Handheld DPM Scanner User Manual...

  • Page 161: Sample Adf Rule For Uid

    Sample ADF Rule for UID To transmit only the concatenated UID field of the parsed UID, scan the programming symbols below, in order. Begin New Rule Criterion: Parsed UID Send Data Up to Character 5-53 HS-360X Handheld DPM Scanner User Manual...
  • Page 162 User Preferences (Comma) Save Rule 5-54 HS-360X Handheld DPM Scanner User Manual...
  • Page 163 6 - Lot # , (no data supplied) 7 - Current part # , (no data supplied) 8 - Scanned data in ASCII mode [)> rs 06 gs 17V12345 gs 1PWS51-004 gs S041 rs eot 5-55 HS-360X Handheld DPM Scanner User Manual...
  • Page 164 , (no data supplied) 7 - Current part # , (no data supplied) 8 - Scanned data in ASCII mode [)> rs DD gs MFR 12345 gs PNO WS51-004 gs SEQ 041 rs eot 5-56 HS-360X Handheld DPM Scanner User Manual...
  • Page 165 (You can also use the Decoder Effort slider in WebLink to Set the Scanner’s Decoder Effort to Level 4) Important: The BC412 DotCode symbologies are only supported when the scanner is set to Decoder Effort Level 4. 5-57 HS-360X Handheld DPM Scanner User Manual...
  • Page 166 • Cycle Illumination – scanner cycles alternately between direct and indirect illumination. The scanner starts with the illumination used during the last successful decode. Direct Illumination Indirect Illumination * Cycle Illumination 5-58 HS-360X Handheld DPM Scanner User Manual...

  • Page 167: Imaging Preferences

    6 Imaging Preferences This section describes image capture preferences and provides configuration symbols for those preferences. HS-360X Handheld DPM Scanner User Manual...

  • Page 168: Introduction

    Most computer monitors allow scanning the programming symbols directly on the screen. When scanning from the screen, be sure to set the document magnification to a level where you can see the programming symbol clearly, and bars and/or spaces are not merging. HS-360X Handheld DPM Scanner User Manual...

  • Page 169: Scanning Sequence Examples

    Parameter Parameter Number Default Imaging Preferences Image Size (Number of Pixels) Full Resolution JPEG Image Options JPEG Quality Selector JPEG File Size 160 kb JPEG Quality and Size Value Image File Format JPEG HS-360X Handheld DPM Scanner User Manual...
  • Page 170 Select one of the following values: Resolution Value HS-360X Full 1280 x 800 640 x 400 320 x 200 Full Resolution 1/2 Resolution 1/4 Resolution HS-360X Handheld DPM Scanner User Manual...

  • Page 171: Jpeg Image Options

    Leading zeros are Appendix H — required. For example, to set an image file size value of 99, scan 0, 9, 9 in Numeric Keyboard. JPEG Target File Size (3 digits) HS-360X Handheld DPM Scanner User Manual...

  • Page 172: Jpeg Quality And Size Value

    Appendix H — Numeric Keyboard followed by 3 programming symbols from corresponding to a value from 5 to 100, where 100 represents the highest quality image. JPEG Quality Value (Default: 065) (5 - 100 Decimal) HS-360X Handheld DPM Scanner User Manual...

  • Page 173: Image File Format Selector

    Image File Format Selector Parameter # 304 Select an image format appropriate for the system (BMP, TIF, or JPG). The scanner stores captured images in the selected format. BMP File Format JPEG File Format TIFF File Format HS-360X Handheld DPM Scanner User Manual...

  • Page 174: Image Rotation

    Imaging Preferences Parameter Defaults Image Rotation Parameter # 665 This parameter controls the rotation of the image by 0, 90,180, or 270 degrees. * Rotate 0 Rotate 90 Rotate 180 Rotate 270 HS-360X Handheld DPM Scanner User Manual...

  • Page 175: Usb Interface

    7 USB Interface This section provides instructions for programming the scanner to interface with a USB host. The scanner connects directly to a USB host or a powered USB hub. The USB host powers the scanner. HS-360X Handheld DPM Scanner User Manual...

  • Page 176: Connecting A Usb Interface

    • Other network computers that support more than one keyboard. The following operating systems support the scanner through USB: ® • Windows XP, 7, 8, 10 • MacOS 8.5 - MacOS 10.6 • IBM 4690 OS. HS-360X Handheld DPM Scanner User Manual...
  • Page 177 USB Interface Connecting the HS-360X Wireless Scanner to USB Interface The scanner also interfaces with other USB hosts which support USB Human Interface Devices (HID). USB Connection to HS-360X Wireless Scanner To connect the cradle to a USB host: 1. Attach the modular connector of the USB interface cable to the cable interface port on the cradle.
  • Page 178 Connecting HS-360X Wired Scanner to USB Interface USB Connection to HS-360X Wired Scanner To connect the USB interface to an HS-360X Wired Scanner: 1. Attach the modular connector of the USB interface cable to the host port on the bottom of the scanner.

  • Page 179: Usb Parameter Defaults

    Simulated Caps Lock Disable Convert Case No Case Conversion USB Static CDC Enable Ignore Beep Enable Ignore Programming Symbol Configuration Enable USB Polling Interval 3 msec USB Fast HID Enable IBM Specification Version Version 2.2 HS-360X Handheld DPM Scanner User Manual...

  • Page 180: Usb Host Parameters

    1. When changing USB device types, the scanner automatically restarts. The scanner issues a power-up beep sequence. 2. Before selecting USB CDC Host, install the Omron Microscan USB CDC Driver on the host to ensure the scanner does not stall during power up (due to a failure to enumerate USB).
  • Page 181 USB Interface Symbol Native API (SNAPI) without Imaging Interface Symbol Native API (SNAPI) with Imaging Interface HS-360X Handheld DPM Scanner User Manual...
  • Page 182 USB Host Parameters Symbol Native API (SNAPI) Status Handshaking After selecting a SNAPI interface as the USB device type, select whether to enable or disable status handshaking. Enable SNAPI Status Handshaking Disable SNAPI Status Handshaking HS-360X Handheld DPM Scanner User Manual...

  • Page 183: Usb Keystroke Delay

    This parameter sets the delay, in milliseconds, between emulated keystrokes. Scan a programming symbol below to increase the delay when hosts require a slower transmission of data. No Delay Medium Delay (20 msec) Long Delay (40 msec) HS-360X Handheld DPM Scanner User Manual...

  • Page 184: Usb Caps Lock Override

    This setting is always enabled for the “Japanese, Windows (ASCII)” keyboard type and can not be disabled. Override Caps Lock Key (Enable) Do Not Override Caps Lock Key (Disable) 7-10 HS-360X Handheld DPM Scanner User Manual...

  • Page 185: Usb Ignore Unknown Characters

    When Do Not Send Barcodes With Unknown Characters is selected, barcode data is sent up to the first unknown character, then the scanner issues an error beep. Send Barcodes with Unknown Characters Do Not Send Barcodes with Unknown Characters 7-11 HS-360X Handheld DPM Scanner User Manual...
  • Page 186 When enabled, all characters are sent as ASCII sequences over the numeric keypad. For example ASCII A would be sent as “ALT make” 0 6 5 “ALT Break.” Disable Keypad Emulation Enable Keypad Emulation 7-12 HS-360X Handheld DPM Scanner User Manual...

  • Page 187: Emulate Keypad With Leading Zero

    Enable this to send character sequences sent over the numeric keypad as ISO characters which have a leading zero. For example ASCII A transmits as “ALT MAKE” 0 0 6 5 “ALT BREAK”. Disable Keypad Emulation with Leading Zero Enable Keypad Emulation with Leading Zero 7-13 HS-360X Handheld DPM Scanner User Manual...
  • Page 188 This parameter enables a quicker method of keypad emulation where ASCII sequences are only sent for ASCII characters not found on the keyboard. The default value is Enable. Enable Quick Keypad Emulation Disable Quick Keypad Emulation 7-14 HS-360X Handheld DPM Scanner User Manual...

  • Page 189: Usb Keyboard Fn 1 Substitution

    This option applies only to the USB HID Keyboard Emulation device. When enabled, this allows replacement of any FN 1 characters in an EAN-128 barcode with a Key Category and value chosen by the user. Enable FN1 Substitution Disable FN1 Substitution 7-15 HS-360X Handheld DPM Scanner User Manual...

  • Page 190: Function Key Mapping

    Table entries that do not have a bold entry remain the same whether or not this parameter is enabled. Disable Function Key Mapping Enable Function Key Mapping 7-16 HS-360X Handheld DPM Scanner User Manual...
  • Page 191 When enabled, the scanner inverts upper and lower case characters on the barcode as if the Caps Lock state is enabled on the keyboard. This inversion is done regardless of the current state of the keyboard’s Caps Lock state. Disable Simulated Caps Lock Enable Simulated Caps Lock 7-17 HS-360X Handheld DPM Scanner User Manual...
  • Page 192 USB Host Parameters Convert Case When enabled, the scanner converts all barcode data to the selected case. No Case Conversion Convert All to Upper Case Convert All to Lower Case 7-18 HS-360X Handheld DPM Scanner User Manual...

  • Page 193: Usb Static Cdc

    When disabled, each device connected consumes another COM port (first device = COM1, second device = COM2, third device = COM3, etc.) When enabled, each device connects to the same COM port. Enable USB Static CDC Disable USB Static CDC 7-19 HS-360X Handheld DPM Scanner User Manual...

  • Page 194: Optional Usb Parameters

    The host can send a beep request to the scanner. When this parameter is enabled, the request is not sent to the attached scanner. All directives are still acknowledged to the USB host as if it were processed. Disable Ignore Beep Enable Ignore Beep 7-20 HS-360X Handheld DPM Scanner User Manual...
  • Page 195 The host has the ability to enable/disable code types. When this parameter is enabled, the request is not sent to the attached scanner. All directives are still acknowledged to the USB host as if it were processed. Disable Ignore Barcode Configuration Enable Ignore Barcode Configuration 7-21 HS-360X Handheld DPM Scanner User Manual...

  • Page 196: Usb Polling Interval

    When changing USB Device Types, the scanner automatically restarts and issues a disconnect- reconnect beep sequence. Ensure your host machine can handle the selected data rate. 1 msec 2 msec 3 msec 4 msec 7-22 HS-360X Handheld DPM Scanner User Manual...
  • Page 197 USB Interface 5 msec 6 msec 7 msec 8 msec 7-23 HS-360X Handheld DPM Scanner User Manual...
  • Page 198 Optional USB Parameters 9 msec 10 msec 7-24 HS-360X Handheld DPM Scanner User Manual...
  • Page 199 USB Interface USB Fast HID This option transmits USB HID data at a faster rate. Enable USB Fast HID Disable USB Fast HID 7-25 HS-360X Handheld DPM Scanner User Manual...

  • Page 200: Ascii Character Set For Usb

    ASCII Character Set for USB ASCII Character Set for USB Appendix H — Numeric Keyboard for the following: • ASCII Character Set; • ALT Key Character Set; • GUI Key Character Set; • F Key Character Set. 7-26 HS-360X Handheld DPM Scanner User Manual...

  • Page 201: 8 Rs-232 Interface

    8 RS-232 Interface This section describes how to set up the scanner with an RS-232 host. Use the RS-232 interface to connect the scanner to a host computer or COM port. HS-360X Handheld DPM Scanner User Manual...

  • Page 202: Introduction

    The scanner uses TTL RS-232 signal levels, which interface with most system architectures. For system architectures requiring RS-232C signal levels, Omron Microscan offers different cables providing TTL-to-RS-232C conversion. Contact support for more information.

  • Page 203: Connecting An Rs-232 Interface

    RS-232 Interface Connecting an RS-232 Interface Connecting HS-360X Wireless Scanner to RS-232 Interface Connect the scanner directly to the host computer. RS-232 Direct Connection to HS-360X Wireless Scanner Interface cables vary depending on configuration. Disconnect the host cables before the power supply, or the scanner may not recognize the new host.
  • Page 204 Connecting an RS-232 Interface Connecting the HS-360X Wired Scanner to an RS-232 Interface Connect the scanner directly to the host computer. Interface cable Serial port connector to host Power supply RS-232 Direct Connection to HS-360X Wired Scanner Interface cables vary depending on configuration.

  • Page 205: Rs-232 Parameter Defaults

    Hardware Handshaking None Software Handshaking None Host Serial Response Time-out 2 Seconds RTS Line State Low RTS Beep on <BEL> Disable Intercharacter Delay 0 msec Nixdorf Beep/LED Options Normal Operation Ignore Unknown Characters Send Barcode HS-360X Handheld DPM Scanner User Manual...
  • Page 206 To select RS-232 Host interface, scan the programming symbol below.Scanning the Standard RS-232 symbol activates the RS-232 driver, but does not change port settings (e.g., parity, data bits, handshaking). Selecting another RS-232 host type programming symbol changes these settings. Standard RS-232 HS-360X Handheld DPM Scanner User Manual...

  • Page 207: Baud Rate

    Note: The scanner does not support baud rates below 9600. Baud Rate 9600 Baud Rate 19,200 Baud Rate 38,400 Baud Rate 57,600 Baud Rate 115,200 HS-360X Handheld DPM Scanner User Manual...
  • Page 208 • Select Even parity to set the parity bit value is set to 0 or 1, based on data, to ensure that the coded character contains an even number of 1 bits. • Select None when no parity bit is required. Even None HS-360X Handheld DPM Scanner User Manual...

  • Page 209: Stop Bit Select

    Select the number of stop bits (one or two) based on the number the receiving terminal is programmed to accommodate. Set the number of stop bits to match host device requirements. 1 Stop Bit 2 Stop Bits HS-360X Handheld DPM Scanner User Manual...

  • Page 210: Data Bits

    RS-232 Parameter Defaults Data Bits This parameter allows the scanner to interface with devices requiring a 7-bit or 8-bit ASCII protocol. 7-Bit 8-Bit 8-10 HS-360X Handheld DPM Scanner User Manual...

  • Page 211: Check Receive Errors

    Select whether or not to check the parity, framing, and overrun of received characters. The parity value of received characters is verified against the parity parameter selected above. Check For Received Errors Do Not Check For Received Errors 8-11 HS-360X Handheld DPM Scanner User Manual...

  • Page 212: Hardware Handshaking

    Response Time-out (default) for CTS to be asserted. If CTS is not asserted during this time, the scanner issues an error indication and discards the data. The scanner de-asserts RTS when transmission is complete. 8-12 HS-360X Handheld DPM Scanner User Manual...
  • Page 213 RS-232 Interface None Standard RTS/CTS RTS/CTS Option 1 RTS/CTS Option 2 RTS/CTS Option 3 8-13 HS-360X Handheld DPM Scanner User Manual...

  • Page 214: Software Handshaking

    • The scanner receives an XOFF during a transmission. Data transmission then stops after sending the current byte. When the scanner receives an XON character, it sends the rest of the data message. The scanner waits indefinitely for the XON. 8-14 HS-360X Handheld DPM Scanner User Manual...
  • Page 215 RS-232 Interface None ACK/NAK ACK/NAK with ENQ XON/XOFF 8-15 HS-360X Handheld DPM Scanner User Manual...

  • Page 216: Host Serial Response Timeout

    This only applies when in one of the ACK/NAK software handshaking modes, or RTS/CTS hardware handshaking mode. Minimum: 2 Seconds Low: 2.5 Seconds Medium: 5 Seconds High: 7.5 Seconds Maximum: 9.9 Seconds 8-16 HS-360X Handheld DPM Scanner User Manual...

  • Page 217: Rts Line State

    RTS Line State This parameter sets the idle state of the Serial Host RTS line. Scan a programming symbol below to select Low RTS or High RTS line state. Host: Low RTS Host: High RTS 8-17 HS-360X Handheld DPM Scanner User Manual...
  • Page 218 If you enable this parameter, the scanner issues a beep when it detects a <BEL> character on the RS-232 serial line. <BEL> indicates an illegal entry or other important event. Beep On <BEL> Character (Enable) Do Not Beep On <BEL> Character (Disable) 8-18 HS-360X Handheld DPM Scanner User Manual...

  • Page 219: Intercharacter Delay

    RS-232 Interface Intercharacter Delay This parameter specifies the intercharacter delay inserted between character transmissions. Minimum: 0 msec Low: 25 msec Medium: 50 msec High: 75 msec Maximum: 99 msec 8-19 HS-360X Handheld DPM Scanner User Manual...

  • Page 220: Ignore Unknown Characters

    Select Do Not Send Barcodes With Unknown Characters to send barcode data up to the first unknown character. The scanner issues an error beep. Send Barcode (with unknown characters) Do Not Send Barcodes (with unknown characters) 8-20 HS-360X Handheld DPM Scanner User Manual...

  • Page 221: Ascii Character Set For Rs-232

    RS-232 Interface ASCII Character Set for RS-232 Appendix I — ASCII Character Sets for Prefix/Suffix values. 8-21 HS-360X Handheld DPM Scanner User Manual...
  • Page 222 ASCII Character Set for RS-232 8-22 HS-360X Handheld DPM Scanner User Manual...

  • Page 223: Chapter 9 Symbologies

    This section describes symbology features and provides programming symbols for selecting those features. To set feature parameters, scan a single programming symbol or a short barcode sequence. The settings are stored in non-volatile memory and are preserved even when the scanner powers down. HS-360X Handheld DPM Scanner User Manual...

  • Page 224: Introduction

    See the individual parameter, such as Set Length(s) for D 2 of 5, for this procedure. Errors While Scanning Unless otherwise specified, to correct an error during a scanning sequence, just re-scan the correct parameter. HS-360X Handheld DPM Scanner User Manual...

  • Page 225: Symbology Parameter Defaults

    Convert UPC-E to A Disable Convert UPC-E1 to A Disable EAN-8/JAN-8 Extend Disable Bookland ISBN Format ISBN-10 UCC Coupon Extended Code Disable Coupon Report New Coupon Format ISSN EAN Disable Code 128 Code 128 Enable HS-360X Handheld DPM Scanner User Manual...
  • Page 226 Set Lengths for I 2 of 5 22, 23 6 to 55 I 2 of 5 Check Digit Verification Disable Transmit I 2 of 5 Check Digit Disable Convert I 2 of 5 to EAN 13 Disable HS-360X Handheld DPM Scanner User Manual...
  • Page 227 Korean 3 of 5 Disable Inverse 1D Regular GS1 DataBar GS1 DataBar-14 Enable GS1 DataBar Limited Enable GS1 DataBar Expanded Enable Convert GS1 DataBar to UPC/EAN Disable GS1 DataBar Limited Security Level Level 3 HS-360X Handheld DPM Scanner User Manual...
  • Page 228 UK Postal Disable Transmit UK Postal Check Digit Enable Japan Postal Disable Australia Post Disable Australia Post Format Autodiscriminate Netherlands KIX Code Disable USPS 4CB/One Code/Intelligent Mail Disable UPU FICS Postal Disable Mailmark 1337 Disable HS-360X Handheld DPM Scanner User Manual...
  • Page 229 Symbologies Parameter Parameter Default Number Symbology-Specific Security Levels Redundancy Level Security Level 1D Quiet Zone Level 1288 Intercharacter Gap Size Normal Report Version Macro PDF Flush Macro PDF Buffer Abort Macro PDF Entry HS-360X Handheld DPM Scanner User Manual...

  • Page 230: Enable/Disable All Code Types

    Scan Enable All Code Types turn on (enable) all code types. This is useful when you want to read all codes, or when you want to disable only a few code types. Disable All Code Types Enable All Code Types HS-360X Handheld DPM Scanner User Manual...

  • Page 231: Upc/Ean

    Symbologies UPC/EAN Enable/Disable UPC-A Parameter # 1 To enable or disable UPC-A, scan the appropriate programming symbol below Enable UPC-A Disable UPC-A HS-360X Handheld DPM Scanner User Manual...
  • Page 232 UPC/EAN Enable/Disable UPC-E Parameter # 2 To enable or disable UPC-E, scan the appropriate programming symbol below Enable UPC-E Disable UPC-E 9-10 HS-360X Handheld DPM Scanner User Manual...
  • Page 233 Parameter # 12 UPC-E1 is disabled by default. To enable or disable UPC-E1, scan the appropriate programming symbol below. UPC-E1 is not a UCC (Uniform Code Council) approved symbology. Enable UPC-E1 Disable UPC-E1 9-11 HS-360X Handheld DPM Scanner User Manual...
  • Page 234 UPC/EAN Enable/Disable EAN-8/JAN-8 Parameter # 4 To enable or disable EAN-8/JAN-8, scan the appropriate programming symbol below. Enable EAN-8/JAN-8 Disable EAN-8/JAN-8 9-12 HS-360X Handheld DPM Scanner User Manual...
  • Page 235 Symbologies Enable/Disable EAN-13/JAN-13 Parameter # 3 To enable or disable EAN-13/JAN-13, scan the appropriate programming symbol below. Enable EAN-13/JAN-13 Disable EAN-13/JAN-13 9-13 HS-360X Handheld DPM Scanner User Manual...
  • Page 236 If you enable Bookland EAN, select Bookland ISBN Format. Also select either Decode UPC/EAN Supplementals, Autodiscriminate UPC/EAN Supplementals, or Enable 978/979 Supplemental Mode in Decode UPC/EAN/JAN Supplementals. Enable Bookland EAN Disable Bookland EAN 9-14 HS-360X Handheld DPM Scanner User Manual...
  • Page 237 User-Programmable Supplementals. Note: To minimize the risk of invalid data transmission, select either to decode or ignore supplemental characters. 9-15 HS-360X Handheld DPM Scanner User Manual...
  • Page 238 UPC/EAN Decode UPC/EAN/JAN Only With Supplementals Ignore Supplementals Autodiscriminate UPC/EAN/JAN Supplementals Enable 378/379 Supplemental Mode Enable 978/979 Supplemental Mode 9-16 HS-360X Handheld DPM Scanner User Manual...
  • Page 239 Symbologies Enable 977 Supplemental Mode Enable 414/419/434/439 Supplemental Mode Enable 491 Supplemental Mode Enable Smart Supplemental Mode Supplemental User-Programmable Type 1 9-17 HS-360X Handheld DPM Scanner User Manual...
  • Page 240 UPC/EAN Supplemental User-Programmable Type 1 and 2 (10) Smart Supplemental Plus User- Programmable 1 (11) Smart Supplemental Plus User- Programmable 1 and 2 (12) 9-18 HS-360X Handheld DPM Scanner User Manual...
  • Page 241 Then select the 3 digits using the numeric programming symbols. Supplemental 2 to set a second 3-digit prefix. Then select the 3 digits using the numeric programming symbols The default is 000 (zeroes). User-Programmable Supplemental 1 User-Programmable Supplemental 2 9-19 HS-360X Handheld DPM Scanner User Manual...
  • Page 242 Scan the programming symbol below to set a decode redundancy value. Next, scan two Appendix H — Numeric Keyboard. Enter a leading numeric programming symbols in zero for single digit numbers. UPC/EAN/JAN Supplemental Redundancy 9-20 HS-360X Handheld DPM Scanner User Manual...
  • Page 243 • Combined – transmit UPC/EAN with supplementals with one AIM ID and one transmission, i.e.: ]E3<data+supplemental data> • Separate Transmissions - transmit UPC/EAN with supplementals with separate AIM IDs and separate transmissions, i.e.: ]E<0 or 4><data> ]E<1 or 2>[supplemental data] Separate Combined Separate Transmissions 9-21 HS-360X Handheld DPM Scanner User Manual...
  • Page 244 Scan one of the following programming symbols to enable or disable decoding UPC barcodes with reduced quiet zones. If you select Enable, select 1D Quiet Zone. Enable UPC Reduced Quiet Zone Disable UPC Reduced Quiet Zone 9-22 HS-360X Handheld DPM Scanner User Manual...
  • Page 245 Scan the appropriate programming symbol below to transmit the barcode data with or without the UPC-A check digit. It is always verified to guarantee the integrity of the data. Transmit UPC-A Check Digit Do Not Transmit UPC-A Check Digit 9-23 HS-360X Handheld DPM Scanner User Manual...
  • Page 246 Scan the appropriate programming symbol below to transmit the barcode data with or without the UPC-E check digit. It is always verified to guarantee the integrity of the data. Transmit UPC-E Check Digit Do Not Transmit UPC-E Check Digit 9-24 HS-360X Handheld DPM Scanner User Manual...
  • Page 247 Scan the appropriate programming symbol below to transmit the barcode data with or without the UPC-E1 check digit. It is always verified to guarantee the integrity of the data. Transmit UPC-E1 Check Digit Do Not Transmit UPC-E1 Check Digit 9-25 HS-360X Handheld DPM Scanner User Manual...
  • Page 248 USA), and transmit no preamble. Select the appropriate option to match the host system. No Preamble (<DATA>) System Character (<SYSTEM CHARACTER> <DATA>) System Character & Country Code (< COUNTRY CODE> <SYSTEM CHARACTER> <DATA>) 9-26 HS-360X Handheld DPM Scanner User Manual...
  • Page 249 USA), and transmit no preamble. Select the appropriate option to match the host system. No Preamble (<DATA>) System Character (<SYSTEM CHARACTER> <DATA>) System Character & Country Code (< COUNTRY CODE> <SYSTEM CHARACTER> <DATA>) 9-27 HS-360X Handheld DPM Scanner User Manual...
  • Page 250 USA), and transmit no preamble. Select the appropriate option to match the host system. No Preamble (<DATA>) System Character (<SYSTEM CHARACTER> <DATA>) System Character & Country Code (< COUNTRY CODE> <SYSTEM CHARACTER> <DATA>) 9-28 HS-360X Handheld DPM Scanner User Manual...
  • Page 251 After conversion, the data follows UPC-A format and is affected by UPC-A programming selections (e.g., Preamble, Check Digit). Disable this to transmit UPC-E decoded data as UPC-E data, without conversion. Convert UPC-E to UPC-A (Enable) Do Not Convert UPC-E to UPC-A (Disable) 9-29 HS-360X Handheld DPM Scanner User Manual...
  • Page 252 UPC-A format and is affected by UPC-A programming selections (e.g., Preamble, Check Digit). Disable this to transmit UPC-E1 decoded data as UPC-E1 data, without conversion. Convert UPC-E1 to UPC-A (Enable) Do Not Convert UPC-E1 to UPC-A (Disable) 9-30 HS-360X Handheld DPM Scanner User Manual...
  • Page 253 Enable this parameter to add five leading zeros to decoded EAN-8 symbols to make them compatible in format to EAN-13 symbols. Disable this to transmit EAN-8 symbols as is. Enable EAN/JAN Zero Extend Disable EAN/JAN Zero Extend 9-31 HS-360X Handheld DPM Scanner User Manual...

  • Page 254: Bookland Isbn Format

    Bookland ISBN-13 For Bookland EAN to function properly, first enable Bookland EAN using Enable/Disable Bookland EAN, then select either Decode UPC/EAN Supplementals, Autodiscriminate UPC/EAN Supplementals, or Enable 978/979 Supplemental Mode in Decode UPC/EAN/JAN Supplementals. 9-32 HS-360X Handheld DPM Scanner User Manual...

  • Page 255: Ucc Coupon Extended Code

    Coupon Codes. Enable UCC Coupon Extended Code Disable UCC Coupon Extended Code See UPC/EAN/JAN Supplemental Redundancy to control autodiscrimination of the GS1-128 (right half) of a coupon code. 9-33 HS-360X Handheld DPM Scanner User Manual...

  • Page 256: Coupon Report

    • Select New Coupon Format as an interim format to support UPC-A/GS1-DataBar and EAN-13/GS1-DataBar. • If you select Autodiscriminate Format, the scanner supports both Old Coupon Format and New Coupon Format. Old Coupon Format New Coupon Format Autodiscriminate Coupon Format 9-34 HS-360X Handheld DPM Scanner User Manual...

  • Page 257: Issn Ean

    Symbologies ISSN EAN Parameter # 617 To enable or disable ISSN EAN, scan the appropriate programming symbol below. Enable ISSN EAN Disable ISSN EAN 9-35 HS-360X Handheld DPM Scanner User Manual...

  • Page 258: Code 128

    Code 128 Code 128 Enable/Disable Code 128 Parameter # 8 To enable or disable Code 128, scan the appropriate programming symbol below. Enable Code 128 Disable Code 128 9-36 HS-360X Handheld DPM Scanner User Manual...

  • Page 259: Set Lengths For Code 128

    • Any Length - Select this option to decode Code 128 symbols containing any number of characters within the scanner’s capability. Code 128 - One Discrete Length Code 128 - Two Discrete Lengths 9-37 HS-360X Handheld DPM Scanner User Manual...
  • Page 260 Code 128 Code 128 - Length Within Range Code 128 - Any Length 9-38 HS-360X Handheld DPM Scanner User Manual...
  • Page 261 Symbologies Enable/Disable GS1-128 (formerly UCC/EAN-128) Parameter # 14 To enable or disable GS1-128, scan the appropriate programming symbol below. Enable GS1-128 Disable GS1-128 9-39 HS-360X Handheld DPM Scanner User Manual...
  • Page 262 ISBT 128 is a variant of Code 128 used in the blood bank industry. Scan a programming symbol below to enable or disable ISBT 128. If necessary, the host must perform concatenation of the ISBT data. Enable ISBT 128 Disable ISBT 128 9-40 HS-360X Handheld DPM Scanner User Manual...

  • Page 263: Isbt Concatenation

    ISBT Concatenation Redundancy before transmitting its data to confirm that there is no additional ISBT symbol. Disable ISBT Concatenation Enable ISBT Concatenation Autodiscriminate ISBT Concatenation 9-41 HS-360X Handheld DPM Scanner User Manual...

  • Page 264: Check Isbt Table

    If you set ISBT Concatenation to Enable, enable Check ISBT Table to concatenate only those pairs found in this table. Other types of ISBT codes are not concatenated. Enable Check ISBT Table Disable Check ISBT Table 9-42 HS-360X Handheld DPM Scanner User Manual...

  • Page 265: Isbt Concatenation Redundancy

    Scan the programming symbol below, then scan two numeric programming symbols in Appendix H — Numeric Keyboard to set a value between 2 and 20. Enter a leading zero for single digit numbers. ISBT Concatenation Redundancy 9-43 HS-360X Handheld DPM Scanner User Manual...

  • Page 266: Code 128 Security Level

    Selecting this level of security significantly impairs the decoding ability of the scanner. If this level of security is required, try to improve the quality of the barcodes. Code 128 Security Level 0 Code 128 Security Level 1 Code 128 Security Level 2 9-44 HS-360X Handheld DPM Scanner User Manual...
  • Page 267 Symbologies Code 128 Security Level 3 9-45 HS-360X Handheld DPM Scanner User Manual...
  • Page 268 Scan one of the following programming symbols to enable or disable decoding Code 128 barcodes with reduced quiet zones. If you select Enable, select 1D Quiet Zone Level. Enable Code 128 Reduced Quiet Zone Disable Code 128 Reduced Quiet Zone 9-46 HS-360X Handheld DPM Scanner User Manual...
  • Page 269 <FNC4> character from the decode data. The remaining characters are sent to the host unchanged. When disabled, the <FNC4> character is processed normally as per Code 128 standard. Enable Ignore Code 128 <FNC4> Disable Ignore Code 128 <FNC4> 9-47 HS-360X Handheld DPM Scanner User Manual...

  • Page 270: Code 39

    Code 39 Code 39 Enable/Disable Code 39 Parameter # 0 To enable or disable Code 39, scan the appropriate programming symbol below. Enable Code 39 Disable Code 39 9-48 HS-360X Handheld DPM Scanner User Manual...
  • Page 271 Trioptic Code 39 symbols always contain six characters. To enable or disable Trioptic Code 39, scan the appropriate programming symbol below. Note: You cannot enable Trioptic Code 39 and Code 39 Full ASCII simultaneously. Enable Trioptic Code 39 Disable Trioptic Code 39 9-49 HS-360X Handheld DPM Scanner User Manual...

  • Page 272: Convert Code 39 To Code 32

    Code 39 to Code 32. Code 39 must be enabled for this parameter to function. Enable Convert Code 39 to Code 32 Disable Convert Code 39 to Code 32 9-50 HS-360X Handheld DPM Scanner User Manual...

  • Page 273: Code 32 Prefix

    Scan the appropriate programming symbol below to enable or disable adding the prefix character “A” to all Code 32 barcodes. Convert Code 39 to Code 32 must be enabled for this parameter to function. Enable Code 32 Prefix Disable Code 32 Prefix 9-51 HS-360X Handheld DPM Scanner User Manual...

  • Page 274: Set Lengths For Code 39

    • Any Length - Select this option to decode Code 39 symbols containing any number of characters within the scanner’s capability. Code 39 - One Discrete Length Code 39 - Two Discrete Lengths Code 39 - Length Within Range 9-52 HS-360X Handheld DPM Scanner User Manual...
  • Page 275 Symbologies Code 39 - Any Length 9-53 HS-360X Handheld DPM Scanner User Manual...

  • Page 276: Code 39 Check Digit Verification

    Only Code 39 symbols which include a Modulo 43 check digit are decoded. Enable this feature if the Code 39 symbols contain a Modulo 43 check digit. Enable Code 39 Check Digit Disable Code 39 Check Digit 9-54 HS-360X Handheld DPM Scanner User Manual...

  • Page 277: Transmit Code 39 Check Digit

    Scan a programming symbol below to transmit Code 39 data with or without the check digit. Code 39 Check Digit Verification must be enabled for this parameter to function. Transmit Code 39 Check Digit (Enable) Do Not Transmit Code 39 Check Digit (Disable) 9-55 HS-360X Handheld DPM Scanner User Manual...

  • Page 278: Code 39 Full Ascii Conversion

    Code 39 Full ASCII to Full ASCII Correlation is host-dependent, and is therefore described in the ASCII Character Set Table for the appropriate interface. Enable Code 39 Full ASCII Disable Code 39 Full ASCII 9-56 HS-360X Handheld DPM Scanner User Manual...

  • Page 279: Code 39 Security Level

    Selecting this level of security significantly impairs the decoding ability of the scanner. If this level of security is required, try to improve the quality of the barcodes. Code 39 Security Level 0 Code 39 Security Level 1 Code 39 Security Level 2 9-57 HS-360X Handheld DPM Scanner User Manual...
  • Page 280 Code 39 Code 39 Security Level 3 9-58 HS-360X Handheld DPM Scanner User Manual...
  • Page 281 Scan one of the following programming symbols to enable or disable decoding Code 39 barcodes with reduced quiet zones. If you select Enable, select 1D Quiet Zone Level. Enable Code 39 Reduced Quiet Zone Disable Code 39 Reduced Quiet Zone 9-59 HS-360X Handheld DPM Scanner User Manual...

  • Page 282: Code 93

    Code 93 Code 93 Enable/Disable Code 93 Parameter # 9 To enable or disable Code 93, scan the appropriate programming symbol below. Enable Code 93 Disable Code 93 9-60 HS-360X Handheld DPM Scanner User Manual...

  • Page 283: Set Lengths For Code 93

    • Any Length - Scan this option to decode Code 93 symbols containing any number of characters within the scanner’s capability. Code 93 - One Discrete Length Code 93 - Two Discrete Lengths 9-61 HS-360X Handheld DPM Scanner User Manual...
  • Page 284 Code 93 Code 93 - Length Within Range Code 93 - Any Length 9-62 HS-360X Handheld DPM Scanner User Manual...

  • Page 285: Code 11

    Symbologies Code 11 Code 11 Parameter # 10 To enable or disable Code 11, scan the appropriate programming symbol below. Enable Code 11 Disable Code 11 9-63 HS-360X Handheld DPM Scanner User Manual...

  • Page 286: Set Lengths For Code 11

    • Any Length - Scan this option to decode Code 11 symbols containing any number of characters within the scanner’s capability. Code 11 - One Discrete Length Code 11 - Two Discrete Lengths 9-64 HS-360X Handheld DPM Scanner User Manual...
  • Page 287 Symbologies Code 11 - Length Within Range Code 11 - Any Length 9-65 HS-360X Handheld DPM Scanner User Manual...

  • Page 288: Code 11 Check Digit Verification

    To enable this feature, scan the programming symbol below corresponding to the number of check digits encoded in the Code 11 symbols. Disable One Check Digit Two Check Digits 9-66 HS-360X Handheld DPM Scanner User Manual...

  • Page 289: Transmit Code 11 Check Digits

    This feature selects whether or not to transmit the Code 11 check digit(s). Note: Code 11 Check Digit Verification must be enabled for this parameter to function. Transmit Code 11 Check Digit(s) (Enable) Do Not Transmit Code 11 Check Digit(s) (Disable) 9-67 HS-360X Handheld DPM Scanner User Manual...

  • Page 290: Interleaved 2 Of 5 (Itf)

    To enable or disable Interleaved 2 of 5, scan the appropriate programming symbol below, and select an Interleaved 2 of 5 length from the following pages. Enable Interleaved 2 of 5 Disable Interleaved 2 of 5 9-68 HS-360X Handheld DPM Scanner User Manual...

  • Page 291: Set Lengths For Interleaved 2 Of 5

    To prevent this, select specific lengths (I 2 of 5 - One Discrete Length, Two Discrete Lengths) for I 2 of 5 applications. I 2 of 5 - One Discrete Length I 2 of 5 - Two Discrete Lengths 9-69 HS-360X Handheld DPM Scanner User Manual...
  • Page 292 Interleaved 2 of 5 (ITF) I 2 of 5 - Length Within Range I 2 of 5 - Any Length 9-70 HS-360X Handheld DPM Scanner User Manual...

  • Page 293: I 2 Of 5 Check Digit Verification

    Enable this feature to check the integrity of all I 2 of 5 symbols to verify the data complies with either the specified Uniform Symbology Specification (USS), or the Optical Product Code Council (OPCC) check digit algorithm. Disable USS Check Digit OPCC Check Digit 9-71 HS-360X Handheld DPM Scanner User Manual...

  • Page 294: Transmit I 2 Of 5 Check Digit

    Scan the appropriate programming symbol below to transmit I 2 of 5 data with or without the check digit. Transmit I 2 of 5 Check Digit (Enable) Do Not Transmit I 2 of 5 Check Digit (Disable) 9-72 HS-360X Handheld DPM Scanner User Manual...

  • Page 295: Convert I 2 Of 5 To Ean

    EAN-13. To accomplish this, the I 2 of 5 code must be enabled, and the code must have a leading zero and a valid EAN-13 check digit. Convert I 2 of 5 to EAN-13 (Enable) Do Not Convert I 2 of 5 to EAN-13 (Disable) 9-73 HS-360X Handheld DPM Scanner User Manual...

  • Page 296: I 2 Of 5 Security Level

    If this level of security is required, try to improve the quality of the barcodes. I 2 of 5 Security Level 0 I 2 of 5 Security Level 1 I 2 of 5 Security Level 2 9-74 HS-360X Handheld DPM Scanner User Manual...
  • Page 297 Symbologies I 2 of 5 Security Level 3 9-75 HS-360X Handheld DPM Scanner User Manual...
  • Page 298 Scan one of the following programming symbols to enable or disable decoding I 2 of 5 barcodes with reduced quiet zones. If you select Enable, select 1D Quiet Zone Level. Enable I 2 of 5 Reduced Quiet Zone Disable I 2 of 5 Reduced Quiet Zone 9-76 HS-360X Handheld DPM Scanner User Manual...

  • Page 299: Discrete 2 Of 5 (Dtf)

    Discrete 2 of 5 (DTF) Enable/Disable Discrete 2 of 5 Parameter # 5 To enable or disable Discrete 2 of 5, scan the appropriate programming symbol below. Enable Discrete 2 of 5 Disable Discrete 2 of 5 9-77 HS-360X Handheld DPM Scanner User Manual...

  • Page 300: Set Lengths For Discrete 2 Of 5

    To prevent this, select specific lengths (D 2 of 5 - One Discrete Length, Two Discrete Lengths) for D 2 of 5 applications. D 2 of 5 - One Discrete Length D 2 of 5 - Two Discrete Lengths 9-78 HS-360X Handheld DPM Scanner User Manual...
  • Page 301 Symbologies D 2 of 5 - Length Within Range D 2 of 5 - Any Length 9-79 HS-360X Handheld DPM Scanner User Manual...

  • Page 302: Codabar (Nw - 7)

    Codabar (NW - 7) Codabar (NW - 7) Enable/Disable Codabar Parameter # 7 To enable or disable Codabar, scan the appropriate programming symbol below. Enable Codabar Disable Codabar 9-80 HS-360X Handheld DPM Scanner User Manual...

  • Page 303: Set Lengths For Codabar

    (enter a leading zero for single digit numbers). • Any Length - Scan this option to decode Codabar symbols containing any number of characters within the scanner’s capability. Codabar - One Discrete Length Codabar - Two Discrete Lengths 9-81 HS-360X Handheld DPM Scanner User Manual...
  • Page 304 Codabar (NW - 7) Codabar - Length Within Range Codabar - Any Length 9-82 HS-360X Handheld DPM Scanner User Manual...

  • Page 305: Clsi Editing

    14-character Codabar symbol. Enable this feature if the host system requires this data format. Note: Symbol length does not include start and stop characters. Enable CLSI Editing Disable CLSI Editing 9-83 HS-360X Handheld DPM Scanner User Manual...

  • Page 306: Notis Editing

    Parameter # 55 Enable this parameter to strip the start and stop characters from a decoded Codabar symbol. Enable this feature if the host system requires this data format. Enable NOTIS Editing Disable NOTIS Editing 9-84 HS-360X Handheld DPM Scanner User Manual...
  • Page 307 Symbologies Codabar Upper or Lower Case Start/Stop Characters Detection Parameter # 855 Select whether to detect upper case or lower case Codabar start/stop characters. Lower Case Upper Case 9-85 HS-360X Handheld DPM Scanner User Manual...

  • Page 308: Msi

    Enable/Disable MSI Parameter # 11 To enable or disable MSI, scan the appropriate programming symbol below. Enable MSI Disable MSI 9-86 HS-360X Handheld DPM Scanner User Manual...

  • Page 309: Set Lengths For Msi

    To prevent this, select specific lengths (MSI - One Discrete Length, Two Discrete Lengths) for MSI applications. MSI - One Discrete Length MSI - Two Discrete Lengths 9-87 HS-360X Handheld DPM Scanner User Manual...
  • Page 310 MSI - Length Within Range MSI - Any Length 9-88 HS-360X Handheld DPM Scanner User Manual...

  • Page 311: Msi Check Digits

    If the MSI codes include two check digits, scan the Two MSI Check Digits programming symbol to enable verification of the second check digit. One MSI Check Digit Two MSI Check Digits 9-89 HS-360X Handheld DPM Scanner User Manual...
  • Page 312 Transmit MSI Check Digit(s) Parameter # 46 Scan a programming symbol below to transmit MSI data with or without the check digit. Transmit MSI Check Digit(s) (Enable) Do Not Transmit MSI Check Digit(s) (Disable) 9-90 HS-360X Handheld DPM Scanner User Manual...

  • Page 313: Msi Check Digit Algorithm

    Two algorithms are possible for the verification of the second MSI check digit. Select the programming symbol below corresponding to the algorithm used to encode the check digit. MOD 10/MOD 11 MOD 10/MOD 10 9-91 HS-360X Handheld DPM Scanner User Manual...

  • Page 314: Chinese 2 Of 5

    Chinese 2 of 5 Enable/Disable Chinese 2 of 5 Parameter # 408 To enable or disable Chinese 2 of 5, scan the appropriate programming symbol below. Enable Chinese 2 of 5 Disable Chinese 2 of 5 9-92 HS-360X Handheld DPM Scanner User Manual...

  • Page 315: Matrix 2 Of 5

    Matrix 2 of 5 Enable/Disable Matrix 2 of 5 Parameter # 618 To enable or disable Matrix 2 of 5, scan the appropriate programming symbol below. Enable Matrix 2 of 5 Disable Matrix 2 of 5 9-93 HS-360X Handheld DPM Scanner User Manual...

  • Page 316: Set Lengths For Matrix 2 Of 5

    • Any Length - Scan this option to decode Matrix 2 of 5 symbols containing any number of characters within the scanner’s capability. Matrix 2 of 5 - One Discrete Length Matrix 2 of 5 - Two Discrete Lengths Matrix 2 of 5 - Length Within Range 9-94 HS-360X Handheld DPM Scanner User Manual...
  • Page 317 Symbologies Matrix 2 of 5 - Any Length 9-95 HS-360X Handheld DPM Scanner User Manual...

  • Page 318: Matrix 2 Of 5 Check Digit

    Scan the appropriate programming symbol below to transmit the barcode data with or without the Matrix 2 of 5 check digit. Enable Matrix 2 of 5 Check Digit Disable Matrix 2 of 5 Check Digit 9-96 HS-360X Handheld DPM Scanner User Manual...

  • Page 319: Transmit Matrix 2 Of 5 Check Digit

    Scan a programming symbol below to transmit Matrix 2 of 5 data with or without the check digit. Transmit Matrix 2 of 5 Check Digit Do Not Transmit Matrix 2 of 5 Check Digit 9-97 HS-360X Handheld DPM Scanner User Manual...

  • Page 320: Korean 3 Of 5

    To enable or disable Korean 3 of 5, scan the appropriate programming symbol below. Note: The length for Korean 3 of 5 is fixed at 6. Enable Korean 3 of 5 Disable Korean 3 of 5 9-98 HS-360X Handheld DPM Scanner User Manual...

  • Page 321: Inverse 1D

    • Regular Only - the scanner decodes regular 1D barcodes only. • Inverse Only - the scanner decodes inverse 1D barcodes only. • Inverse Autodetect - the scanner decodes both regular and inverse 1D barcodes. Regular Inverse Only Inverse Autodetect 9-99 HS-360X Handheld DPM Scanner User Manual...

  • Page 322: Gs1 Databar

    The limited and expanded versions have stacked variants. Scan the appropriate programming symbols to enable or disable each variant of GS1 DataBar. GS1 DataBar-14 Parameter # 338 Enable GS1 DataBar-14 Disable GS1 DataBar-14 9-100 HS-360X Handheld DPM Scanner User Manual...

  • Page 323: Gs1 Databar Limited

    Symbologies GS1 DataBar Limited Parameter # 339 Enable GS1 DataBar Limited Disable GS1 DataBar Limited GS1 DataBar Expanded Parameter # 340 Enable GS1 DataBar Expanded Disable GS1 DataBar Expanded 9-101 HS-360X Handheld DPM Scanner User Manual...
  • Page 324 Note that neither the system character nor the check digit can be stripped. Enable Convert GS1 DataBar to UPC/EAN Disable Convert GS1 DataBar to UPC/EAN 9-102 HS-360X Handheld DPM Scanner User Manual...

  • Page 325: Gs1 Databar Limited Security Level

    • Level 4 – Security level extends beyond the standard required by GS1. This level of security requires a 5 times leading and trailing clear margin. GS1 DataBar Limited Security Level 1 GS1 DataBar Limited Security Level 2 GS1 DataBar Limited Security Level 3 9-103 HS-360X Handheld DPM Scanner User Manual...
  • Page 326 GS1 DataBar GS1 DataBar Limited Security Level 4 9-104 HS-360X Handheld DPM Scanner User Manual...

  • Page 327: Bc412

    Symbologies BC412 Important: Decoder Effort must be set to Level 4 for the scanner to support BC412. To enable or disable BC412, scan the appropriate symbol below. Enable BC412 Disable BC412 9-105 HS-360X Handheld DPM Scanner User Manual...

  • Page 328: Composite

    Composite Composite Composite CC-C Parameter # 341 Scan a programming symbol below to enable or disable Composite barcodes of type CC-C. Enable CC-C Disable CC-C 9-106 HS-360X Handheld DPM Scanner User Manual...
  • Page 329 Symbologies Composite CC-A/B Parameter # 342 Scan a programming symbol below to enable or disable Composite barcodes of type CC-A/B. Enable CC-A/B Disable CC-A/B 9-107 HS-360X Handheld DPM Scanner User Manual...

  • Page 330: Composite Tlc

    Composite Composite TLC-39 Parameter # 371 Scan a programming symbol below to enable or disable Composite barcodes of type TLC-39. Enable TLC39 Disable TLC39 9-108 HS-360X Handheld DPM Scanner User Manual...

  • Page 331: Upc Composite Mode

    • If you select Autodiscriminate UPC Composites, the scanner determines if there is a 2D portion, then transmits the UPC, as well as the 2D portion if present. UPC Never Linked UPC Always Linked Autodiscriminate UPC Composites 9-109 HS-360X Handheld DPM Scanner User Manual...

  • Page 332: Composite Beep Mode

    To select the number of decode beeps when a composite barcode is decoded, scan the appropriate programming symbol. Single Beep after both are decoded Beep as each code type is decoded Double Beep after both are decoded 9-110 HS-360X Handheld DPM Scanner User Manual...
  • Page 333 GS1-128 Emulation Mode for UCC/EAN Composite Codes Parameter # 427 Select whether to enable or disable this mode. Enable GS1-128 Emulation Mode for UCC/EAN Composite Codes Disable GS1-128 Emulation Mode for UCC/EAN Composite Codes 9-111 HS-360X Handheld DPM Scanner User Manual...

  • Page 334: Pdf417

    2D Symbologies 2D Symbologies Enable/Disable PDF417 Parameter # 15 To enable or disable PDF417, scan the appropriate programming symbol below. Enable PDF417 Disable PDF417 9-112 HS-360X Handheld DPM Scanner User Manual...

  • Page 335: Micropdf417

    Symbologies Enable/Disable MicroPDF417 Parameter # 227 To enable or disable MicroPDF417, scan the appropriate programming symbol below. Enable MicroPDF417 Disable MicroPDF417 9-113 HS-360X Handheld DPM Scanner User Manual...

  • Page 336: Code 128 Emulation

    Scan a programming symbol below to enable or disable Code 128 Emulation. Linked Micro PDF codewords 906, 907, 912, 914, and 915 are not supported. Use GS1 Composites instead. Enable Code 128 Emulation Disable Code 128 Emulation 9-114 HS-360X Handheld DPM Scanner User Manual...

  • Page 337: Data Matrix

    Enable Data Matrix Disable Data Matrix GS1 Data Matrix Parameter # 1336 To enable or disable GS1 Data Matrix, scan the appropriate programming symbol below. * Disable GS1 Data Matrix Enable GS1 Data Matrix 9-115 HS-360X Handheld DPM Scanner User Manual...

  • Page 338: Data Matrix Inverse

    • Regular Only - The scanner decodes regular Data Matrix symbols only. • Inverse Only - The scanner decodes inverse Data Matrix symbols only. • Inverse Autodetect - The scanner decodes both regular and inverse Data Matrix symbols. Regular Inverse Only * Inverse Autodetect 9-116 HS-360X Handheld DPM Scanner User Manual...

  • Page 339: Maxicode

    Symbologies Maxicode Parameter # 294 To enable or disable Maxicode, scan the appropriate programming symbol below. Enable Maxicode Disable Maxicode 9-117 HS-360X Handheld DPM Scanner User Manual...

  • Page 340: Qr Code

    2D Symbologies QR Code Parameter # 293 Inverse QR symbols decode if QR Code is enabled. To enable or disable QR Code, scan the appropriate programming symbol below. Enable QR Code Disable QR Code 9-118 HS-360X Handheld DPM Scanner User Manual...

  • Page 341: Gs1 Qr

    Symbologies GS1 QR Parameter # 1343 To enable or disable, scan the appropriate programming symbol below. * Disable Enable 9-119 HS-360X Handheld DPM Scanner User Manual...

  • Page 342: Micro Qr Code

    2D Symbologies Micro QR Code Parameter # 573 To enable or disable Micro QR Code, scan the appropriate programming symbol below. Enable MicroQR Disable MicroQR 9-120 HS-360X Handheld DPM Scanner User Manual...

  • Page 343: Aztec

    Symbologies Aztec Parameter # 574 To enable or disable Aztec, scan the appropriate programming symbol below. Enable Aztec Disable Aztec 9-121 HS-360X Handheld DPM Scanner User Manual...

  • Page 344: Aztec Inverse

    • Regular Only - The scanner decodes regular Aztec symbols only. • Inverse Only - The scanner decodes inverse Aztec symbols only. • Inverse Autodetect - The scanner decodes both regular and inverse Aztec symbols. Regular Inverse Only * Inverse Autodetect 9-122 HS-360X Handheld DPM Scanner User Manual...

  • Page 345: Han Xin

    Symbologies Han Xin Parameter # 1167 To enable or disable Han Xin, scan the appropriate programming symbol below. Enable Han Xin Disable Han Xin 9-123 HS-360X Handheld DPM Scanner User Manual...

  • Page 346: Han Xin Inverse

    • Inverse Only - The decoder decodes Han Xin barcodes with inverse reflectance only. • Inverse Autodetect - The decoder decodes both regular and inverse Han Xin barcodes. * Regular Inverse Only Inverse Autodetect 9-124 HS-360X Handheld DPM Scanner User Manual...

  • Page 347: Dotcode

    Symbologies DotCode Important: Decoder Effort must be set to Level 4 for the scanner to support DotCode. To enable or disable DotCode, scan the appropriate symbol below. Enable DotCode Disable DotCode 9-125 HS-360X Handheld DPM Scanner User Manual...

  • Page 348: Us Postnet

    Postal Codes Postal Codes US Postnet Parameter # 89 To enable or disable US Postnet, scan the appropriate programming symbol below. Enable US Postnet Disable US Postnet 9-126 HS-360X Handheld DPM Scanner User Manual...

  • Page 349: Us Planet

    Symbologies US Planet Parameter # 90 To enable or disable US Planet, scan the appropriate programming symbol below. Enable US Planet Disable US Planet 9-127 HS-360X Handheld DPM Scanner User Manual...

  • Page 350: Transmit Us Postal Check Digit

    Select whether to transmit US Postal data, which includes both US Postnet and US Planet, with or without the check digit. Transmit US Postal Check Digit Do Not Transmit US Postal Check Digit 9-128 HS-360X Handheld DPM Scanner User Manual...

  • Page 351: Uk Postal

    Symbologies UK Postal Parameter # 91 To enable or disable UK Postal, scan the appropriate programming symbol below. Enable UK Postal Disable UK Postal 9-129 HS-360X Handheld DPM Scanner User Manual...

  • Page 352: Transmit Uk Postal Check Digit

    Transmit UK Postal Check Digit Parameter # 96 Select whether to transmit UK Postal data with or without the check digit. Transmit UK Postal Check Digit Do Not Transmit UK Postal Check Digit 9-130 HS-360X Handheld DPM Scanner User Manual...

  • Page 353: Japan Postal

    Symbologies Japan Postal Parameter # 290 To enable or disable Japan Postal, scan the appropriate programming symbol below. Enable Japan Postal Disable Japan Postal 9-131 HS-360X Handheld DPM Scanner User Manual...

  • Page 354: Australia Post

    Postal Codes Australia Post Parameter # 291 To enable or disable Australia Post, scan the appropriate programming symbol below. Enable Australia Post Disable Australia Post 9-132 HS-360X Handheld DPM Scanner User Manual...

  • Page 355: Australia Post Format

    • Numeric Encoding - Decode the Customer Information Field using the N Encoding Table. For more information on Australia Post encoding tables, refer to the Australia Post customer barcoding technical specifications available at: https://auspost.com.au/business/marketing-and-communications/bulk-mailouts/ barcoding-process. Autodiscriminate Raw Format Alphanumeric Encoding 9-133 HS-360X Handheld DPM Scanner User Manual...
  • Page 356 Postal Codes Numeric Encoding 9-134 HS-360X Handheld DPM Scanner User Manual...

  • Page 357: Netherlands Kix Code

    Symbologies Netherlands KIX Code Parameter # 326 To enable or disable Netherlands KIX Code, scan the appropriate programming symbol below. Enable Netherlands KIX Code Disable Netherlands KIX Code 9-135 HS-360X Handheld DPM Scanner User Manual...

  • Page 358: Usps 4Cb/One Code/Intelligent Mail

    Postal Codes USPS 4CB/One Code/Intelligent Mail Parameter # 592 To enable or disable USPS 4CB/One Code/Intelligent Mail, scan the appropriate programming symbol below. Enable USPS 4CB/One Code/Intelligent Mail Disable USPS 4CB/One Code/Intelligent Mail 9-136 HS-360X Handheld DPM Scanner User Manual...

  • Page 359: Upu Fics Postal

    Symbologies UPU FICS Postal Parameter # 611 To enable or disable UPU FICS Postal, scan the appropriate programming symbol below. Enable UPU FICS Postal Disable UPU FICS Postal 9-137 HS-360X Handheld DPM Scanner User Manual...

  • Page 360: Mailmark

    Postal Codes Mailmark Parameter # 1337 To enable or disable Mailmark, scan the appropriate programming symbol below. * Disable Mailmark Enable Mailmark 9-138 HS-360X Handheld DPM Scanner User Manual...

  • Page 361: Symbology-Specific Security Levels

    The following codes must be read three times: Code Type Code Length 4 characters or less D 2 of 5 8 characters or less I 2 of 5 8 characters or less Codabar 8 characters or less 9-139 HS-360X Handheld DPM Scanner User Manual...
  • Page 362 Symbology-Specific Security Levels Redundancy Level 4 The following code types must be successfully read three times before being decoded: Code Type Code Length Redundancy Level 1 Redundancy Level 2 Redundancy Level 3 Redundancy Level 4 9-140 HS-360X Handheld DPM Scanner User Manual...

  • Page 363: Security Level

    Selecting this level of security significantly impairs the decoding ability of the scanner. If you need this level of security, try to improve the quality of the barcodes. Security Level 0 Security Level 1 Security Level 2 9-141 HS-360X Handheld DPM Scanner User Manual...
  • Page 364 Symbology-Specific Security Levels Security Level 3 9-142 HS-360X Handheld DPM Scanner User Manual...
  • Page 365 • 3 - The scanner decodes anything in terms of quiet zone or end of barcode. 1D Quiet Zone Level 0 1D Quiet Zone Level 1 1D Quiet Zone Level 2 1D Quiet Zone Level 3 9-143 HS-360X Handheld DPM Scanner User Manual...

  • Page 366: Intercharacter Gap Size

    Due to various barcode-printing technologies, this gap can grow larger than the maximum size allowed, preventing the scanner from decoding the symbol. If this problem occurs, scan the Large Intercharacter Gaps parameter to tolerate these out-of-spec barcodes. Normal Intercharacter Gaps Large Intercharacter Gaps (10) 9-144 HS-360X Handheld DPM Scanner User Manual...

  • Page 367: Report Version

    Symbologies Report Version Scan the programming symbol below to report the version of software installed in the scanner. Report Software Version 9-145 HS-360X Handheld DPM Scanner User Manual...

  • Page 368: Macropdf Features

    MacroPDF mode. Flush Macro Buffer Abort MacroPDF Entry This clears all currently-stored MacroPDF data in the buffer without transmission and aborts from MacroPDF mode. Abort MacroPDF Entry 9-146 HS-360X Handheld DPM Scanner User Manual...

  • Page 369: Weblink Pc

    10 WebLink This section describes how to set up and use WebLink , Omron Microscan’s configuration software for the HS-360X Handheld DPM Scanner. Important: Full WebLink documentation is located in WebLink Help, which can be accessed by clicking the Question Mark icon at the upper right of the WebLink user interface.

  • Page 370: Set Up Hs-360X Host Interface

    Set Up HS-360X Host Interface Set Up HS-360X Host Interface Note: Cables may vary depending on configuration. HS-360X Wireless Scanner USB Host Interface HS-360X Wired Scanner USB Host Interface Scan one of the programming symbols below. The interface cable automatically detects the host interface type and uses the default setting.

  • Page 371: Install Weblink Pc

    The WebLink installer can be found in the following two locations: www.microscan.com/downloadcenter • On the Download Center at: • On the Omron Microscan Tools Drive: P/N 37-000010-01. 1. Download WebLink and follow the installation prompts. 2. Click on the WebLink icon to run the program.

  • Page 372: Connect To Weblink Pc

    , double-click the icon that was placed on your desktop during installation. You can also start WebLink by connecting the HS-360X to your PC, opening a browser of your choice, and typing http://localhost:8090 or http://127.0.0.1:8090 in the address bar. 10-4...

  • Page 373: Explore The Start View

    Number, and Firmware Version of each scanner are displayed. This view allows you to choose Assisted Setup, to Create a New Setup, or to Load a Setup. The Gear icon in the upper right brings up the Application Settings Menu. 10-5 HS-360X Handheld DPM Scanner User Manual...

  • Page 374: Create A New Setup Or Load An Existing Setup

    If no differences from default are found, you will see the Setup view. If differences from default are found, the following message will appear: Load a Setup Select Load a Setup to load an existing .rls WebLink setup file. 10-6 HS-360X Handheld DPM Scanner User Manual...

  • Page 375: Explore The Setup View

    The Setup view allows you to configure the scanner, view the current captured image, and view decoded symbol data. The following read cycle steps are shown at the left side of the screen: • Cycle • Performance • Decode • Format Output 10-7 HS-360X Handheld DPM Scanner User Manual...

  • Page 376: Configure Cycle Settings

    Presentation mode in the Cycle step allows you to enable or disable a Presentation Target, set the Hands-Free Decode Timeout, set the Timeout Between Decodes, and enable or disable a No Read Message. Note: The scanner is automatically set to Presentation mode when placed in the HS-360X Stand, shown below. 10-8...

  • Page 377: Configure Performance Settings

    Examples of Performance Configurations • Level 4 (Maximum) Decoder Effort; • Enhance – Shrink Dark pre-processing operation enabled; • Medium-sized pre-processing area; • Illumination Control set to Cycle. 10-9 HS-360X Handheld DPM Scanner User Manual...
  • Page 378 • Level 3 Decoder Effort; • Illumination Control set to Cycle. • Level 4 (Maximum) Decoder Effort; • Enhance – Shrink Dark pre-processing operation enabled; • Small pre-processing area; • Illumination Control set to Cycle. 10-10 HS-360X Handheld DPM Scanner User Manual...
  • Page 379 WebLink Clicking the Question Mark icon in the upper right corner of the Performance step editor brings up a dialog with more detail about each level of decoder effort. 10-11 HS-360X Handheld DPM Scanner User Manual...

  • Page 380: Configure Symbology And Decode Settings

    In the example below, the user has clicked on the image of the Data Matrix symbol, causing the 2D Codes menu to appear. 10-12 HS-360X Handheld DPM Scanner User Manual...
  • Page 381 WebLink Clicking the Gear icon to the right of the 1D Codes and 2D Codes checkboxes brings up a Symbology Settings dialog that allows you to modify specific parameters for each symbology. 10-13 HS-360X Handheld DPM Scanner User Manual...

  • Page 382: Configure Output Formatting

    Preamble or Postamble. You can also add a second Postamble if required. You can toggle between the two views by clicking directly on the words Advanced and Simplified in the lower right corner of the dialog. 10-14 HS-360X Handheld DPM Scanner User Manual...
  • Page 383 If Preamble or Postamble are enabled, the user-selected keyboard character value will appear in Output Data. In the example below, the CTRL I/HORIZ TAB value is set as Postamble 1, which is why it appears after the symbol data (ID20304092015). 10-15 HS-360X Handheld DPM Scanner User Manual...

  • Page 384: Run The Application

    The Output Data display in the right pane shows a list of previous read cycle results. Each result is selectable and erasable. Image Control Tools Image control tools are available at the upper right of the image view. 10-16 HS-360X Handheld DPM Scanner User Manual...

  • Page 385: Appendices

    Appendices HS-360X Handheld DPM Scanner User Manual...

  • Page 386: Appendix A - Standard Default Parameters

    Reconnect Attempt Interval 30 Seconds Auto-reconnect Auto-reconnect Immediately Beep on Insertion Enable Beep on <BEL> Enable Modes of Operation Point-to-Point (Point-to-Point/ Multipoint-to-Point) Parameter Broadcast (Cradle Host Only) Enable Pairing Modes Unlocked Pairing Methods Enable HS-360X Handheld DPM Scanner User Manual...
  • Page 387 Handheld Decode Aiming Pattern Enable Hands-free (Presentation) Decode Aiming Enable Hands-free (Presentation) Pattern Decode Aiming Pattern on PDF Picklist Mode Disabled Always FIPS Mode (HS-360X Wireless Only) Disable Continuous Barcode Read Disable Unique Barcode Reporting Enable HS-360X Handheld DPM Scanner User Manual...
  • Page 388 Cycle Illumination Imaging Preferences Operational Modes Image Size (Number of Pixels) Full JPEG Image Options Quality JPEG Target File Size 160 kB JPEG Quality and Size Value Image File Format Selection JPEG Image Rotation HS-360X Handheld DPM Scanner User Manual...
  • Page 389 Hardware Handshaking None Software Handshaking None Host Serial Response Time-out 2 Seconds RTS Line State Low RTS Beep on <BEL> Disable Intercharacter Delay 0 msec Nixdorf Beep/LED Options Normal Operation Ignore Unknown Characters Send Barcode HS-360X Handheld DPM Scanner User Manual...
  • Page 390 Combined UPC Reduced Quiet Zone 1289 Disable Transmit UPC-A Check Digit Enable Transmit UPC-E Check Digit Enable Transmit UPC-E1 Check Digit Enable UPC-A Preamble System Character UPC-E Preamble System Character UPC-E1 Preamble System Character HS-360X Handheld DPM Scanner User Manual...
  • Page 391 Set Length(s) for Code 93 26, 27 1 to 55 Code 11 Code 11 Disable Set Lengths for Code 11 28, 29 4 to 55 Code 11 Check Digit Verification Disable Transmit Code 11 Check Digit(s) Disable HS-360X Handheld DPM Scanner User Manual...
  • Page 392 Matrix 2 of 5 Lengths 4 to 55 Matrix 2 of 5 Check Digit Disable Transmit Matrix 2 of 5 Check Digit Disable Korean 3 of 5 Korean 3 of 5 Disable Inverse 1D Regular HS-360X Handheld DPM Scanner User Manual...
  • Page 393 Han Xin 1167 Disable Han Xin Inverse 1168 Regular Postal Codes US Postnet Disable US Planet Disable Transmit US Postal Check Digit Enable UK Postal Disable Transmit UK Postal Check Digit Enable Japan Postal Disable HS-360X Handheld DPM Scanner User Manual...
  • Page 394 Netherlands KIX Code Disable USPS 4CB/One Code/Intelligent Mail Disable UPU FICS Postal Disable Mailmark 1337 Disable Symbology-Specific Security Levels Redundancy Level Security Level 1D Quiet Zone Level 1288 Intercharacter Gap Size Normal Report Version A-10 HS-360X Handheld DPM Scanner User Manual...

  • Page 395: Appendix B - Country Codes

    Operating Systems (i.e., Windows 7 or higher). Programming symbols requiring a specific Windows OS are identified in their captions. Note: Use the French International programming symbol for Belgian French keyboards. US English (North American) US English (Mac) Albanian A-11 HS-360X Handheld DPM Scanner User Manual...
  • Page 396 Country Codes Arabic (101) Arabic (102) Arabic (102) AZERTY Azeri (Latin) Azeri (Cyrillic) A-12 HS-360X Handheld DPM Scanner User Manual...
  • Page 397 Appendices Belarusian Bosnian (Latin) Bosnian (Cyrillic) Bulgarian (Latin) Bulgarian Cyrillic (Typewriter) (Bulgarian -Windows XP Typewriter - Win 7 or higher) A-13 HS-360X Handheld DPM Scanner User Manual...
  • Page 398 Canadian French Win7 Canadian French (Legacy) Canadian Multilingual Standard Chinese (ASCII) Chinese (Simplified) * * For CJK keyboard types, see Appendix D — Chinese, Japanese, and Korean (CJK) Decode Control. Chinese (Traditional) * A-14 HS-360X Handheld DPM Scanner User Manual...
  • Page 399 Appendices Croatian Czech Czech (Programmer) Czech (QWERTY) Danish A-15 HS-360X Handheld DPM Scanner User Manual...
  • Page 400 Country Codes Dutch (Netherlands) Estonian Faeroese Finnish French (France) A-16 HS-360X Handheld DPM Scanner User Manual...
  • Page 401 French (Canada) 95/98 French (Canada) 2000/XP * * Note that there is also a country code programming symbol for Canadian Multilingual Standard. Select the appropriate programming symbol for your host system. Galician German A-17 HS-360X Handheld DPM Scanner User Manual...
  • Page 402 Country Codes Greek Latin Greek (220) Latin Greek (319) Latin Greek Greek (220) A-18 HS-360X Handheld DPM Scanner User Manual...
  • Page 403 Appendices Greek (319) Greek Polytonic Hebrew Israel Hungarian Hungarian_101KEY A-19 HS-360X Handheld DPM Scanner User Manual...

  • Page 404: Appendix D - Chinese, Japanese, And Korean (Cjk) Decode Control

    Country Codes Icelandic Irish Italian Italian (142) Japanese (ASCII) * For CJK keyboard types, see Appendix D — Chinese, Japanese, and Korean (CJK) Decode Control. A-20 HS-360X Handheld DPM Scanner User Manual...
  • Page 405 Appendices Japanese (SHIFT-JIS) * Kazakh Korean (ASCII) * For CJK keyboard types, see Appendix D — Chinese, Japanese, and Korean (CJK) Decode Control. Korean (Hangul) * Kyrgyz A-21 HS-360X Handheld DPM Scanner User Manual...
  • Page 406 Country Codes Latin American Latvian Latvian (QWERTY) Lithuanian Lithuanian (IBM) A-22 HS-360X Handheld DPM Scanner User Manual...
  • Page 407 Appendices Macedonian (FYROM) Maltese_47KEY Mongolian Norwegian Polish (214) A-23 HS-360X Handheld DPM Scanner User Manual...
  • Page 408 Country Codes Polish (Programmer) Portuguese (Brazil) (Windows XP) Portuguese (Brazilian ABNT) Portuguese (Brazilian ABNT2) Portuguese (Portugal) A-24 HS-360X Handheld DPM Scanner User Manual...
  • Page 409 Appendices Romanian (Windows XP) Romanian (Legacy) (Win 7 or higher) Romanian (Standard) (Win 7 or higher) Romanian (Programmer) (Win 7 or higher) Russian A-25 HS-360X Handheld DPM Scanner User Manual...
  • Page 410 Country Codes Russian (Typewriter) Serbian (Latin) Serbian (Cyrillic) Slovak Slovak (QWERTY) A-26 HS-360X Handheld DPM Scanner User Manual...
  • Page 411 Appendices Slovenian Spanish Spanish (Variation) Swedish Swiss French A-27 HS-360X Handheld DPM Scanner User Manual...
  • Page 412 Country Codes Swiss German Tatar Thai (Kedmanee) Turkish F Turkish Q A-28 HS-360X Handheld DPM Scanner User Manual...
  • Page 413 Appendices UK English Ukrainian US Dvorak US Dvorak Left US Dvorak Right A-29 HS-360X Handheld DPM Scanner User Manual...
  • Page 414 Country Codes US International Uzbek Vietnamese A-30 HS-360X Handheld DPM Scanner User Manual...
  • Page 415 Chinese (Simplified) Windows 936, GBK Chinese (Traditional) Windows 950, Big5 Czech Windows 1250 Czech Programmers Windows 1250 Czech QWERTY Windows 1250 Danish Windows 1252 Dutch Netherland Windows 1252 Estonian Windows 1257 Faeroese Windows 1252 A-31 HS-360X Handheld DPM Scanner User Manual...
  • Page 416 Kyrgyz Cyrillic Windows 1251 Latin America Windows 1252 Latvian Windows 1257 Latvian QWERTY Windows 1257 Lithuanian Windows 1257 Lithuanian_IBM Windows 1257 Macedonian -FYROM Windows 1251 Maltese_47KEY Windows 1252 Mongolian-Cyrillic Windows 1251 Norwegian Windows 1252 A-32 HS-360X Handheld DPM Scanner User Manual...
  • Page 417 Windows 1252 United States Windows 1252 US Dvorak Windows 1252 US Dvorak Left Hand Windows 1252 US Dvorak Right Hand Windows 1252 US International Windows 1252 Uzbek Cyrillic Windows 1251 Vietnamese Windows 1258 A-33 HS-360X Handheld DPM Scanner User Manual...
  • Page 418 Country Code Page Barcodes Scan the programming symbol corresponding to the country keyboard code page. Windows 1250 Latin 2, Central European Windows 1251 Cyrillic, Slavic Windows 1252 Latin 1, Western European Windows 1253 Greek A-34 HS-360X Handheld DPM Scanner User Manual...
  • Page 419 Appendices Windows 1254 Latin 5, Turkish Windows 1255 Hebrew Windows 1256 Arabic Windows 1257 Baltic Windows 1258 Vietnamese A-35 HS-360X Handheld DPM Scanner User Manual...
  • Page 420 Country Code Pages Windows 874 Thai Windows 20866 Cyrillic KOI8-R Windows 932 Japanese Shift-JIS Windows 936 Simplified Chinese GBK Windows 54936 Simplified Chinese GB18030 A-36 HS-360X Handheld DPM Scanner User Manual...
  • Page 421 Appendices Windows 949 Korean Hangul Windows 950 Traditional Chinese Big5 MS-DOS 437 Latin US MS-DOS 737 Greek MS-DOS 775 Baltic A-37 HS-360X Handheld DPM Scanner User Manual...
  • Page 422 Country Code Pages MS-DOS 850 Latin 1 MS-DOS 852 Latin 2 MS-DOS 855 Cyrillic MS-DOS 857 Turkish MS-DOS 860 Portuguese A-38 HS-360X Handheld DPM Scanner User Manual...
  • Page 423 Appendices MS-DOS 861 Icelandic MS-DOS 862 Hebrew MS-DOS 863 Canadian French MS-DOS 865 Nordic MS-DOS 866 Cyrillic A-39 HS-360X Handheld DPM Scanner User Manual...
  • Page 424 Country Code Pages MS-DOS 869 Greek 2 ISO 8859-1 Latin 1, Western European ISO 8859-2 Latin 2, Central European ISO 8859-3 Latin 3, Southern European ISO 8859-4 Latin 4, Northern European A-40 HS-360X Handheld DPM Scanner User Manual...
  • Page 425 Appendices ISO 8859-5 Cyrillic ISO 8859-6 Arabic ISO 8859-7 Greek ISO 8859-8 Hebrew ISO 8859-9 Latin 5, Turkish A-41 HS-360X Handheld DPM Scanner User Manual...
  • Page 426 Country Code Pages ISO 8859-10 Latin 6, Nordic ISO 8859-11 Thai ISO 8859-13 Latin 7, Baltic ISO 8859-14 Latin 8, Celtic ISO 8859-15 Latin 9 A-42 HS-360X Handheld DPM Scanner User Manual...
  • Page 427 Appendices ISO 8859-16 Latin 10, South-Eastern European UTF-8 UTF-16LE UTF-16 Little Endian UTF-16BE UTF-16 Big Endian Mac CP10000 Roman A-43 HS-360X Handheld DPM Scanner User Manual...
  • Page 428 Note: To support Unicode universal output, set up the registry table for the Windows host. • Output to Unicode Application Only - This method applies only to Unicode-expected applications, such as MS Word and WordPad, but not Notepad. * Universal Output Unicode Application Only A-44 HS-360X Handheld DPM Scanner User Manual...
  • Page 429 • Traditional Chinese Unicode Code Output (Windows XP) • Traditional Chinese Unicode Code Output (Windows 7) Note: The Unicode emulate output method depends on the host system (Windows XP or Windows 7). * Universal CJK Output A-45 HS-360X Handheld DPM Scanner User Manual...
  • Page 430 Simplified Chinese Unicode IME on the Windows host.) Chinese (Simplified) GBK Output Chinese (Simplified) Unicode Output Korean Unicode Output (50) (For Korean Unicode Output, select Simplified Chinese Unicode IME on the Windows host.) A-46 HS-360X Handheld DPM Scanner User Manual...
  • Page 431 Appendices Chinese (Traditional) Big5 Output (Windows XP) (17) Chinese (Traditional) Big5 Output (Windows 7) (19) Chinese (Traditional) Unicode Output (Windows XP) (18) Chinese (Traditional) Unicode Output (Windows 7) (20) A-47 HS-360X Handheld DPM Scanner User Manual...
  • Page 432 Note: Use this special country keyboard type to decode the non-CJK UTF-8 barcode. After decoding, re-configure the scanner to use the original country keyboard type. Use US English IME on Windows. Non-CJK UTF-8 Emulation Output A-48 HS-360X Handheld DPM Scanner User Manual...
  • Page 433 Default code page: CP1250 Missing characters: ș Ș ț Ț Country keyboard type: Portuguese-Brazilian (ABNT), Portuguese-Brazilian (ABNT2) Default code page: CP1252 ₢ Missing character: Country keyboard type: Azeri-Latin Default code page: CP1254 ə Ə Missing characters: A-49 HS-360X Handheld DPM Scanner User Manual...
  • Page 434 10. Select the language indicator in the system tray to select the desired country keyboard type. 11. Verify that the characters displayed on each country's keyboard appear. A-50 HS-360X Handheld DPM Scanner User Manual...
  • Page 435 • Select Unicode/GBK input on Windows 7: Chinese (Simplified) - Microsoft Pinyin New Experience Input Style, then select Tool Menu > Secondary Inputs > Unicode Input or GB Code Input. Unicode/GBK Input on Windows 7 A-51 HS-360X Handheld DPM Scanner User Manual...
  • Page 436 • Select Unicode input on Windows XP: Chinese (Traditional) - Unicode • Select Big5 input on Windows XP: Chinese (Traditional) - Big5 Code • Select Unicode/Big5 input on Windows 7: Chinese (Traditional) - New Quick. This option support both Unicode and Big5 input. A-52 HS-360X Handheld DPM Scanner User Manual...

  • Page 437: Appendix E - Programming Reference

    QR Code, MicroQR Maxicode US Postnet US Planet Japan Postal UK Postal Netherlands KIX Code Australia Post USPS 4CB/One Code/Intelligent Mail UPU FICS Postal Mailmark Han Xin GS1 Data Matrix GS1 QR Signature Capture A-53 HS-360X Handheld DPM Scanner User Manual...

  • Page 438: Aim Code Identifiers

    Bookland EAN, ISSN EAN, Trioptic Code 39, Chinese 2 of 5, Matrix 2 of 5, Korean 3 of 5, US Postnet, US Planet, UK Postal, Japan Postal, Australia Post, Netherlands KIX Code, USPS 4CB/One Code/ Intelligent Mail, UPU FICS Postal, Signature Capture, Mailmark A-54 HS-360X Handheld DPM Scanner User Manual...

  • Page 439: Modifier Characters

    Example: An MSI barcode 4123, with a single check digit checked, is transmitted as ]M14123 No options specified at this time. Always transmit 0. D 2 of 5 Example: A D 2 of 5 barcode 4123, is transmitted as ]S04123 A-55 HS-360X Handheld DPM Scanner User Manual...
  • Page 440 The data packet supports the ECI protocol. GS1-128 emulation Note: UPC portion of composite is transmitted using UPC rules. Data packet is a GS1-128 symbol (i.e., data is preceded with ]JC1). A-56 HS-360X Handheld DPM Scanner User Manual...
  • Page 441 Symbol in Mode 4 or 5. Symbol in Mode 2 or 3. MaxiCode Symbol in Mode 4 or 5, ECI protocol implemented. Symbol in Mode 2 or 3, ECI protocol implemented in secondary message. A-57 HS-360X Handheld DPM Scanner User Manual...
  • Page 442 Generic data, no special features are set. The transmitted data does not follow the AIM ECI protocol. Han Xin ECI protocol enabled. There is at least one ECI mode encoded. Transmitted data must follow the AIM ECI protocol. A-58 HS-360X Handheld DPM Scanner User Manual...

  • Page 443: Appendix F - Sample Symbols

    123ABC UPC/EAN UPC-A, 100% 12345 67890 EAN-13, 100% 3 4 5 6 7 8 9 0 1 2 3 4 0 Code 128 1 2 3 4 5 6 7 8 9 0 A-59 HS-360X Handheld DPM Scanner User Manual...

  • Page 444: Interleaved 2 Of 5

    Sample Symbols Interleaved 2 of 5 12345678901231 GS1 DataBar-14 DataBar-14 must be enabled to read the barcode below. PDF417 Data Matrix Maxicode A-60 HS-360X Handheld DPM Scanner User Manual...
  • Page 445 Appendices QR Code US Postnet UK Postal A-61 HS-360X Handheld DPM Scanner User Manual...

  • Page 446: Appendix G - Alphanumeric Keyboard

    Alphanumeric Keyboard Appendix G — Alphanumeric Keyboard Alphanumeric Programming Symbols Space A-62 HS-360X Handheld DPM Scanner User Manual...
  • Page 447 Appendices “ & ‘ A-63 HS-360X Handheld DPM Scanner User Manual...
  • Page 448 Alphanumeric Keyboard < > A-64 HS-360X Handheld DPM Scanner User Manual...
  • Page 449 Appendices A-65 HS-360X Handheld DPM Scanner User Manual...
  • Page 450 Alphanumeric Keyboard Important: Do not confuse the following programming symbols with those on the numeric keypad. A-66 HS-360X Handheld DPM Scanner User Manual...
  • Page 451 Appendices End of Message Cancel A-67 HS-360X Handheld DPM Scanner User Manual...
  • Page 452 Alphanumeric Keyboard A-68 HS-360X Handheld DPM Scanner User Manual...
  • Page 453 Appendices A-69 HS-360X Handheld DPM Scanner User Manual...
  • Page 454 Alphanumeric Keyboard A-70 HS-360X Handheld DPM Scanner User Manual...
  • Page 455 Appendices A-71 HS-360X Handheld DPM Scanner User Manual...
  • Page 456 Alphanumeric Keyboard A-72 HS-360X Handheld DPM Scanner User Manual...
  • Page 457 Appendices A-73 HS-360X Handheld DPM Scanner User Manual...
  • Page 458 Alphanumeric Keyboard A-74 HS-360X Handheld DPM Scanner User Manual...
  • Page 459 Appendices A-75 HS-360X Handheld DPM Scanner User Manual...
  • Page 460 Alphanumeric Keyboard A-76 HS-360X Handheld DPM Scanner User Manual...

  • Page 461: Appendix H - Numberic Keyboard

    Appendices Appendix H — Numeric Keyboard Numeric Programming Symbols For parameters requiring specific numeric values, scan the appropriately numbered programming symbol(s). A-77 HS-360X Handheld DPM Scanner User Manual...
  • Page 462 Numeric Keyboard Cancel To correct an error or change a selection, scan the programming symbol below. Cancel A-78 HS-360X Handheld DPM Scanner User Manual...

  • Page 463: Appendix I - Ascii Character Sets

    CTRL Z 1027 CTRL [ 1028 CTRL \ 1029 CTRL ] 1030 CTRL 6 1031 CTRL - The keystroke in bold transmits only if you enabled Function Key Mapping. Otherwise, the non-bold keystroke transmits. A-79 HS-360X Handheld DPM Scanner User Manual...
  • Page 464 1052 1053 1054 1055 1056 1057 1058 1059 1060 < 1061 1062 > 1063 1064 1065 The keystroke in bold transmits only if you enabled Function Key Mapping. Otherwise, the non-bold keystroke transmits. A-80 HS-360X Handheld DPM Scanner User Manual...
  • Page 465 1085 1086 1087 1088 1089 1090 1091 1092 1093 1094 1095 1096 ‘ 1097 1098 1099 The keystroke in bold transmits only if you enabled Function Key Mapping. Otherwise, the non-bold keystroke transmits. A-81 HS-360X Handheld DPM Scanner User Manual...
  • Page 466 The keystroke in bold transmits only if you enabled Function Key Mapping. Otherwise, the non-bold keystroke transmits. ALT Keys Keystroke 2050 ALT 2 2054 ALT 6 2064 ALT @ 2065 ALT A 2066 ALT B A-82 HS-360X Handheld DPM Scanner User Manual...
  • Page 467 Note: GUI Shift Keys - The Apple™ iMac keyboard has an apple key on either side of the space bar. Windows-based systems have a GUI key to the left of the left ALT key, and to the right of the right ALT key. A-83 HS-360X Handheld DPM Scanner User Manual...
  • Page 468 Note: GUI Shift Keys - The Apple™ iMac keyboard has an apple key on either side of the space bar. Windows-based systems have a GUI key to the left of the left ALT key, and to the right of the right ALT key. A-84 HS-360X Handheld DPM Scanner User Manual...
  • Page 469 Note: GUI Shift Keys - The Apple™ iMac keyboard has an apple key on either side of the space bar. Windows-based systems have a GUI key to the left of the left ALT key, and to the right of the right ALT key. A-85 HS-360X Handheld DPM Scanner User Manual...
  • Page 470 4006 PF 6 4007 PF 7 4008 PF 8 4009 PF 9 4010 PF 10 4011 PF 11 4012 PF 12 4013 PF 13 4014 PF 14 4015 PF 15 4016 PF 16 A-86 HS-360X Handheld DPM Scanner User Manual...
  • Page 471 5014 F 14 5015 F 15 5016 F 16 5017 F 17 5018 F 18 5019 F 19 5020 F 20 5021 F 21 5022 F 22 5023 F 23 5024 F 24 A-87 HS-360X Handheld DPM Scanner User Manual...
  • Page 472 ASCII Character Sets Numeric Keypad Keystroke 6042 6043 6044 Undefined 6045 6046 6047 6048 6049 6050 6051 6052 6053 6054 6055 6056 6057 6058 Enter 6059 Num Lock A-88 HS-360X Handheld DPM Scanner User Manual...
  • Page 473 Pg Dn 7006 Pause 7007 Scroll Lock 7008 Backspace 7009 7010 Print Screen 7011 Insert 7012 Home 7013 Enter 7014 Escape 7015 Up Arrow 7016 Dn Arrow 7017 Left Arrow 7018 Right Arrow A-89 HS-360X Handheld DPM Scanner User Manual...

  • Page 474: Appendix J - Non-Parameter Attributes

    Date of device manufacture assigned in the manufacturing facility. This electronic output matches the printout on the physical device label, for example 30APR14 (which reads the 30th of April 2014). Type Size (Bytes) User Mode Access R Values Variable A-90 HS-360X Handheld DPM Scanner User Manual...
  • Page 475 Beep / LED Action Value 1 high short beep 2 high short beeps 3 high short beeps 4 high short beeps 5 high short beeps 1 low short beep 2 low short beeps A-91 HS-360X Handheld DPM Scanner User Manual...
  • Page 476 Parameter Defaults Attribute #6001 This attribute restores all parameters to their factory defaults. Type Size (Bytes) User Mode Access Values 0 = Restore Defaults 1 = Restore Factory Defaults 2 = Write Custom Defaults A-92 HS-360X Handheld DPM Scanner User Manual...

  • Page 477: Firmware Version

    1 = Start Host Trigger Session 0 = Stop Host Trigger Session Firmware Version Attribute #20004 The scanner's operating system version. For example, NBRFMAAC or PAAAABS00-007-R03D0. Type Size (Bytes) Variable User Mode Access Values Variable A-93 HS-360X Handheld DPM Scanner User Manual...
  • Page 478 All rights reserved. The information contained herein is proprietary and is provided solely for the purpose of allowing customers to operate and/or service Omron Microscan-manufactured equipment and is not to be released, reproduced, or used for any other purpose without written permission of Omron Microscan.

Table of Contents
