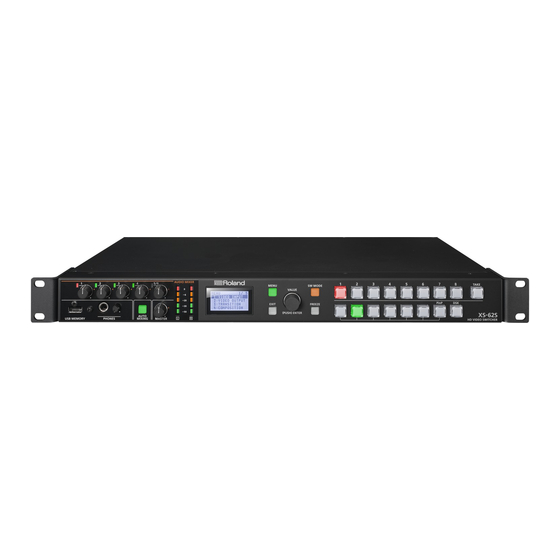

Roland XS-62S Reference Manual

Hd video switcher
Hide thumbs Also See for XS-62S:
Table of Contents

Advertisement

Quick Links

See also: Owner's Manual
Reference Manual
Contents
2
2
5
7
8
9
10
12
14
15
16
17
18
19
20
21
22
23
25
25
25
25
26
27
27
27
28
29
32
© 2018 Roland Corporation

Advertisement

Table of Contents
loading

Related Manuals for Roland XS-62S

Summary of Contents for Roland XS-62S

  • Page 1: Table Of Contents

    8: AUDIO FOLLOW Command Format 9: AUDIO EMBEDDED List of Commands 10: AUDIO AUTO MIXING 11: MODE Limitations in each Operating Mode 12: PRESET MEMORY 13: REMOTE 14: LAN CONTROL 15: USB MEMORY 16: CAPTURE IMAGE 17: SYSTEM © 2018 Roland Corporation...

  • Page 2: Menu List

    Menu List Pressing the [MENU] button makes the menu appear on the built-in display. If the HDMI OUT 3 connector’s OUTPUT ASSIGN (p. 5) is set to “MULTI- VIEW, ” the OSD menu appears. Built-in display (Menu) Multi-view monitor (OSD menu) MEMO 5 By turning the [VALUE] knob while pressing it, you can change the value more greatly.
  • Page 3 Menu List Menu item Value (bold text: default value) Explanation INTERNAL, 800 x 600, 1024 x 768, 1200 x 800, 1366 x 768, 1280 x 1024, EDID This sets the input format (EDID) for the HDMI IN 5 connector. 1400 x 1050, 1600 x 1200, 1920 x 1200, 720p, 1080i, 1080p (*1) The range of this value varies according to conditions such as the input/output format.
  • Page 4 Menu List Menu item Value (bold text: default value) Explanation STILL/BKG IN 7/8 This assigns a still image or monochrome picture (background color) to channel STILL IMAGE 1, STILL IMAGE 2, 7 or 8. INPUT 7 ASSIGN BACKGROUND This selects the memory where a still image is saved STILL IMAGE 1, and assigns the image.

  • Page 5: 2: Video Output

    Menu List 2: VIDEO OUTPUT Menu item Value (bold text: default value) Explanation SDI OUT 1, 2 This displays the video format. OUTPUT STATUS — When “HDCP” (p. 23) is set to “ON, ” “HDCP MASKED” is displayed and no video is output from the SDI OUT connectors.
  • Page 6 Menu List Menu item Value (bold text: default value) Explanation This always displays the picture expanded to full screen, irrespective of the aspect ratio of FULL the input video. This enlarges or reduces the incoming video to a full-screen view while keeping the LETTERBOX aspect ratio unchanged.

  • Page 7: 3: Transition

    Menu List 3: TRANSITION Menu item Value (bold text: default value) Explanation TIME 0.0–1 0–4.0 sec This sets the video transition time. CUT, MIX, WIPE TYPE This sets the type of video transition. MIX, FAM, NAM MIX TYPE This specifies the mix pattern. H-DOWN, H-UP, V-RIGHT, V-LEFT, H-IN, H-OUT, V-IN, V-OUT, R-DOWN, L-DOWN, R-UP, L-UP, BLOCK, V-GRID, H-GRID, This specifies the wipe pattern.

  • Page 8: 4: Composition

    Menu List 4: COMPOSITION Menu item Value (bold text: default value) Explanation COMPOSITION PinP, SPLIT This selects the type of video composition. TYPE This sets the size of the inset screen. The horizontal width (and vertical height) of 1/4, 1/3, 1/2 PinP SIZE the inset screen are set to 1/2, 1/3, or 1/4 the size values of the background video.

  • Page 9: 5: Dsk

    Menu List 5: DSK Menu item Value (bold text: default value) Explanation SDI IN 1–SDI IN 4, HDMI IN 5, During DSK compositing, this specifies the channel of the overlaid logo or image. DSK SOURCE CH HDMI/ANLG IN 6, STILL/BKG IN Setting this to “STL/BKG IN 7”...

  • Page 10: 6: Audio Input

    This adjusts head amp gain. Head amp gain adjusts analog audio. This adjusts digital gain. Digital gain adjusts digital audio internally converted from analog to DIGITAL GAIN -42.0–0 0–42.0dB digital in the XS-62S. -INF–10.0dB PGM LEVEL This adjusts the level that is output to the PGM/1 bus. PVW LEVEL -INF–10.0dB...
  • Page 11 Menu List Value (bold text: default Menu item Explanation value) AUDIO IN 5/6, SDI IN 1–SDI IN 4, HDMI IN 5, HDMI IN 6 0–42.0dB DIGITAL GAIN -42.0–0 This adjusts digital gain. PGM LEVEL -INF–10.0dB This adjusts the level that is output to the PGM/1 bus. PVW LEVEL -INF–10.0dB This adjusts the level that is output to the PVW/2 bus.

  • Page 12: 7: Audio Output

    Menu List 7: AUDIO OUTPUT Menu item Value (bold text: default value) Explanation OUTPUT ASSIGN This specifies the audio bus assigned to the AUDIO OUT connectors (XLR), AUDIO OUT AUDIO OUT (XLR) PGM/1, PVW/2, AUX/3 connectors (RCA), and PHONES connector. PGM/1 This outputs only the audio on the PGM/1 bus.
  • Page 13 Menu List Menu item Value (bold text: default value) Explanation PVW LEVEL -INF–10.0dB This adjusts the volume level for PVW/2 bus. OFF, ON PVW MUTE This sets the Mute feature on or off. Setting this to “ON” mutes PVW/2 bus. 0–15.0dB EQ Hi -15.0–0...

  • Page 14: 8: Audio Follow

    Menu List 8: AUDIO FOLLOW Menu item Value (bold text: default value) Explanation This switches the Audio Follow feature on or off. SDI IN 1–SDI IN 4 OFF, ON Video channels for which this is set to “ON” are automatically muted when video on HDMI IN 5, 6 another channel is output.

  • Page 15: 9: Audio Embedded

    Menu List 9: AUDIO EMBEDDED Value (bold text: default Menu item Explanation value) This specifies the type of input audio sent to the SDI embedded-audio channels (3–8). No audio is sent. This sends the source audio with no effects applied. This sends the effect-applied audio.

  • Page 16: 10: Audio Auto Mixing

    Menu List 10: AUDIO AUTO MIXING Value (bold text: default Menu item Explanation value) AUTO MIXING OFF, ON This switches the Auto Mixing feature on or off. AUDIO IN 1 SW– OFF, AUDIO IN 4 SW AUDIO IN 5/6 SW SDI IN 1 SW–...

  • Page 17: 11: Mode

    Menu List 11: MODE Value (bold text: default Menu item Explanation value) You can select the preset video (the video to be output next) for the PVW/2 bus, and after PGM-PST checking that video, output it to the PGM/1 bus. MODE DISSOLVE You can select the video that you want to output, and immediately output it to the PGM/1 bus.

  • Page 18: 12: Preset Memory

    Menu List 12: PRESET MEMORY Value (bold text: default Menu item Explanation value) This selects the preset memory to load. Pressing the [VALUE] knob lets you load the preset LOAD (*14) MEMORY 1–MEMORY 8 memory. This selects a preset memory for saving settings. Pressing the [VALUE] knob lets you save the settings to the preset memory.

  • Page 19: 13: Remote

    This saves settings in the remote camera. This resets the connection settings of the remote camera. If remote cameras are connected in a CAM RESET (EXEC) daisy-chain, the ID of each is reassigned starting with the camera that is closest to the XS-62S.

  • Page 20: 14: Lan Control

    Menu List 14: LAN CONTROL Value (bold text: default Menu item Explanation value) This sets whether the IP address and subnet mask are obtained automatically (USING DHCP) or CONFIGURE USING DHCP MANUALLY, set manually (MANUALLY). IP ADDRESS (*15) 192 168 2 254 This sets the IP address.

  • Page 21: 15: Usb Memory

    Menu List 15: USB MEMORY Value (bold text: default Menu item Explanation value) The USB LOAD screen appears. LOAD PRESET (ENTER) This loads a settings file (.X62) that is on the USB flash drive into the unit. The USB SAVE screen appears. SAVE PRESET (ENTER) This saves settings, overwriting the selected settings file (.X62) on the USB flash drive.

  • Page 22: 16: Capture Image

    Menu List 16: CAPTURE IMAGE Value (bold text: default Menu item Explanation value) INPUT 1–INPUT 6 CAPTURE SOURCE This specifies the input video to use for still-image capture. STILL IMAGE This selects the memory to use as the destination for saving the captured still image. TARGET STORAGE NO STILL IMAGE 2 * A “...

  • Page 23: 17: System

    94Hz, 50Hz FRAME RATE This sets the frame rate. This specifies the system format for the XS-62S. The input and output formats of the respective connectors are determined according to the system format, as shown in the table below. Input format...
  • Page 24 A “ “ symbol is displayed for memory where a still image is already saved. This sets the Auto Off function on or off. The power to the XS-62S turns off automatically when all of the following states persist for 240 minutes.

  • Page 25: Control Using The Tally/Gpio And Rs-422 Connector

    Inputting a Control Signal Outputting Tally Signals or Control Signals To operate the XS-62S remotely using control-signal input, you first Tally signals or GPO control signals can be output from the TALLY/ assign the function to a GPI channel (1 through 8).

  • Page 26: Remote Control Of A Visca-Compatible Video Camera

    Control Using the TALLY/GPIO and RS-422 Connector Remote Control of a VISCA-compatible Video Camera You can connect a VISCA-compatible video camera to the RS-422 connector on the XS-62S and operate the video camera by remote control. * VISCA is sometimes indicated as “standard protocol. ”...

  • Page 27: Lan/Rs-232 Command Reference

    RS-232. Using the CONTROL port (LAN) or RS-232 connector to send Select the [MENU] button 0 ”LAN CONTROL” 0 specific commands to the XS-62S from a controlling device lets you operate the XS-62S remotely. “INFORMATION.” With the cursor positioned at “ENTER,” press the LAN Interface [VALUE] knob.

  • Page 28: Command Format

    “ , “ (comma) characters. This is the code that the XS-62S recognizes as the end of a command. * The codes of stx (02H), ACK (06H), and XON (11H)/ XOFF (13H) are the control codes.

  • Page 29: List Of Commands

    LAN/RS-232 Command Reference List of Commands * When sending a sequence of commands to the XS-62S from a controller, after each one, be sure to verify that an “ACK” response is returned before sending the next command. Video-related operations Sent...
  • Page 30 LAN/RS-232 Command Reference Sent Response Item Parameter command command When the split composition pattern is “V-CENTER” This adjusts the display position in the horizontal direction. -250–250 final output video (video on the left) During split composition, -250–250 preset video (video on the right) adjust the display position of stxSPT:a,b;...
  • Page 31 4 (MEMORY5), 5 (MEMORY6), 6 (MEMORY7), 7 (MEMORY8) strVER:,a; Version information stxVER; (The version info is ASCII text strings.) Acquire status of XS-62S stxACS; – Commands spontaneously sent from the XS-62S Sent Response Item Parameter command command 0 (syntax error, The received command contains an error.) Error detected –...

  • Page 32: Limitations In Each Operating Mode

    Limitations in each Operating Mode Depending on the video switching operation mode, there are limitations on the video and audio that can be output, and on the operations that can be performed. Output Video Buses and Audio Buses Operation mode PGM-PST DISSOLVE MATRIX...
  • Page 33 Limitations in each Operating Mode Operation mode Item PGM-PST DISSOLVE MATRIX Sent command Set the EDID stxEDD:a,b; Input scaling type setting stxVIA:a,b; Resolution setting for scaler out stxVOR:a; * Returns an error (strERR:4;) if the HDMI OUT 3 connector’s “OUTPUT ASSIGN” (p.
  • Page 34 GPO output stxGPO:a,b; Operation mode for video stxMOD:a; transition Camera control stxCAM:a,b; Version information stxVER; Acquire status of XS-62S stxACS; Commands spontaneously sent from the XS-62S Operation mode Item PGM-PST DISSOLVE MATRIX Sent command Error detected Flow control stxXON; Flow control...
