- Page 1 INSTRUCTION MANUAL BX Stud Punch Read and understand all of the instructions and safety information in this manual before operating or servicing this tool. 999 4265.8 © 2002 Greenlee Textron IM 1544 REV 1 5/02...
-
Page 2: Important Safety Information

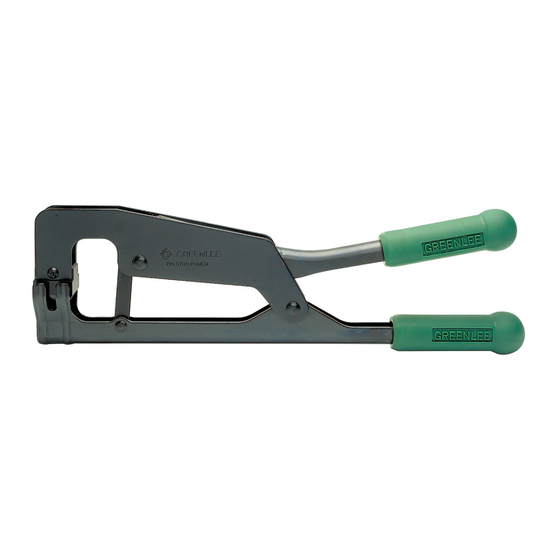

Do not use tool on heavier than 20 gauge mild steel. Note: Keep all decals clean and legible, and replace when necessary. KEEP THIS MANUAL Greenlee Textron / Subsidiary of Textron Inc. 4455 Boeing Dr. • Rockford, IL 61109-2988 USA • 815/397-7070... - Page 3 724 BX Stud Punch Description Operation The Greenlee 724 BX Stud Punch is intended to make 1. Position the punch on the metal stud. 32 mm (1-1/4") square holes in metal studs with a 2. Squeeze the handles together. The punch makes a 20 gauge maximum (0.0359") thickness.
- Page 4 Grip ....................2 500 1585.0 Decal, capacity (not shown) .............. 1 Greenlee Textron / Subsidiary of Textron Inc. 4455 Boeing Drive, Rockford, IL 61109-2988 USA Customer Service (International): 815/397-7070 • Fax: 815/397-9247 Customer Service (North America): 800/435-0786 • USA Fax: 800/451-2632, 815/397-1865 Canada Fax: 800/524-2853 www.greenlee.textron.com...
